Manual d'usuari

1. Introducció

The Eden FES 200 external filter is designed for efficient water filtration and treatment in both freshwater and saltwater aquariums up to 200 liters. This filter combines high filtration performance with a compact design, allowing for flexible placement next to, behind, or below the aquarium cabinet.

It features a silent, energy-saving motor protected against overheating by a thermal switch. Stable rubber feet ensure secure placement and minimize vibrations. The self-ventilated system simplifies installation and restarting. The filter chambers are equipped with various filter media for multi-stage mechanical pre-filtration and biological treatment using ceramic filter material.

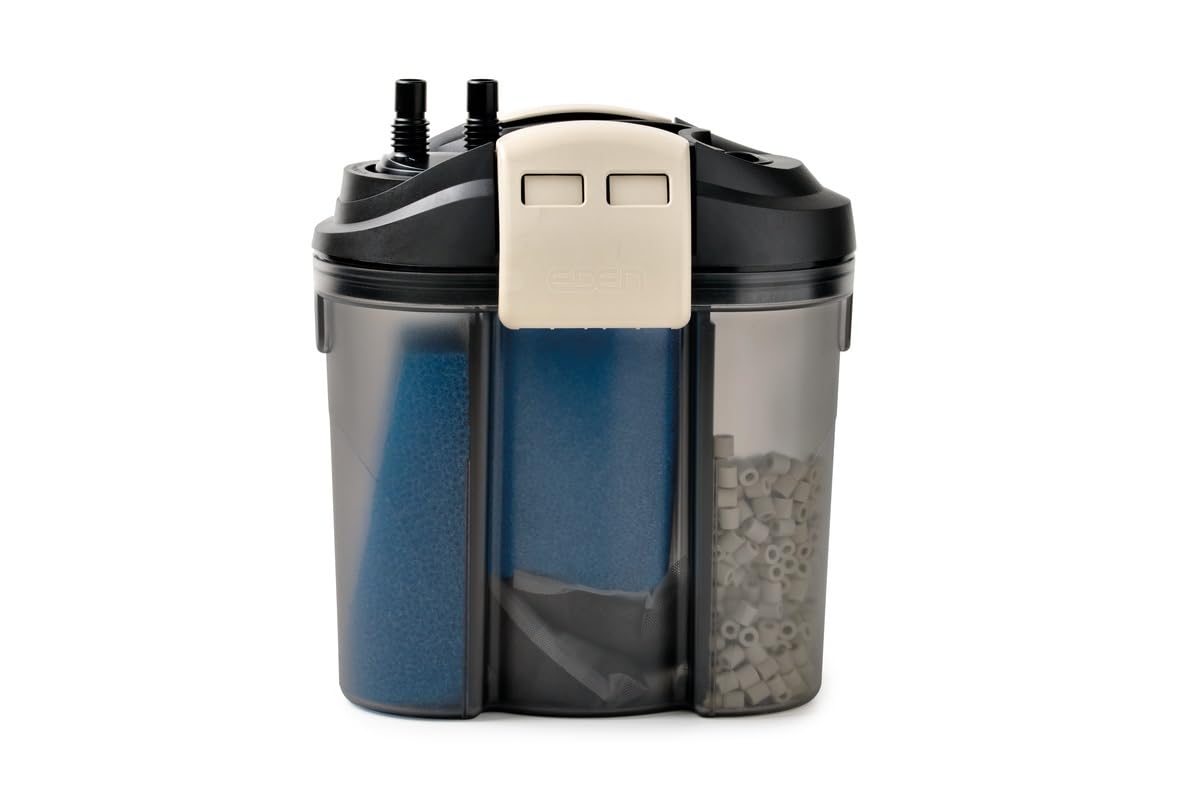

Image 1: Eden FES 200 External Filter. This image shows the compact design of the filter unit with its two media chambers and connection points.

2. Instruccions de seguretat

• Always disconnect the filter from the power supply before performing any maintenance, cleaning, or installation.
• Assegureu-vos que tingueu les mans seques quan manipuleu components elèctrics.
• No feu funcionar el filtre si el cable d'alimentació o l'endoll estan danyats.
• The filter is designed for indoor use only, specifically for aquariums. Do not use it for other purposes.
• Ensure the filter is placed on a stable, level surface to prevent tipping.
• Mantingueu el filtre fora de l'abast dels nens i les mascotes.
• Never run the filter dry. Always ensure it is filled with water before starting.

3. Contingut del paquet

Please check that all components are present in the package:

• Eden FES 200 External Filter Unit
• Mànega d’entrada
• Outlet hose (with multiple fine discharge openings for oxygen absorption)
• Parts de connexió
• Diffuser (alternative to outlet hose)
• Various filter media (mechanical and ceramic biological media)
• Adapter unit with automatic stop system and integrated flow control
• Manual d'instruccions

4. Configuració i instal·lació

1. Prepare Filter Media: Open the filter unit and rinse all filter media thoroughly under tap water to remove any manufacturing dust. Arrange the media in the designated chambers according to the instructions provided on the packaging or in the quick start guide (typically mechanical filtration first, then biological).
2. Col·loca el filtre: Place the Eden FES 200 filter on a stable, level surface. It can be positioned next to, behind, or below the aquarium. Ensure there is enough space for hose connections and maintenance.
3. Connecteu les mànegues: Connect the inlet and outlet hoses to the adapter unit. The adapter unit features an automatic stop system and integrated flow control. Securely attach the other ends of the hoses to the appropriate inlet and outlet pipes within your aquarium. Ensure all connections are tight to prevent leaks.
4. Omplir amb aigua: Before connecting to power, ensure the filter unit is filled with water. The self-ventilated system facilitates this process. You can prime the filter by manually filling the unit or by creating a siphon from the aquarium.
5. Connexions segures: Double-check all hose connections and the filter head seal to ensure no water leakage.
6. Connexió d'alimentació: Once the filter is properly installed and filled with water, connect the power plug to a suitable electrical outlet.

Image 2: Filter placement. The image illustrates the compact design of the Eden FES filter, allowing it to be discreetly placed inside an aquarium cabinet.

5. Instruccions de funcionament

After successful installation and power connection, the filter will begin operating. The energy-saving motor ensures quiet operation. The integrated flow control on the adapter unit allows you to adjust the water flow rate as needed for your aquarium.

The special outlet hose with multiple fine openings enhances oxygen absorption at the water surface. Alternatively, a diffuser can be used for a different water outflow pattern.

Image 3: Flow control knob. This image highlights the adjustable flow control mechanism located on the top of the filter unit.

6. Manteniment i Neteja

Regular maintenance is crucial for optimal filter performance and water quality. The adapter unit with its automatic stop system prevents water from escaping during cleaning, making the process easier.

1. Desconnecteu l'alimentació: Always unplug the filter from the power outlet before any maintenance.
2. Detach Hoses: Use the automatic stop system on the adapter unit to disconnect the hoses from the filter head without water spillage.
3. Open Filter: Carefully open the filter unit and remove the filter media baskets.
4. Clean Mechanical Media: Rinse mechanical filter sponges and pads (e.g., blue sponges) thoroughly under running aquarium water (not tap water, to preserve beneficial bacteria) or replace them if heavily soiled.
5. Maintain Biological Media: Gently rinse ceramic biological media in old aquarium water to remove debris without destroying beneficial bacteria. Do not clean biological media too vigorously or replace it frequently.
6. Impulsor net: Periodically inspect and clean the impeller and its housing in the motor unit to ensure smooth and quiet operation.
7. Torneu a muntar: Reassemble the filter in reverse order, ensuring all seals are correctly seated to prevent leaks.
8. Reinicia: Reconnect the hoses to the filter head, ensure the filter is filled with water, and then plug it back into the power outlet. The self-ventilated system will assist in restarting.

Image 4: Filter media handling. These images show the process of adding or replacing filter media, such as ceramic rings and filter sponges, into the filter baskets.

7. Solució De Problemes

8. Especificacions tècniques

9. Garantia i Suport

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Eden weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.

For further assistance, contact your retailer or the manufacturer directly.
