DISHENGZHEN D80 A4 Thermal Printer User Manual

1. Introducció

Thank you for choosing the DISHENGZHEN D80 A4 Thermal Printer. This compact and portable printer utilizes advanced thermal printing technology, eliminating the need for ink, toner, or ribbons. Designed for convenience, it supports wireless Bluetooth connectivity for mobile devices and USB connection for computers, making it ideal for office, home, school, and travel use. This manual provides detailed instructions to help you get started and make the most of your new printer.

2. Característiques del producte

• Mini i portàtil: Compact design, lightweight, and easy to carry for printing on the go.
• Impressió tèrmica sense tinta: Uses thermal technology, requiring no ink, toner, or ribbon.
• Easy Paper Installation: Designed for quick and simple loading of thermal paper.
• Clear and Fast Printing: Delivers sharp prints with a resolution of 203 dpi and a print speed of 10 mm/s.
• Connectivitat sense fils: Connects via Bluetooth to smartphones and tablets using a dedicated application.
• Connectivitat per cable: Supports USB connection for printing from computers and laptops.
• Multifunction Application: Comes with an APP featuring rich templates suitable for various documents including office files, design drawings, educational materials, receipts, and invoices.
• Funcionament de baix soroll: Ensures a quiet printing experience.

3. Contingut del paquet

Marqueu la casella per als elements següents:

• 1 x A4 Thermal Printer
• 1 x Thermal Paper Roll (original for clearer printing)
• 2 x Paper Limiters
• 1 x cable USB tipus C
• 1 x Manual d'usuari (aquest document)

4. Especificacions

5. Introducció (Configuració)

5.1 Càrrega de la impressora

Before first use, ensure the printer is fully charged. Connect the provided Type-C USB cable to the printer's charging port and the other end to a compatible USB power adapter (not included) or a computer's USB port. The indicator light will show charging status (refer to the printer's LED indicator guide for specific light behaviors).

5.2 Càrrega de paper tèrmic

The D80 printer supports both thermal paper rolls and folding thermal paper. Ensure you use A4 size thermal paper for optimal results.

1. Obriu la tapa del compartiment de paper de la impressora.
2. Insert the thermal paper roll or folding paper into the compartment, ensuring the printing side of the paper faces upwards.
3. Pull a small amount of paper out of the printer's exit slot.
4. Tanqueu bé la tapa del compartiment de paper.

Image: Loading thermal paper into the D80 printer. The image illustrates the correct orientation for inserting the paper roll and highlights the 107mm paper width.

Image: The D80 printer supports various paper sizes and types, including thermal rolls and folding paper, with a maximum roll diameter of 30mm.

5.3 Installing Paper Limiters

The included paper limiters help guide the paper and ensure straight printing, especially for narrower paper types. Insert the limiters into the designated slots within the paper compartment, adjusting them to fit the width of your paper.

6. Connectivity and Printing (Operating)

6.1 Bluetooth Connection (Mobile App)

For wireless printing from your smartphone or tablet, use the dedicated mobile application (e.g., Marklife APP). This app provides rich templates and easy printing functionality.

1. Download the official application (e.g., Marklife) from your device's app store.
2. Assegureu-vos que la impressora estigui engegada i completament carregada.
3. Activa el Bluetooth al teu dispositiu mòbil.
4. Open the downloaded application and follow the in-app instructions to search for and connect to your D80 printer via Bluetooth.
5. Once connected, you can select documents, images, or use templates within the app to print.

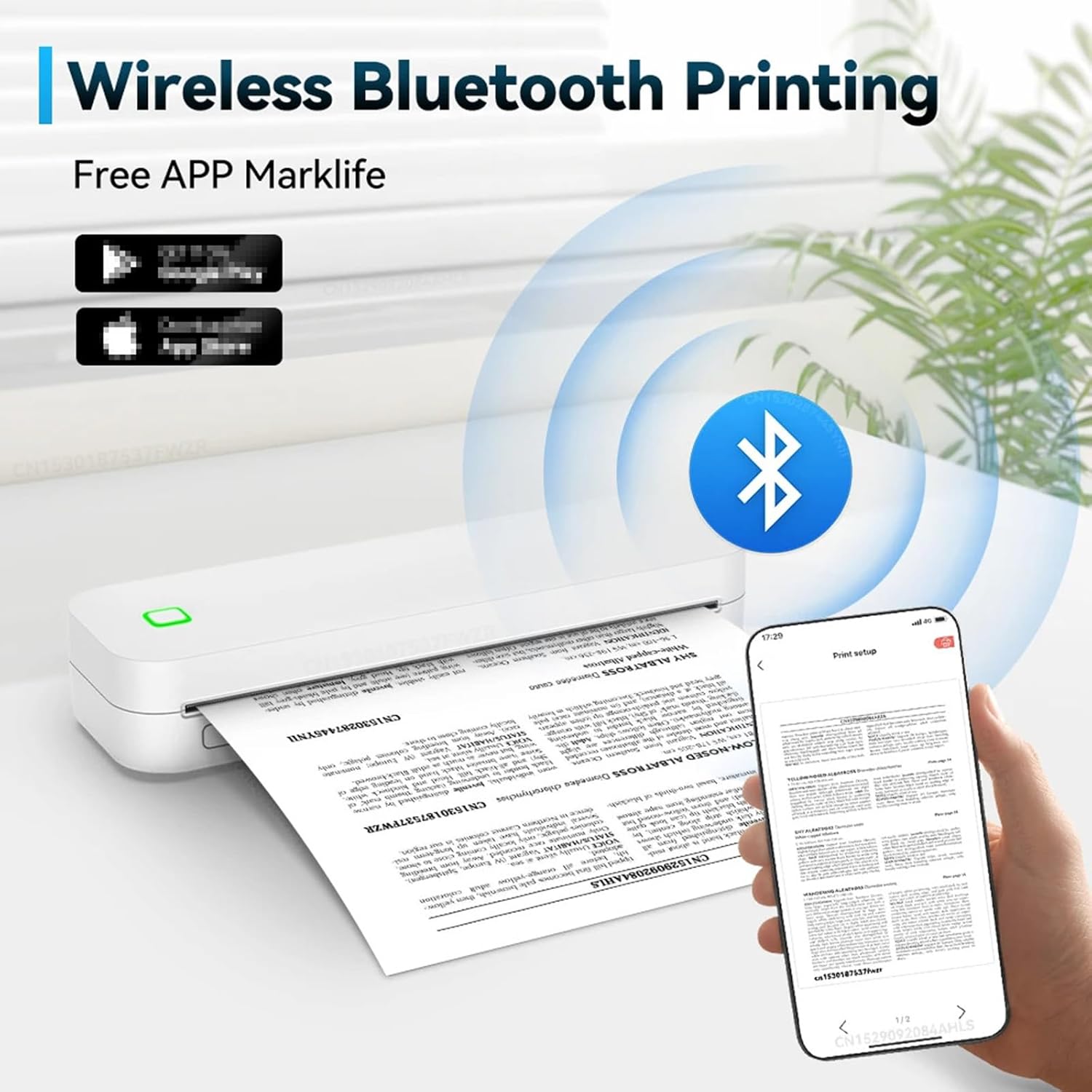

Image: Wireless Bluetooth printing in action, showing the D80 printer connected to a mobile phone via the Marklife app.

6.2 USB Connection (PC Printing)

To print from your computer or laptop, use the provided Type-C USB cable.

1. Assegureu-vos que la impressora estigui encesa.
2. Connect one end of the Type-C USB cable to the printer and the other end to an available USB port on your computer.
3. Your computer should automatically detect the printer and install necessary drivers. If not, you may need to manually install drivers from the manufacturer's website (refer to the official website or included software for driver downloads).
4. Once installed, you can print documents from any application on your computer as you would with a standard printer.

Image: Support for PC printing, demonstrating the printer connected to a laptop via a USB cable.

6.3 Admesos File Tipus

The D80 printer supports various document and image formats for printing, including but not limited to:

• TXT (Text files)
• WPS (Word Processing System files)
• Excel (Spreadsheet files)
• PDF (Portable Document Format files)
• JPG (JPEG image files)

Image: The D80 printer supports various file formats like TXT, WPS, Excel, PDF, and JPG, enhancing work efficiency.

7. Manteniment

7.1 Neteja del capçal d'impressió

Per garantir una qualitat d'impressió òptima, netegeu regularment el capçal d'impressió. Utilitzeu un drap suau i sense borrissol, netegeu-lo suaument.ampened with isopropyl alcohol. Gently wipe the print head surface. Do not use abrasive materials or harsh chemicals.

7.2 Atenció general

• Keep the printer in a clean, dry environment, away from direct sunlight and extreme temperatures.
• Eviteu deixar caure la impressora ni sotmetre-la a impactes forts.
• When replacing paper rolls, be careful to avoid scratches to the internal components.
• Mantingueu la impressora fora de l'abast dels nens.

8. Solució De Problemes

If you encounter issues with your DISHENGZHEN D80 printer, please refer to the following common problems and solutions:

• La impressora no s'encén: Ensure the printer is fully charged. Connect it to a power source and check the charging indicator light.
• Sense sortida d'impressió: Check if thermal paper is loaded correctly and that the printing side is facing up. Ensure the paper compartment cover is securely closed.
• Poor print quality (faint or unclear prints): The print head might be dirty. Refer to Section 7.1 for cleaning instructions. Ensure you are using high-quality thermal paper.
• Problemes de connexió Bluetooth: Make sure Bluetooth is enabled on your mobile device and the printer is within range. Restart both the printer and your device. Try re-pairing the devices through the app.
• Problemes de connexió USB: Ensure the USB cable is securely connected to both the printer and the computer. Try a different USB port or cable. Verify that the printer drivers are correctly installed on your computer.
• Impressora no reconeguda per l'ordinador: Install or update the printer drivers. Refer to the manufacturer's weblloc per als darrers controladors.
• Embús de paper: Open the paper compartment and carefully remove any jammed paper. Ensure paper is loaded correctly and not wrinkled.

Image: High-speed HD printing capability of the D80 printer, showcasing its 203dpi resolution and 2600mAh battery for clear and efficient output.

9. Garantia i Suport

DISHENGZHEN is committed to providing comprehensive customer service. If you encounter any issues that cannot be resolved using this user manual or the product details page, please do not hesitate to contact us via email. We aim to respond to all inquiries within 24 hours.

For further assistance or warranty claims, please reach out to our customer support team through the contact information provided at your point of purchase or on the official DISHENGZHEN weblloc.
