Silonn Nugget Ice Maker SLIM32T-US Instruction Manual

1. Introducció

Thank you for choosing the Silonn Nugget Ice Maker. This countertop appliance is designed to provide you with soft, chewable nugget ice quickly and efficiently. With its user-friendly features, including a pull-out water tank and a removable ice basket, it's perfect for home kitchens, offices, and gatherings. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your ice maker.

2. Informació de seguretat

Please read all instructions carefully before operating the appliance and retain this manual for future reference.

• Assegureu-vos que la màquina de gel estigui connectada a una presa de corrent amb connexió a terra i el volum correcte.tage (120 volts).
• No submergiu l'aparell, el cable d'alimentació ni l'endoll en aigua ni en altres líquids.
• Place the ice maker on a stable, level surface, ensuring adequate ventilation around the unit.
• Mantingueu l'aparell lluny de fonts de calor i de la llum solar directa.
• Unplug the ice maker before cleaning, maintenance, or if it will not be used for an extended period.
• Do not operate the appliance with a damaged cord or plug. Contact customer support for repairs.
• Aquest aparell només és per a ús domèstic. No utilitzar a l'aire lliure.
• Mantingueu els nens i les mascotes lluny de l'aparell durant el funcionament.

3. Producte acabatview

Familiarize yourself with the main components of your Silonn Nugget Ice Maker.

Figura 3.1: Davant view of the Silonn Nugget Ice Maker, highlighting its compact design and the ice viewfinestra d’engegada.

Components clau:

• Panell de control LED: User-friendly interface with indicators for operation status.
• Gel ViewFinestra d'entrada: Allows you to monitor ice production and level.
• Cistella de gel extraïble: For easy retrieval and storage of nugget ice.
• Pull-Out Water Tank: Conveniently removable for filling and cleaning.
• Venda d'aire: Located on the side for proper heat dissipation.

4. Configuració

Follow these steps for the initial setup of your ice maker.

1. Desembalatge: Traieu amb cura la màquina de gel del seu embalatge. Traieu tots els materials d'embalatge, inclosa la cinta adhesiva o la pel·lícula protectora.
2. Col·locació: Place the ice maker on a flat, stable, and heat-resistant surface. Ensure there is at least 6 inches of clearance on all sides for proper ventilation. Avoid placing it near heat sources or in direct sunlight.
3. Neteja inicial: Before first use, it is recommended to clean the internal components.
   • Remove the ice basket and pull-out water tank. Wash them with warm water and mild detergent. Rinse thoroughly.
   • Netegeu l'exterior de la unitat amb un damp tela.
   • Perform a self-cleaning cycle (refer to Section 6.1 for instructions).
4. Omplir el dipòsit d'aigua: Pull out the water tank from the unit. Fill it with clean, potable water up to the "MAX" fill line.


   Figura 4.1: The pull-out water tank is easily removed for filling and cleaning under a faucet.
   Slide the filled water tank back into the ice maker until it clicks into place.
5. Connectar l'alimentació: Connecteu el cable d'alimentació a una presa elèctrica amb connexió a terra.

5. Instruccions de funcionament

Operating your Silonn Nugget Ice Maker is straightforward.

1. Encès: Premeu el botó ON/OFF button on the control panel to turn on the ice maker. The "Making Ice" indicator light will illuminate.
2. Producció de gel: The ice maker will begin producing nugget ice. The first batch of ice is typically ready in approximately 10 minutes. The machine can produce up to 44 pounds of ice in 24 hours.

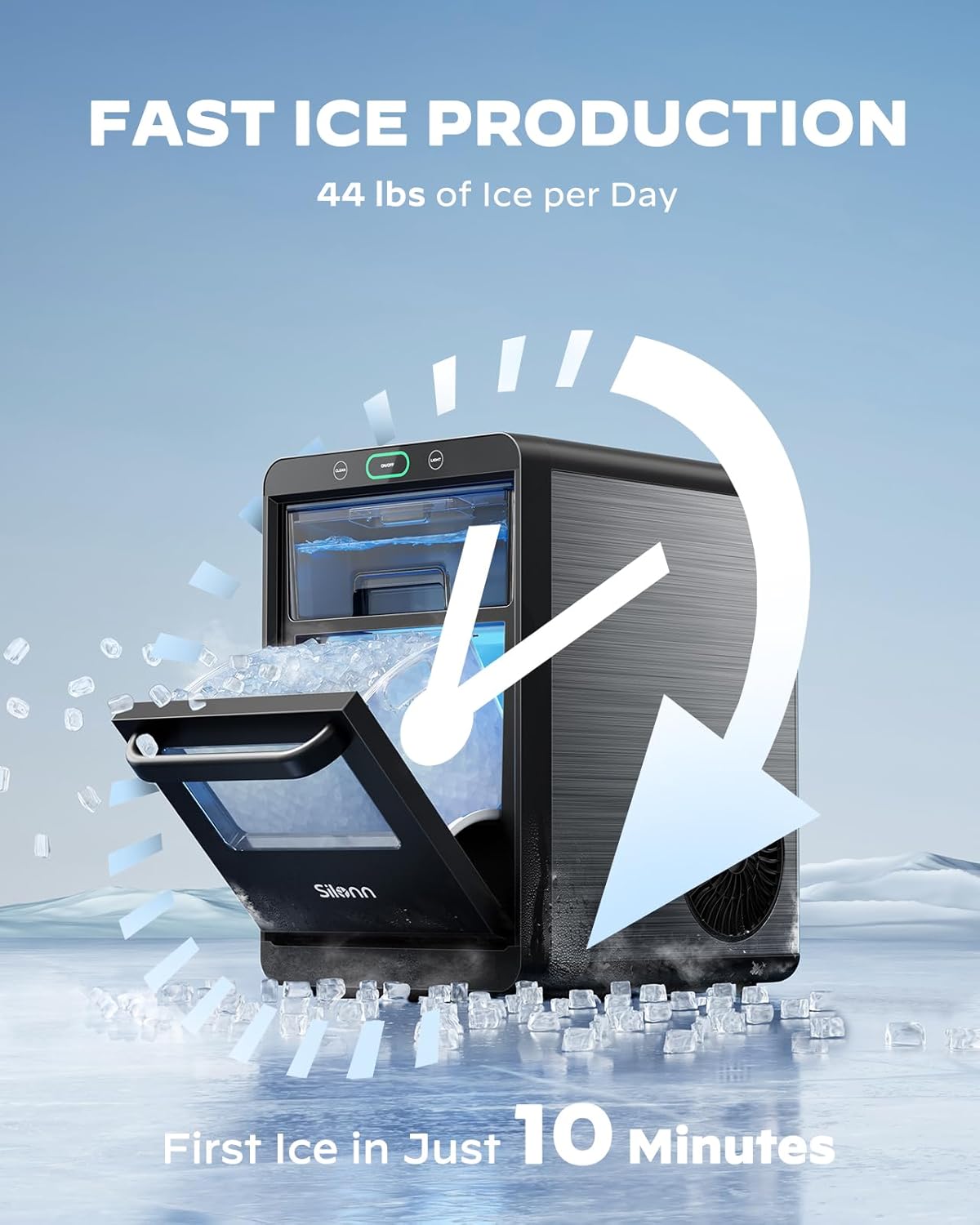

   Figura 5.1: The ice maker is capable of producing its first batch of ice in approximately 10 minutes and up to 44 pounds of ice daily.
3. Col·lecció de gel: As ice is produced, it will fall into the removable ice basket.

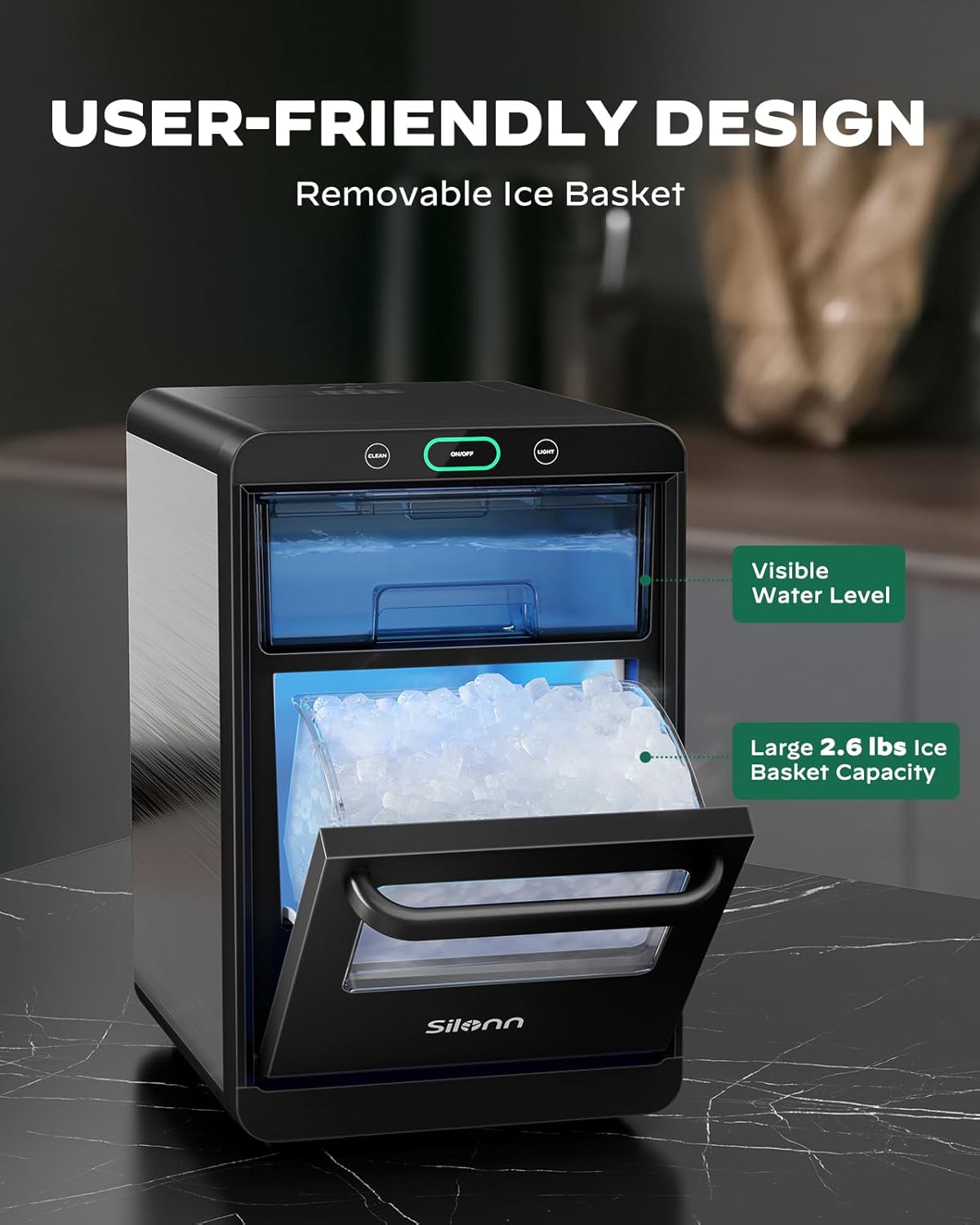

   Figura 5.2: The unit features a visible water level indicator and a large 2.6 lbs ice basket capacity for convenience.

   When the ice basket is full, the "Ice Basket Full" indicator light will turn on, and the ice production will pause. Once ice is removed, production will resume automatically.
4. Ompliment d'aigua: If the water tank runs low, the "Water Tank Empty" indicator light will turn on, and ice production will stop. Refill the water tank as described in Section 4.4.
5. Indicadors LED: The LED control panel provides clear visual cues for the ice maker's status.


   Figura 5.3: The LED control panel provides clear indicators for the ice maker's status, including when it's making ice, the basket is full, self-cleaning is active, or the water tank is empty.

6. Apagar: Premeu el botó ON/OFF button again to turn off the ice maker.

6. Manteniment i neteja

Una neteja i un manteniment regulars garantiran un rendiment òptim i una llarga durada de la vostra màquina de gel.

6.1 Funció d'autoneteja

The ice maker features a convenient one-touch self-cleaning function.

1. Assegureu-vos que el dipòsit d'aigua estigui ple d'aigua neta.
2. Manteniu premut el botó NETEJA button for 5 seconds. The "Self-cleaning" indicator light will illuminate.
3. The cleaning cycle will run automatically. Once complete, the unit will return to standby mode.
4. Drain any remaining water from the unit (refer to Section 6.3).

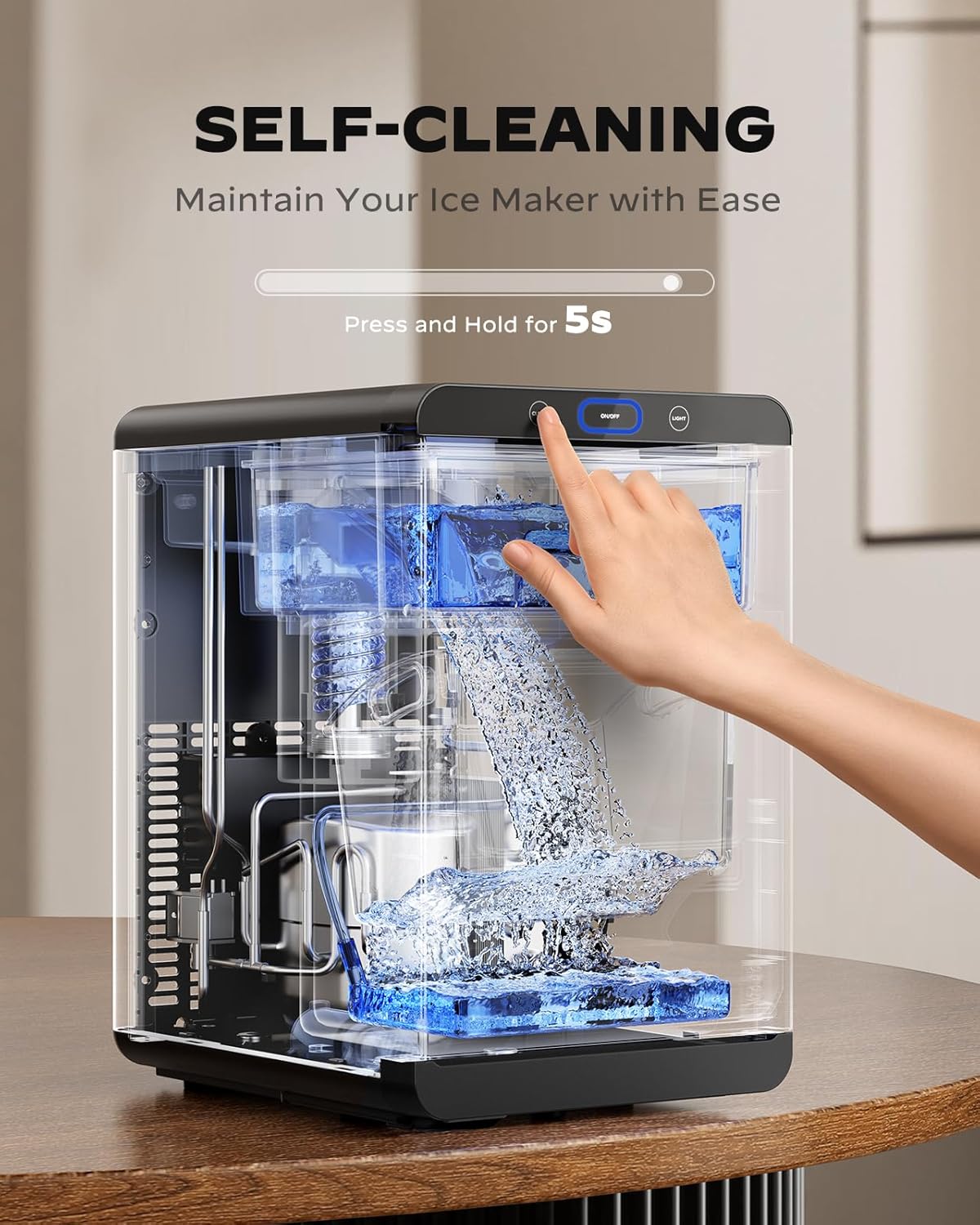

Figura 6.1: The ice maker features a one-touch self-cleaning function for easy maintenance. Press and hold the 'Clean' button for 5 seconds to activate.

6.2 Neteja manual

For thorough cleaning, especially of removable parts:

1. Desendolleu la màquina de gel de la presa de corrent.
2. Remove the ice basket and pull-out water tank. Wash them with warm water and a mild, non-abrasive detergent. Rinse thoroughly and dry completely.
3. Wipe the interior of the ice storage area and water reservoir with a soft cloth dampacabat amb una solució de neteja suau.
4. Netejar l'exterior amb un d, suauamp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.
5. Ensure all parts are dry before reassembling and plugging in the unit.

6.3 Descalcificació

Mineral deposits from water can build up over time, affecting ice quality and machine performance. Descaling is crucial, especially in hard water areas.

• Moderately Hard Water Areas: Descale monthly.
• Hard to Very Hard Water Areas: Descale every two to three weeks.

Use a descaling solution specifically designed for ice makers or a mixture of white vinegar and water (1:1 ratio). Follow the instructions on the descaling solution packaging or run a self-cleaning cycle with the vinegar solution, then rinse thoroughly by running several cycles with clean water.

7. Solució De Problemes

If you encounter issues with your ice maker, refer to the following common problems and solutions.

8. Especificacions

Technical specifications for the Silonn Nugget Ice Maker SLIM32T-US.

9. Garantia i Suport

For warranty information or technical support, please refer to the official Silonn weblloc web o contacteu directament amb el seu servei d'atenció al client. També podeu trobar recursos addicionals i un manual d'usuari en PDF descarregable a l'enllaç següent:Silonn Nugget Ice Maker User Manual (PDF)

Please have your model number (SLIM32T-US) and purchase information ready when contacting support.
