1. Instruccions de seguretat importants
Si us plau, llegiu atentament totes les instruccions abans d'utilitzar-les i conserveu-les per a futures consultes.
- Assegureu-vos que el dispositiu estigui col·locat sobre una superfície estable i plana durant el funcionament.
- Do not exceed the maximum weight capacity of 220 lbs (100 kg) on the device. Exceeding this limit may cause damage or injury.
- Mantingueu el dispositiu lluny de l'aigua o damp ambients.
- Desendolleu el dispositiu de la presa de corrent quan no l'utilitzeu o abans de netejar-lo.
- Consult a physician before use if you have any medical conditions, especially neuropathy, plantar fasciitis, or circulatory issues.
- No utilitzeu el dispositiu si està danyat o funciona malament.
2. Producte acabatview
The COMFIER CF-5324 is a versatile foot massager designed to provide high-frequency vibration and soothing heat for relaxation and relief. It features adjustable speed levels, multiple angles for varied use, and can be operated via a control panel or remote control.

Imatge 2.1: Frontal view of the COMFIER CF-5324 Foot Massager.
3. Configuració
3.1 Connexió d'alimentació
Connect the power adapter to the device's power input port, typically located on the side. Plug the adapter into a standard 110V wall outlet.
3.2 Ajust d'angles
The foot massager offers three adjustable angles (flat, 30°, and 50°) to accommodate various usage preferences and target different areas of the legs and feet. To adjust, locate the support leg on the underside of the device and extend or retract it to the desired position until it locks securely.

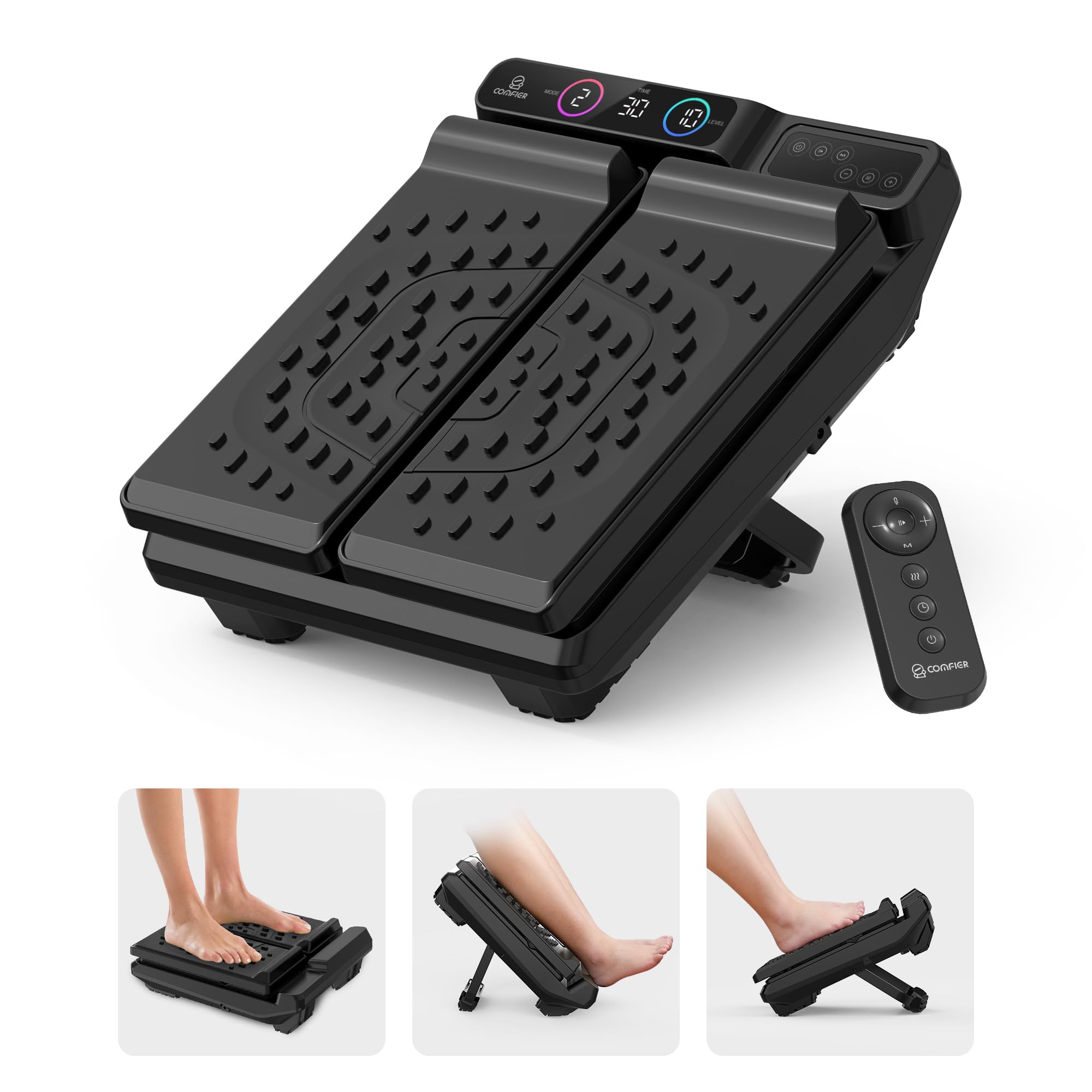

Image 3.1: The foot massager shown in three different adjustable angle positions for varied use.
4. Instruccions de funcionament
4.1 Tauler de control i comandament a distància
The device can be operated using the integrated control panel on the unit or the included remote control. Both offer identical functions for power, heat, vibration speed, mode selection, and timer settings.

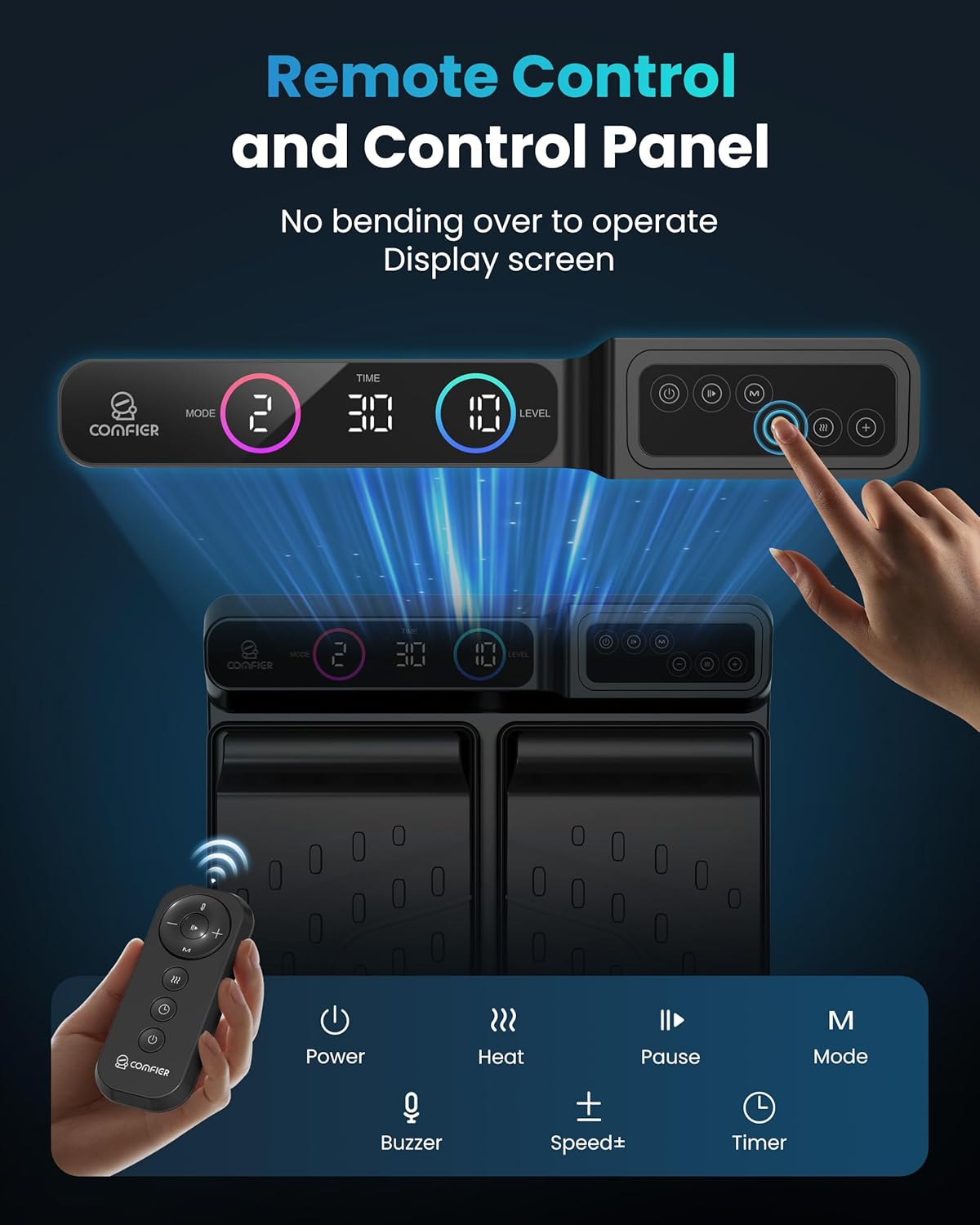

Image 4.1: The remote control and the device's integrated control panel.
4.2 Encès/Apagat
Premeu el botó Poder button on the control panel or remote to turn the device on or off. The device will typically start with default settings.
4.3 Paràmetres de vibració
The massager offers 30 levels of high-frequency vibration. Use the Velocitat +/- buttons to increase or decrease the vibration intensity. Higher levels provide a more intense massage.

Image 4.2: Illustration of the vibration function with 30 adjustable speed levels.
4.4 Funció de calor
Activate the heat function by pressing the Calor button. There are two warmth levels available (122-131°F). Press the button repeatedly to cycle through the heat levels or turn the heat off. The heat function is designed to improve circulation and ease fatigue.

Image 4.3: The foot massager providing gentle heat to the feet, reaching temperatures up to 131°F.
4.5 modes de massatge
Premeu el botó Mode button to cycle through different vibration patterns. These modes include a standard continuous vibration, a pulsing pattern, and a pattern that ramps up and down in intensity.
4.6 Configuració del temporitzador
The device includes a timer function with 5 levels, allowing sessions from 10 to 30 minutes. Press the Temporitzador button to select your desired duration. The device will automatically shut off once the timer expires.

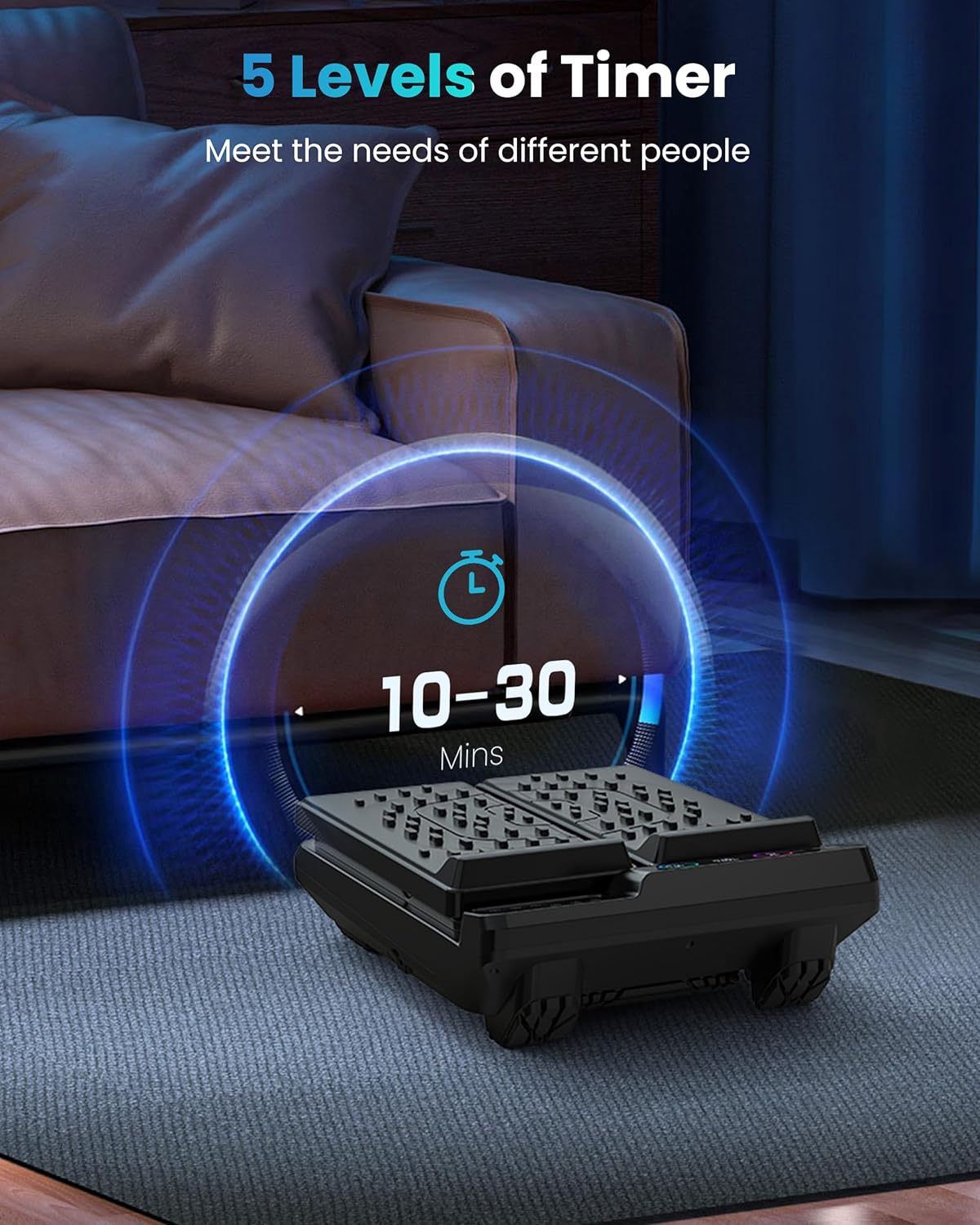

Image 4.4: The timer display on the foot massager, showing adjustable durations from 10 to 30 minutes.
4.7 Usage Positions
- Seated Foot Massage: Place your bare feet or feet in socks directly on the textured footpads while seated. Adjust the angle for optimal comfort.
- Under-Desk Footrest: Use the 30° angled design to elevate your feet under a desk, improving posture and reducing hip/leg pressure.
- Massatge de vedells: Tilt the device forward to the 50° angle and rest your calves along the vibrating plates for a calf massage.
- Standing Full-Body Vibration: Place the device flat on the floor and stand directly on the footpads. This allows the vibration to travel through your entire body, providing a full-body relaxation experience.

Image 4.5: Seated use for stress relief.

Image 4.6: Under-desk use for pain relief.

Image 4.7: Seated use for plantar fasciitis relief.
5. Manteniment
5.1 Neteja
Before cleaning, ensure the device is unplugged. Wipe the surface of the massager with a soft, damp tela. No utilitzeu netejadors abrasius ni submergiu el dispositiu en aigua.
5.2 Emmagatzematge
Store the massager in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the power cord is not tightly wrapped around the device to prevent damage.
6. Solució De Problemes
- El dispositiu no s'encén: Check if the power adapter is securely plugged into both the device and the wall outlet. Ensure the outlet is functional.
- Sense vibracions: Verify that the device is powered on and the vibration intensity is set above level 0. Cycle through the modes to see if vibration resumes.
- Sense calor: Ensure the heat function is activated. Allow a few minutes for the heating elements to warm up.
- Soroll inusual: If the device makes unusual noises, turn it off immediately and unplug it. Contact customer support if the issue persists.
7. Especificacions
| Característica | Detall |
|---|---|
| Número de model | CF-5324 |
| Dimensions del producte | 13 x 17 x 5 polzades |
| Pes de l'article | 6.79 lliures |
| Tipus de material | Plàstic |
| Nivells de vibració | 30 |
| Nivells de calor | 2 (122-131 °F) |
| Angles ajustables | 3 (Flat, 30°, 50°) |
| Configuració del temporitzador | 5 (10-30 minutes) |
| Mètode de control | Tauler de control, comandament a distància |
| Font d'alimentació | Corded Electric (Standard 110V outlet) |
| Capacitat màxima de pes | 220 lliures (100 kg) |
8. Garantia i Suport
For warranty information, technical support, or customer service inquiries, please refer to the contact information provided with your product packaging or visit the official COMFIER website. Please have your model number (CF-5324) and purchase date available when contacting support.
