1. Introducció
Thank you for choosing the BLITZWILL Ceiling Fan Light. This innovative fixture combines LED lighting, a summer fan, and a winter air circulator into a single, convenient unit. Designed for ease of use and versatility, it eliminates the need for multiple separate products, providing illumination and airflow efficiently. This manual provides detailed instructions for installation, operation, and maintenance to ensure optimal performance and longevity of your device.

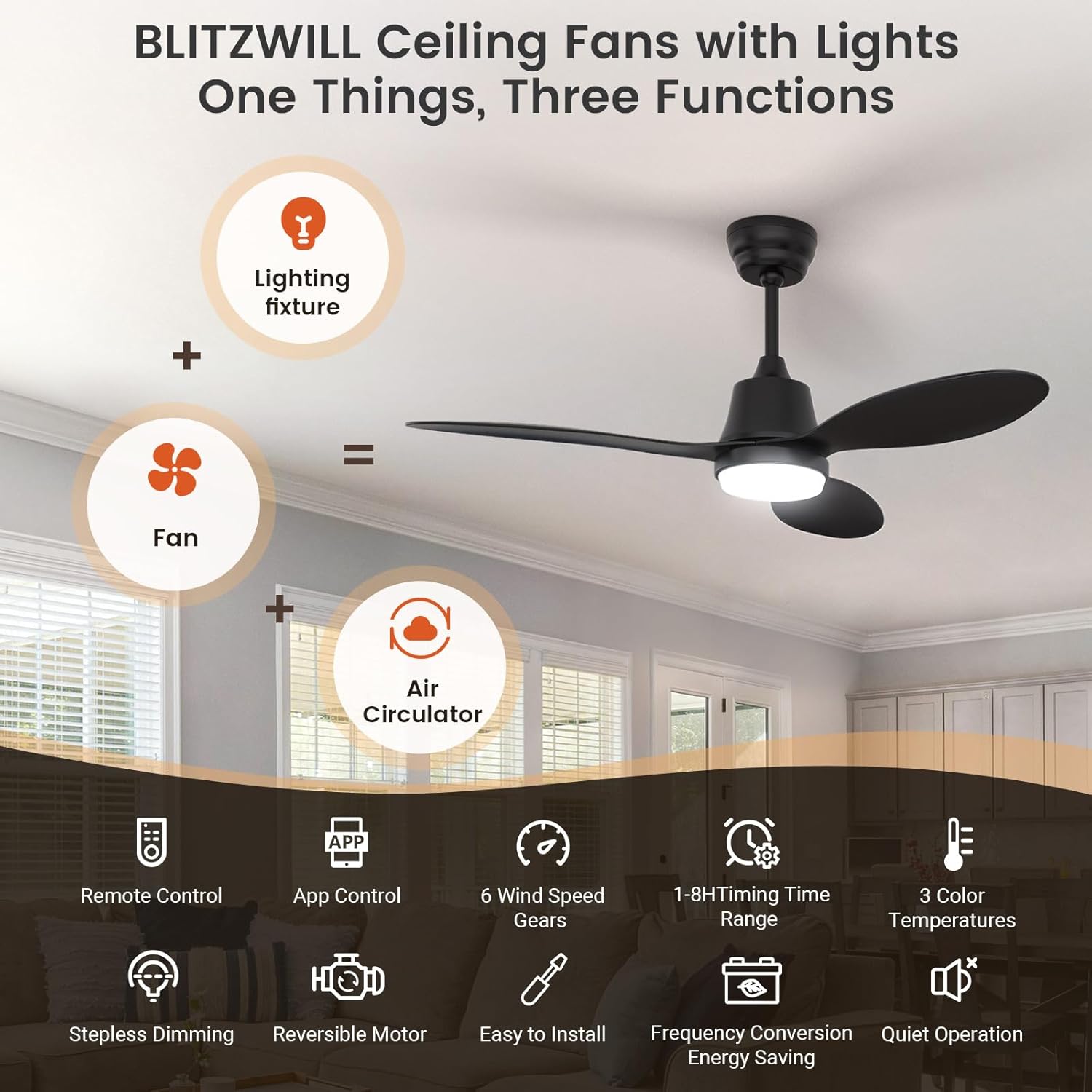

Figure 1: The BLITZWILL Ceiling Fan Light integrates lighting, fan, and air circulation functions into one device.
2. Instruccions de seguretat importants
Llegiu atentament totes les instruccions de seguretat abans de la instal·lació i l'ús. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis o lesions personals greus.
- Always disconnect power at the circuit breaker before installing, cleaning, or servicing the unit.
- This product is designed for indoor use and covered outdoor spaces only. Do not expose to direct water or extreme weather conditions.
- Assegureu-vos que el subministrament elèctric voltage matches the requirements of the fan light.
- No introduïu els dits ni cap objecte a les aspes del ventilador mentre aquest estigui en funcionament.
- Keep children away from the fan light during operation.
- No intenteu reparar o modificar la unitat vosaltres mateixos. Poseu-vos en contacte amb personal de servei qualificat per a les reparacions.
- Ensure the E26/E27 socket is securely mounted and capable of supporting the weight of the fan light.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents i no estiguin danyats abans de continuar amb la instal·lació.
- BLITZWILL Ceiling Fan Light Unit
- Smart Remote Control with Wall Mount
- E26/E27 Socket Extender (if applicable)
- Manual d'usuari (aquest document)
Figure 2: Main components of the BLITZWILL Ceiling Fan Light package.
4. Configuració i instal·lació
The BLITZWILL Ceiling Fan Light is designed for quick and easy installation, requiring no special tools or wiring. It fits most standard E26/E27 bulb sockets.
4.1 Passos d'instal·lació:
- Apagar: Before beginning, ensure the power to the light socket is turned off at the circuit breaker to prevent electric shock.
- Preparació del sòcol: If needed, screw the provided E26/E27 socket extender into your existing light socket.
- Install Fan Light: Carefully screw the BLITZWILL Ceiling Fan Light unit into the E26/E27 socket (or extender) until it is securely fastened.
- Connecteu les aspes del ventilador: Gently slide the fan blades into their designated slots on the main unit. Ensure they click into place securely.
- Encès: Resta l'alimentació al disjuntor.
- Funcionalitat de prova: Use the remote control or app to test the light and fan functions.
Figure 3: Plug-and-Play installation process, showing options with and without the socket extender.
5. Instruccions de funcionament
Your BLITZWILL Ceiling Fan Light can be controlled via the included smart remote or a dedicated mobile application.
5.1 Funcions del comandament a distància:
The smart remote allows comprehensive control over all features.
- Encès/apagat: Turns the light and/or fan on or off.
- Control de la llum:
- Ajust de temperatura de color: Cycle through 3000K (Cozy Romantic), 4000K (Soft Natural), and 6000K (Bright Comfortable).
- Ajust de brillantor: Regulació continua de la intensitat del 1% al 100%.
- Mode de llum nocturna: Activates a low-intensity light setting.
- Funció de memòria: The light will recall your last brightness and color temperature setting when turned back on.
- Control del ventilador:
- Velocitat del ventilador: Select from 6 wind speeds (1-6).
- Funció inversa: Changes the direction of fan rotation for summer (downward airflow) or winter (upward airflow) modes.
- Temporitzador: Set the fan to turn off automatically after 1 to 8 hours.
Figure 4: Customizable light color temperatures and stepless dimming.
Figure 5: Fan speed settings and timer options for personalized comfort.

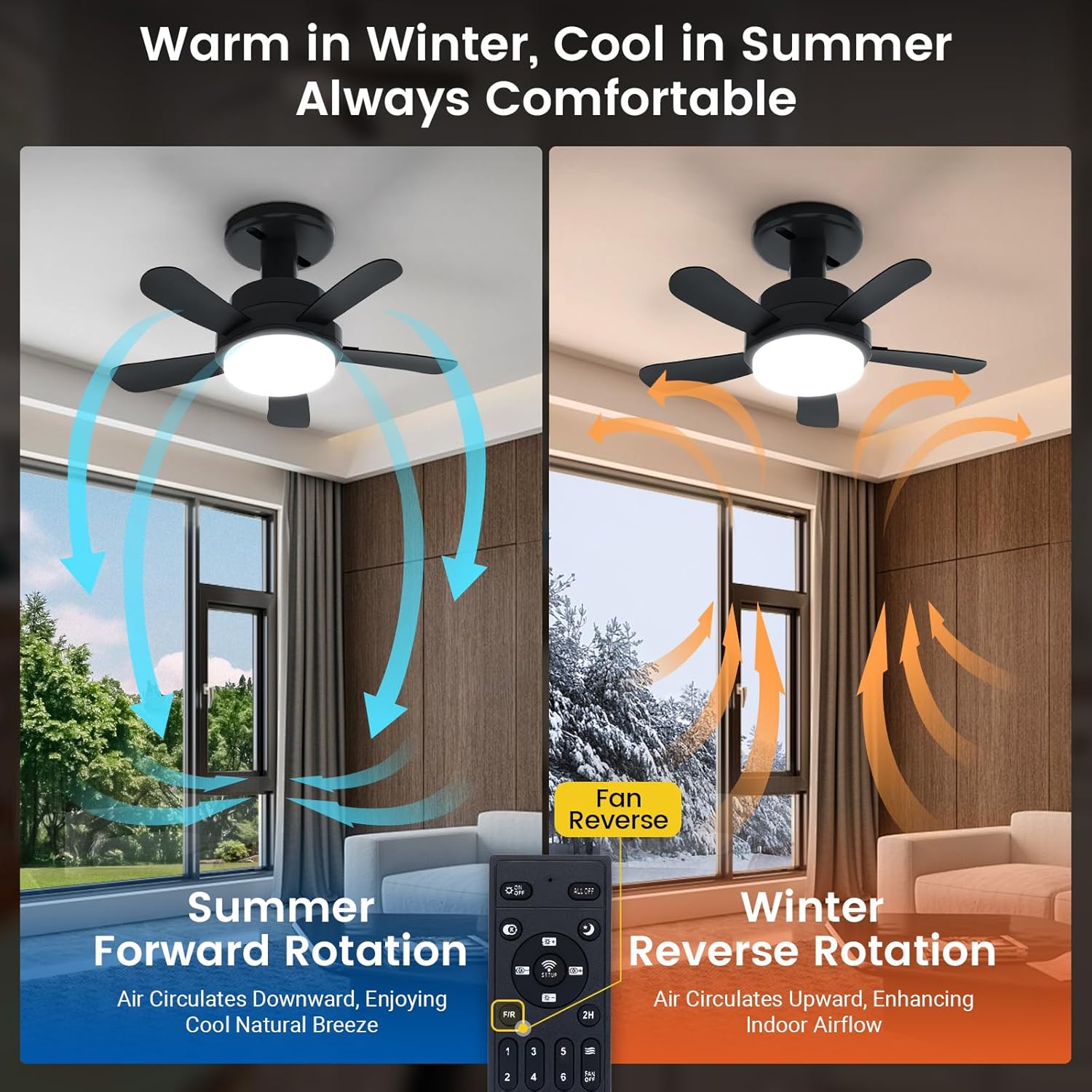

Figure 6: Reversible motor function for optimal airflow in summer and winter.
5.2 APP Control:
Download the official BLITZWILL app from your smartphone's app store. Follow the in-app instructions to pair your device. The app provides the same comprehensive control as the remote, with an intuitive graphical interface.
6. Característiques clau
- Funcionalitat 3 en 1: Combines LED lighting, a cooling fan for summer, and an air circulator for winter, offering a versatile solution for year-round comfort.
- Fàcil instal·lació: Universal E26/E27 screw base allows for simple, tool-free installation, similar to screwing in a light bulb. Fan blades are easily detachable for cleaning.
- Il·luminació personalitzable: Features 3 color temperatures (3000K/4000K/6000K) and stepless dimming (1%-100%). The memory function retains your preferred settings.
- Quiet & Energy-Efficient DC Motor: Advanced DC motor provides powerful airflow with minimal noise (under 35 decibels) and reduced energy consumption, ideal for quiet environments.
- Motor reversible: Allows you to switch airflow direction. Downward airflow creates a cooling effect in summer, while upward airflow helps distribute warm air evenly in winter.
Figure 7: The variable frequency DC motor ensures quiet and energy-efficient operation.
Figure 8: The memory function automatically recalls your last light settings.
7. Manteniment
Regular maintenance ensures the longevity and optimal performance of your BLITZWILL Ceiling Fan Light.
- Neteja:
- Desconnecteu sempre l'alimentació a l'interruptor automàtic abans de netejar.
- Wipe the fan light and blades with a soft, damp tela. No utilitzeu netejadors abrasius ni dissolvents.
- The fan blades can be easily detached for thorough cleaning.
- Substitució de bombetes: The LED light source is integrated and not user-replaceable. If the light fails, contact customer support.
- Comandament a distància: Replace batteries (not specified type, assume AAA/AA) when the remote's range decreases or it stops responding.
8. Solució De Problemes
If you encounter issues with your BLITZWILL Ceiling Fan Light, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador o la llum no s'encén. | No power supply; Loose connection; Remote control battery low/dead. | Check circuit breaker; Ensure fan light is securely screwed into socket; Replace remote control batteries. |
| Fan is noisy or wobbles. | Fan blades not securely attached; Unit not securely screwed into socket. | Ensure all fan blades are properly clicked into place; Tighten the fan light unit in the socket. |
| El comandament a distància no respon. | Batteries dead/incorrectly inserted; Remote not paired with unit. | Replace batteries, ensuring correct polarity; Refer to remote pairing instructions (if applicable, usually automatic). |
| Light flickers or changes brightness unexpectedly. | Unstable power supply; Interference. | Ensure stable power; Try resetting the unit by turning power off and on at the circuit breaker. |
9. Especificacions
| Marca | BLITZWILL |
| Model | B0DGQB27FS |
| Estil | BLITZWILL Ceiling Fans with Lights & Socket Fan |
| Tipus d'habitació | Bedroom (also suitable for dining areas, kitchens, living rooms, offices, garages) |
| Característica especial | Timer, Reversible Motor, Memory Function, Dimmable, APP Control |
| Usos recomanats | Cooling, Air Circulation, Illumination |
| Ús interior/exterior | Indoor (and covered outdoor spaces) |
| Mètode de control | Aplicació, comandament a distància |
| Temperatura de color clar | 3000K / 4000K / 6000K |
| Brillantor | 1% - 100% Stepless Dimmable |
| Velocitats del ventilador | 6 velocitats |
| Nivell de soroll | Under 35 decibels |
| Base de presa | E26/E27 Universal |
10. Garantia i Suport
For warranty information or technical support, please contact BLITZWILL customer service. Details can typically be found on the product packaging or the official BLITZWILL weblloc.
