Midea Integrated Dishwasher 60 cm, 12 Place Settings

1. Introducció

This manual provides essential information for the safe and efficient use of your Midea Integrated Dishwasher, Model MID60S110.1. Please read these instructions carefully before installation, operation, and maintenance. Keep this manual for future reference.

2. Informació de seguretat

Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica i lesions a les persones.

• Assegureu-vos que el rentaplats estigui correctament connectat a terra.
• Do not operate the dishwasher if it is damaged. Contact qualified service personnel.
• Mantingueu els nens allunyats del rentaplats, sobretot quan la porta estigui oberta.
• Utilitzeu només detergents i abrillantadors dissenyats específicament per a rentavaixelles.
• Els objectes punxants s'han de carregar amb les puntes cap avall per evitar lesions.
• The appliance is equipped with an AquaStop system to detect water leaks.

3. Producte acabatview

The Midea MID60S110.1 is a 60 cm integrated dishwasher designed for seamless integration into your kitchen cabinetry. It offers a capacity for 12 place settings and features advanced cleaning technologies.

Característiques principals:

• Disseny integrat: Blends seamlessly with kitchen furniture, with controls hidden on the top edge of the door.
• Capacitat: Accommodates up to 12 place settings, suitable for large families.
• AquaStop Protection: Detects and prevents water leaks, enhancing safety.
• Assecat per calor residual: Utilizes residual heat to dry dishes, reducing water spots and ensuring dry, shiny results.
• Filtre antibacterià: Special materials inhibit microorganism growth, promoting hygiene without excessive hot water cycles.
• Hygiene Care Level 3: Achieves the highest hygiene level for domestic appliances, effectively eliminating viruses.
• Programes de rentat: Four dedicated programs for various cleaning needs.

Tauler de control:

The control panel is located on the top edge of the dishwasher door. It includes buttons for program selection, delay start, and other functions.

Imatge: Primer pla view of the Midea dishwasher's control panel, showing various buttons and indicators for program selection and settings.

4. Configuració i instal·lació

Una instal·lació correcta és crucial per al rendiment i la seguretat del rentaplats. Es recomana que la instal·lació la realitzi un tècnic qualificat.

Dimensions and Cabinet Requirements:

The dishwasher is designed to fit into a standard 60 cm cabinet opening. Ensure your kitchen cabinet meets the following dimensions:

• Amplada: Mínim 600 mm
• Alçada: 820-840 mm
• Profunditat: Mínim 570 mm

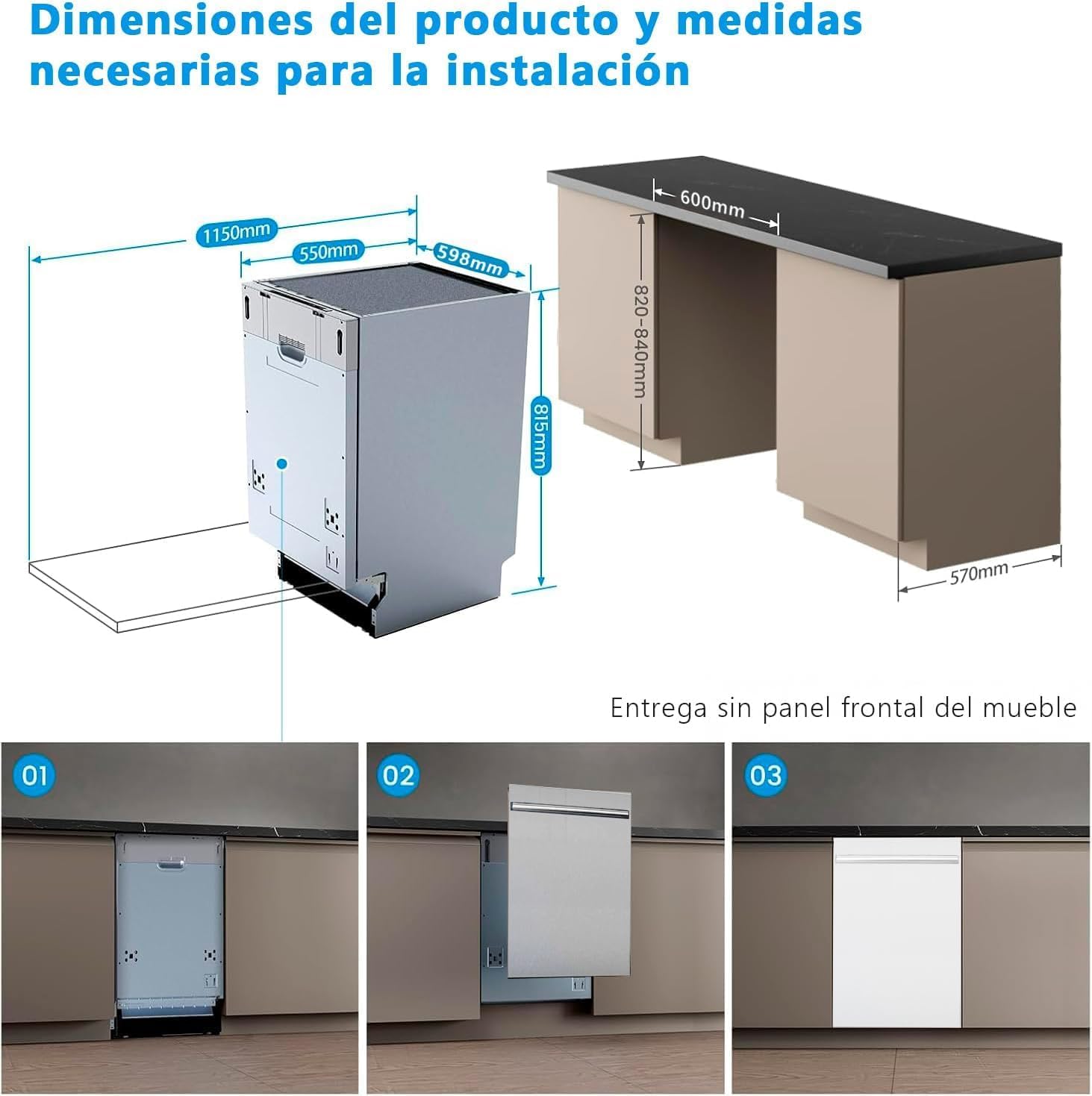

Image: Diagram illustrating the product dimensions and necessary cabinet measurements for integrated installation, showing width, height, and depth requirements.

Image: Detailed technical drawing for the installation of a fully integrated 60 cm dishwasher, showing options for sliding hinges (left and right) and precise measurements for cabinet integration.

Passos d'instal·lació (resum):

1. Prepareu l'obertura de l'armari segons les dimensions especificades.
2. Connecteu la mànega d'entrada d'aigua a una font d'aigua freda.
3. Connect the drain hose to the kitchen sink drain or a dedicated drain pipe.
4. Connect the power cable to a grounded electrical outlet (220 Volts).
5. Introduïu el rentaplats a l'obertura del moble i fixeu-lo.
6. Attach the custom kitchen panel to the dishwasher door.
7. Anivellar l'aparell amb els peus ajustables.

Refer to the detailed installation instructions provided in the separate installation guide for complete steps.

5. Instruccions de funcionament

Follow these steps for optimal performance and dish cleaning.

Càrrega del rentavaixelles:

• Raspeu les partícules grans de menjar dels plats.
• Load dishes securely in the baskets, ensuring water can reach all surfaces.
• Col·loqueu els gots, les tasses i els objectes més petits a la cistella superior.
• Place plates, bowls, and larger items in the lower basket.
• Load cutlery in the cutlery basket with handles down for most items, but sharp knives with points down.

Imatge: Interior view of the Midea dishwasher, fully loaded with dishes, glasses, and cutlery, demonstrating its 12 place setting capacity.

Addició de detergent i abrillantador:

• Ompliu el dispensador de detergent amb la quantitat adequada de detergent per a rentavaixelles.
• Check the rinse aid indicator and refill if necessary. Rinse aid helps with drying and prevents water spots.

Selecció d'un programa de rentat:

The dishwasher offers four main wash programs:

• Ressò: Programa d'estalvi energètic per a plats normalment bruts.
• 90 minuts: A standard program for daily loads.
• Higiene Pro: Intensive cleaning with high temperatures for maximum hygiene, suitable for heavily soiled items and baby bottles.
• Ràpid: Quick wash for lightly soiled dishes without drying.

Image: A hand selecting one of the four wash programs (HygieneCare+, Eco, Rapid, 90 minutes) on the dishwasher's control panel.

Inici d'un cicle de rentat:

1. Tanqueu la porta del rentavaixelles amb fermesa.
2. Premeu el botó d'encesa per encendre l'aparell.
3. Select the desired wash program using the program selection button.
4. Premeu el botó Inici per començar el cicle.
5. You can also use the delay start function (3h, 6h, 9h, 12h) to postpone the start of the cycle.

6. Manteniment i Neteja

Un manteniment regular garanteix la longevitat i l'eficiència del vostre rentaplats.

Neteja dels filtres:

• The dishwasher has an antibacterial filter system.
• Regularly check and clean the coarse and fine filters to prevent blockages and ensure effective cleaning.
• Twist and remove the filter assembly, rinse under running water, and brush away any food debris.
• Reassemble the filters correctly after cleaning.

Neteja dels braços polvoritzadors:

• Comproveu periòdicament si els broquets del braç polvoritzador estan obstruïts.
• Remove the spray arms and clear any debris from the holes using a thin wire or toothpick.

Neteja exterior i interior:

• Netegeu les superfícies exteriors amb un damp cloth. For stainless steel models, use a specialized stainless steel cleaner.
• Clean the interior of the dishwasher, including the door seal, with a damp drap i detergent suau.
• Run a dishwasher cleaning cycle periodically using a dishwasher cleaner.

7. Solució De Problemes

Abans de contactar amb el servei tècnic, consulteu la taula següent per veure els problemes habituals i les seves solucions.

8. Especificacions

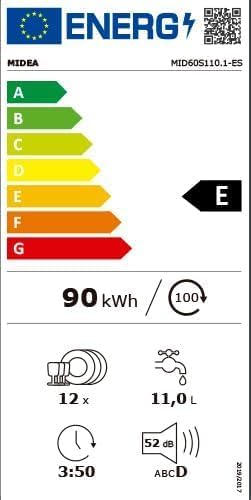

Image: European energy label for the Midea dishwasher, indicating an energy efficiency class of E, 90 kWh per 100 cycles, 12 place settings, 11.0 liters water per cycle, and 52 dB noise level.

9. Garantia i Suport

Your Midea dishwasher Model MID60S110.1 comes with a manufacturer's warranty.

• Període de garantia: The minimum warranty offered by the supplier is 36 months.
• For warranty claims or technical support, please contact Midea customer service or your retailer.
• Ensure you have your proof of purchase and the model number (MID60S110.1) available when contacting support.
• Additional information and support resources may be available on the official Midea weblloc: www.midea.es
