Segway-Ninebot ZT3 PRO Electric Scooter User Manual

1. Introducció

This user manual provides essential information for the safe operation, maintenance, and troubleshooting of your Segway-Ninebot ZT3 PRO electric scooter. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

2. Informació de seguretat

Riding an electric scooter carries inherent risks. To minimize these risks, always adhere to the following safety guidelines:

• Always wear a helmet and appropriate safety gear (knee pads, elbow pads).
• Ensure the scooter is in good working condition before each ride. Check brakes, tires, and all connections.
• Compliu totes les lleis i regulacions de trànsit locals.
• No conduïu sota els efectes de l'alcohol o les drogues.
• Avoid riding in heavy rain, snow, or on slippery surfaces.
• Mantingueu una distància de seguretat amb altres vehicles i vianants.
• No feu acrobàcies ni maniobres brusques.
• The maximum weight limit for this scooter is 120 kg. Do not exceed this limit.

3. Producte acabatview

The Segway-Ninebot ZT3 PRO is a high-performance electric scooter designed for robust use. Key features include:

• Velocitat màxima: Fins a 25 km/h.
• Interval: Approximately 70 km on a single charge.
• Potència del motor: 1600W Max Power, capable of climbing up to a 25% incline.
• Bateria: 597 Wh capacity.
• Pneumàtics: 11-inch off-road tubeless tires for enhanced grip and durability.
• Característiques de seguretat: Integrated front and rear turn signals for improved visibility.
• Suspensió: Telescopic front suspension and spring rear suspension for a smooth ride.

Figura 3.1: Frontal esquerre view of the Segway-Ninebot ZT3 PRO electric scooter, showcasing its robust design and front suspension.

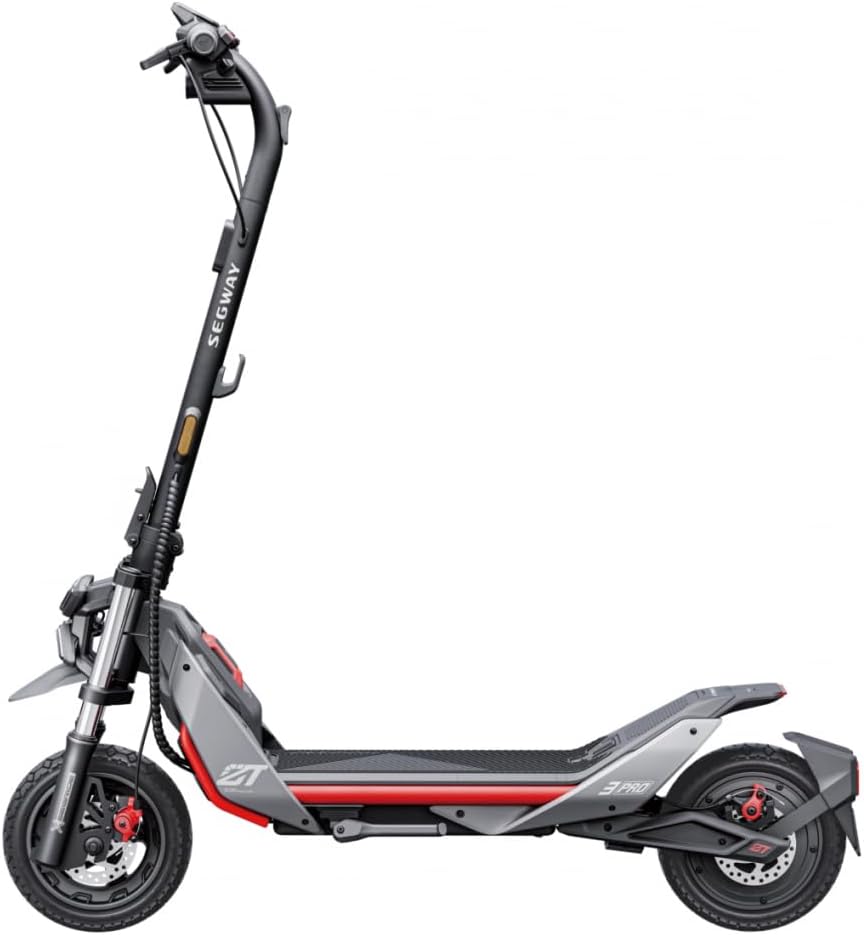

Figura 3.2: lateral view of the Segway-Ninebot ZT3 PRO, highlighting its sleek profile and integrated footboard.

Figura 3.3: Detallada view of the front suspension system and robust tire, designed for off-road capability.

4. Configuració

1. Unboxing: Carefully remove the scooter and all accessories from the packaging. Retain packaging for future transport or storage.
2. Desplegament:
   • Col·loqueu el patinet sobre una superfície plana.
   • Locate the folding mechanism latch, usually near the base of the steering column.
   • Release the latch and carefully lift the steering column until it locks into the upright position. Ensure it is securely locked before proceeding.
3. Muntatge del manillar: Attach the handlebars to the steering column if they are not pre-installed. Ensure all screws are tightened securely.
4. Càrrec inicial: Abans del primer ús, carregueu completament la bateria del patinet.
   • Connecteu el carregador al port de càrrega del scooter.
   • Connecteu el carregador a una presa de corrent.
   • The charging indicator light will change (e.g., from red to green) when charging is complete.
   • Charging time may vary, refer to the charger's specifications.
5. Comprovació prèvia a la conducció: Before every ride, perform a quick check:
   • Verify tire pressure (refer to tire sidewall for recommended PSI).
   • Proveu els frens per assegurar-vos que responguin.
   • Check that the steering column is firmly locked.
   • Ensure all lights and turn signals are functional.

5. Instruccions de funcionament

1. Encès/apagat: Press and hold the power button (usually on the display) to turn the scooter on or off.
2. Postura de muntatge: Place one foot firmly on the deck and use the other foot to push off the ground to gain initial momentum. Once moving, place both feet on the deck.
3. Acceleració: Use the throttle lever or button (typically on the right handlebar) to accelerate. Apply gentle pressure initially.
4. Frenatge: Use the brake levers (typically on the left handlebar for rear brake, right for front brake, or combined) to slow down or stop. Apply brakes smoothly to avoid sudden stops.
5. Girar: Inclineu-vos lleugerament en la direcció que voleu girar i dirigiu suaument el manillar.
6. Modes de velocitat: Your scooter may have multiple speed modes (e.g., Eco, Standard, Sport). Refer to the display or control panel to switch between modes.
7. Using Turn Signals: Activate the integrated turn signals using the designated switch on the handlebars before making turns.

Figure 5.1: A rider demonstrating proper riding posture on the Segway-Ninebot ZT3 PRO.

Figure 5.2: The scooter's off-road capability demonstrated on a muddy trail, highlighting its robust tires and suspension.

6. Manteniment

Regular maintenance ensures the longevity and safe operation of your Segway-Ninebot ZT3 PRO.

• Neteja: Netegeu el patinet amb anunciamp cloth after each ride. Do not use high-pressure water jets or immerse the scooter in water.
• Cura dels pneumàtics: Regularly check tire pressure and inflate to the recommended PSI (usually found on the tire sidewall). Inspect tires for wear and tear.
• Ajust del fre: If brakes feel loose or unresponsive, have them adjusted by a qualified technician.
• Cura de la bateria:
  • Carregueu la bateria completament abans de l'emmagatzematge a llarg termini.
  • Store the scooter in a cool, dry place.
  • Eviteu esgotar completament la bateria abans de tornar-la a carregar.
• Comprovació de fixació: Reviseu periòdicament tots els cargols i perns per assegurar-vos que estiguin ben ajustats.

7. Solució De Problemes

8. Especificacions

• Model: ZT3 PRO (AA.05.18.01.0001)
• Dimensions (L x A x A): 124.5 x 63.8 x 134 cm
• Pes: 29.7 kg
• Material: Acer d'aliatge
• Càrrega màxima: 120 quilos
• Bateria: 597 Wh, 1 D battery required (included)
• Motor: Potència màxima de 1600 W
• Velocitat màxima: 25 km/h
• Interval màxim: Uns 70 km
• Pneumàtics: 11-inch Off-Road Tubeless
• Característiques especials: Telescopic Suspension, Spring Suspension, Integrated Turn Signals

9. Garantia i Suport

For warranty information, please refer to the warranty card included with your purchase or visit the official Segway-Ninebot weblloc web. Els termes i condicions de la garantia poden variar segons la regió i el distribuïdor.

For technical support, spare parts, or service inquiries, please contact Segway-Ninebot customer service or your authorized dealer. Keep your purchase receipt and model number (ZT3 PRO, AA.05.18.01.0001) readily available when contacting support.

Segway-Ninebot Official Weblloc: www.segway.com
