Manual d'usuari del nivell làser OMMO 4D de 16 línies

Model: OM-LL16 | Brand: OMMO

1. Introducció

Thank you for choosing the OMMO Laser Level 4D 16 Lines. This advanced self-leveling laser level is designed to provide precise and efficient alignment for various construction, renovation, and DIY projects. Featuring a smart touch panel, long-lasting rechargeable battery, and remote control, it offers unparalleled convenience and accuracy for both indoor and outdoor applications.

OMMO 4x360 Laser Level with key features highlighted: Strong Light, Remote Control, High Precision, Green Laser, Self-leveling, Large Battery, IP54 Waterproof, Manual Mode.

Acabatview of the OMMO 4x360 Laser Level and its main features.

2. Informació de seguretat

Please read and understand all safety information before operating this product. Failure to follow these instructions may result in laser radiation exposure, electric shock, fire, or serious injury.

Radiació làser: This product is a Class II laser product. Do not stare directly into the laser beam. Avoid direct eye exposure.
Font d'alimentació: Use only the specified rechargeable battery and charging cable. Do not attempt to open or modify the battery.
Medi ambient: No feu funcionar el dispositiu en atmosferes explosives, com ara en presència de líquids, gasos o pols inflamables.
Manteniment: Refer all servicing to qualified service personnel. Do not attempt to repair the device yourself.
Nens: Mantingueu el dispositiu fora de l'abast dels nens.

3. Contingut del paquet

Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:

1 x OMMO Laser Level (OM-LL16)
1 x bossa de transport
1 x L-Shaped Magnetic Bracket
1 x 3600mAh Lithium Battery
1 x comandament a distància
1 x cable de càrrega tipus C
1 x 1/4"-20 Mount Thread Adapter

All components included in the OMMO Laser Level package.

4. Producte acabatview

Familiarize yourself with the main components and controls of your OMMO Laser Level.

OMMO Laser Level with all included accessories laid out around it, showing the main unit, carrying bag, magnetic bracket, battery, remote, and cables.

The OMMO Laser Level and its accessories.

Close-up of the OMMO Laser Level's smart touch panel with V, H, and Power icons illuminated, indicating its touch-sensitive interface.

Smart Touch Panel for easy operation.

Laser Line Configuration

The OMMO Laser Level projects 4 x 360° laser lines, providing comprehensive coverage for various leveling tasks.

Diagram illustrating the 4D 16-line laser projection, showing two 360-degree horizontal lines and two 360-degree vertical lines, creating a full room layout.

Illustration of 4D 16-line laser projection capabilities.

5. Especificacions

Característica	Especificació
Número de model	OM-LL16
Classe làser	Classe II, <1 mW
Línies làser	2 x 360° Horizontal, 2 x 360° Vertical (16 Lines)
Nivell/Range de compensació	±3°
Capacitat de la bateria	Ió de liti de 3600 mAh
Temps de treball	Fins a 5 hores (ús continu)
Temps de càrrega	Aprox. 3-4 hores
Interval de control remot	Up to 160FT (approx. 48 meters)
Classificació IP	IP54 (Dustproof & Waterproof)
Mount Thread	1/4"-20
Pes de l'article	1.38 lliures
Dimensions	7.72 x 7.24 x 3.78 polzades (paquet)

Illustration showing the 3600mAh rechargeable lithium battery with 10 hours working time and 3-4 hours charging time via Type-C port.

Battery specifications and charging details.

Visual representation of the IP54 rating, showing the laser level being resistant to dust and water splashes.

IP54 Dustproof and Waterproof rating.

6. Configuració

Instal·lació i càrrega de la bateria

Locate the battery compartment on the laser level.
Insert the 3600mAh lithium battery, ensuring correct polarity.
Tanqueu el compartiment de la bateria de manera segura.
To charge, connect the Type-C charging cable to the laser level's charging port and a suitable USB power adapter (not included). The charging indicator will show charging status.

Opcions de muntatge

The OMMO Laser Level offers versatile mounting options:

Muntatge del trípode: Use the 1/4"-20 mount thread at the bottom of the unit to attach it to a standard tripod.
Suport magnètic: Attach the L-shaped magnetic bracket to the laser level using the screw hole, then secure it to metal surfaces.

Close-up of the L-shaped magnetic bracket and the 1/4 inch-20 mount thread on the bottom of the laser level, demonstrating mounting versatility.

Mounting options using the magnetic bracket and tripod thread.

7. Modes de funcionament

Mode d'autonivell

This mode automatically levels the laser lines within a ±3° range.

Push the side switch to the unlocked position (unlocked icon).
The laser level will automatically self-level. If the tilt exceeds 3°, an audible alarm will sound, and the laser lines will flash.
Place the laser level on a flat, stable surface until the alarm stops and the lines become steady.

Manual Mode (Tilt Mode)

This mode allows you to project laser lines at any desired angle.

Ensure the side switch is in the locked position (locked icon).
Touch the power on/off icon on the touch panel to activate manual mode.
The laser lines will project without self-leveling, allowing for angled projections without an alarm.

Comparison image showing Self-leveling Mode where the laser automatically corrects for slight tilts, and Manual Mode where the laser lines can be locked at any angle for sloped surfaces like stairs.

Visual comparison of Self-leveling and Manual modes.

Ajust de brillantor

The laser level features three adjustable brightness levels for optimal visibility in different lighting conditions. Use the power/brightness adjustment icon on the touch panel to cycle through the brightness settings.

8. Operació de control remot

The included remote control allows for convenient operation from a distance, minimizing accidental movement of the laser level once positioned.

Vertical Line (V): Press the 'V' button to toggle vertical laser lines.
Horizontal Line (H): Press the 'H' button to toggle horizontal laser lines.
Power/Brightness Adjustment: Press the power icon to turn the unit on/off or adjust brightness levels.

A hand holding the remote control for the OMMO Laser Level, with an illustration of its buttons for vertical line, horizontal line, and power/brightness adjustment.

Remote control functions for the laser level.

An illustration showing the OMMO Laser Level set up on a tripod in a large room, with a hand holding the remote control, demonstrating its 160ft operating range.

Remote control effective range up to 160 feet.

9. Aplicacions

The OMMO Laser Level is suitable for a wide range of applications, including but not limited to:

Tile installation (floor and wall)
Cabinet and shelf alignment
Picture hanging and decor alignment
Instal·lació de panells de guix
Electrical conduit and outlet installation
Staircase layout
Outdoor grading and landscaping (with appropriate laser detector, not included)

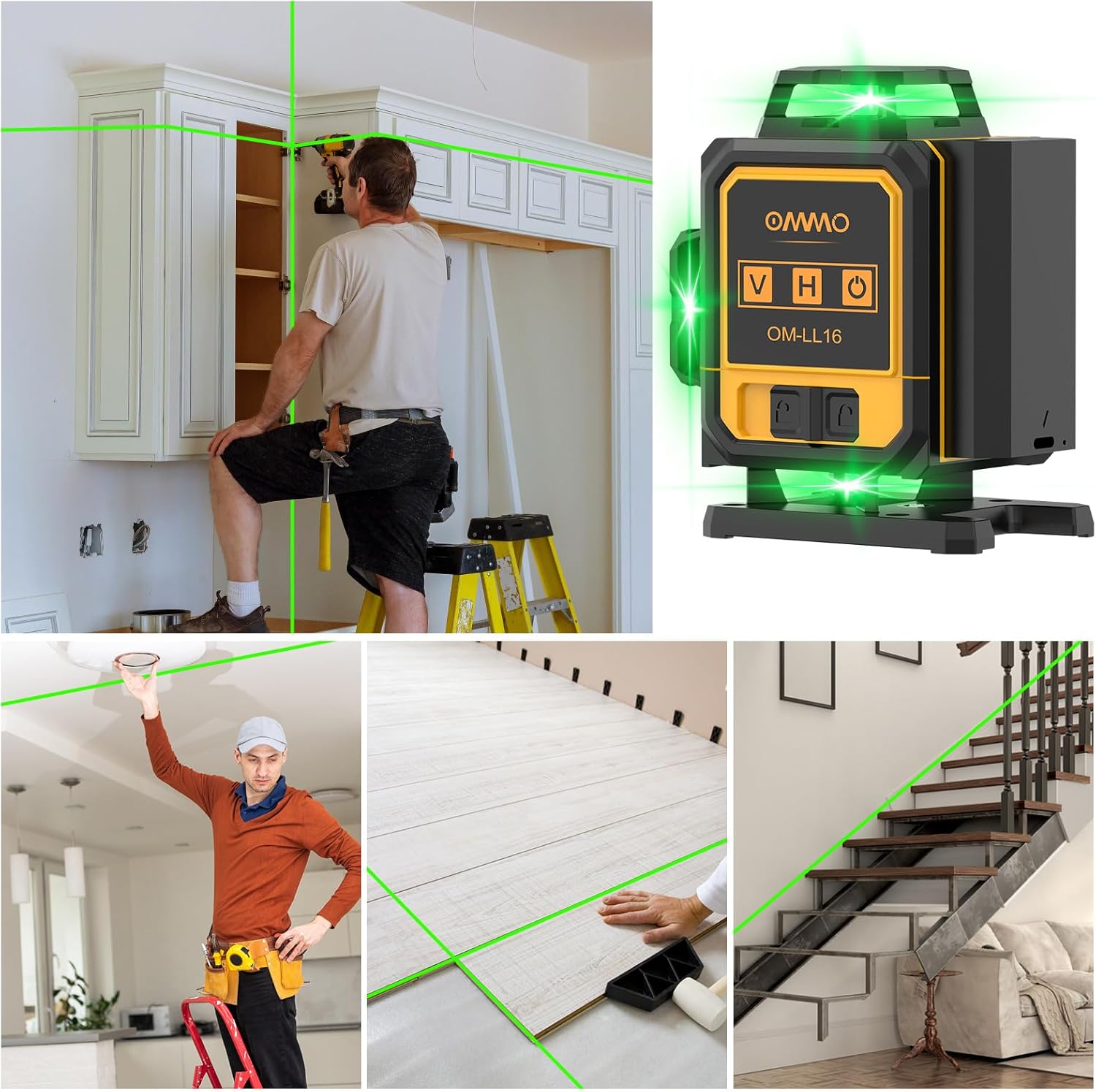

Collage of images showing the OMMO Laser Level being used in various applications: installing kitchen cabinets, leveling a ceiling light, laying floor tiles, and aligning a staircase.

Examples of the laser level in use for various home improvement tasks.

10. Manteniment

Proper maintenance ensures the longevity and accuracy of your laser level.

Neteja: Netegeu el dispositiu amb un suau, damp cloth. Do not use abrasive cleaners or solvents. Keep the laser windows clean for optimal performance.
Emmagatzematge: Store the laser level in its carrying bag in a cool, dry place, away from direct sunlight and extreme temperatures. Remove the battery if storing for extended periods.
Calibració: While the device is factory calibrated, regular checks for accuracy are recommended, especially after impacts or prolonged use. Refer to professional calibration services if significant deviations are observed.

11. Solució De Problemes

Problema	Causa possible	Solució
Les línies làser parpellegen i emeten un so en mode d'autonivellació.	The device is tilted beyond its ±3° self-leveling range.	Place the laser level on a flatter, more stable surface.
El làser no s'encén.	La bateria està baixa o no està instal·lada correctament.	Charge the battery or ensure it is properly inserted.
Les línies làser són tènues o no visibles.	High ambient light or brightness setting is too low.	Adjust brightness using the touch panel/remote. Use in lower light conditions or with a laser detector for outdoor use.
El comandament a distància no funciona.	Remote battery is dead or out of range.	Replace remote battery. Ensure you are within the 160ft operating range.
Laser lines are not accurate.	Device may have been dropped or requires calibration.	Perform a basic accuracy check. If issues persist, contact customer support for calibration.

12. Garantia i assistència

OMMO provides a standard warranty for this product. For detailed warranty terms, technical support, or service inquiries, please refer to the contact information provided on the OMMO official website or your purchase documentation. Please have your model number (OM-LL16) and purchase date ready when contacting support.

Per obtenir més ajuda, visiteu el OMMO Store on Amazon.
