Radtel RT-730 10W Heavy Duty Walkie Talkie User Manual

1. Introducció

The Radtel RT-730 is a high-power 10W UHF/VHF dual-band radio designed for robust communication. Featuring a large-capacity 2500mAh battery, it offers extended usage and long-range capabilities. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your RT-730 walkie-talkie.

2. Què hi ha a la caixa

Your Radtel RT-730 package includes the following items:

• 2 x RT-730 Ham Radios
• 1 x cable de programació
• 2 x Auriculars
• 2 paquets de bateries de ions de liti de 2500 mAh
• 2 x Standard Long Antennas
• 2 carregadors d'escriptori
• 2 x clips de cinturó
• 2 x manuals d'usuari

This image displays the complete set of items you should find in your Radtel RT-730 product box, including the two walkie-talkies, their respective batteries, desktop chargers, long antennas, earpieces, and a programming cable for computer connection.

3. Producte acabatview

The Radtel RT-730 features a clear 1.77-inch LED high-definition color screen, dual PTT buttons, and versatile charging options.

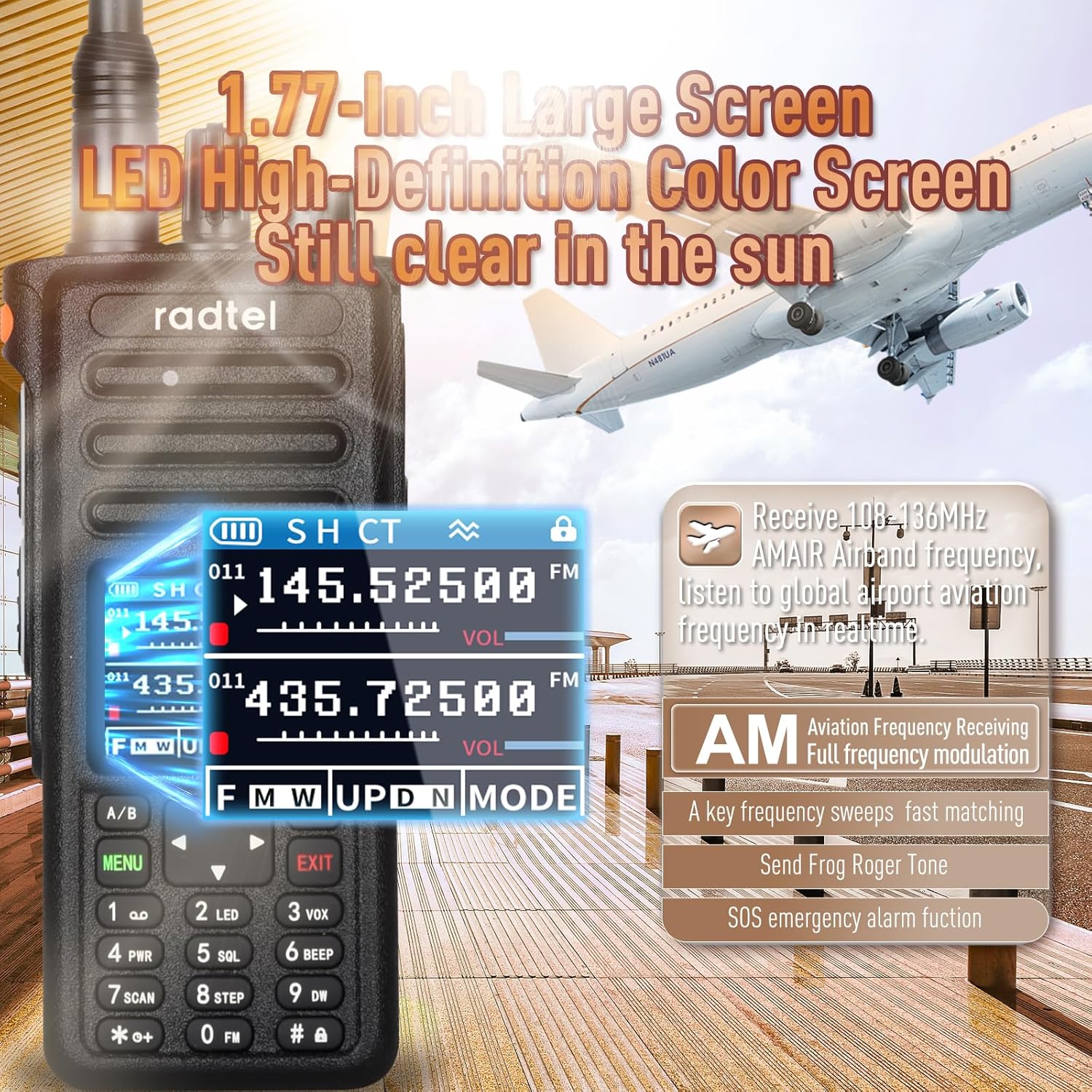

This image highlights the radio's 1.77-inch large LED high-definition color screen, which remains clear even in sunlight, displaying current frequencies and operational modes.

This image illustrates the RT-730's powerful 10W output, enabling long-distance transmission and reliable communication in challenging environments.

3.1 Components clau

• Antena: Per transmetre i rebre senyals.
• Botó de canal: Used to adjust frequencies or select channels.
• Volume/Switch Knob: Controls power on/off and volume level.
• Clau SOS: For emergency alarm function.
• PTT1 Key (Upper PTT): Push-to-Talk button for VHF transmission.
• PTT2 Key (Lower PTT): Push-to-Talk button for UHF transmission.
• Pantalla: Mostra la freqüència, el canal, l'estat de la bateria i altra informació.
• A/B Switch Key: Toggles between upper and lower frequency bands.
• Menu/Confirmation Key: Accedeix al menú i confirma les seleccions.
• Left/Right Keys: Navigation buttons for menu and frequency adjustment.
• Clau V/M: Switches between VFO (Frequency) mode and Memory (Channel) mode.
• Tecla de sortida: Surt del menú o la funció actual.
• Teclat: Numeric and function keys for direct input and feature access.
• Interfície tipus C: For convenient USB-C charging.
• FM Switch: Activates FM radio function.

4. Configuració

4.1 Instal·lació de la bateria

1. Alineeu el paquet de bateries amb les ranures de la part posterior de la ràdio.
2. Feu lliscar la bateria cap amunt fins que encaixi fermament al seu lloc.
3. Per treure-la, premeu el pestell d'alliberament de la bateria i feu-la lliscar cap avall.

4.2 Fixació de l'antena

1. Screw the provided antenna clockwise into the antenna connector on top of the radio until it is finger-tight.
2. No apretar massa.

4.3 Càrrega de la bateria

The RT-730 offers two charging methods:

• Càrrega tipus C: Connect a standard USB Type-C cable to the radio's Type-C port and a compatible power source (e.g., laptop, power bank, car charger).
• Carregador d'escriptori: Col·loqueu la ràdio (amb la bateria instal·lada) a la base de càrrega de l'escriptori. Assegureu-vos que els contactes de càrrega estiguin alineats. L'indicador lluminós del carregador mostrarà l'estat de càrrega.

A full charge typically takes several hours. The 2500mAh battery provides extended operational time.

This video provides a brief introduction to the Radtel RT-730, demonstrating its key features including the screen, channel knob, dual PTTs, antenna, and both Type-C and desktop charging options. It also highlights the 2500mAh battery and 199 channels.

4.4 Programació

The Radtel RT-730 can be programmed using PC software or CHIRP. A programming cable is included in the package. Refer to the software's instructions for detailed programming procedures. (Note: Software supports PC only, not Mac).

5. Instruccions de funcionament

5.1 Engegada/Apagada i Volum

Rotate the Volume/Switch Knob clockwise to power on the radio. Continue rotating to increase the volume. Rotate counter-clockwise to decrease volume and power off.

5.2 Frequency/Channel Selection

• Mode VFO (Mode de freqüència): Use the Channel Knob or the Up/Down arrow keys on the keypad to adjust the frequency.
• Mode de memòria (mode de canal): Press the V/M key to switch to Memory Mode. Use the Channel Knob or Up/Down arrow keys to select from the 199 pre-programmed channels.

5.3 Transmitting (PTT Function)

The RT-730 features dual PTT buttons:

• Premeu el botó Upper PTT button to transmit on the VHF frequency.
• Premeu el botó Lower PTT button to transmit on the UHF frequency.

Speak clearly into the microphone while holding down the PTT button. Release the button to listen.

5.4 Funció VOX (Transmissió operada per veu)

The VOX function allows for hands-free transmission. When activated, the radio will automatically transmit when it detects your voice. Refer to the menu settings for VOX activation and sensitivity adjustment.

5.5 One-Key Copy Frequency (Frequency Auto Capture)

This feature allows you to quickly duplicate frequencies and subtones from nearby radios. Activate this function via the menu to enable instant communication with compatible devices.

This image demonstrates the one-key copy frequency feature, allowing for quick and easy duplication of frequencies between radios for seamless communication.

5.6 Special Reception Features

• NOAA Weather Channel Reception: Tune into NOAA channels to receive real-time weather alerts and forecasts.
• AM Aviation Band Reception: The RT-730 can receive frequencies in the AM aviation band (108-136MHz), allowing you to listen to air traffic communication.

6. Manteniment

6.1 Cura de la bateria

• Carregueu la bateria completament abans del primer ús.
• Eviteu sobrecarregar o esgotar completament la bateria.
• Guardeu les piles en un lloc fresc i sec quan no les utilitzeu.

6.2 Neteja

Netegeu la ràdio amb un suau, damp drap. No utilitzeu productes químics agressius ni netejadors abrasius. Assegureu-vos que la tapa del port tipus C estigui ben tancada per evitar l'entrada de pols i humitat.

6.3 Durabilitat

The RT-730 is constructed with durable and sturdy materials designed to withstand shock and vibration in harsh environments. While water-resistant, avoid submerging the device.

7. Solució De Problemes

• Sense energia: Check battery installation and charge level. Ensure the volume knob is turned on.
• Sense recepció/transmissió: Verify antenna is securely attached. Check frequency/channel settings. Ensure you are within range of other radios.
• Mala qualitat d'àudio: Adjust volume. Check earpiece connection if used. Ensure microphone is not obstructed.
• Problemes de programació: Ensure the correct programming software and drivers are installed. Verify cable connection.

If issues persist, consult the manufacturer's support resources or contact customer service.

8. Especificacions

9. Garantia i Suport

9.1 Informació de la garantia

The Radtel RT-730 comes with a 1 anys de garantia from the manufacturer, Xiamen Radtel Electronics Co.,Ltd. Please retain your proof of purchase for warranty claims.

9.2 Atenció al client

For further assistance, technical support, or warranty inquiries, please visit the official Radtel Store or contact their customer service department. You can find more information and resources at the Radtel Store on Amazon.
