tectake 14L Portable Mini Fridge - Cooling and Warming Function User Manual

1. Introducció

Thank you for choosing the tectake 14L Portable Mini Fridge. This versatile appliance is designed for both cooling and warming, making it ideal for various uses, whether at home, in the office, or on the go. Please read this manual carefully before use to ensure proper operation and maintenance.

2. Producte acabatview

Característiques principals:

• 14L capacity for beverages, snacks, cosmetics, or medicines.
• 2-in-1 function: cools down to 5-8 °C and warms up to 55-65 °C.
• ECO mode for quiet and energy-efficient operation (25 dB).
• Includes two cables for flexible power connection: AC (household) and DC (car).
• Compact design with rounded edges and a viewfinestra d’engegada.
• Removable shelf and door compartment for organized storage.
• Integrated carrying handle for easy transport.

Contingut del paquet:

• tectake 14L Portable Mini Fridge
• Prestatge desmuntable
• Compartiment de la porta
• AC Power Cable (approx. 152 cm)
• DC Power Cable (approx. 182 cm)
• Manual d'usuari

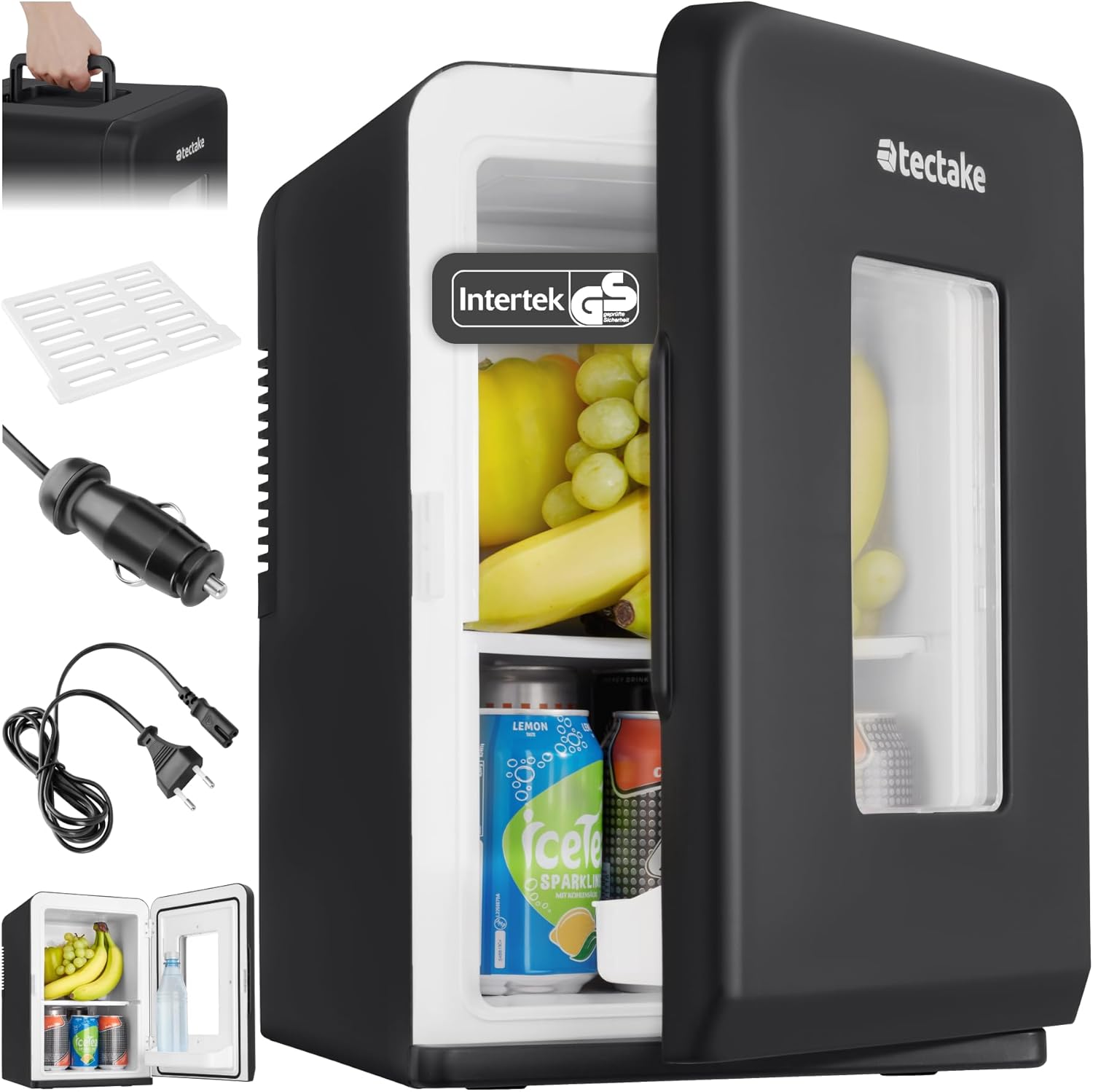

Image: The tectake 14L Portable Mini Fridge shown with its included accessories: AC and DC power cables, a removable shelf, and the integrated carrying handle.

3. Configuració

Desembalatge i col·locació:

1. Carefully remove the mini fridge and all accessories from the packaging.
2. Place the mini fridge on a stable, flat surface. Ensure adequate ventilation around the unit, especially at the back where the fan is located.
3. Insert the removable shelf and door compartment as desired for organizing contents.

Connexió d'alimentació:

The mini fridge can be powered via a standard household AC outlet or a vehicle's DC 12V cigarette lighter socket.

• For AC Power (Household): Connect the AC power cable to the AC input port on the back of the fridge. Plug the other end into a standard 220-240V AC wall outlet.
• Per a alimentació de CC (vehicle): Connect the DC power cable to the DC input port on the back of the fridge. Plug the other end into your vehicle's 12V cigarette lighter socket.

Important: Ensure the power switch on the back of the unit is in the "OFF" position before connecting or disconnecting power cables.

Image: The tectake mini fridge displaying its internal capacity with fruits and canned drinks, alongside a detailed view of the control panel and power inputs on the back.

Image: The tectake mini fridge placed securely in the trunk of a car, demonstrating its portability and suitability for travel, with the DC car adapter visible.

4. Instruccions de funcionament

The tectake mini fridge offers both cooling and warming functions. Use the control panel on the back of the unit to select the desired mode.

Tauler de control acabatview:

• Interruptor AC/DC: Selects the power source (AC for household, DC for car).
• OFF/HOT/COLD Switch: Turns the unit off, or selects warming (HOT) or cooling (COLD) mode.
• MAX/ECO Switch: Selects between maximum performance (MAX) or energy-saving, quiet operation (ECO).

Mode de refrigeració:

1. Ensure the unit is connected to a power source (AC or DC).
2. Set the AC/DC switch to the appropriate power source.
3. Set the OFF/HOT/COLD switch to "COLD". The unit will begin cooling.
4. Select "MAX" for faster cooling or "ECO" for quieter, energy-efficient cooling.
5. The internal temperature will reach approximately 5-8 °C below ambient temperature.

Mode d'escalfament:

1. Ensure the unit is connected to a power source (AC or DC).
2. Set the AC/DC switch to the appropriate power source.
3. Set the OFF/HOT/COLD switch to "HOT". The unit will begin warming.
4. The internal temperature will reach approximately 55-65 °C.
5. Nota: The ECO mode is primarily for cooling. When in warming mode, the unit operates at a consistent heating level.

Imatge: A view of the mini fridge's interior, highlighting the removable shelf and the ventilation system at the back, which ensures efficient temperature regulation.

Imatge: Primer pla views of the mini fridge's features, including the adjustable internal shelf, the clear viewing window on the door, the durable foldable carrying handle, and the robust door seal for consistent temperature.

Image: A graphic illustrating the cooling function (down to 5°C) and warming function (up to 65°C) of the mini fridge, with examples of items kept cool or warm.

5. Manteniment

Neteja:

1. Desconnecteu sempre el cable d'alimentació abans de netejar.
2. Netegeu les superfícies interiors i exteriors amb un damp drap i un detergent suau.
3. No utilitzeu netejadors abrasius, dissolvents ni productes químics agressius, ja que poden danyar les superfícies.
4. Assegureu-vos que la unitat estigui completament seca abans de tornar a connectar l'alimentació.
5. Periodically clean the ventilation grille at the back to prevent dust buildup, which can affect performance.

Emmagatzematge:

When not in use for an extended period, ensure the unit is clean and dry. Store it in a cool, dry place away from direct sunlight.

6. Solució De Problemes

7. Especificacions

Image: Detailed infographic showing the external and internal dimensions of the tectake mini fridge, along with technical specifications like cooling/warming temperatures, noise levels, and power consumption for both AC and DC connections.

8. Garantia i Suport

Per obtenir informació sobre la garantia o assistència tècnica, poseu-vos en contacte amb el vostre distribuïdor o directament amb el fabricant. Conserveu el rebut de compra com a comprovant de compra.

Manufacturer: tectake

Model: 405182-3
