Poafamx Electric Well Pump JC-370W

Introducció

Thank you for choosing the Poafamx Electric Well Pump JC-370W. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your pump. Please read these instructions carefully before use and retain them for future reference.

Informació de seguretat

• Clean Water Use: This pump is designed for extracting clean water only. The use of a filter net is highly recommended to prevent damage from debris.
• Protecció de sobrecàrrega: The pump features a built-in thermal overload automatic protection device to prevent motor overheating and burnout. If the pump shuts down due to overheating, turn off the power and allow the machine to cool down naturally before attempting to restart.
• Interruptor d'alimentació: The integrated power switch enhances operational safety. Always use the switch to turn the pump on and off.
• Cebament: Before starting the pump, ensure the pump casing is filled with water to at least half its capacity. This is crucial for proper operation and to prevent dry running.
• Head and Flow Rate: The pump's head and flow rate are inversely proportional. If a high head is required, the flow rate will be relatively lower. Select the appropriate pump model based on your specific needs.

Producte acabatview i Característiques

The Poafamx Electric Well Pump JC-370W is engineered for powerful and reliable water transfer, featuring robust construction and user-friendly design.

• Rendiment potent: With a maximum flow rate of 2700 L/h, a maximum suction depth of 8-9 m, and a maximum head of 25 m, this pump provides strong water delivery. Its efficient motor ensures quiet operation and quick task completion, suitable for various household and agricultural water needs.
• Good Durability: The pump features a stainless steel pump head, offering exceptional robustness, rust resistance, and corrosion resistance. A stable iron base ensures steady operation, while the cooling vent design promotes efficient heat dissipation, extending the pump's service life.
• Portabilitat convenient: Designed with a sturdy iron handle and a lightweight structure, the pump offers excellent portability, making it easy to handle and transport for various applications.
• Aplicació àmplia: This versatile pump can be connected to a hose to drain water from shallow wells, ponds, or standing water, or directly to a faucet or discharge pipe. It efficiently supplies fresh water for watering lawns, gardens, irrigating farmland, and general garden maintenance.

Detallada view of Poafamx Electric Well Pump components and accessories, including the stainless steel pump head, iron base, power cord, switch, and various connection parts.

Specifications (Model: JC-370W)

The Poafamx Electric Well Pump model JC-370W, illustrating its compact design and key dimensions in an outdoor setting.

Configuració

1. Col·locació: Position the pump on a stable, level surface. The iron base is designed to ensure stable operation.
2. Connexions: Connect the appropriate hoses or pipes to the 32mm inlet and outlet ports. Ensure all connections are secure and leak-free.
3. Cebada de la bomba: Before initial use, or if the pump has run dry, the pump casing must be filled with water. Unscrew the priming plug (if available) or fill through the outlet until the casing is at least half full. This prevents dry running and ensures proper suction.
4. Check Valve for Suction: When drawing water from a source like a pond or shallow well, it is essential to install a check valve on the suction line to prevent water from flowing back and to maintain prime.
5. Connexió d'alimentació: Plug the 6-meter power cord into a compatible 110V/60Hz power outlet. Ensure the power switch on the pump is in the 'OFF' position before plugging it in.

Visual guide for priming the pump before use and draining it afterwards. The 'YES' indicator shows the correct water level for starting.

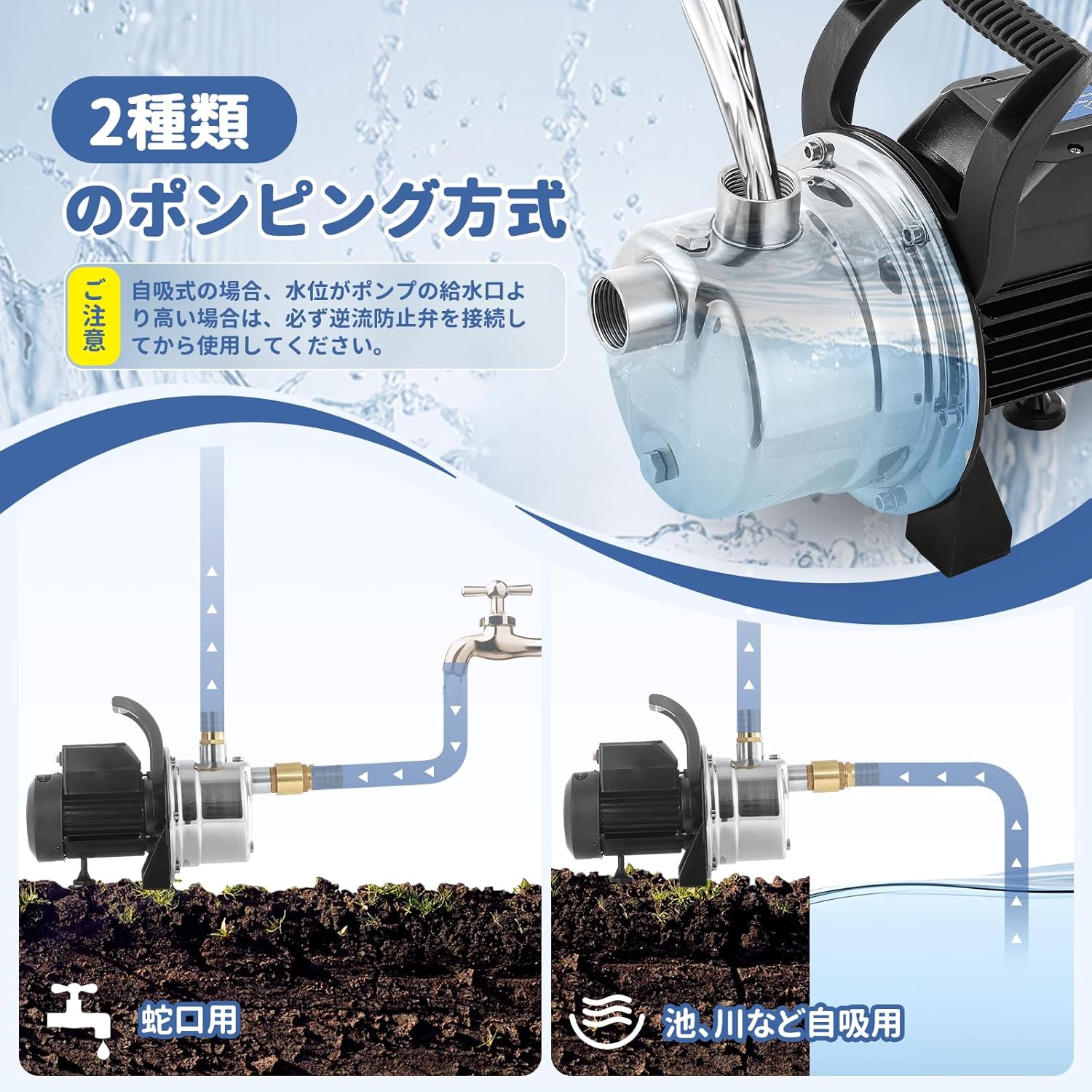

Diagram showing two common pumping methods: direct connection to a faucet and suction from a pond or river. A check valve is recommended for suction applications.

Funcionament

1. Comprovació prèvia al funcionament: Verify all connections are tight, the pump is primed (if necessary), and the suction line is clear of obstructions.
2. Inici de la bomba: Flip the power switch to the 'ON' position. The pump should start operating immediately.
3. Seguiment: Observe the water flow and listen for any unusual noises. Ensure the pump is operating smoothly.
4. Aturar la bomba: To turn off the pump, simply flip the power switch to the 'OFF' position.

The pump in operation, illustrating the powerful water flow and highlighting its maximum flow rate of 2700 L/H and maximum head of 25 M.

Manteniment

• Aigua neta: Always use the pump with clean water. If drawing from sources that may contain debris, ensure a filter net is used on the suction line to prevent clogging and damage to the pump impeller.
• Draining After Use: After each use, especially before storage or in freezing conditions, drain all water from the pump to prevent damage. Refer to the priming/draining image for guidance.
• Inspecció periòdica: Inspeccioneu periòdicament la bomba per detectar qualsevol signe de desgast, danys o fuites. Comproveu la integritat del cable d'alimentació.
• Neteja: Keep the exterior of the pump clean. Ensure the cooling vents are free from dust and debris to maintain proper heat dissipation.

Resolució de problemes

• La bomba no arrenca: Check the power connection and ensure the power switch is 'ON'. Verify that the power outlet is functional.
• Sense flux d'aigua / Flux baix: Ensure the pump is properly primed. Check for blockages in the suction or discharge lines. Verify that the water source is adequate. If a check valve is installed, ensure it is functioning correctly.
• Overheat Shutdown: If the pump stops unexpectedly, it may be due to the thermal overload protection. Turn off the power switch, unplug the pump, and allow it to cool down naturally for at least 30 minutes before attempting to restart. Ensure the cooling vents are not obstructed.
• Soroll inusual: Turn off the pump immediately. Check for any foreign objects in the impeller area or loose components.

If problems persist after following these troubleshooting steps, please contact customer support.

Garantia i Suport

This Poafamx Electric Well Pump comes with a garantia d'un any from the date of purchase. We are committed to ensuring your satisfaction with our product.

Should you encounter any issues or have questions regarding your pump, please do not hesitate to contact our customer support team. We strive to respond promptly to all inquiries and provide the best possible assistance.

Customer Support Business Hours: Monday - Friday (excluding holidays)

Aplicacions

The Poafamx Electric Well Pump JC-370W is suitable for a variety of water transfer tasks:

• Draining water from shallow wells, ponds, or standing water.
• Supplying fresh water for household use.
• Watering lawns and gardens.
• Agricultural irrigation.
• General garden maintenance.

Various application scenarios for the pump, demonstrating its versatility in agricultural irrigation, garden watering, and lawn care.

The pump being carried by its handle, highlighting its portable and lightweight design for easy transport.
