1. Introducció
Thank you for choosing the Greenvelly 72" H Metal Storage Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new storage cabinet. Please read these instructions thoroughly before beginning assembly and retain them for future reference.
Informació de seguretat
- Always assemble the cabinet on a clean, flat, and stable surface.
- Ensure all parts are present before assembly. Do not proceed if parts are missing or damaged.
- Utilitzeu les eines adequades tal com s'especifica a les instruccions de muntatge.
- It is recommended that two people assemble this cabinet for safety and ease.
- Secure the cabinet to a wall using the provided anti-tip hardware to prevent accidental tipping, especially in households with children or pets.
- Do not overload shelves. Refer to the specifications for maximum weight capacity per shelf.
- Keep fingers clear of moving parts during assembly and operation.
2. Contingut del paquet
Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact Greenvelly customer support.
- Panells de l'armari (superior, inferior, laterals, posterior)
- Portes (2)
- Prestatgeries ajustables (4)
- Locking Mechanism and Handle
- Claus (2)
- Maquinari antibolcada
- Assembly Hardware (Screws, bolts, nuts, etc.)
- Manual d'instruccions
3. Muntatge i muntatge
Preparació
- Deixeu una zona espaiosa per al muntatge.
- Lay out all components and hardware, organizing them for easy access.
- Ensure you have a Phillips head screwdriver and possibly a wrench (not always included).
Passos de muntatge
Follow the detailed assembly instructions provided in the separate assembly guide included with your product. The general steps are outlined below:
- Muntar el marc: Connect the side panels to the back panel, then attach the top and bottom panels. Ensure all connections are secure.
- Instal·leu prestatgeries: Insert the shelf clips into the desired slots on the side panels. Place the adjustable shelves onto the clips. The shelves can be repositioned later as needed.
- Fixar portes: Mount the doors to the cabinet frame using the provided hinges. Adjust hinges if necessary for proper door alignment.
- Instal·leu el mecanisme de bloqueig: Attach the handle and locking mechanism to one of the doors as per the instructions. Test the lock with the provided keys.
- Secure to Wall (Anti-Tip): Position the cabinet in its final location. Use the anti-tip hardware to secure the cabinet to a wall stud. This is a critical safety step.
4. Instruccions de funcionament
Mecanisme de bloqueig
The Greenvelly storage cabinet is equipped with a 3-point locking system for enhanced security. To lock the cabinet, ensure both doors are fully closed. Insert one of the provided keys into the lock cylinder on the handle and turn it to engage the locking bolts. To unlock, insert the key and turn it in the opposite direction.
Ajust de prestatgeries
The cabinet includes four adjustable shelves, allowing you to customize the internal storage space. To adjust a shelf:
- Buideu completament el prestatge.
- Carefully lift the shelf to disengage it from the shelf clips.
- Remove the shelf clips from their current slots.
- Reinsert the shelf clips into the desired new slots, ensuring they are level and securely seated.
- Place the shelf back onto the clips.
5. Manteniment
Proper maintenance will ensure the longevity and appearance of your Greenvelly metal storage cabinet.
- Neteja: Netegeu les superfícies de l'armari amb un drap suau iamp cloth. For stubborn dirt, a mild soap solution can be used. Avoid abrasive cleaners or harsh chemicals, as they may damage the finish.
- Inspecció: Reviseu periòdicament tots els cargols i perns per assegurar-vos que romanen ajustats. Torneu a apretar-los si cal.
- Cura del pany: Si el mecanisme de pany s'endureix, es pot aplicar una petita quantitat de lubricant de grafit al forat del pany.
- Prevenció de l'òxid: Although the cabinet has a rust-resistant coating, avoid prolonged exposure to excessive moisture or corrosive substances. Promptly clean any spills.
6. Solució De Problemes
A continuació es mostren problemes comuns i les seves possibles solucions:
| Problema | Causa possible | Solució |
|---|---|---|
| Les portes no tanquen correctament o estan mal alineades. | Les frontisses estan fluixes o mal ajustades. | Tighten hinge screws. Adjust hinges as per assembly instructions to align doors. Ensure the cabinet is on a level surface. |
| Lock mechanism is stiff or difficult to turn. | Lack of lubrication or minor obstruction. | Apply a small amount of graphite lubricant into the keyhole. Ensure the key is fully inserted. |
| El moble sembla inestable o trontolla. | Not all fasteners are tightened; cabinet not level; anti-tip hardware not installed. | Check and tighten all assembly fasteners. Ensure the cabinet is on a level surface. Install the anti-tip hardware securely to a wall stud. |
| Shelves sag or cannot hold weight. | Overloaded shelf; shelf clips not properly seated. | Reduce the weight on the shelf. Ensure shelf clips are fully inserted and seated correctly in the slots. Refer to specifications for maximum weight capacity. |
7. Especificacions
| Característica | Detall |
|---|---|
| Marca | Greenvelly |
| Model | B0DHX7X7MP |
| Material | Cold-rolled Steel (0.88mm thickness) |
| Color | Negre |
| Dimensions totals (D x W x H) | 18" x 36" x 72" (45.6 cm x 91 cm x 182.8 cm) |
| Nombre de prestatgeries | 4 (ajustable) |

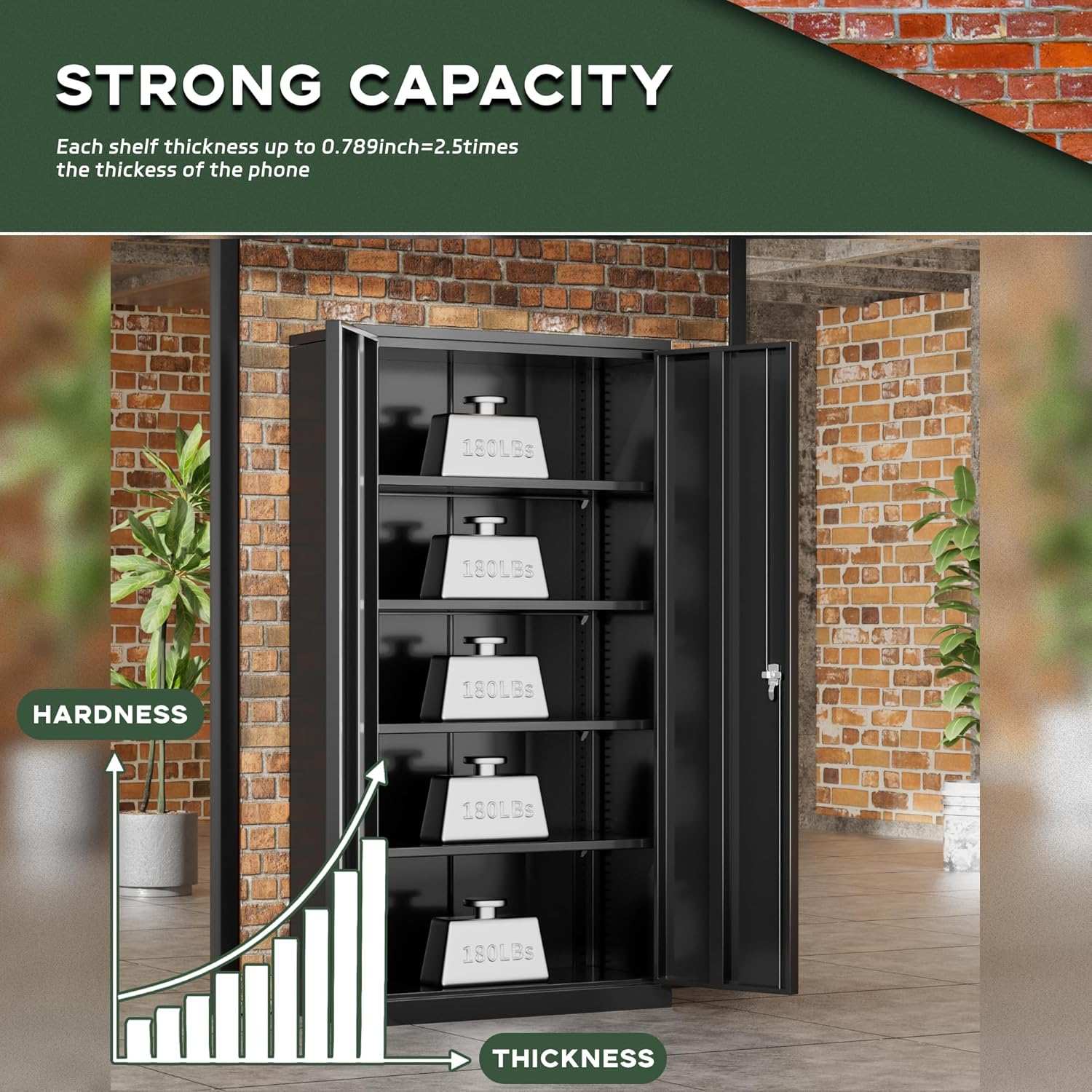

| Capacitat de pes del prestatge | Fins a 180 lliures per prestatge |
| Sistema de tancament | 3-point locking with 2 keys |
| Característiques especials | Lockable, Anti-tipping mechanism, Waterproof and rust-resistant coating |
| Usos recomanats | Art & Crafts, Clothes, Files & Folders, Tools, Home Office, Garage, Shop, School |
8. Garantia i Suport
Greenvelly products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Greenvelly website. If you encounter any issues or require assistance with your Greenvelly 72" H Metal Storage Cabinet, please contact our professional after-sales support team. Contact information can typically be found on our weblloc web o a l'embalatge del producte.
