1. Introducció
Thank you for choosing the MOREFINE M6 Mini PC N200. This compact and powerful mini computer is designed for various applications, from home entertainment to office tasks, offering efficient performance and versatile connectivity. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your device.
2. Informació de seguretat
- Font d'alimentació: Use only the provided power adapter. Ensure the power source matches the specified voltage i corrent.
- Ventilació: No bloquegeu les obertures de ventilació. Assegureu-vos que hi hagi un flux d'aire adequat al voltant del dispositiu per evitar el sobreescalfament.
- Exposició líquida: Keep the device away from water, moisture, and other liquids. Avoid spills.
- Temperatura: Operate the device within a stable temperature range. Avoid extreme heat or cold.
- Neteja: Desconnecteu l'alimentació abans de netejar. Feu servir un drap suau i sec. No utilitzeu netejadors líquids ni aerosols.
- Manipulació: Manipuleu el dispositiu amb cura. Eviteu deixar-lo caure ni sotmetre'l a impactes forts.
3. Contingut del paquet
Verifiqueu que tots els elements siguin presents al vostre paquet:
- 1 x MOREFINE M6 Mini PC
- 1 x adaptador de corrent
- 1 x Manual d'usuari (aquest document)
- 1 x cable HDMI
4. Producte acabatview
The MOREFINE M6 Mini PC N200 is a compact computing solution. Its small form factor allows for easy placement in various environments, while its robust internal components ensure reliable performance.

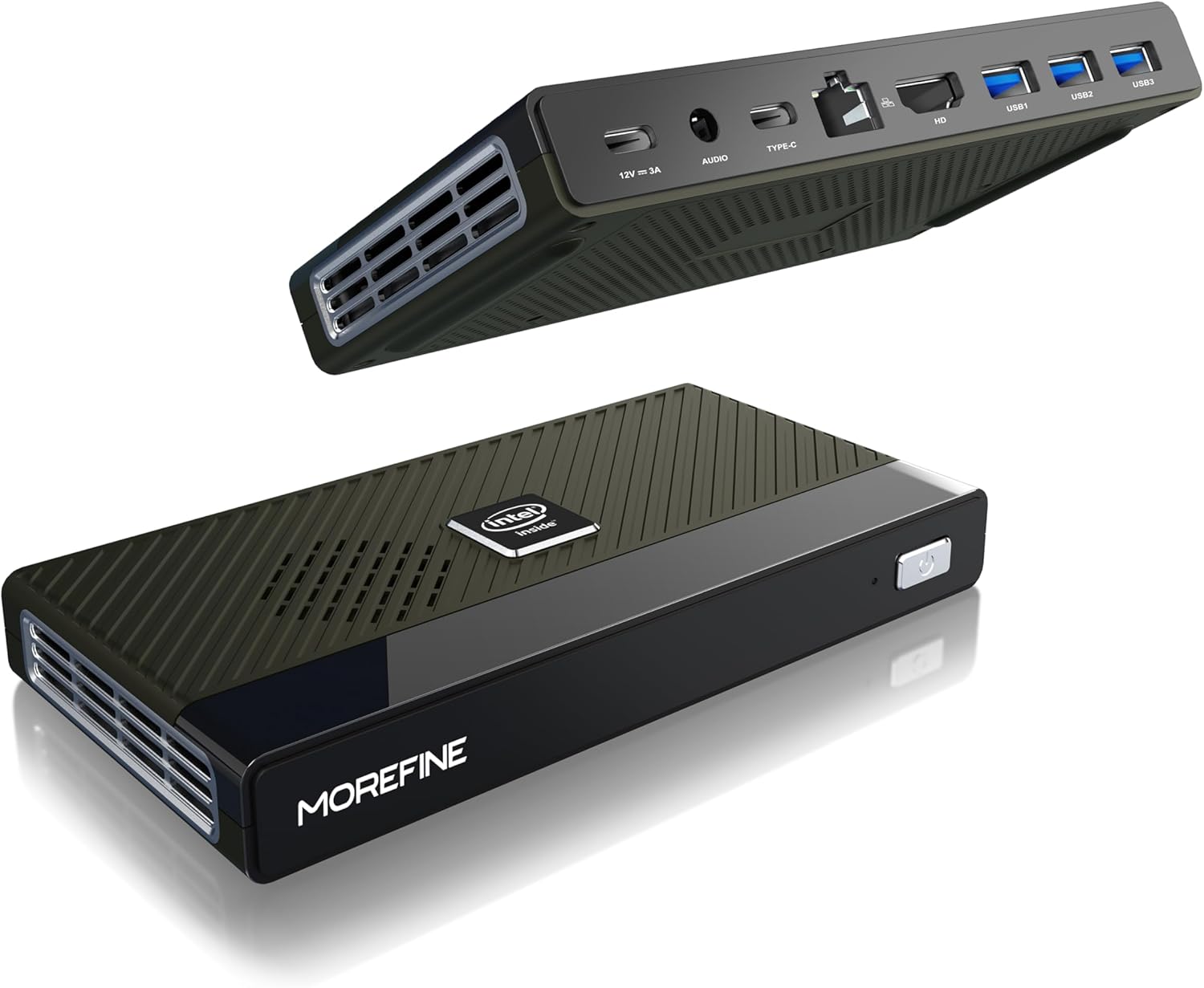

Figure 4.1: MOREFINE M6 Mini PC N200, showcasinel seu disseny compacte i la disposició dels ports.
4.1 Ports i connectors
The M6 Mini PC features a comprehensive set of ports for connectivity:
Figura 4.2: Detallada view of the MOREFINE M6 Mini PC's input/output ports.
- DC-IN (Type-C): Entrada d'alimentació (12V/3A).
- Jack d'àudio: 3.5mm audio output for headphones or speakers.
- Type-C (Data/Display): Supports 4K@60Hz display output and data transfer.
- LAN 2.5G: Ethernet port for high-speed wired network connection.
- HDMI: HDMI 2.0 port for 4K@60Hz display output.
- USB 3.2 Gen1 (x3): Ports USB d'alta velocitat per a perifèrics.
4.2 Components interns
The M6 Mini PC is powered by an Intel Alder Lake N200 processor, offering enhanced performance and energy efficiency. It includes 16GB LPDDR5 RAM and a 1TB PCIe M.2 SSD for fast operation and ampl'emmagatzematge.
Figure 4.3: Intel Alder Lake N200 Processor overview.
The device incorporates a silent copper cooling fan to maintain optimal operating temperatures, ensuring stable performance even under load.
Figure 4.4: Internal components and cooling system.
4.3 Compact Design and Versatility
The M6 Mini PC's compact size (approximately 5.91 x 3.01 x 0.75 inches) and lightweight design make it highly portable and suitable for various applications, including office work, home entertainment, and digital signage.
Figure 4.5: Size comparison of the M6 Mini PC.
Figure 4.6: Illustrative usage scenarios for the M6 Mini PC.
5. Configuració
5.1 Connexió inicial
Follow these steps to set up your MOREFINE M6 Mini PC:
- Connecta la pantalla: Connect your monitor or TV to the Mini PC using the provided HDMI cable or a compatible Type-C to display cable. The device supports dual 4K@60Hz displays.
- Connecteu els perifèrics: Plug in your keyboard, mouse, and any other USB devices into the available USB 3.2 ports.
- Connecta la xarxa (opcional): For a wired internet connection, connect an Ethernet cable to the 2.5G LAN port. Alternatively, the device supports WiFi 6 for wireless connectivity.
- Connectar l'alimentació: Connect the power adapter to the DC-IN Type-C port on the Mini PC, then plug the adapter into a power outlet.
5.2 Primer arrencada
After connecting all necessary components, press the power button on the front of the Mini PC. The device will power on, and the operating system (OS) setup process will begin. Follow the on-screen instructions to complete the OS configuration.
Figure 5.1: Dual 4K display setup example.
Vídeo 5.1: Un overview of the MOREFINE M6 Mini PC, demonstrating its features and compact design.
6. Instruccions de funcionament
6.1 Encès/Apagat
- Encès: Press the power button once. The indicator light will illuminate.
- Apagar: To shut down the system, use the operating system's shutdown function. For a forced shutdown, press and hold the power button for approximately 5 seconds.
6.2 Dual Display Configuration
The M6 Mini PC supports connecting two external displays simultaneously via the HDMI and Type-C ports. Once connected, you can configure display settings within your operating system to extend or duplicate your desktop.
6.3 Expansió d'emmagatzematge
The Mini PC has two PCIe 3.0 SSD slots. One slot supports NVMe/SATA SSDs (up to 2TB), and the other supports NVMe SSDs (up to 2TB). To expand storage:
- Ensure the device is powered off and disconnected from the power supply.
- Carefully open the bottom cover of the Mini PC.
- Insert the M.2 SSD into the appropriate slot and secure it with the provided screw.
- Torneu a col·locar la coberta inferior.
- Upon booting, you may need to initialize and format the new SSD through your operating system's disk management tools.
7. Manteniment
- Neteja: Regularly clean the exterior of the Mini PC with a soft, dry cloth. Use compressed air to clear dust from ventilation openings.
- Ventilació: Ensure the Mini PC is placed in a well-ventilated area. Do not obstruct the air vents.
- Actualitzacions de programari: Mantingueu el sistema operatiu i els controladors actualitzats per garantir un rendiment i una seguretat òptims.
- Còpia de seguretat de dades: Regularly back up important data to an external storage device or cloud service.
8. Solució De Problemes
This section addresses common issues you might encounter with your MOREFINE M6 Mini PC.
| Problema | Causa possible | Solució |
|---|---|---|
| El dispositiu no s'encén. | L'adaptador de corrent no està connectat o està defectuós; problema amb la presa de corrent. | Assegureu-vos que l'adaptador de corrent estigui connectat correctament al dispositiu i a una presa de corrent que funcioni. Proveu una altra presa de corrent. |
| No es mostra cap imatge al monitor. | Display cable loose or faulty; incorrect input selected on monitor. | Check display cable connections. Ensure the monitor is set to the correct input source (HDMI/Type-C). Try a different cable or monitor. |
| Rendiment lent. | Too many applications running; insufficient storage space; outdated drivers. | Close unnecessary applications. Free up disk space. Update operating system and drivers. |
| Device feels hot. | Obstructed ventilation; prolonged heavy usage. | Ensure air vents are clear and the device is in a well-ventilated area. Reduce heavy workload if necessary. If overheating persists, contact support. |
| No es pot connectar a la Wi-Fi. | Wi-Fi module disabled; incorrect password; driver issue. | Check Wi-Fi settings in the OS. Verify password. Ensure Wi-Fi drivers are installed and up to date. |
9. Especificacions tècniques
| Característica | Especificació |
|---|---|
| Processador | Intel Alder Lake N200 (up to 3.7 GHz, 4 Cores) |
| RAM | 16GB LPDDR5 4800MHz (non-removable) |
| Emmagatzematge | 1TB PCIe M.2 SSD (expandable via 2 M.2 slots, up to 2TB each) |
| Gràfics | Gràfics Intel UHD |
| Sortida de vídeo | HDMI (4K@60Hz) x1, Type-C (4K@60Hz) x1 |
| Ports USB | USB 3.2 Gen1 x3, Type-C x1 (data/display) |
| Xarxa | 2.5G LAN (RJ45), WiFi 6 (802.11ax) |
| Bluetooth | Bluetooth 5.2 |
| Àudio | 3.5mm Àudio Jack |
| Sistema operatiu | Pre-installed OS (specific version may vary) |
| Dimensions | Aprox. 5.90 x 3.07 x 0.75 polzades (149.86 x 76.5 x 19.05 mm) |
| Pes | Aprox. 0.102 unces (240 g) |
| Característiques especials | Wake On LAN, PXE Boot, RTC Wake, Auto Power On |
10. Garantia i Suport
MOREFINE products are designed for reliability and performance. For warranty information, please refer to the documentation included with your purchase or visit the official MOREFINE weblloc.
If you encounter any issues or require technical assistance, please contact MOREFINE customer support. You can typically find contact information on the MOREFINE official store page or through the retailer where you purchased the product. When contacting support, please have your product model (M6-N200) and purchase details ready.
