GoKWh 12V 200Ah LiFePO4 Lithium Battery User Manual

1. Introducció

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your GoKWh 12V 200Ah LiFePO4 Lithium Battery. Please read this manual thoroughly before using the product to ensure optimal performance and longevity. This battery is ideal for various applications including RVs, solar energy storage systems, marine vessels, and trolling motors.

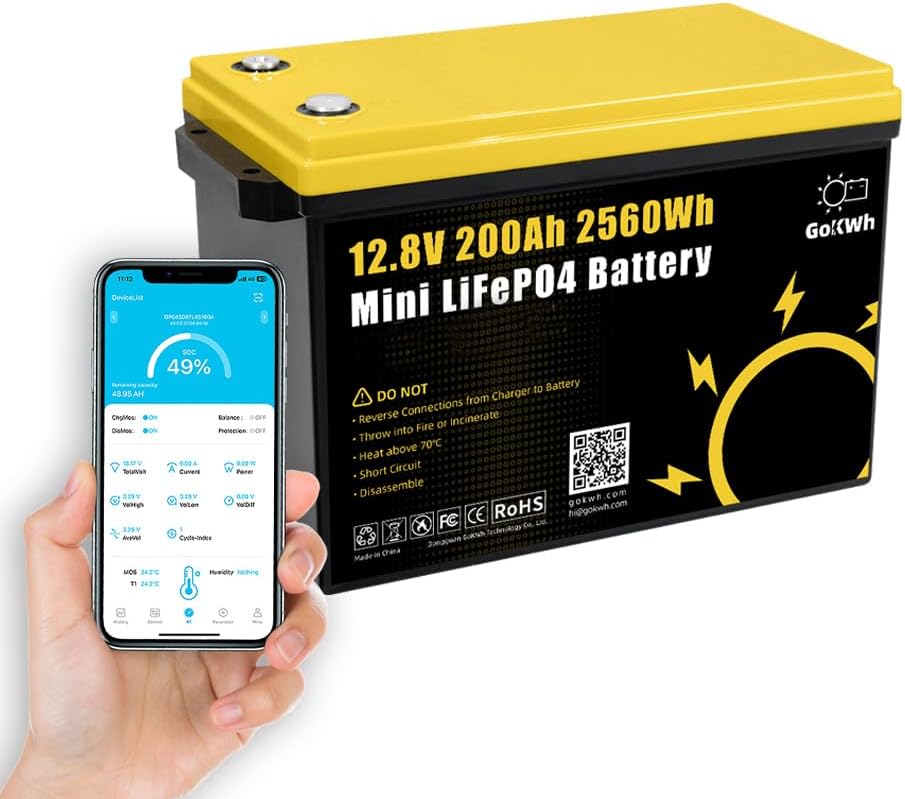

Image: The GoKWh 12V 200Ah LiFePO4 battery, showcasing its compact design and the accompanying smartphone application for real-time monitoring.

2. Característiques del producte

• Automotive Grade LiFePO4 Cells: Built with high-quality automotive-grade LiFePO4 cells, offering high energy density, stable performance, and greater power output for reliable energy storage.
• Vida útil ampliada: Delivers 2560Wh and can endure up to 4000-15000 cycles (4000 cycles @80% DOD, 15000 cycles @60% DOD), providing a significantly longer lifespan compared to traditional lead-acid batteries.
• Disseny lleuger i compacte: Weighs approximately 40.8 lbs, which is only 1/3 the weight and size of comparable lead-acid batteries, and 2/3 the size of traditional 12V 200Ah LiFePO4 batteries, facilitating easy installation and enhanced mobility.
• Integrated 200A Smart BMS: Equipped with an advanced Battery Management System (BMS) that ensures optimal safety and performance by protecting against overcharging, over-discharging, over-current, short circuits, and high temperatures.
• Scalable Capacity: Supports versatile connections in parallel (up to 4P for 800Ah total capacity) or series (up to 4S for 48V / 51.2V total voltage) for increased capacity to meet various application needs.
• Monitorització d'aplicacions: Features built-in Bluetooth functionality, allowing for convenient real-time monitoring of battery status via a dedicated mobile application.

Image: A comparison chart highlighting the superior features of GoKWh LiFePO4 batteries, including higher energy (2560Wh), Smart Bluetooth BMS, longer cycle life (4000-15000 cycles), 5-year lifetime, lighter weight, smaller size, and 100% DOD capability compared to lead-acid and other LiFePO4 batteries.

Imatge: Una explosió view illustrating the internal components of the GoKWh battery, emphasizing the Grade A LiFePO4 Prismatic Cells and the reliable BMS system for ultra-safety and extended cycle life.

Image: A detailed diagram outlining the protective functions of the integrated BMS, including Bluetooth, overvoltage/undervoltage protection, charge/discharge overcurrent protection, short circuit protection, temperature protection, and balance function.

3. Què hi ha a la caixa

• GoKWh 12V 200Ah LiFePO4 Lithium Battery
• M8 Screw (for terminal connections)
• Manual d'usuari (aquest document)

4. Especificacions

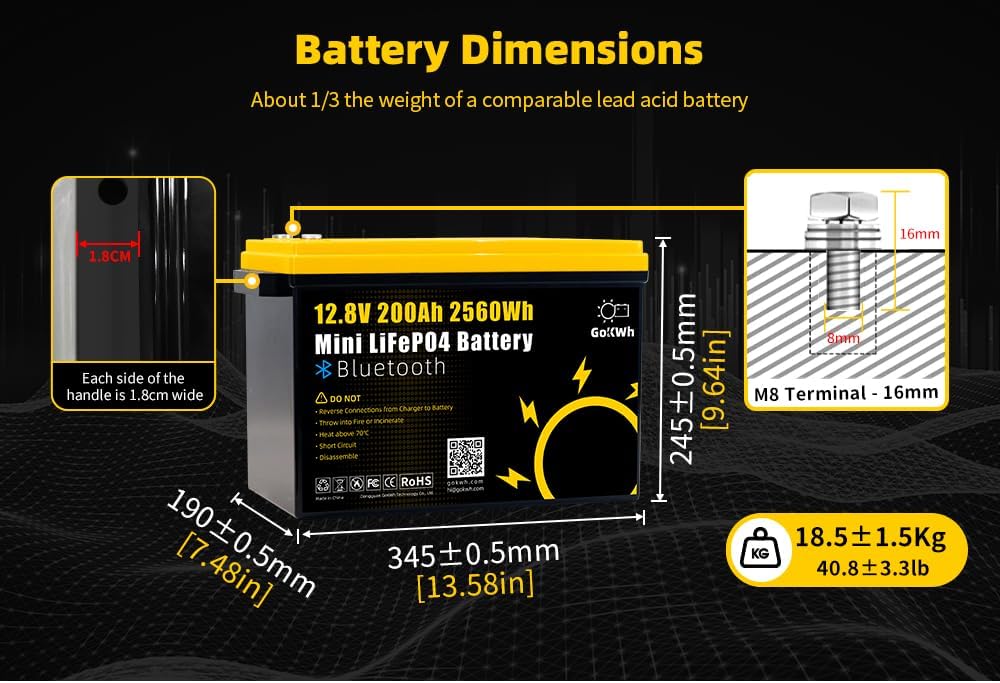

Image: Detailed dimensions of the GoKWh 12V 200Ah LiFePO4 battery, showing length, width, and height in millimeters.

Image: Further dimensional details including the M8 terminal size (16mm) and the battery's weight (40.8 lbs / 18.5 kg).

5. Configuració i instal·lació

5.1 Llista de comprovació prèvia a la instal·lació

• Assegureu-vos que tots els components estiguin presents i sense danys.
• Comproveu el volum de la bateriatage matches your system requirements.
• Have appropriate tools ready (e.g., wrench for M8 terminals).
• Ensure the installation environment is dry, well-ventilated, and within recommended temperature ranges.

5.2 Pautes de connexió

1. La seguretat primer: Always wear protective gloves and eye protection during installation. Ensure all loads are disconnected and the system is de-energized before making connections.
2. Connexions de terminals: Connect the positive (+) terminal of the battery to the positive (+) terminal of your system/inverter, and the negative (-) terminal of the battery to the negative (-) terminal of your system/inverter. Use the provided M8 screws and ensure connections are tight to prevent resistance and overheating.
3. Connexió paral·lela (per a una major capacitat):
   • Connect positive to positive and negative to negative terminals of multiple batteries.
   • Ensure all batteries are of the same model, capacity, voltage, and brand.
   • It is recommended to use batteries purchased within 3 months of each other for optimal performance in parallel configurations.
   • Maximum parallel connection: Up to 4 batteries for 800Ah total capacity.
4. Connexió en sèrie (per a un volum augmentat)tage):
   • Connect the positive terminal of one battery to the negative terminal of the next battery.
   • Ensure all batteries are of the same model, capacity, voltage, and brand.
   • It is recommended to use batteries purchased within 3 months of each other for optimal performance in series configurations.
   • Maximum series connection: Up to 4 batteries for 48V / 51.2V total voltage.

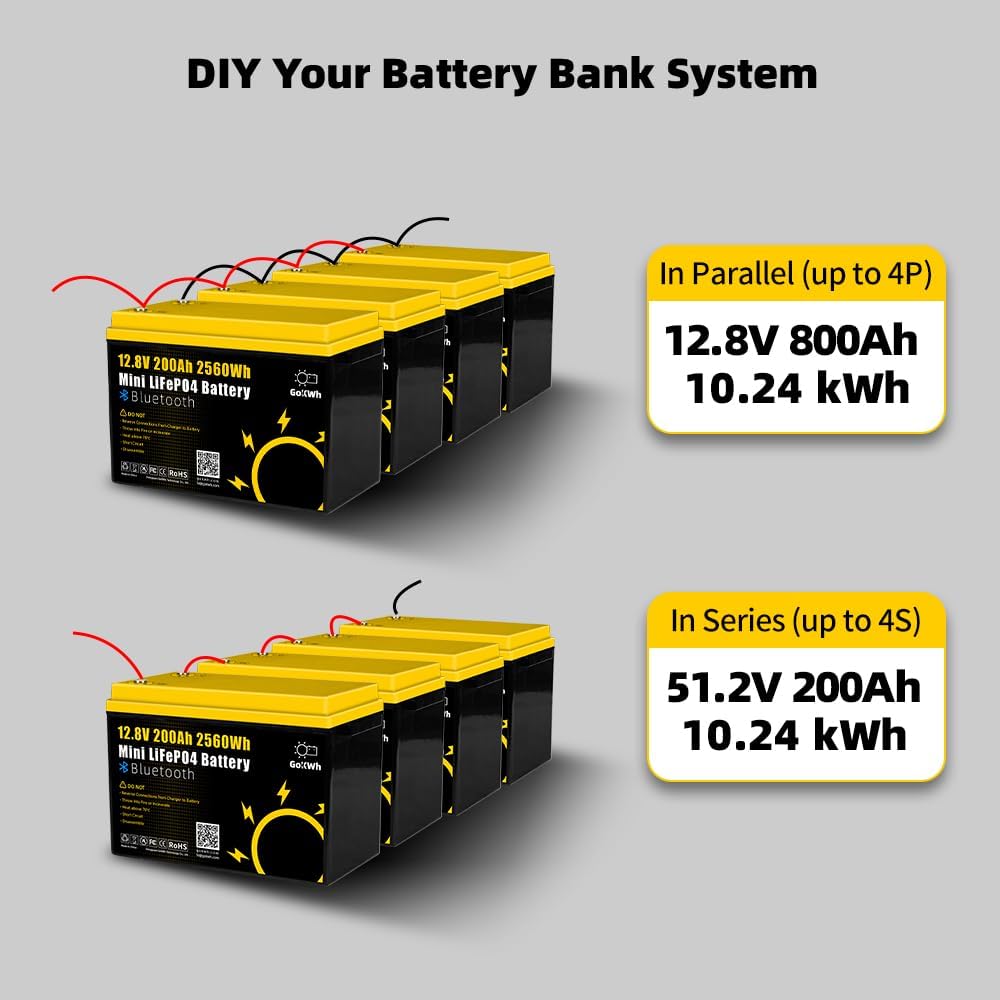

Image: Visual guide demonstrating how to connect multiple GoKWh batteries in parallel (up to 4P for 12.8V 800Ah) and in series (up to 4S for 51.2V 200Ah) to achieve desired capacity or voltage.

5.3 Direcció de muntatge

The battery should be mounted in an upright position. The sides and tops of batteries cannot be placed face down. Ensure proper ventilation around the battery to prevent heat buildup.

6. Instruccions de funcionament

6.1 Càrrec inicial

It is recommended to fully charge the battery before its first use. Use a compatible LiFePO4 charger. Do not use chargers designed for lead-acid batteries unless they have a specific LiFePO4 charging mode, as this can damage the battery.

6.2 Càrrega i descàrrega

• Temperatura de càrrega: Charge the battery between 32°F and 113°F (0°C and 45°C). Charging outside this range may reduce battery life or cause damage.
• Temperatura de descàrrega: Discharge the battery between -4°F and 140°F (-20°C and 60°C).
• Profunditat de descàrrega (DOD): The battery supports 100% DOD, meaning it can be fully discharged without significant damage, unlike lead-acid batteries. However, for maximum lifespan, operating within 80% DOD is generally recommended.
• Protecció de sobrecàrrega: The built-in BMS will automatically cut off power if the load exceeds the battery's maximum output (2560W) or if there is an overcurrent condition. This protects both the battery and connected devices.

6.3 Smart App Monitoring

The GoKWh battery features built-in Bluetooth for real-time monitoring via a mobile application. This allows you to conveniently check battery status, voltage, current, temperature, cycle count, and other parameters from your smartphone.

1. Descarrega de l'aplicació: Cerca "Xiaoxiang Electric" or a similar GoKWh official app in the Google Play Store (for Android) or Apple App Store (for iOS). Alternatively, scan the QR code provided on the product or packaging if available.
2. Connexió: Enable Bluetooth on your smartphone and open the app. The app should detect the battery. Follow the in-app instructions to connect.
3. Seguiment: Un cop connectat, pots view various battery metrics and monitor its performance, including current, voltage, temperature, and cycle data.

Image: A visual representation of the mobile application interface, demonstrating how users can monitor real-time battery data such as state of charge, voltage, corrent i temperatura.

7. Important Notes and Safety Warnings

• NOT a Starting/Power Battery: This LiFePO4 battery is designed specifically for energy storage applications (e.g., RV, solar, marine, trolling motor). Do NOT use it as a car starting battery or for golf carts.
• Polaritat inversa: Do not reverse connections from charger to battery or from battery to load. This can cause severe damage to the battery and connected devices, and may void your warranty.
• Temperatura: Do not expose the battery to temperatures above 70°C (158°F). High temperatures can severely degrade battery performance and safety.
• Danys físics: Do not puncture, short circuit, incinerate, or disassemble the battery. Avoid severe impacts or dropping the battery.
• Exposició a l'aigua: Keep the battery away from water and excessive moisture. This battery is not designed for submersion.
• Ventilació: Ensure adequate ventilation around the battery during operation and charging to dissipate heat.
• Nens: Mantingueu la bateria fora de l'abast dels nens i les mascotes.

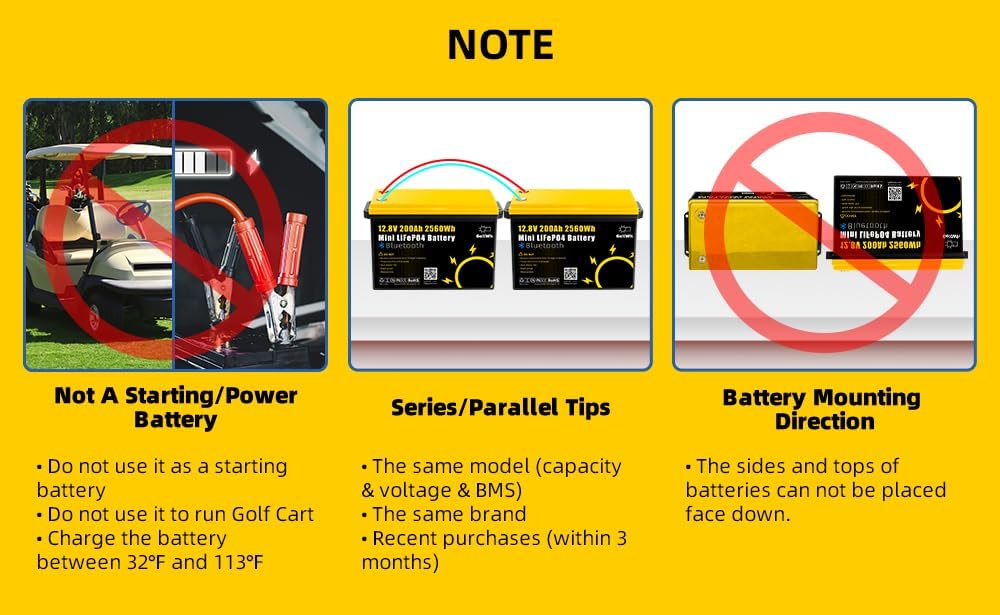

Image: A visual summary of critical safety notes, including warnings against using the battery as a starting battery, guidelines for series/parallel connections (same model, brand, recent purchase), and correct battery mounting direction (not face down).

8. Manteniment

• Inspecció periòdica: Periodically inspect the battery and its connections for any signs of damage, corrosion, or loose terminals. Address any issues promptly.
• Neteja: Keep the battery clean and free of dust and debris. Use a dry, soft cloth for cleaning. Do not use solvents, abrasive cleaners, or water directly on the battery.
• Emmagatzematge: If storing the battery for an extended period, ensure it is charged to approximately 50-70% of its capacity. Store in a cool, dry place, away from direct sunlight and extreme temperatures. Recharge every 3-6 months if stored for very long periods to prevent deep discharge.
• Estanquitat del terminal: Ensure terminal connections remain tight to prevent voltage drop, heat buildup, and potential arcing.

9. Solució De Problemes

If you encounter issues not listed here or if troubleshooting steps do not resolve the problem, please contact GoKWh technical support for further assistance.

10. Garantia i Suport

10.1 Informació de la garantia

GoKWh LiFePO4 batteries are designed for durability and come with an expected lifespan of 10 years. For specific warranty terms and conditions, including coverage details and duration, please refer to the warranty card included with your product or visit the official GoKWh weblloc.

10.2 Suport tècnic

GoKWh offers professional technical support and online customer service with fast feedback within 24 hours. If you have any questions or issues regarding your battery, please reach out to the GoKWh support team.

Oficial Weblloc: https://gokwh.com/

Per obtenir ajuda, visiteu el website or use the contact information provided on your product packaging.
