Introducció
Welcome to your new VIKIO HOME Range Hood Insert. This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your appliance. Please read this manual thoroughly before installation and use, and keep it for future reference.
Instruccions importants de seguretat
- Desconnecteu sempre l'alimentació abans de fer el manteniment o la neteja de la unitat.
- Follow all local building codes and regulations for installation and ventilation.
- Ensure proper grounding of the electrical connection to prevent electric shock.
- Use only as intended for general ventilating use in a kitchen environment. Do not use to exhaust hazardous or explosive materials.
- Mantingueu els nens i les mascotes allunyats de l'aparell durant el funcionament i el manteniment.
Contingut del paquet
Your VIKIO HOME Range Hood Insert package includes the following items:
- Manual d'instruccions
- Activated carbon filter (for ductless operation)
- Cargols de muntatge
- 6-inch top round adapter
- Stainless steel baffle filters (2 Pcs)
Configuració i instal·lació
The VIKIO HOME Range Hood Insert is designed for both ducted and ductless configurations, offering flexibility for your kitchen setup. For detailed installation instructions, please refer to the official Installation Manual PDF: Descarrega el manual d'instal·lació (PDF).
The VIKIO HOME 30-inch Range Hood Insert, ready for installation.
Dimensions and compatible installation types for the Range Hood RB30 model.
This video demonstrates the installation process of the VIKIO HOME Range Hood Insert, showing how it fits into kitchen cabinetry and the connection of the ducting.
Illustration of the ductless support system with included carbon filter for effective air purification.
Operating Your Range Hood
Control Panel and Gesture Control
Your range hood features a new generation gesture and touch control panel for convenient operation. The 29° bevel design makes the switch more conspicuous and operation more precise, with a gesture success rate of 99.5%.
Detallada view of the gesture and touch control panel, highlighting the sensing points for hands-free operation.
- On/Off/Delay: Use touch or gesture to power the unit on or off. The upgraded delayed shutdown function allows the range hood to automatically shut down after 3 minutes, effectively removing remaining fumes.
- Llum: Control the dual 3W LED lights for bright, natural illumination (4000K). These lights provide true food colors, eye protection, and are energy-saving and long-lasting.
- Configuració de velocitat: Choose from 3 adjustable fan speeds: Low, Medium, and High. Swipe your hand to the right over the sensing points to increase speed, and to the left to decrease speed.
Powerful and Quiet Ventilation
Equipped with an upgraded 980 CFM motor, this range hood provides powerful suction to quickly remove smoke and odors, ensuring a clean kitchen environment. It offers 18% more airtightness and 40% more suction compared to previous models.
The range hood effectively removing smoke and odors from the cooking area.
The range hood's advanced duct system minimizes airflow noise, operating as low as 35 dBA at low speed and less than 65 dBA at high speed (less than 65 dBA overall). This ensures a quiet cooking environment even during powerful ventilation.
Illustration of the range hood's quiet operation, with noise levels as low as 35 dBA.
Neteja i Manteniment
Neteja de filtres

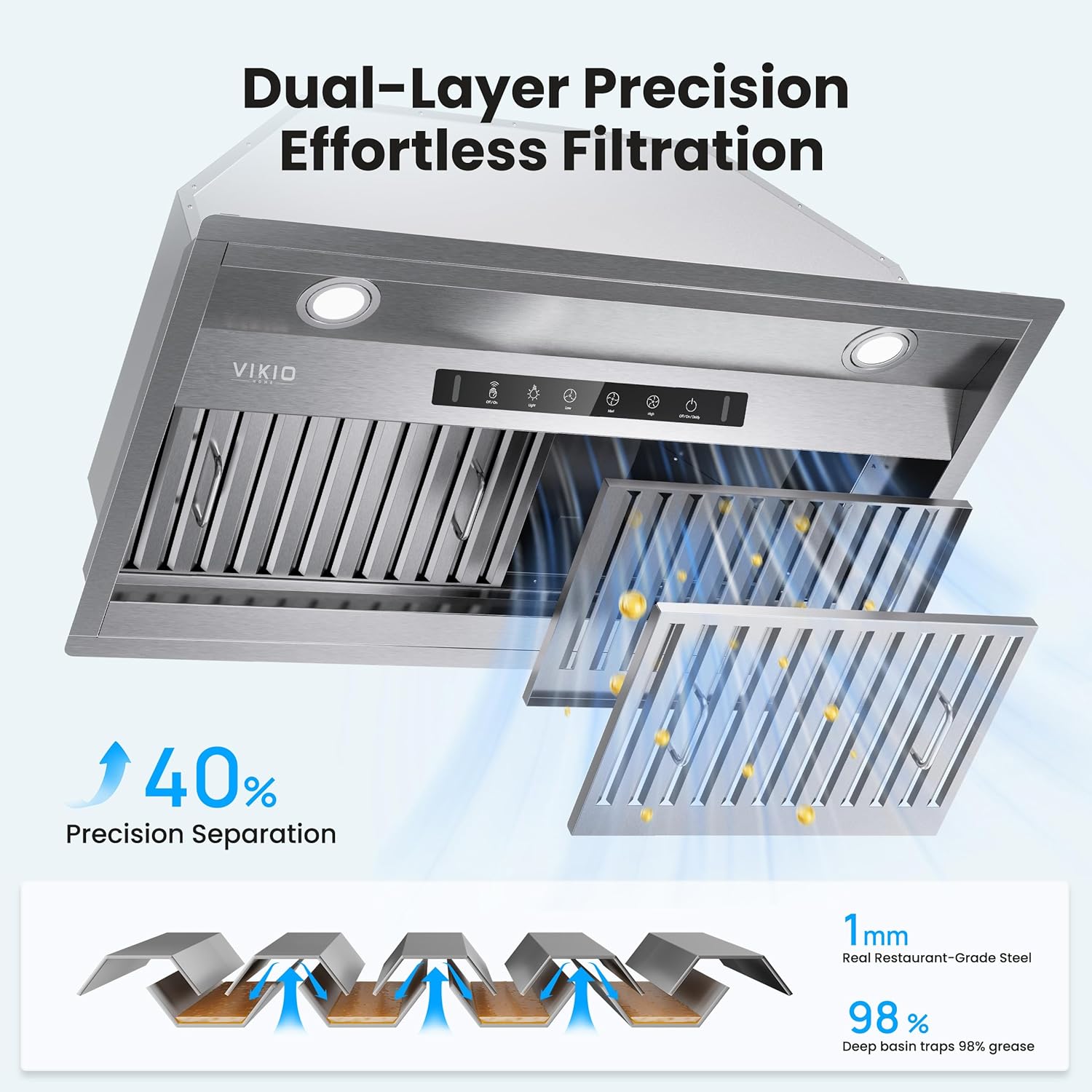

The range hood features 2 removable stainless steel baffle filters that effectively block cooking grease. Regular cleaning is essential for optimal performance.
The removable stainless steel filters can be easily cleaned by rinsing them off or placing them in a dishwasher.
- Filtres deflectors d'acer inoxidable: These filters are dishwasher safe for easy and thorough cleaning. Alternatively, they can be rinsed off with warm, soapy water.
- Filtre de carbó activat: For ductless use, the activated carbon filter helps remove remaining fumes and odors. These filters are typically not washable and should be replaced periodically based on usage.
Neteja exterior
Clean the stainless steel exterior with a soft cloth and a non-abrasive stainless steel cleaner. Avoid using harsh chemicals or abrasive pads that could scratch the surface.
Resolució de problemes comuns
If you encounter any issues with your VIKIO HOME Range Hood, please refer to the following general guidelines. For specific problems, consult the full instruction manual or contact customer support.
- El ventilador no funciona: Check power connection and ensure the unit is properly plugged in. Verify that the control panel is responsive and not in a locked mode.
- Low suction: Clean the baffle filters thoroughly. For ducted models, ensure ducting is clear and not obstructed. For ductless models, check if the activated carbon filter needs replacement.
- Soroll excessiu: Check for loose components or obstructions in the fan area. Ensure proper installation and secure mounting within the cabinet.
- Llums que no funcionen: Check light connections. If individual lights are out, they may need replacement. Contact customer service for replacement lights if needed.
Especificacions del producte
| Característica | Especificació |
|---|---|
| Capacitat de cabal d'aire | 980 peus cúbics per minut |
| Material | Acer inoxidable |
| Nivell de soroll | Less than 65 dB (as low as 35 dBA) |
| Tipus de muntatge | Insert Mount |
| Components inclosos | Mounting screws, 6-inch top round adapter, Activated carbon filter, Stainless steel baffle filter, Instruction Manual |
| Tipus de controls | Touch, Gesture |
| Voltage | 110 Volts |
| Nombre de velocitats | 3 |
| Pes de l'article | 45.32 lliures |
| Tipus de font de llum | LED (2 x 3W 4000K) |
| Wattage | 70 watts |
| Tipus de filtre | Deflector |
| Tipus de ventilació | Convertible (Ducted/Ductless) |
| Disseny de campana de ventilació | Range Insert Hood |
| Fabricant | CASA VIKIO |
| Dimensions del producte | 32.87 x 16.14 x 21.65 polzades (o 18.5" de profunditat x 30" d'amplada x 13.13" d'alçada) |
| País d'origen | Xina |
| Informació del model | VK-RB30-30SI |
| Característiques especials | Reducció de soroll |
Garantia i assistència al client
VIKIO HOME is committed to providing high-quality products and excellent customer service. We offer professional customer support and provide free replacement accessories such as filters and lights according to your needs.
For any inquiries, technical assistance, or to request replacement parts, please contact our dedicated customer service team. Refer to your purchase documentation for specific contact details or visit the official VIKIO HOME weblloc.
