1. Acabatview
The VIKIO HOME RC10-30B Under Cabinet Range Hood is designed to provide efficient ventilation for your kitchen. This 30-inch model features an advanced dual-motor system, delivering an impressive 580 CFM airflow for superior smoke, grease, and odor removal. It operates at low noise levels, ensuring a quiet cooking environment. The unit includes traditional mechanical button controls and energy-efficient LED lighting.

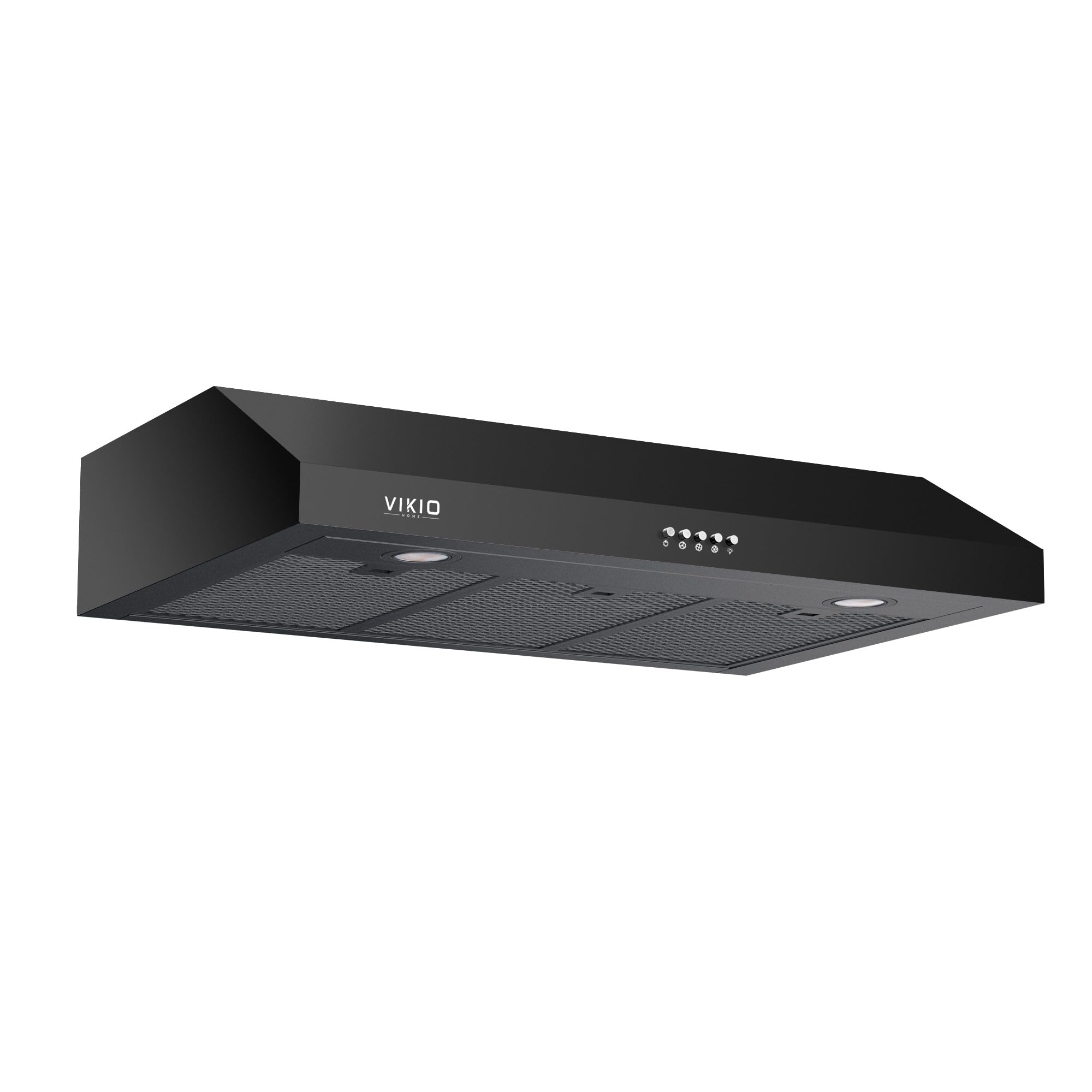

Image 1.1: The VIKIO HOME RC10-30B Under Cabinet Range Hood in black, featuring its sleek design and control panel.
2. Instal·lació i configuració
This section provides guidance for installing your VIKIO HOME RC10-30B range hood. All necessary installation hardware and instructions are included for a straightforward setup. It is recommended to have a second person assist during installation due to the unit's weight.
2.1 Desembalatge i preparació
Carefully unbox the range hood and its components. Ensure all parts are present and undamaged. The unit comes with a protective film on its stainless steel surfaces, which should be removed after installation to reveal the finish.
2.2 Muntatge de la campana extractora
The range hood is designed for under-cabinet mounting. Use the provided template to mark the drilling locations for screws and the duct opening. Ensure proper alignment with your existing cabinetry and ductwork. The unit supports both top and rear air venting options.
Image 2.1: Dimensional diagram of the range hood, indicating its width, depth, height, and exhaust connector sizes for installation planning.
2.3 Guia de vídeo d'instal·lació
For a visual step-by-step guide on the installation process, please refer to the video below. This video demonstrates the unboxing, assembly of internal components, and mounting of the range hood under a cabinet.
Video 2.1: This video provides a detailed walkthrough of the VIKIO HOME RC10 range hood installation steps, from unboxing to final mounting.
2.4 Components inclosos
- 5-layer aluminum filter (pre-installed or included for installation)
- Installation hardware (screws, anchors, etc.)
- Cable d'alimentació amb endoll
- Duct collar (located inside the hood)
3. Funcionament
The VIKIO HOME RC10-30B range hood features user-friendly mechanical push-button controls for easy operation of its functions.
3.1 Tauler de control
The control panel is located on the front of the unit and includes buttons for power, fan speed, and lighting.
- Encès/apagat: Activates or deactivates the range hood.
- Control de velocitat del ventilador: Selects between Low, Medium, and High fan speeds to adjust ventilation intensity.
- Llum ON/OFF: Controls the integrated LED lights.

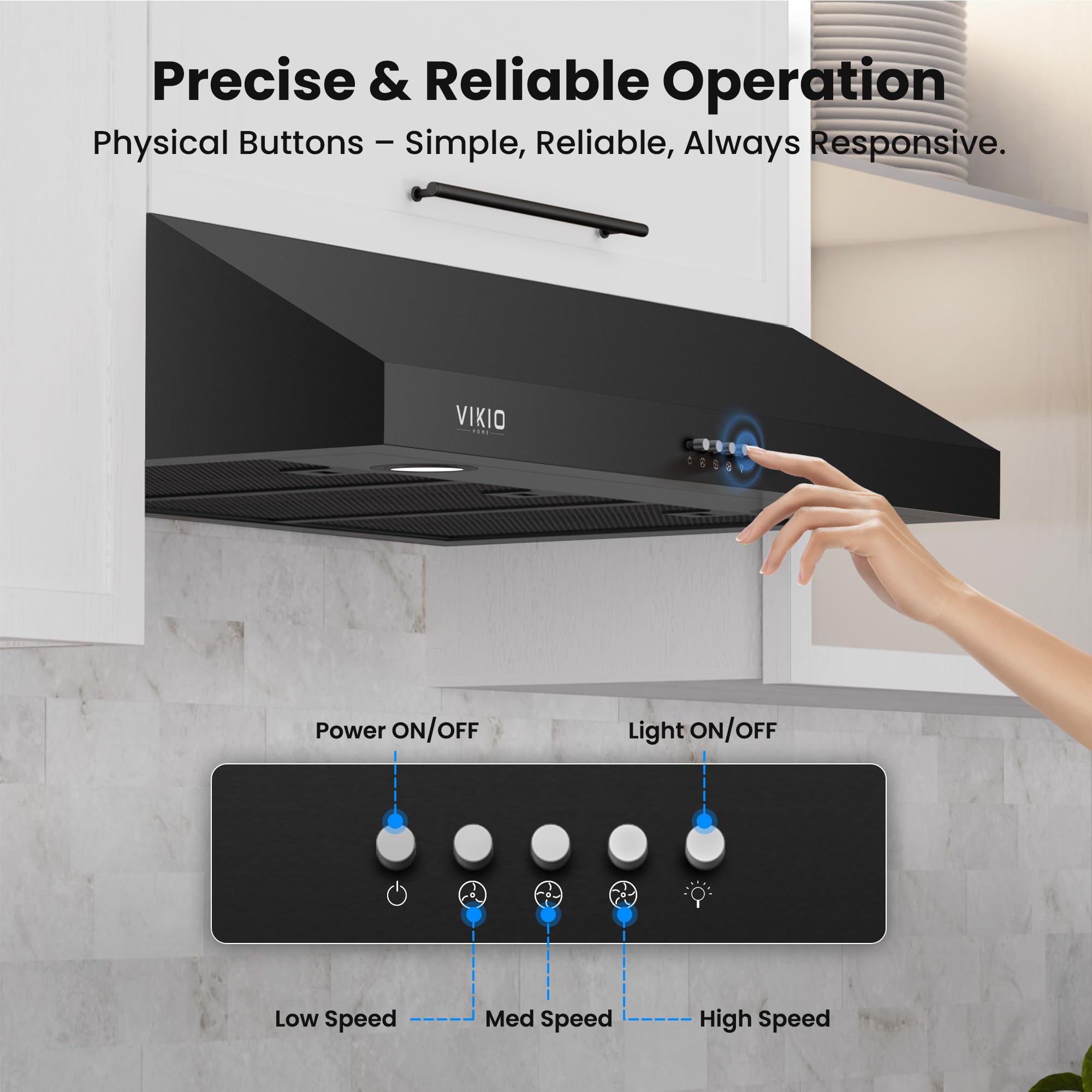

Image 3.1: The mechanical push-button control panel, illustrating the power, fan speed (low, medium, high), and light controls.
3.2 Quiet Performance
The dual-motor system is engineered for ultra-quiet operation, with noise levels as low as 45 dB and up to 60 dB at maximum power. This ensures a peaceful kitchen environment even during intensive cooking.
Image 3.2: Visual representation of the range hood's quiet operation, highlighting noise levels as low as 40 dB.
3.3 Bright LED Lighting
Integrated 4000K LED lights provide clear and bright illumination over your cooking area. These energy-efficient lights enhance visibility and create a welcoming ambiance in the kitchen.
Image 3.3: The range hood's 4000K LED lights providing clear and bright illumination for the cooking area.
4. Manteniment
Un manteniment regular garanteix un rendiment òptim i una llarga vida útil de la campana extractora.
4.1 Neteja dels filtres d'alumini
The range hood is equipped with reusable 5-layer aluminum filters designed to capture grease and airborne particles. These filters should be cleaned regularly, depending on cooking frequency, to maintain airflow efficiency.
- Eliminació: The filters are designed for easy removal. Locate the release tabs or handles and gently pull them down or slide them out.
- Neteja: Clean the filters with warm, soapy water. For stubborn grease, a degreasing agent can be used. The filters are also dishwasher safe.
- Reinstal·lació: Ensure filters are completely dry before reinserting them into the range hood.
4.2 Cleaning Exterior Surfaces
Wipe the stainless steel exterior surfaces with a soft cloth and a non-abrasive cleaner specifically designed for stainless steel. Avoid harsh chemicals or abrasive pads that could scratch the finish.
4.3 LED Light Replacement
The LED lights are designed for long life. If replacement is necessary, ensure the power is disconnected before attempting to replace the GU10 LED bulbs.
5. Solució De Problemes
Aquesta secció tracta els problemes habituals que podeu trobar amb la vostra campana extractora.
5.1 Fan Not Operating
- Comproveu si el cable d'alimentació està ben connectat a una presa de corrent que funcioni.
- Ensure the power button on the control panel is pressed.
- Verifiqueu que l'interruptor automàtic no s'hagi disparat.
5.2 Insufficient Suction
- Clean the aluminum filters as described in the Maintenance section. Clogged filters significantly reduce airflow.
- Ensure the fan speed is set to an appropriate level for your cooking activity.
- Check for any obstructions in the ductwork.
5.3 Els llums no funcionen
- Ensure the light button on the control panel is pressed.
- Check if the LED bulbs are securely seated.
- If a bulb is faulty, replace it with a new GU10 LED bulb (ensure power is off before replacement).
5.4 Soroll excessiu
- Verify that the filters are correctly installed and not vibrating.
- Check for any loose parts or debris inside the fan housing.
- Ensure the range hood is securely mounted to the cabinet.
6. Especificacions del producte
| Característica | Especificació |
|---|---|
| Marca | CASA VIKIO |
| Número de model | VKH-RC10-30B |
| Dimensions del producte | 19.68" de profunditat x 29.5" d'amplada x 6" d'alçada (50 x 75 x 15 cm) |
| Pes de l'article | 27 lliures (12.25 kg) |
| Capacitat de cabal d'aire | 580 peus cúbics per minut (CFM) |
| Nivell de soroll | 45-60 Decibels |
| Tipus de muntatge | Sota el muntatge del gabinet |
| Tipus de controls | Pulsador |
| Tipus de font de llum | LED (4000K, GU10) |
| Voltage | 110 Volts |
| Material | Stainless Steel, Carbide |
| Components inclosos | 5-layer aluminum filter |
| Característica especial | Reducció de soroll |
7. Garantia i atenció al client
VIKIO HOME provides a reliable purchase guarantee for your range hood. This includes free replacements for accessories such as filters and lights when necessary.
For any concerns, questions, or to request accessory replacements, dedicated customer support is available to assist you quickly. Please refer to the contact information provided with your product packaging or visit the official VIKIO HOME weblloc per obtenir detalls de suport.
