VIKIO HOME 30-Inch Stainless Steel Range Hood Insert

Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your VIKIO HOME 30-inch Stainless Steel Range Hood Insert. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

Característiques clau

• Potent flux d'aire: 580 Max CFM to effectively remove smoke, grease, and odors.
• Dual Inlet Design: Upgraded motor design improves smoke exhaust efficiency by 50%.
• Velocitats ajustables: 3-speed push-button controls for varied ventilation needs.
• Funcionament silenciós: Noise level of 40 dBA at low speed and less than 65 dBA at high speed.
• Il·luminació LED: 1.5W LED lights provide bright, focused illumination for your cooking area.
• Filtració eficient: Durable five-layer aluminum mesh filters capture grease and particles. Includes 2 activated carbon filters for ductless use.
• Instal·lació versàtil: Supports both ducted and ductless configurations for flexible placement.
• Integració perfecta: Concealed design blends with kitchen cabinets for a clean aesthetic.

Què hi ha a la caixa

• VIKIO HOME Range Hood Insert (Model VK-RB10-30)
• Manual d'instruccions
• 5-Layer Aluminum Mesh Filters (Quantity varies by size: 30-inch includes 2, 36-inch includes 3)
• Activated Carbon Filters (2 included for ductless operation)
• Maquinari de muntatge (cargols, ancoratges)
• Duct Adapter (for ducted installation)

Configuració i instal·lació

Proper installation is crucial for the performance and safety of your range hood. It is recommended to have a qualified professional perform the installation. Ensure all local codes and ordinances are followed.

Passos previs a la instal·lació

1. Desembalatge i inspecció: Carefully remove all packaging materials and inspect the range hood for any damage. Retain packaging for potential returns.
2. Recollida d'eines: Ensure you have all necessary tools as listed in the manual (e.g., drill, tape measure, level, cutter).
3. Prepare Cabinet Opening: Cut an opening in the bottom of your overhead cabinet according to the dimensions provided in the diagram below.

4. Install Wood Blocking: Fabricate and anchor wood blocking inside the cupboard bottom panel surrounding the opening. This provides a secure mounting surface for the range hood.

Muntatge de la campana extractora

5. Inserir i assegurar: Carefully insert and slide the range hood into the prepared opening in the overhead cabinet. Ensure the side installation holes align with the installed wood blocking. Fasten the range hood using the provided wood screws through the installation holes.
6. Connectar l'alimentació: Connecteu el cable d'alimentació a una presa elèctrica amb connexió a terra.

Ventilation Options (Ducted/Ductless)

Your VIKIO HOME range hood supports both ducted and ductless installations.

• Instal·lació per conductes: Attach the provided duct adapter to the top of the range hood. Connect a 6-inch round duct (flexible or rigid, not included unless specified) to the adapter and extend it to the outside of your home. Secure all connections with aluminum foil tape to prevent leaks.
• Ductless (Recirculating) Installation: For ductless operation, ensure the activated carbon filters are installed. These filters will purify the air before recirculating it back into the kitchen. No external ducting is required.

Guia de vídeo d'instal·lació

Per obtenir una guia visual del procés d'instal·lació, consulteu el vídeo oficial d'instal·lació:

Instruccions de funcionament

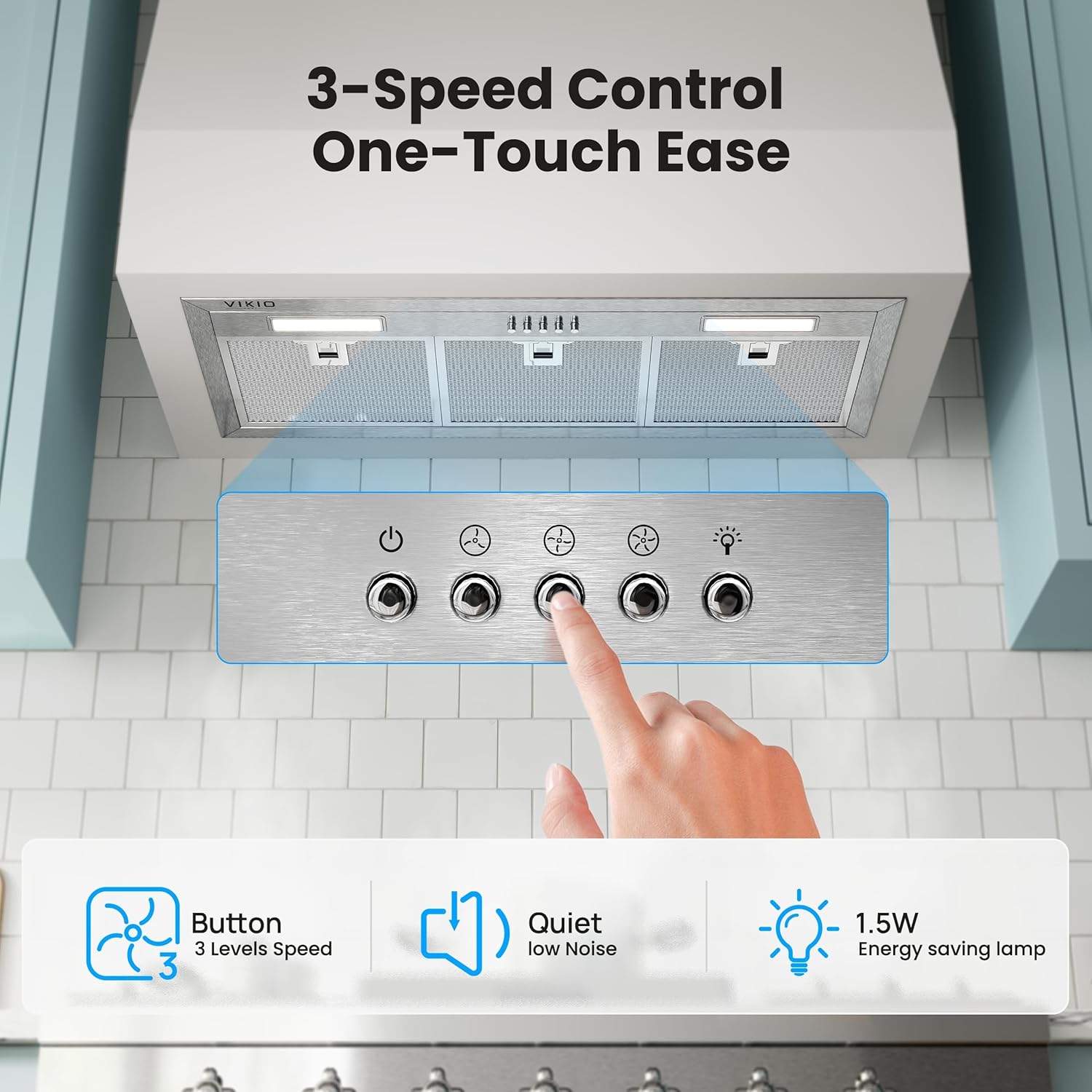

Your range hood features intuitive push-button controls for easy operation.

• Encès/apagat: Premeu el botó d'encesa per encendre o apagar la unitat.
• Ajust de velocitat del ventilador: Use the speed buttons (Low, Medium, High) to select the desired fan speed.
• Llums LED: Press the light button to turn the LED lights on or off. The 1.5W LED lights provide bright illumination for your cooking area.
• Delay Shutdown: The delay shutdown feature allows the fan to continue running for 3 minutes after cooking to ensure all residual grease and fumes are removed from the kitchen.

Manteniment

Un manteniment regular garanteix un rendiment òptim i una llarga vida útil de la campana extractora.

Neteja de filtres

• Filtres de malla d'alumini: The 5-layer aluminum mesh filters are dishwasher safe. To clean, simply remove them by pulling the latch and place them in your dishwasher. Clean regularly (e.g., monthly) depending on cooking frequency.
• Activated Carbon Filters (Ductless): If using the range hood in ductless mode, the activated carbon filters should be replaced every 3-6 months, depending on usage. These filters are not washable.

Neteja general

• Exterior: Netegeu l'exterior d'acer inoxidable amb un drap suau i un netejador d'acer inoxidable no abrasiu. Eviteu productes químics agressius o esponges abrasives.
• Llums: Ensure the unit is off and cool before cleaning around the LED lights. Wipe gently with a damp tela.

Resolució de problemes

If you encounter any issues with your VIKIO HOME range hood, please refer to the following common troubleshooting tips:

If the problem persists after attempting these solutions, please contact VIKIO HOME customer support for assistance.

Especificacions

Garantia i Suport

VIKIO HOME is committed to providing high-quality products. For warranty information or technical support, please refer to the contact details provided in your product packaging or visit the official VIKIO HOME website. Protection plans are available for purchase separately to extend coverage.
