Nordlux Miella 3-Rail Indoor Pendant/Ceiling Light

1. Introducció

This user manual provides essential information for the safe and efficient installation, operation, and maintenance of your Nordlux Miella 3-Rail Indoor Pendant/Ceiling Light. Please read this manual thoroughly before proceeding with installation or use, and retain it for future reference.

The Nordlux Miella 3-Rail Pendant Light features a modern design with three fluted glass shades, providing ambient downlight illumination. Its adjustable cable length allows for versatile placement in various indoor settings.

Figure 1.1: Nordlux Miella 3-Rail Pendant Light, showcasing its three white fluted glass shades and white ceiling bar.

2. Informació de seguretat

ADVERTIMENT: Electrical installation should only be performed by a qualified electrician. Always disconnect the main power supply before installation, maintenance, or bulb replacement.

• This product is designed for indoor use only (IP20 rated). Do not expose to water or high humidity.
• The fixture is Class 2 (double insulated) and does not require an earth connection.
• Use only E27 base bulbs. The maximum wattage per bulb is 25W. Do not exceed this limit.
• Assegureu-vos que la superfície de muntatge pugui suportar el pes de l'aparell.
• Mantenir els materials d'embalatge fora de l'abast dels nens.

Light Bulb Recycling: Dispose of used light bulbs responsibly according to local regulations. Information on recycling for various lamp types can be found through local waste management services.

Light Bulb Breakage and Clean Up: In case of a broken bulb, ventilate the area and carefully clean up glass fragments using protective gloves. Avoid direct contact with skin. Dispose of broken glass and bulb components safely.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents i no estiguin danyats abans de començar la instal·lació. Si hi ha alguna peça que falti o que estigui danyada, poseu-vos en contacte amb el vostre distribuïdor.

• 1 x Nordlux Miella 3-Rail Pendant Light Fixture (pre-assembled)
• 1 x Suport de muntatge
• 2 x cargols de muntatge
• 2 x endolls de paret
• 1 x Manual d'usuari

4. Configuració i instal·lació

Follow these steps for proper installation. It is recommended to have two people for installation due to the size of the fixture.

1. Preparació per a la instal·lació: Turn off the main power supply at the circuit breaker before starting any electrical work. Ensure the power is completely disconnected.
2. Marqueu els punts de muntatge: Hold the mounting bracket against the ceiling at the desired installation location. Use a pencil to mark the positions for drilling.
3. Forats: Drill two holes at the marked positions, suitable for the provided wall plugs. Insert the wall plugs flush with the ceiling surface.
4. Col·loqueu el suport de muntatge: Secure the mounting bracket to the ceiling using the provided mounting screws. Ensure it is firmly attached.
5. Connexió elèctrica: Connect the light fixture's electrical wires to your household wiring. This fixture is Class 2 (double insulated), meaning it has two wires (Live and Neutral) and does not require an earth connection. Connect Live to Live and Neutral to Neutral. Ensure all connections are secure and insulated.
6. Secure Fixture to Bracket: Carefully lift the light fixture and align it with the mounting bracket. Secure the fixture to the bracket using the screws or clips provided on the fixture's canopy.
7. Instal·leu les bombetes: Screw E27 base bulbs (not included, max 25W each) into the three lamp titulars.
8. Ajustar la longitud del cable: The cable length for each pendant can be adjusted by pushing the cable through the top of the ceiling bar. Adjust each pendant to your desired hanging height.

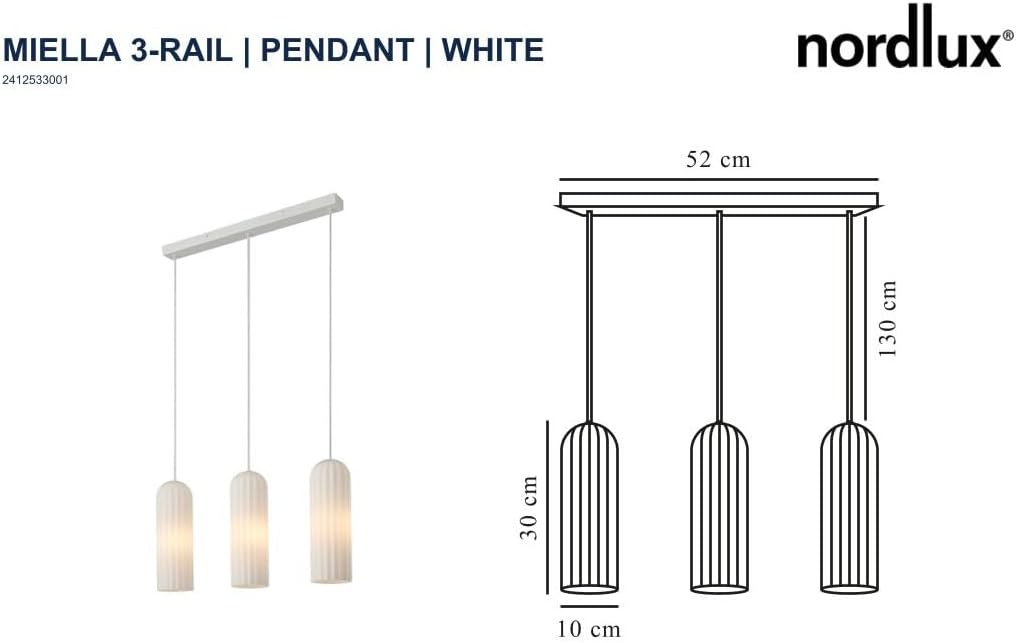

Figure 4.1: Dimensional diagram of the Nordlux Miella 3-Rail Pendant Light. The ceiling bar measures 52 cm in length. Each glass shade is 30 cm high with a 10 cm diameter. The maximum adjustable cable length is 130 cm.

Figure 4.2: Detail of the cable entry point into the pendant shade, illustrating the adjustable cable mechanism.

5. Instruccions de funcionament

Once installed and bulbs are in place, restore power to the circuit. The light can be operated using a standard wall switch connected to the circuit. This fixture is compatible with dimmable E27 bulbs, allowing for light intensity adjustment if connected to a compatible dimmer switch.

6. Manteniment

Regular cleaning and proper bulb replacement will ensure the longevity and optimal performance of your light fixture.

• Neteja: Disconnect power before cleaning. Wipe the glass shades and metal components with a soft, dry, or slightly damp drap. No utilitzeu netejadors abrasius ni dissolvents, ja que poden danyar l'acabat.
• Substitució de bombetes: Ensure power is off and bulbs have cooled before attempting to replace them. Unscrew the old bulb and screw in a new E27 bulb, ensuring it does not exceed the 25W maximum wattage.

Figura 6.1: Primer pla view of the fluted glass shade, highlighting the texture and material for cleaning reference.

7. Solució De Problemes

If you encounter issues with your Nordlux Miella light, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, consult a qualified electrician or contact Nordlux customer support.

Figure 7.1: The Nordlux Miella 3-Rail Pendant Light installed in a kitchen setting, demonstrating its aesthetic appeal and functional placement.

8. Especificacions

9. Garantia i Suport

Nordlux products are manufactured to high quality standards. For information regarding warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Nordlux weblloc.

For technical support, spare parts, or any inquiries not covered in this manual, please contact your retailer or Nordlux customer service directly. When contacting support, please have your model number (2412533001) and purchase details readily available.
