Gimbal PEI-M01 3-Axis Video Stabilizer User Manual

1. Introducció

Thank you for choosing the PEI-M01 3-Axis Video Stabilizer. This device is designed to provide smooth, professional-quality video footage by eliminating shakes and vibrations, whether you are using a smartphone or a DSLR camera. Its intelligent features and long-lasting battery make it an ideal tool for vlogging, professional productions, and capturing life's moments with stability.

2. Producte acabatview

The PEI-M01 Gimbal features an ergonomic design for comfortable handling and intuitive controls for easy operation. Key components include the handle, control panel, smartphone/camera clamp, and the 3-axis stabilization system.

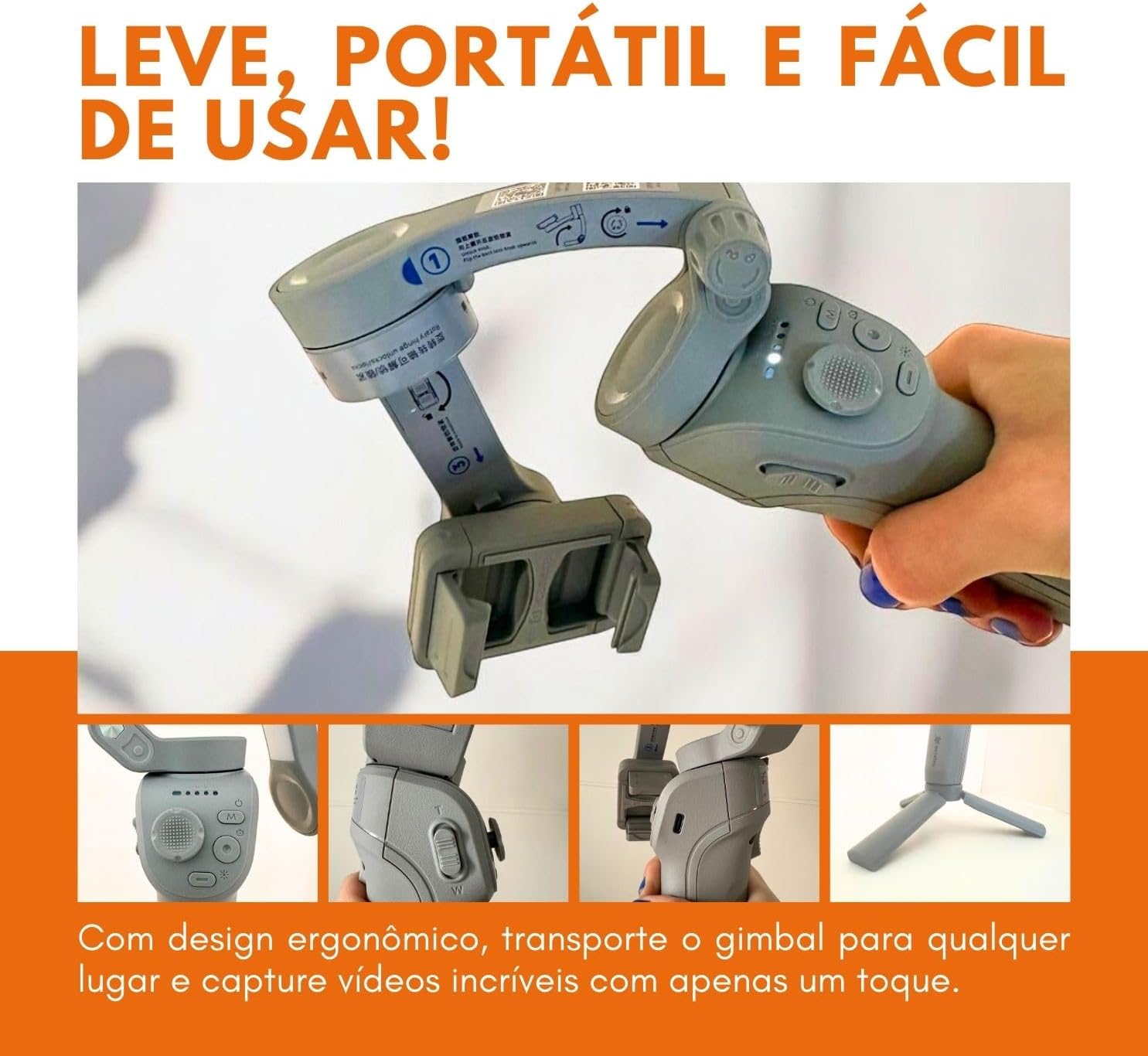

Figure 2.1: The PEI-M01 Gimbal showcasinel seu disseny ergonòmic i els botons de control.

The control panel typically includes a joystick for pan/tilt control, mode buttons, and a power button. The adjustable clamp securely holds your device, ensuring stability during use.

3. Configuració

3.1 Muntatge del dispositiu

1. Desplegueu el Gimbal: Gently unfold the gimbal arms until they lock into position.
2. Attach Smartphone/Camera: Open the device clamp and carefully insert your smartphone or camera. Ensure the device is centered and securely held.
3. Balance the Device: Adjust the position of your device within the clamp until it is roughly balanced. This reduces strain on the gimbal motors and improves performance.

3.2 Engegada/apagada

• Encès: Press and hold the power button (usually located on the handle) for a few seconds until the indicator lights illuminate.
• Apagar: Press and hold the power button again until the indicator lights turn off.

4. Instruccions de funcionament

4.1 Controls bàsics

• Palanca de control: Use the joystick to manually control the pan (left/right) and tilt (up/down) movements of your device.
• Botó de mode: Press the mode button to cycle through different operating modes (e.g., Pan Follow, Lock Mode, POV). Refer to the specific mode descriptions below.
• Botó de l'obturador: Press the shutter button to take photos or start/stop video recording when connected via Bluetooth to your smartphone.

4.2 Connexió mitjançant Bluetooth

To enable full control features, including the shutter button and advanced tracking, connect the gimbal to your smartphone via Bluetooth. Turn on the gimbal, enable Bluetooth on your phone, and select the gimbal from the list of available devices. An accompanying app may be available for enhanced functionality.

5. Modes de funcionament

5.1 3-Axis Stabilization

The PEI-M01 utilizes a 3-axis stabilization system to counteract unwanted movements, ensuring your videos are consistently smooth and free from jitters, even during dynamic activities.

Figure 5.1: Capturing stable video footage even when the subject or operator is in motion.

5.2 Intelligent Tracking Mode

Activate the intelligent tracking mode to automatically follow a designated subject. This feature is particularly useful for vlogging or recording dynamic scenes where the subject is moving, keeping them consistently in the frame.

Figure 5.2: The gimbal's intelligent tracking feature, often complemented by integrated lighting for enhanced visibility.

5.3 Mode esportiu

For fast-paced action and quick transitions, engage Sport Mode. This mode increases the gimbal's responsiveness, allowing it to keep up with rapid movements and sudden changes in direction, ideal for capturing sports or high-energy activities.

Figure 5.3: Visual representation of the gimbal's capabilities, including Sport Mode for dynamic shots.

6. Bateria i càrrega

The PEI-M01 Gimbal is equipped with a long-lasting battery, providing up to 8 hours of continuous use on a single charge. This allows for extended filming sessions without interruption.

Figure 6.1: The gimbal's extended battery life ensures prolonged usage for various events and productions.

6.1 Instruccions de càrrega

• Connect the provided USB charging cable to the gimbal's charging port.
• Connecteu l'altre extrem del cable a un adaptador de corrent USB (no inclòs) o al port USB d'un ordinador.
• The indicator lights will show the charging status. Once fully charged, the lights will typically change or turn off.

7. Manteniment

• Neteja: Feu servir un drap suau i sec per netejar el cardan. Eviteu utilitzar netejadors líquids o dissolvents.
• Emmagatzematge: Store the gimbal in a cool, dry place, away from direct sunlight and extreme temperatures.
• Cura de la bateria: Per a una durada òptima de la bateria, eviteu descarregar-la completament amb freqüència. Carregueu-la regularment, fins i tot si no la feu servir durant períodes prolongats.
• Evitar l'impacte: Protect the gimbal from drops or impacts, as this can damage the precision motors and internal components.

8. Solució De Problemes

• Gimbal Not Powering On: Ensure the battery is charged. If not, connect it to a power source and try again.
• Foo inestabletage: Check if your device is properly balanced in the clamp. Recalibrate the gimbal if necessary (refer to the app or manufacturer's website for calibration instructions).
• Problemes de connexió Bluetooth: Ensure Bluetooth is enabled on your phone and the gimbal is in pairing mode. Try restarting both devices.
• Motors Overheating: This can occur if the gimbal is improperly balanced or overloaded. Ensure your device is within the supported weight range and properly balanced.

9. Especificacions

10. Garantia i Suport

Per obtenir informació sobre la garantia, assistència tècnica o consultes sobre el servei, consulteu la documentació que s'inclou amb la compra o poseu-vos en contacte directament amb el fabricant. Conserveu el comprovant de compra per a reclamacions de garantia.
