ASRock Z890 Pro RS WiFi Motherboard Instruction Manual

1. Introducció

This manual provides detailed instructions for the installation, configuration, and maintenance of your ASRock Z890 Pro RS WiFi 6E ATX Motherboard. Designed for Intel Core Ultra Processors (Series 2) with LGA1851 socket, this motherboard supports DDR5 memory up to 8666 MHz and offers robust features for stable and reliable performance.

Key features include a 16+1+1+1+1 Power Phase design with Dr.MOS for VCore+GT, support for BIOS Flashback, Memory OC Shield, and M.2 Bottom Heatsink. It also provides versatile graphics output options including HDMI, DisplayPort, and two Thunderbolt 4 Type-C ports.

Figure 1: ASRock Z890 Pro RS WiFi Motherboard Overview

2. Configuració i instal·lació

2.1 Motherboard Layout and Dimensions

The ASRock Z890 Pro RS WiFi motherboard is an ATX form factor board. Understanding its layout is crucial for proper component installation.

Figure 2: Motherboard dimensions (12 inches x 9.6 inches)

Figure 3: Key components and connectors on the motherboard, including CPU socket, DDR5 DIMM slots, PCIe slots, and SATA ports.

Figure 4: Heatsink placement for VRM, chipset, and M.2 slots, ensuring optimal thermal performance.

2.2 Panell d'E/S posterior

The rear I/O panel provides various connectivity options for peripherals and displays.

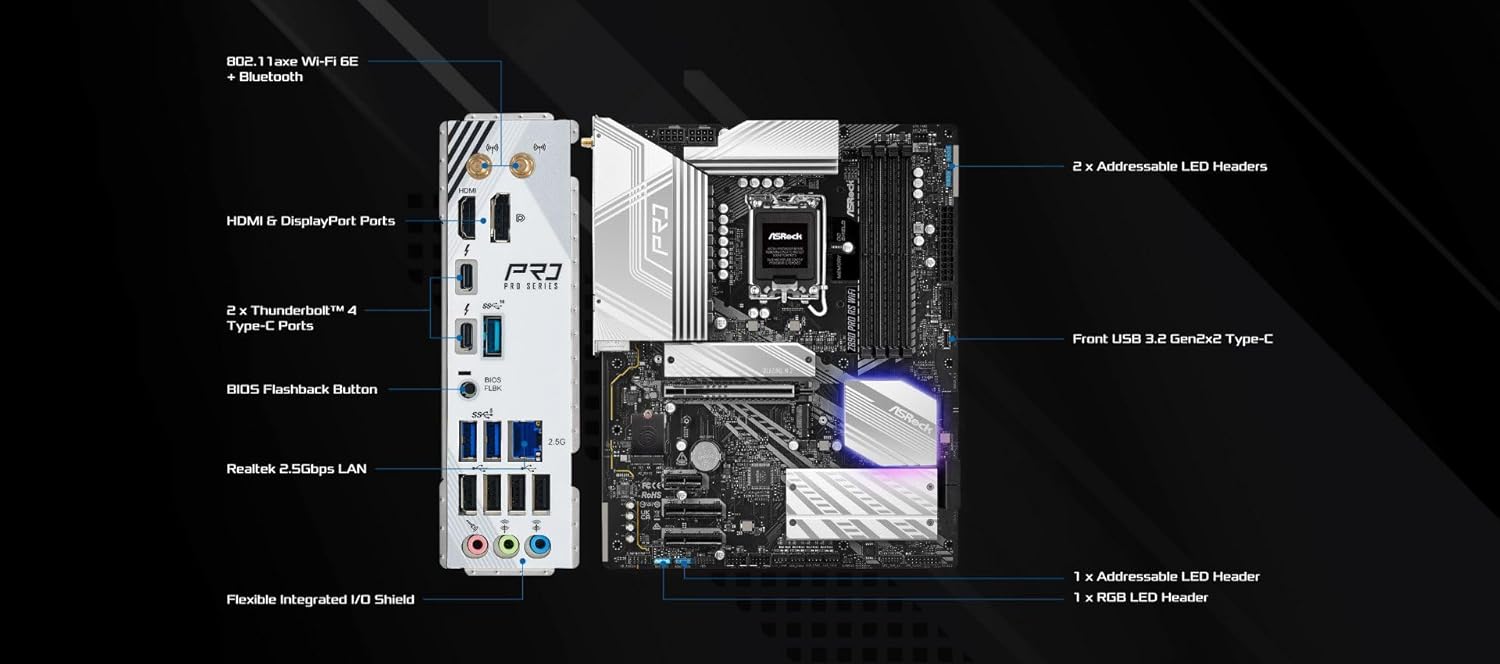

Figure 5: Rear I/O panel with HDMI, DisplayPort, Thunderbolt 4 Type-C, USB ports, LAN, and audio jacks.

2.3 CPU and Cooler Installation

Ensure compatibility with Intel Core Ultra Processors (Series 2) for the LGA1851 socket. Follow the CPU manufacturer's guidelines for proper installation. For optimal cooling, a top-down CPU cooler is recommended.

2.4 Instal·lació de memòria

The motherboard features four DDR5 DIMM slots supporting dual-channel memory up to 8666+ (OC). Refer to the motherboard's QVL (Qualified Vendor List) for compatible memory modules.

2.5 Storage Devices

Install M.2 NVMe SSDs into the available M.2 slots, utilizing the M.2 Bottom Heatsink for thermal management. Connect SATA storage devices to the SATA3 6Gbps ports.

2.6 Connexions d'alimentació

Connect the main 24-pin ATX power connector and the 8-pin + 4-pin CPU power connectors from your power supply to the motherboard.

2.7 Connexions perifèriques

Connect USB devices, front panel headers, and other peripherals as needed. Utilize the integrated Wi-Fi 6E and Bluetooth for wireless connectivity.

Figure 6: Motherboard packaging and included accessories, such as Wi-Fi antennas and documentation.

3. Instruccions de funcionament

3.1 Arrencada inicial i accés a la BIOS

Upon first power-on, the system will perform a Power-On Self-Test (POST). To enter the BIOS setup menu, press the F2 or Suprimeix key during POST. The BIOS allows configuration of system settings, boot order, and hardware parameters.

3.2 BIOS Settings and Features

The ASRock Z890 Pro RS WiFi BIOS offers various settings:

• Configuració de la CPU: Adjust CPU-related settings.
• Configuració de la memòria: Activa XMP profiles for optimized DDR5 performance.
• Configuració d'emmagatzematge: Manage SATA and M.2 drive settings.
• Control del ventilador: Utilize FAN-Tastic Tuning for customized fan curves.
• UEFI Update Utility: Access Instant Flash for BIOS updates.

3.3 Instal·lació del sistema operatiu

Install your preferred operating system (e.g., Windows 11) from a bootable USB drive or optical media. Ensure all necessary drivers are installed after OS setup for full functionality.

4. Manteniment

4.1 Actualitzacions de la BIOS

Keeping your BIOS updated ensures optimal compatibility, security, and access to new features. ASRock provides two primary methods for BIOS updates: USB BIOS Flashback and Instant Flash.

4.1.1 USB BIOS Flashback

This method allows you to update the BIOS without a CPU, RAM, or graphics card installed. You will need a USB drive formatted to FAT32 with the BIOS file renamed to 'CREATIVE.ROM'. Insert the USB drive into the designated USB BIOS Flashback port on the rear I/O panel and press the Flashback button for approximately three seconds until the LED light blinks. The update process will take a few minutes.

4.1.2 Flash instantani

Instant Flash is a utility within the BIOS that allows you to update the firmware from a USB drive. After downloading the BIOS file from the ASRock website and placing it on a FAT32 formatted USB drive, boot into the BIOS, navigate to the 'Tool' menu, and select 'Instant Flash'. The utility will detect compatible BIOS files for update.

4.2 System Cleaning

Regularly clean dust from the motherboard, heatsinks, and fan components using compressed air. Ensure the system is powered off and unplugged before cleaning.

5. Solució De Problemes

If you encounter issues with your ASRock Z890 Pro RS WiFi motherboard, consider the following:

• Sense alimentació/Sense pantalla: Double-check all power connections, ensure CPU and RAM are correctly seated, and test with a single RAM stick. Verify monitor connection and input source.
• Inestabilitat del sistema: This can often be resolved by updating the BIOS to the latest version (refer to Section 4.1). Check memory compatibility and run memory diagnostic tools. Ensure proper cooling for all components.
• Problemes de detecció de perifèrics: Verify that drivers are installed correctly. Test peripherals in different USB ports.
• BIOS Update Failure: If the BIOS Flashback LED turns solid green and does not blink, the update may not be operating properly. Re-verify the USB drive format, BIOS file name, and port usage.

For persistent issues, consult the ASRock support weblloc o contacteu amb l'assistència tècnica.

6. Especificacions

Figura 7: Example of a CPU Support List, showing compatible processors and BIOS versions.

7. Garantia i Suport

For warranty information, please refer to the documentation included with your product or visit the official ASRock website. Technical support and additional resources can be found on the ASRock support page. Ensure you have your product model number (Z890 PRO RS WIFI) and serial number ready when contacting support.
