SmallRig FT-S303 FreeSpeed Carbon Fiber Tripod with Fluid Head User Manual

1. Introducció

Thank you for choosing the SmallRig FT-S303 FreeSpeed Carbon Fiber Tripod with Fluid Head. This manual provides essential information for the correct setup, operation, and maintenance of your tripod to ensure optimal performance and longevity. This tripod is designed for professional outdoor videography, offering a balance of lightweight construction and sturdy support for cameras up to 6kg (13.2 lbs).

2. Informació de seguretat

• Always ensure all locking mechanisms are securely tightened before mounting equipment or adjusting the tripod.
• Do not exceed the maximum load capacity of 6kg (13.2 lbs) for the fluid head. Overloading can cause instability and damage to your equipment.
• Be cautious when extending or collapsing the legs to avoid pinching fingers or damaging the mechanism.
• Avoid using the tripod in extreme weather conditions (e.g., strong winds, heavy rain) without proper precautions to prevent tipping or damage.
• Keep the tripod away from heat sources and corrosive materials.
• When transporting, ensure the tripod is fully collapsed and secured in its carrying bag.

3. Contingut del paquet

Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:

• Trípode x 1
• Clau Allen x 1
• Suport per a telèfon intel·ligent x 1
• Bossa d'emmagatzematge x 1

4. Configuració

4.1. Unpacking and Initial Deployment

Carefully remove the tripod from its storage bag. Extend the legs by twisting the double knobs on each leg. While the 'FreeSpeed' design allows for quick adjustment, some users may find they need to manually pull each leg section to full extension.

4.2. Anivellament del capçal fluid

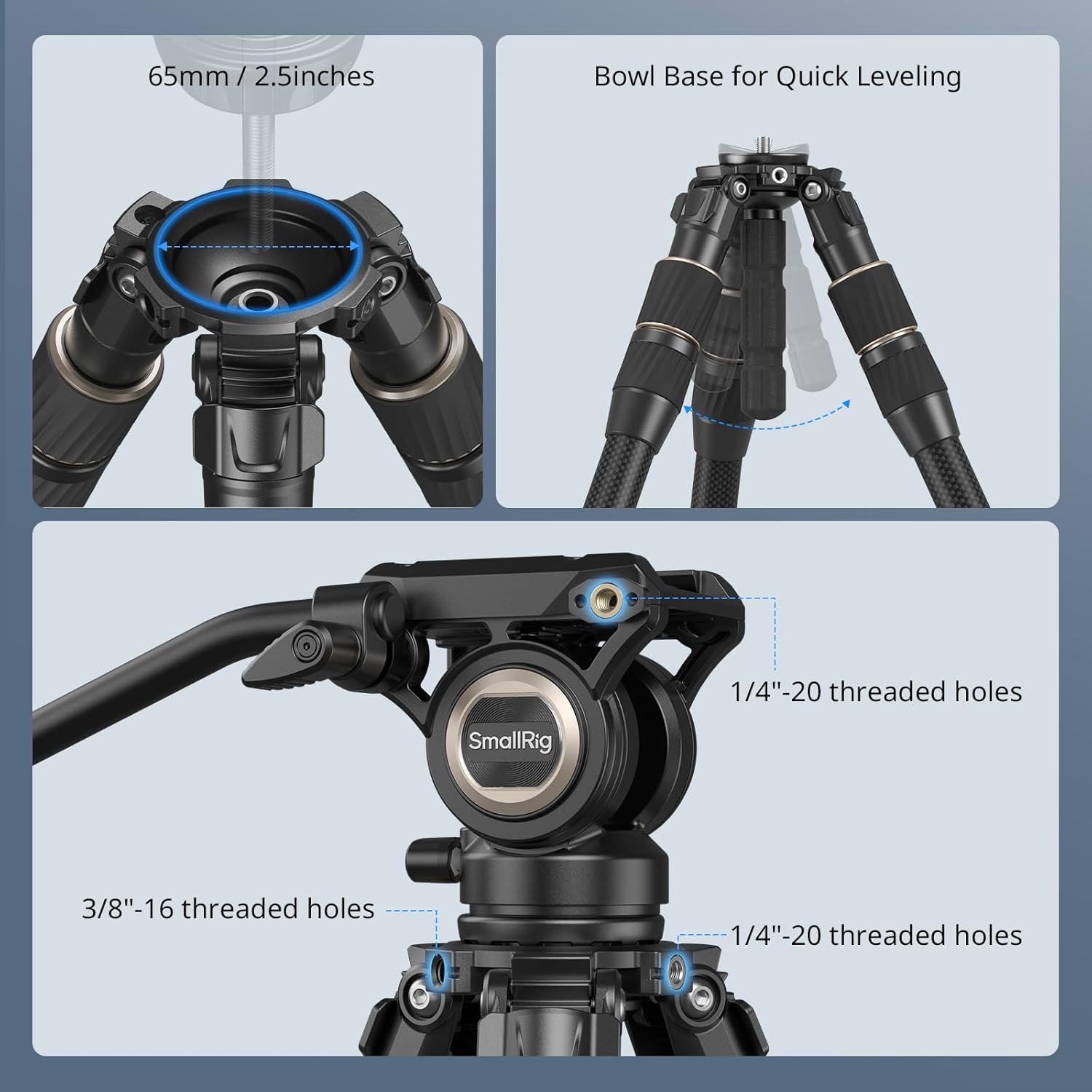

The tripod features a 65mm bowl base for quick leveling. Loosen the bowl base locking knob, adjust the fluid head until the built-in bubble level indicates a level position, and then tighten the knob securely.

4.3. Attaching the Quick-Release Plate

The fluid head features a dual-mode snap-on quick-release plate mount compatible with DJI RS series and MFT 501PL quick-release plates. To attach, align your camera's quick-release plate with the mount and press down until it snaps into place. Ensure it is securely locked. To release, press the release button.

4.4. Visual Setup Guide

5. Funcionament

5.1. Ajust d'alçada

The tripod offers an operating altitude range from 27cm (10.6in) to 150cm (59.0in). To adjust the height, twist the double knobs on each leg to unlock the sections, extend or retract to the desired height, and then twist the knobs back to lock. Individual sections can also be adjusted by twisting one knob at a time.

5.2. Ajust de l'angle de la cama

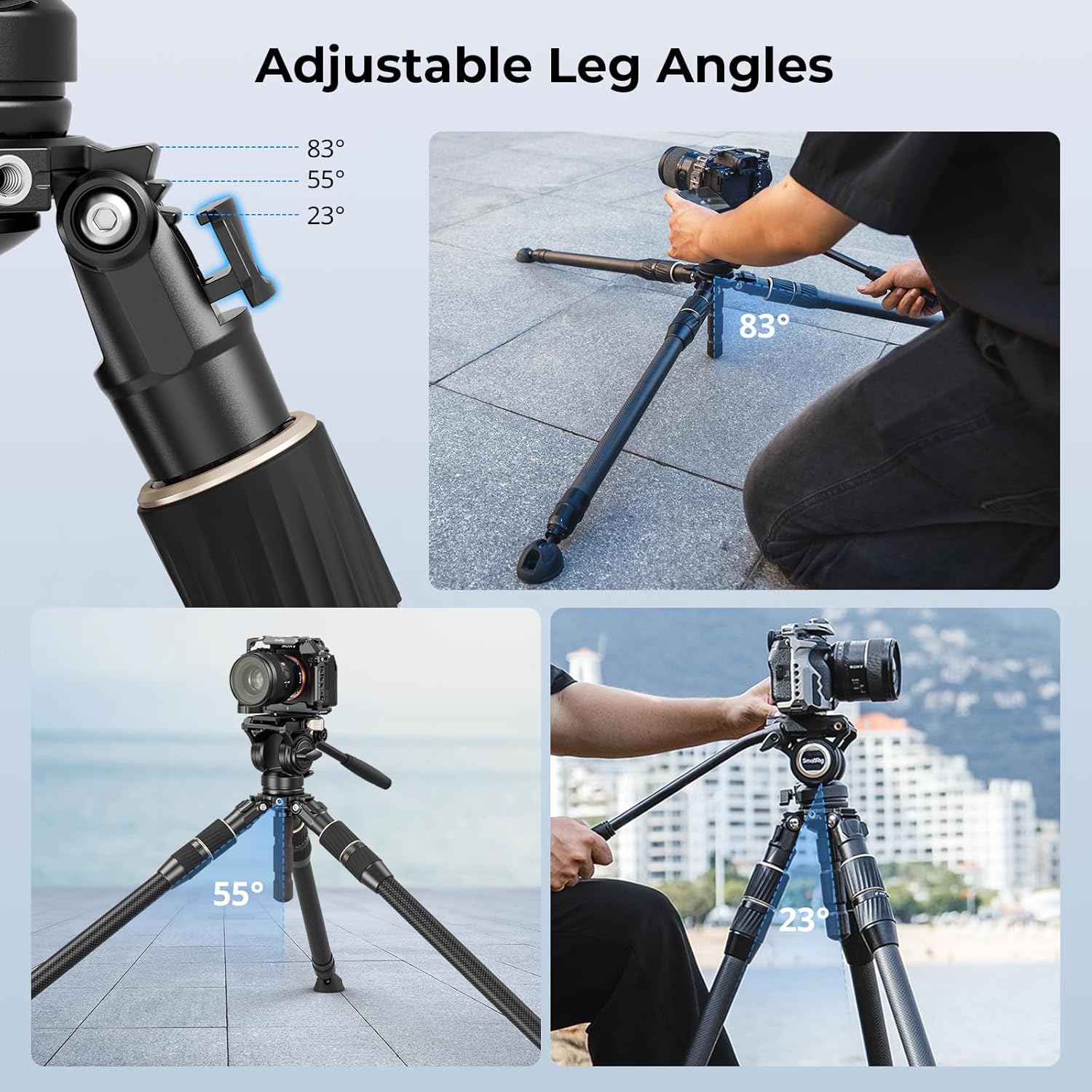

The tripod is equipped with quick-adjust angle locks, providing three angle options: 23°, 55°, and 80°. Press the angle lock release button at the top of each leg to select the desired angle. This allows for versatile shooting positions, including low-angle shots.

5.3. Control de panoràmica i inclinació

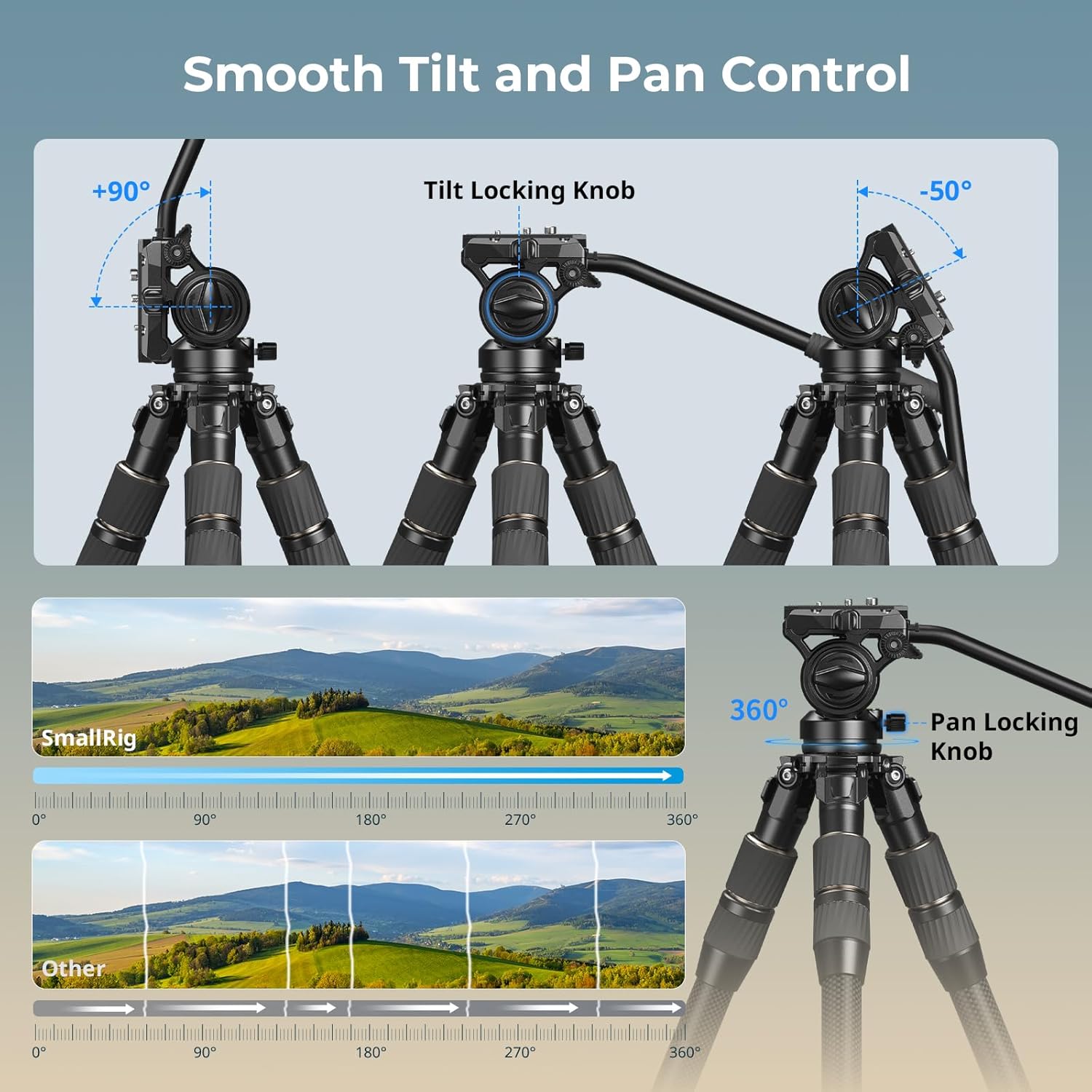

The professional fluid head enables 360° pan and +90°/-50° tilt movements. Use the pan locking knob for horizontal rotation and the tilt locking knob for vertical adjustments. The detachable telescopic handle (9.1"-14.2"/23-36cm) can be mounted for both left-handed and right-handed users to facilitate smooth camera movements.

5.4. Fixació d'accessoris

The tripod features 1/4"-20 and 3/8"-16 threaded holes for attaching various accessories such as magic arms, monitors, or microphones. These are located on the tripod's spider for convenient integration with your existing gear.

6. Manteniment

• Neteja: Netegeu les potes de fibra de carboni i els components metàl·lics amb un drap suau i sec després de cada ús. Per a la brutícia resistent, utilitzeu un drap lleugerament sec.amp drap i sabó suau i, a continuació, eixugueu-ho bé. Eviteu productes químics agressius o netejadors abrasius.
• Lubricació: The fluid head is factory-lubricated. Do not attempt to disassemble or lubricate the fluid head yourself, as this may void the warranty and impair performance.
• Emmagatzematge: Store the tripod in its provided storage bag in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the legs are fully collapsed and all locks are lightly engaged to prevent accidental extension.
• Inspecció: Periodically check all screws, knobs, and moving parts for tightness and wear. Tighten any loose screws with the provided Allen wrench. If any part is damaged, contact customer support for assistance.

7. Solució De Problemes

• Legs not extending freely: While the 'FreeSpeed' design aims for quick deployment, some users report that the legs may not always fall freely by gravity alone. If this occurs, manually pull each leg section to its desired extension after twisting the double knobs to unlock. Ensure the knobs are fully loosened.
• Quick-release plate difficult to attach/detach: Ensure the quick-release plate is correctly aligned with the mount. Check for any obstructions or debris in the locking mechanism. If the locking button is stiff, apply gentle pressure and ensure the plate is fully seated before attempting to lock.
• Tripod stability issues at maximum height: When extended to its maximum height, ensure the legs are spread to their widest stable angle (e.g., 80° if possible) and placed on a flat, stable surface. Avoid panning or tilting rapidly with heavy camera setups at maximum extension, as this can introduce slight instability. Consider adding weight to the center column hook (if available) for increased stability in windy conditions or with heavier loads.
• Fluid head movement is not smooth: Check that the pan and tilt locking knobs are fully disengaged. If the issue persists, ensure the camera setup is balanced on the quick-release plate.

8. Especificacions

9. Garantia i Suport

SmallRig products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your product or visit the official SmallRig website. If you encounter any issues or require technical assistance, please contact SmallRig customer support. Keep your purchase receipt as proof of purchase for warranty claims.
