Seesii WH1600P Cordless Impact Wrench User Manual

Introducció

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Seesii WH1600P Cordless Impact Wrench. Please read this manual thoroughly before using the tool and retain it for future reference.

Instruccions de seguretat

Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu eines elèctriques per reduir el risc d'incendi, descàrrega elèctrica i lesions personals.

• Utilitzeu equips de protecció individual adequats, com ara ulleres de seguretat, guants i protecció auditiva.
• Mantingueu la vostra zona de treball neta i ben il·luminada. Les zones desordenades o fosques conviden a accidents.
• No feu servir eines elèctriques en atmosferes explosives, com ara en presència de líquids, gasos o pols inflamables.
• Mantingueu els nens i els espectadors allunyats mentre feu servir una eina elèctrica. Les distraccions poden fer que perdis el control.
• Ensure the battery pack is securely installed before operation.
• No forceu l'eina. Utilitzeu l'eina adequada per a la vostra aplicació.
• Desconnecteu la bateria abans de fer qualsevol ajust, canviar accessoris o guardar l'eina.
• Guardeu les eines inactius fora de l'abast dels nens i no permeteu que persones que no estiguin familiaritzades amb l'eina elèctrica o aquestes instruccions la facin servir.

Contingut del paquet

En obrir el paquet, comproveu que tots els elements hi siguin presents i que no estiguin danyats:

• Seesii WH1600P Cordless Impact Wrench
• 2 x bateries d'ions de liti
• Battery Charger (not explicitly mentioned but implied with batteries)
• Manual d'usuari (aquest document)
• Impact wrench accessories (e.g., sockets, adapters - based on image 71fX+V0HbNL)

Característiques del producte

The Seesii WH1600P Cordless Impact Wrench is designed for demanding tasks, offering robust performance and user-friendly features.

• Motor sense escombretes: Provides increased power efficiency, extended tool life, and reduced maintenance compared to brushed motors.
• Sortida de parell alt: Delivers up to 1600 Newton Meters (N.m) of maximum torque for loosening stubborn fasteners and 1300 N.m for tightening.
• Sistema de bateria dual: Includes two 5000 mAh 18V Lithium-Ion batteries for extended operating time.
• Control de velocitat variable: Adjustable speeds up to 1800 RPM (revolutions per minute) with multiple settings (0-1300, 0-1500, 0-1800 U/min).
• Reversal Stop Function: Prevents over-loosening of fasteners.
• Power and Speed Indicators: LED indicators display current power level and selected speed setting.
• Square Drive Chuck: Features a 3/4-inch (19.05 mm) square drive for robust socket attachment, with an included 3/4-inch to 1/2-inch adapter for versatility.

Descripció de la imatge: An internal diagram of the Seesii WH1600P impact wrench highlighting its brushless motor technology. The image indicates 1600 N.m torque, 80% increased power, and 55% increased runtime.

Descripció de la imatge: A person using the Seesii WH1600P impact wrench to work on a large vehicle tire. The image emphasizes the tool's maximum torque of 1600 N.m, suitable for heavy-duty applications, with specific torque values for screwing in (1300 N.m) and unscrewing (1600 N.m).

Descripció de la imatge: An illustration showing two 5000 mAh 18V Lithium-Ion battery packs, highlighting their capacity for long working times. One battery is shown with its internal cells visible.

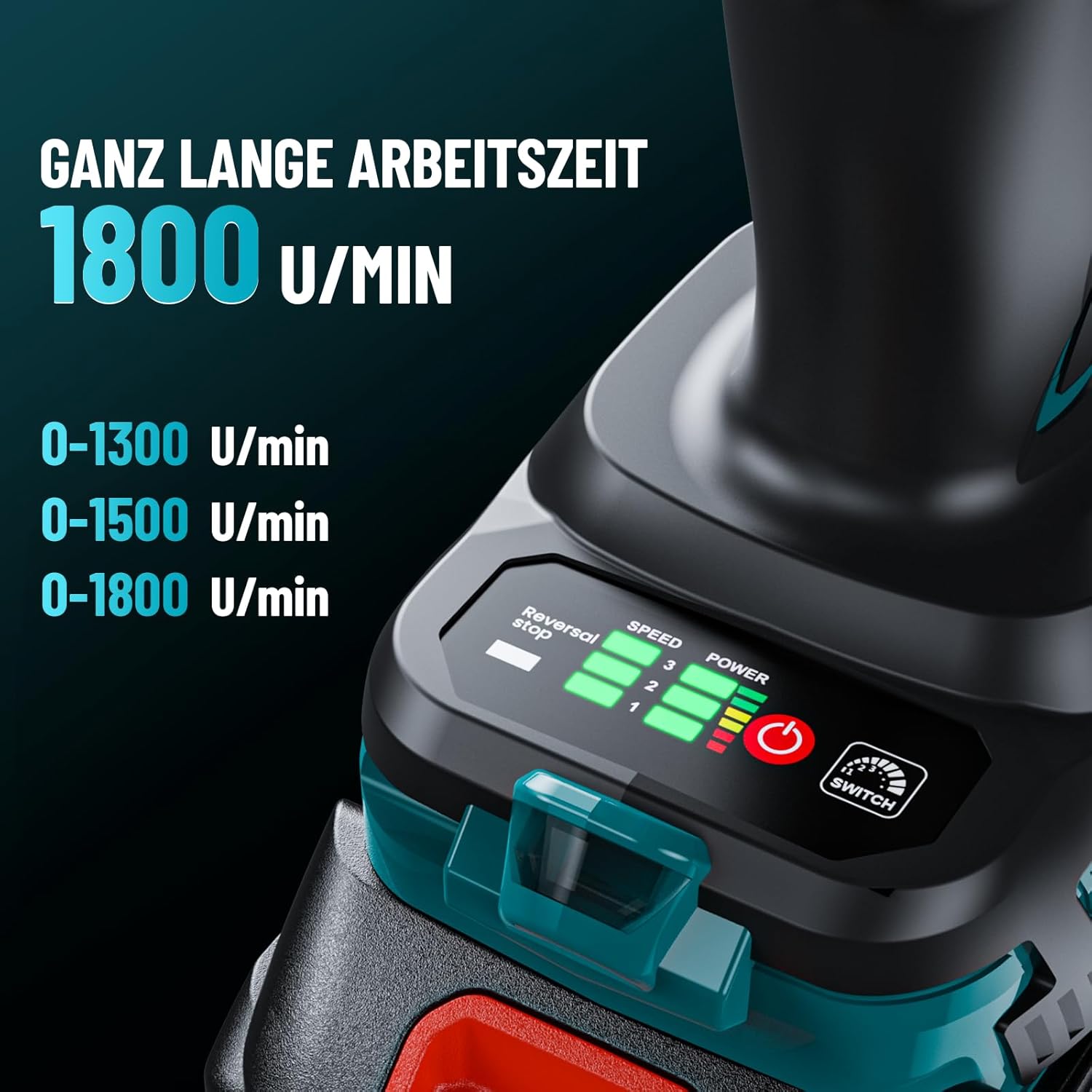

Descripció de la imatge: Un primer pla view of the control panel on the Seesii WH1600P impact wrench handle. It displays LED indicators for "Reversal stop," "Speed" (1, 2, 3), and "Power," along with a "Switch" button. Text indicates "Long working time" and "1800 U/min" (RPM), with speed ranges of 0-1300, 0-1500, and 0-1800 U/min.

Descripció de la imatge: A diagram illustrating the attachment of a 3/4-inch socket and a 3/4-inch to 1/2-inch adapter to the impact wrench. It shows the 3/4-inch chuck (19.05 mm) and the adapter for different socket sizes, labeled as an "Installation Plan."

Configuració

1. Carregant la bateria

1. Assegureu-vos que la bateria estigui completament carregada abans del primer ús.
2. Connecteu el carregador a una presa de corrent estàndard.
3. Feu lliscar la bateria al carregador fins que encaixi al seu lloc.
4. El llum indicador del carregador mostrarà l'estat de càrrega (consulteu el manual del carregador per conèixer els patrons de llum específics).
5. Un cop estigui completament carregat, desconnecteu la bateria del carregador.

2. Instal·lació de la bateria

1. Align the battery pack with the battery slot on the tool handle.
2. Slide the battery into the slot until it locks securely. Ensure it is fully seated to prevent accidental detachment during operation.
3. Per treure-la, premeu el botó d'alliberament de la bateria i feu-la lliscar cap a fora.

3. Attaching Sockets and Adapters

1. Assegureu-vos que l'eina estigui apagada i que la bateria estigui treta abans de connectar o treure accessoris.
2. Align the square drive of the socket or adapter with the square drive on the impact wrench.
3. Push the socket/adapter firmly onto the drive until it clicks into place.
4. To remove, pull the socket/adapter off the drive.

Instruccions de funcionament

1. Encès / apagat

• To turn on the tool, press the trigger switch. The tool will start operating.
• Per apagar l'eina, deixeu anar el gallet.

2. Adjusting Speed and Torque

• The tool features multiple speed settings (1, 2, 3) which can be selected using the speed selector button, typically located near the handle.
• Each speed setting corresponds to a different maximum RPM and torque output. Choose a lower speed for delicate tasks and higher speeds for heavy-duty applications.
• The LED indicators on the control panel will display the currently selected speed.

3. Rotació endavant/enrere

• The forward/reverse selector switch is usually located above the trigger.
• Push the switch to the left for forward rotation (tightening).
• Push the switch to the right for reverse rotation (loosening).
• Assegureu-vos que l'eina s'hagi aturat completament abans de canviar el sentit de rotació.

4. Reversal Stop Function

• This function is designed to prevent over-loosening of fasteners. When activated, the tool will stop rotation once the fastener is loose, preventing it from falling off.
• Refer to the tool's specific controls for activating and deactivating the reversal stop function.

Descripció de la imatge: A collage of four images demonstrating the Seesii WH1600P impact wrench being used in different applications, such as automotive repair, construction, and general fastening tasks. This illustrates the versatility of the tool.

Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la teva eina.

• Neteja: Mantingueu les obertures de ventilació de l'eina netes i lliures de residus per evitar el sobreescalfament. Feu servir un drap suau i sec.amp drap per netejar l'exterior. No utilitzeu productes químics agressius ni netejadors abrasius.
• Cura de la bateria: Guardeu les piles en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes. No emmagatzemeu les piles completament descarregades durant períodes prolongats. Carregueu-les periòdicament si no les feu servir.
• Inspecció: Inspeccioneu periòdicament l'eina per detectar qualsevol signe de danys, cargols solts o peces desgastades. No utilitzeu una eina danyada.
• Lubricació: This tool features a brushless motor and sealed components, generally requiring no internal lubrication by the user.

Resolució de problemes

Especificacions

Garantia i Suport

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Seesii customer service through their official website or the retailer where the product was purchased. Please have your model number (WH1600P) and purchase date available when contacting support.
