Introducció
This user manual provides comprehensive instructions for the installation, operation, and maintenance of your AINAVI 10" Active Slim Under Seat Car Subwoofer (Model SW-10C). Designed for optimal bass performance in a compact form factor, this powered subwoofer features a built-in amplifier and customizable LED ambient lighting. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Característiques clau
- 10-inch Active Subwoofer: Thin type design in a sealed aluminum enclosure for powerful bass.
- Integrat Ampmés viu: 800 Watts peak power output, 220 Watts RMS, with high-speed MOSFET power supply.
- Il·luminació LED personalitzable: Fashion multi-colors ambient lighting, controllable via smartphone app or remote controller.
- Flexible Input Options: Features variable Low-Pass Filter (50Hz-250Hz), Low-Level Inputs (RCA), and High-Level Inputs.
- Adjustable Bass: Variable Bass Boost and GAIN Input for fine-tuning low bass.
- Disseny compacte: Dimensions of 343mm x 260mm x 82mm (13.5"x10.2"x3.2") and unit weight of 8 Lbs, ideal for under-seat installation.
- Complete Wiring Kit: Includes all necessary wiring and a high-to-low level input adapter for easy installation.
Contingut del paquet
Verifiqueu que tots els elements que s'enumeren a continuació s'inclouen al vostre paquet:
- Underseat Active Car Subwoofer Bass
- High to Low Level Adaptor
- Power Cables & Fuse
- Cable d'extensió RCA
- Control remot
- Copper RCA Cable
- Copper Power Wire
- Copper Ground Wire
- REM Cable
- Copper Terminals
- Adhesius
- Manual del producte (aquest document)

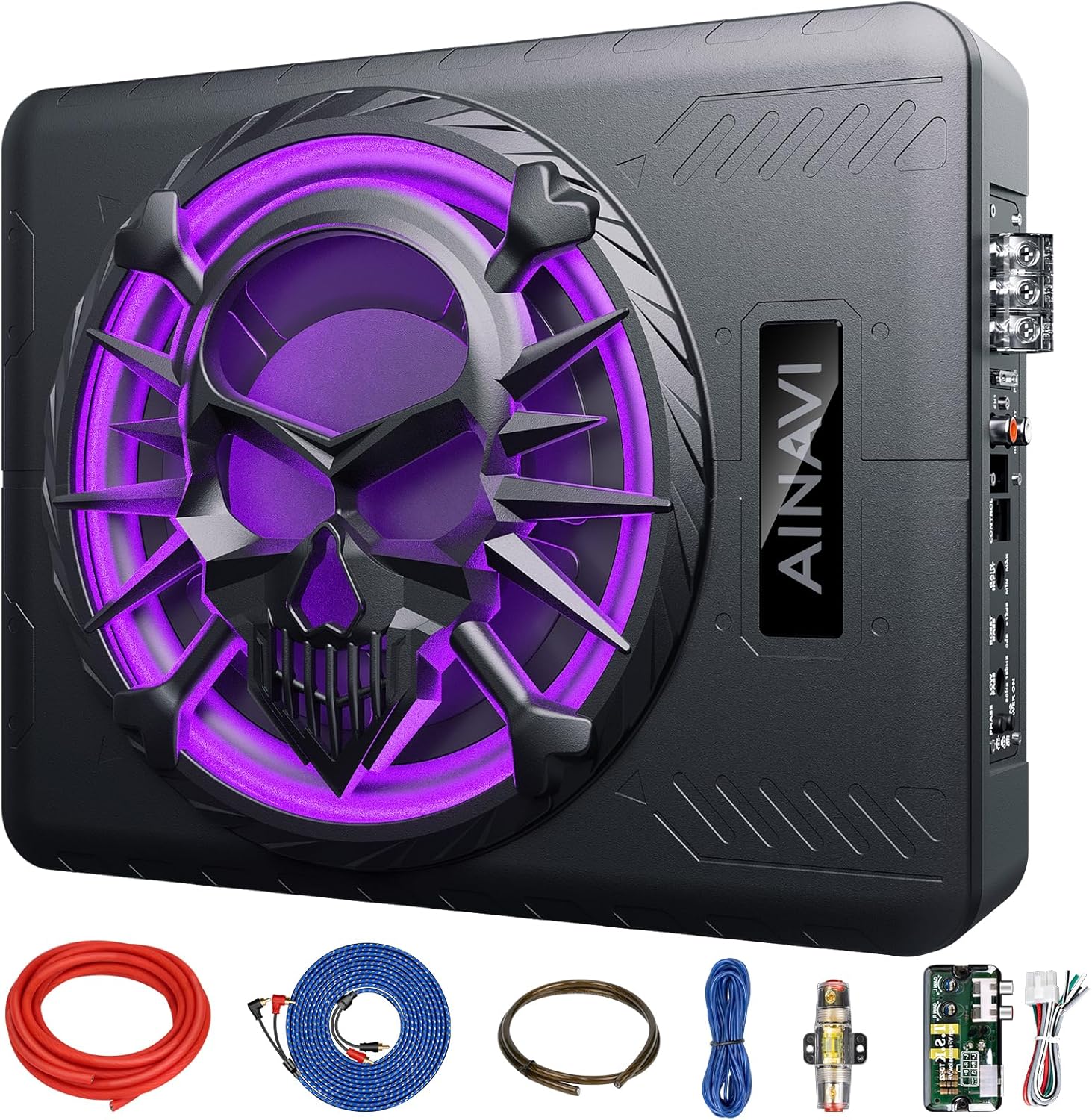

Image: The AINAVI 10" Active Slim Under Seat Car Subwoofer shown with all its included accessories, such as power cables, RCA cables, remote control, and high-to-low level adapter.

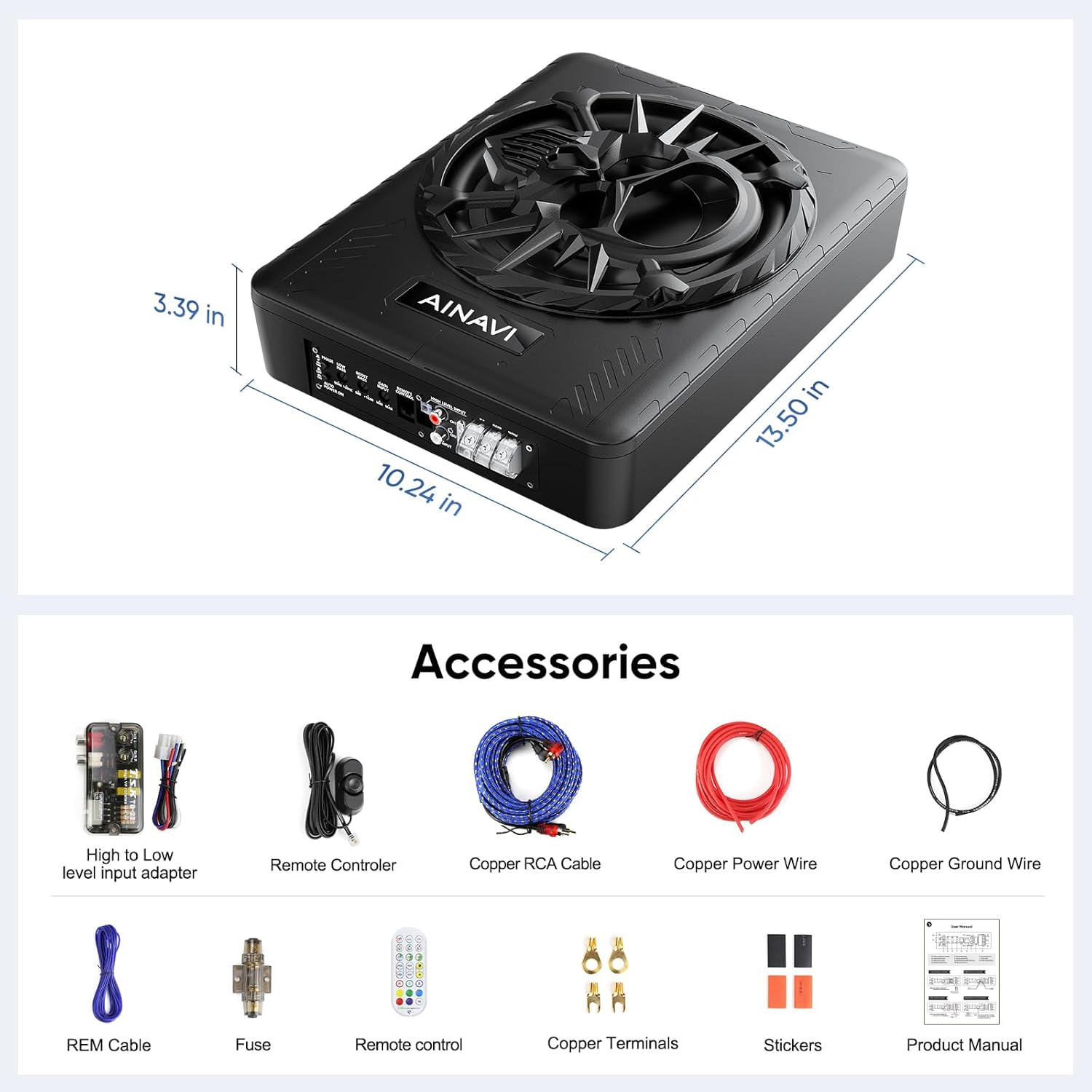

Imatge: Una imatge detallada view of the various accessories provided with the subwoofer, including the high-to-low level input adapter, remote controller, copper RCA cable, copper power wire, copper ground wire, REM cable, fuse, copper terminals, stickers, and the product manual.
Guia d'instal·lació
Proper installation is crucial for optimal performance and safety. It is strongly recommended to have this active car subwoofer installed by a professional. Ensure the vehicle's power is disconnected before beginning installation.
Consideracions de col·locació
The compact design allows for flexible placement. Common locations include under the passenger seat or in the trunk.
Image: The subwoofer's slim dimensions (13.5" x 10.2" x 3.2") are highlighted, showing its suitability for installation under a car seat or in the trunk, demonstrating its space-saving design.
Video: This video demonstrates the compact design of the AINAVI 10" car subwoofer, highlighting its ability to fit under a car seat or in the trunk, and showcasing its powerful bass output and colorful LED ambient lighting features.
Connexions de cablejat
The subwoofer supports both Low-Level (RCA) and High-Level inputs. Important: Do not input high/low level at the same time.
Image: Detailed wiring diagrams illustrating how to connect the subwoofer using Low-Level Input (RCA), High-Level Input, and Power Input connections. It also shows the control panel layout.
Imatge: Un primer pla view of the subwoofer's input panel, clearly showing the RCA input, High-Level input, and power terminals, along with various control knobs.
Low-Level Input Connection (RCA)
Connect the RCA output from your car stereo/head unit to the RCA INPUT on the subwoofer. This method provides the cleanest signal for optimal sound quality.
High-Level Input Connection
If your car stereo does not have RCA outputs, use the included high-to-low level adapter to connect directly to your speaker wires. Connect the speaker wires from your car stereo to the HIGH LEVEL INPUT on the subwoofer.
Connexió d'entrada d'alimentació
- Connecteu el +12V terminal to the positive (+) terminal of your car battery using the provided power cable and fuse.
- Connecteu el GND terminal to a clean, unpainted metal surface on the vehicle's chassis for a solid ground connection.
- Connecteu el REM (Remote) terminal to the remote turn-on lead from your car stereo. This will turn the subwoofer on and off with your stereo.
Instruccions de funcionament
Once installed, you can adjust the subwoofer's settings for optimal audio performance.
Funcions del tauler de control
- FASE (0°/180°): Adjusts the phase of the subwoofer output. Experiment with both settings to find the one that provides the best bass response in your vehicle.
- LOW PASS (50Hz-250Hz): Controls the low-pass filter frequency. This setting determines the highest frequency the subwoofer will reproduce. Adjust to blend seamlessly with your main speakers.
- BASS BOOST (0dB to +12dB): Augmenta la sortida de greus a una freqüència específica. Feu servir amb moderació per evitar distorsió.
- GAIN INPUT (MIN/MAX): Matches the input sensitivity of the subwoofer to the output level of your car stereo. Start at MIN and slowly increase until desired volume is achieved without distortion.
- CONTROL A DISTANCIA: Connect the wired remote control to this port to adjust bass levels conveniently from your driver's seat.
- AUTO POWER ON (ON/OFF): When set to ON, the subwoofer will automatically turn on when it detects an audio signal from the high-level input.
LED Ambient Light Control
The subwoofer features multi-color LED ambient lighting. You can control the colors and effects using the dedicated smartphone app or the included remote controller.
Image: The AINAVI subwoofer installed under a car seat, showcasing its vibrant purple LED ambient lighting, which adds a stylish element to the car's interior.
Image: The AINAVI 800W Car/Truck Subwoofer prominently displayed, emphasizing its powerful output and the integrated LED lighting feature.
Manteniment
To ensure the longevity and optimal performance of your AINAVI subwoofer, follow these maintenance guidelines:
- Neteja: Use a soft, dry cloth to wipe down the exterior of the subwoofer. Avoid using abrasive cleaners or solvents, as they may damage the finish.
- Ventilació: Assegureu-vos que les reixetes de ventilació del subwoofer no estiguin obstruïdes per evitar el sobreescalfament.
- Connexions: Reviseu periòdicament totes les connexions del cablejat per assegurar-vos que estiguin ben fixades i que no presentin corrosió.
- Medi ambient: Eviteu exposar el subwoofer a temperatures extremes, a la llum solar directa durant períodes prolongats o a una humitat excessiva.
Resolució de problemes
Si teniu problemes amb el subwoofer, consulteu els problemes i solucions més comuns següents:
| Problema | Causa possible | Solució |
|---|---|---|
| Sense poder | Blown fuse, loose power connection, no remote turn-on signal. | Check and replace fuse if necessary. Verify all power and ground connections are secure. Ensure remote wire is connected and receiving signal from head unit. |
| Sense so | Incorrect input connection (high/low level), gain too low, low-pass filter set too high/low, phase issue. | Ensure only one input type (RCA or High-Level) is used. Increase GAIN. Adjust LOW PASS filter. Try switching PHASE (0°/180°). Check RCA or speaker wire connections. |
| So distorsionat | GAIN too high, BASS BOOST too high, poor ground connection. | Reduce GAIN. Reduce BASS BOOST. Ensure ground connection is solid and free of paint/rust. |
| Els llums LED no funcionen | App/remote control issue, power supply to LED circuit. | Check app connection or remote control battery. Ensure subwoofer is powered on. |
Especificacions
| Característica | Detall |
|---|---|
| Nom del model | 10 Inch Compact Underseat Car Subwoofer Bass |
| Tipus d'altaveu | Subwoofer |
| Mida de l'altaveu | 10 polzades |
| Diàmetre del woofer | 10 polzades |
| Potència de sortida màxima dels altaveus | 800 watts (pic) |
| Potència RMS | 220 watts |
| Resposta de freqüència | 20 Hz (Lower limit, typical for subwoofers) |
| Dimensions del producte | 10" de profunditat x 8" d'amplada x 3" d'alçada (343 mm x 260 mm x 82 mm) |
| Pes de l'article | 13.37 lliures |
| Tipus de muntatge | Under Seat Mount, Car Mount, Clip On, Floor Standing |
| Característica especial | APP and Remote Control to Change LED Light Colors, Bass Boost, LED Light, Noise Canceling |
| Tecnologia de connectivitat | Auxiliary, RCA, USB, Wired |
| Mètode de control | Aplicació, comandament a distància, tàctil |
| Font d'alimentació | Elèctric amb cable |
| Color | Negre |
| UPC | 760762576563 |
Garantia i Suport
AINAVI provides a one-year product warranty for this subwoofer. For any technical support or warranty claims, please do not hesitate to contact us.
You can reach us via Amazon email or directly through the seller, HomeCar. Customer service is available via phone at +1 833 858 5016, working hours are 3:00 PM to 12:00 PM PST.
