Introducció
Thank you for choosing the MOVE SPEED MSP03 15W Qi2 Certified MagSafe Portable Power Bank. This device is designed to provide ultra-fast and convenient charging for your compatible devices, featuring both wireless MagSafe and wired USB-C charging capabilities, along with a built-in kickstand for enhanced usability. Please read this manual carefully before use to ensure optimal performance and safety.
Contingut del paquet
- MOVE SPEED Qi2 Certified MagSafe Battery Pack
- Suport de peu integrat
- Cable de càrrega ràpida USB-C
- Manual d'usuari
Característiques del producte
- Qi2 Certified MagSafe Technology: Provides effortless and secure magnetic attachment for wireless charging of iPhone 12-16 series.
- Càrrega sense fil ultraràpida de 15 W: Delivers rapid wireless power to compatible devices.
- 30W USB-C Fast Charging Port: Offers high-speed wired charging and recharging for the power bank itself.
- 10,000 mAh d'alta capacitat: Ensures multiple charges for your devices throughout the day.
- Suport de peu integrat: Permet les mans lliures viewing and use while charging.
- Característiques de seguretat avançades: Inclou sobrecorrent, sobretensiótage, short-circuit, overpower, and overcharge protection.
- Disseny compacte i portàtil: Fàcil de transportar per a una major energia allà on siguis.
Image: The Qi2 logo on the power bank, highlighting its official certification for faster and more efficient wireless charging.
Imatge: Una explosió view diagram illustrating the sophisticated security features, including overcurrent, overvoltage, short-circuit, overpower, and overcharge protection.
Configuració
1. Càrrega del Power Bank
- Connecteu el cable USB-C proporcionat al port USB-C del banc d'alimentació.
- Connect the other end of the USB-C cable to a compatible 30W (or higher) USB-C power adapter (not included).
- The LED indicator lights on the side of the power bank will illuminate to show the charging status. When all lights are solid, the power bank is fully charged.
Image: The power bank being recharged using a USB-C cable connected to a wall adapter, demonstrating 30W wired charging and recharging capabilities.
2. Comprovació del nivell de la bateria
Press the small button on the side of the power bank to view el nivell actual de la bateria indicat pels llums LED.
Image: A close-up of the MOVE SPEED power bank showing its smart charging indicator lights, which provide a quick visual of the remaining battery life.
Instruccions de funcionament
1. Wireless (MagSafe) Charging
- Ensure your device is MagSafe compatible (iPhone 12-16 series) or has a MagSafe-compatible case.
- Align your iPhone with the magnetic charging area on the power bank. The magnets will snap into place, and charging will begin automatically.
- The power bank provides up to 15W wireless fast charging.

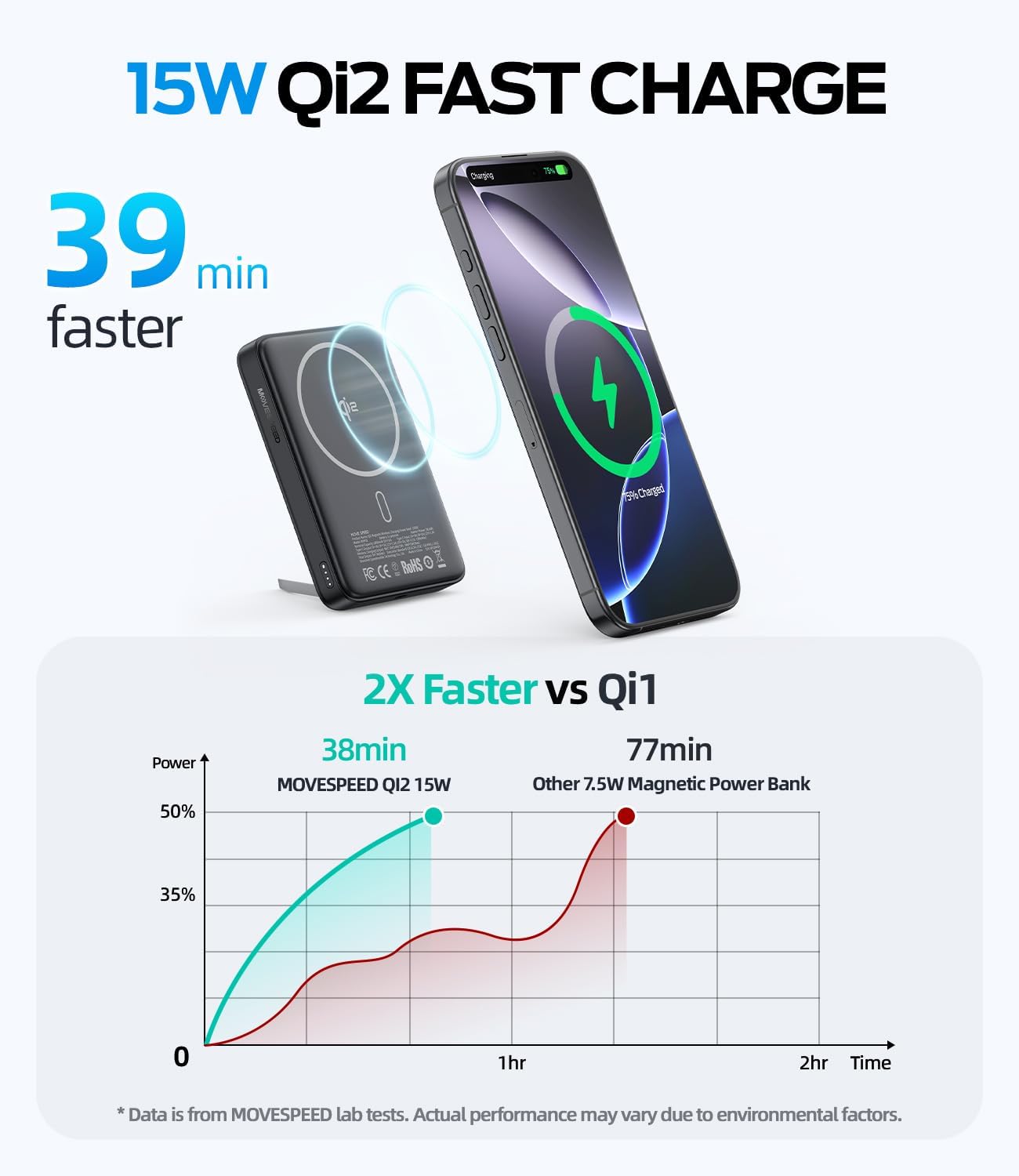

Image: An iPhone magnetically attached to the MOVE SPEED power bank, illustrating 15W fast wireless charging via MagSafe.
Image: A person holding an iPhone with the power bank magnetically attached, emphasizing the strong N56 magnets and secure connection.
2. Càrrega amb cable
- Connect your device's USB-C charging cable to the USB-C port on the power bank.
- Connect the other end of the cable to your device. The power bank supports up to 30W wired fast charging.
- Note: Wireless charging and wired charging cannot be used simultaneously for the same device. However, you can charge one device wirelessly and another via the USB-C port simultaneously.
Image: The power bank simultaneously charging an iPhone wirelessly and an Apple Watch via its USB-C port, demonstrating its ability to power two devices at once.
3. Ús del suport integrat
- Gently pull out the kickstand located on the back of the power bank.
- Position your phone (with the power bank attached) on a flat surface to enjoy hands-free viewing in either portrait or landscape mode.
- Push the kickstand back into its slot when not in use.
Image: An iPhone with the power bank attached, using the built-in kickstand to stand upright on a surface, enabling hands-free viewmentre es carrega.
Image: The power bank with its kickstand supporting a phone on a wooden table in an outdoor setting, ideal for watching videos during a picnic.
4. Compatibilitat
The power bank is compatible with iPhone 12, 13, 14, 15, 16 series (all models) for MagSafe wireless charging. It also supports AirPods with MagSafe charging cases and other Qi-enabled devices (without magnetic alignment).
Image: An illustration showing the power bank's compatibility with magnetic cases and iPhone 12-16 series, as well as AirPods 3/Pro 2 and other non-magnetic cases.
Manteniment
- Keep the power bank away from water, fire, and high temperatures.
- Eviteu deixar caure o sotmetre el dispositiu a forts impactes.
- Netegeu la superfície amb un drap suau i sec. No utilitzeu productes químics agressius ni materials abrasius.
- Emmagatzemar en un lloc fresc i sec quan no s'utilitzi.
Resolució de problemes
| Problema | Possible solució |
|---|---|
| El dispositiu no es carrega sense fil | Ensure your device is MagSafe compatible or has a MagSafe-compatible case. Check for proper alignment. |
| El dispositiu no es carrega per USB-C | Verify the USB-C cable is securely connected to both the power bank and your device. Try a different cable or device. |
| El banc d'energia no es carrega | Ensure the USB-C cable is connected to a working power adapter. Try a different power adapter or cable. |
| Els indicadors LED no funcionen | Press the power button to activate the indicators. If still unresponsive, the power bank may be fully discharged or require service. |
Especificacions
- Número de model: MSP03
- Capacitat: 10,000 mAh
- Sortida de càrrega sense fils: 15 W (màx.)
- Wired Charging Output: 30 W (màx.)
- Entrada: USB tipus C
- Dimensions del producte: 3.98 x 0.65 x 2.54 polzades
- Pes de l'article: 9.6 unces
- Color: Negre
- Característiques especials: Qi2 Certified MagSafe Technology, Built-In Kickstand, 30W USB-C Ultra-Fast Charging Port, High-Capacity 10,000mAh Power Bank, Safety and Reliability
Imatge: Un front view of the MOVE SPEED MSP03 15W Qi2 Certified MagSafe 10,000mAh Portable Power Bank, showcasing el seu disseny elegant.
Image: A person holding the 10,000mAh power bank, highlighting its travel-ready capacity and TSA compliance.
Image: A hand placing the compact MOVE SPEED power bank into a small handbag, emphasizing its ultra-portable and lightweight design.
Informació de seguretat
- No desmunteu, modifiqueu ni repareu el dispositiu.
- No exposar a temperatures extremes ni a la llum solar directa.
- Mantenir fora de l'abast dels nens.
- Eliminar el producte d'acord amb la normativa local.
- Avoid using the power bank in wet environments.
Vídeo oficial del producte
Vídeo: Un producte oficial acabatview of the MOVE SPEED Qi2 MagSafe Battery Pack, highlighting its 10,000mAh capacity and built-in kickstand. This video demonstrates the product's key features and design.
Garantia i Suport
For warranty information and customer support, please refer to the contact details provided on the product packaging or visit the official MOVE SPEED weblloc. Conserveu el rebut de compra per a reclamacions de garantia.
