1. Producte acabatview
The PowerUrus 12V 100Ah LiFePO4 Lithium Battery is designed for reliable and long-lasting power in various applications, including RVs, marine vessels, and off-grid systems. It features premium A-grade lithium iron phosphate cells, offering a high energy density and stable performance. The integrated Battery Management System (BMS) provides comprehensive protection and ensures maintenance-free operation.
Imatge: Més deview of PowerUrus 12V 100Ah LiFePO4 Battery highlighting 4000-8000 life cycles, no maintenance, 30.8 lbs weight, and stable voltage.
Imatge: Examples of battery applications including marine, power backup, off-grid solar, and RV/camputilitzeu.
2. Què hi ha a la caixa
- Bateria LiFePO12 de 100 V 4 Ah
3. Informació de seguretat
The PowerUrus LiFePO4 battery is equipped with a built-in Battery Management System (BMS) to ensure safe operation. This system protects against:
- Sobrecàrrec
- Sobrecàrrega
- Sobreintensitat
- Curtcircuit
- Excés de temperatura
- Low-temperature charging cut-off (stops charging below 0°C / 32°F)
Precaucions de seguretat importants:
- No curtcircuiteu els terminals de la bateria.
- No desmunteu, aixafeu, escalfeu o incinereu la bateria.
- Assegureu-vos una ventilació adequada durant l'ús i la càrrega.
- Use a compatible LiFePO4 battery charger.
- Do not reverse connections from charger to battery.
- Store the battery in a cool, dry place away from direct sunlight and heat.

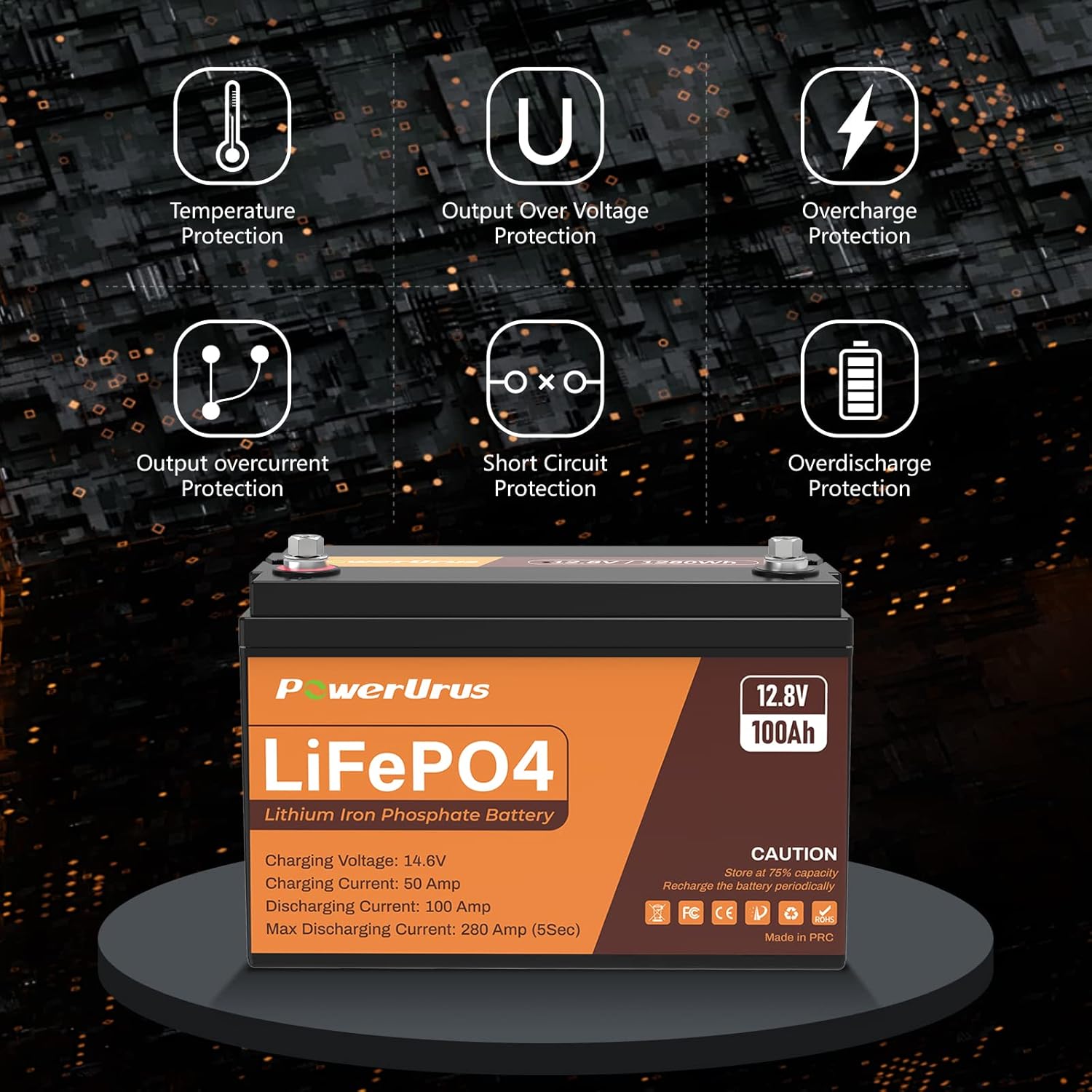

Image: Visual representation of the battery's built-in protections, including temperature, output over-voltage, overcharge, output overcurrent, short circuit, and over-discharge protection.
Image: Illustration of the low-temperature cut-off protection, showing the battery automatically stopping charging when the temperature is below 0°C (32°F) to prevent damage.
4. Configuració
4.1 Physical Connection:
- Identify the positive (+) and negative (-) terminals on the battery. The positive terminal is typically red, and the negative terminal is black.
- Connect your cables securely to the appropriate terminals. Ensure connections are tight to prevent arcing or overheating.
Imatge: Detallada views of the battery, showing its top and front with dimensions (13 x 6.8 x 8.5 inches) and terminal specifications (F12 Terminal, M8 Diagram).
4.2 Expanding Capacity (Series/Parallel):
The PowerUrus 12V 100Ah LiFePO4 battery can be connected in series or parallel to achieve higher capacity or voltage:
- Connexió paral·lel: Connect up to 4 batteries in parallel to increase total capacity (e.g., 200Ah, 300Ah, up to 400Ah) while maintaining 12.8V.
- Connexió de sèrie: Connect up to 4 batteries in series to increase total voltage (e.g., 25.6V, 38.4V, up to 51.2V) while maintaining 100Ah.
Always ensure all batteries are at a similar state of charge before connecting them in series or parallel.
Image: Illustration of the auto-balancing function when multiple batteries are connected, ensuring balanced charge across the system.
5. Instruccions de funcionament
5.1 Smart App Monitoring:
The PowerUrus battery features a smart app for real-time monitoring of its status. Follow these steps to connect and monitor:
- Download the compatible smart app (e.g., "RoyPow Fish" or similar, as indicated in product details) from Google Play Store or Apple App Store.
- Locate the battery code on the upper part of your product.
- Open the app, find the corresponding battery code, and connect via Bluetooth.
- Monitor battery state of charge, temperature, voltage, capacity, protection warnings, and other parameters directly from your smartphone.
Image: The battery shown next to a smartphone displaying the smart app interface, which monitors battery status, voltage, current, and maximum discharge.
Image: A visual guide on how to download the app, find the battery code, and connect to the smart app for real-time monitoring.
5.2 Charging and Discharging:
- The battery supports a standard discharge current of 100A and a maximum discharge current of 280A (for 5 seconds).
- The battery capacity remains over 80% after 4000 cycles under 1C charge and 100% Depth of Discharge (DOD) conditions.
Video: An official PowerUrus video demonstrating the 12V 100Ah LiFePO4 Battery, showcasing its features and applications.
6. Manteniment
The PowerUrus LiFePO4 battery is designed to be maintenance-free. Its built-in BMS manages cell balancing and protection, eliminating the need for manual intervention.
- The battery has an extremely low self-discharge rate (less than 3% monthly after 5 months of storage), allowing for extended storage periods without significant capacity loss.
- For prolonged storage, it is recommended to store the battery at approximately 75% charge.
Image: Comparison illustrating the low self-discharge rate of the PowerUrus LiFePO4 battery (less than 3% monthly after 5 months storage) versus traditional lead-acid batteries.
7. Solució De Problemes
If you encounter issues with your PowerUrus LiFePO4 battery, consider the following:
- Sense potència de sortida: Check all cable connections to ensure they are secure and correctly polarized. Verify the battery's state of charge via the smart app. The BMS may have activated a protection mode (e.g., over-discharge, over-current).
- Problemes de càrrega: Ensure your charger is compatible with LiFePO4 batteries and is functioning correctly. Check the battery temperature via the app; charging will stop if the temperature is below 0°C (32°F).
- Problemes de connectivitat de l'aplicació: Ensure Bluetooth is enabled on your smartphone and the battery is within range. Restart the app and try reconnecting.
- Rendiment reduït: Confirm the battery is fully charged. If multiple batteries are in use, ensure they are properly balanced (the BMS handles auto-balancing).
For persistent issues, refer to the Warranty & Support section for assistance.
8. Especificacions
| Especificació | Valor |
|---|---|
| Marca | PowerUrus |
| Model | S12100A |
| Capacitat de la bateria | 100 Amp Hores |
| Voltage | 12 Volts (12.8V nominal) |
| Composició de les cèl·lules de la bateria | Fosfat de liti (LiFePO4) |
| Dimensions del producte | 6.8 "P x 13" W x 8.5" H |
| Pes de l'article | 30.8 lliures |
| Tipus de terminal | Terminal Marítima |
| Corrent de descàrrega contínua màx | 100 Amps |
| Max Discharge Current (5 sec) | 280 Amps |
| Cicle de Vida | 4000-8000 cycles (to 80% capacity) |
| Taxa d'autodescàrrega | Less than 3% per month |
| Protecció BMS | Overcharge, Over-discharge, Over-current, Short Circuit, Over-temperature, Low-temperature Charging Cut-off |
9. Garantia i assistència
The PowerUrus 12V 100Ah LiFePO4 Lithium Battery comes with a 5 any de garantia, ensuring peace of mind and long-term reliability.

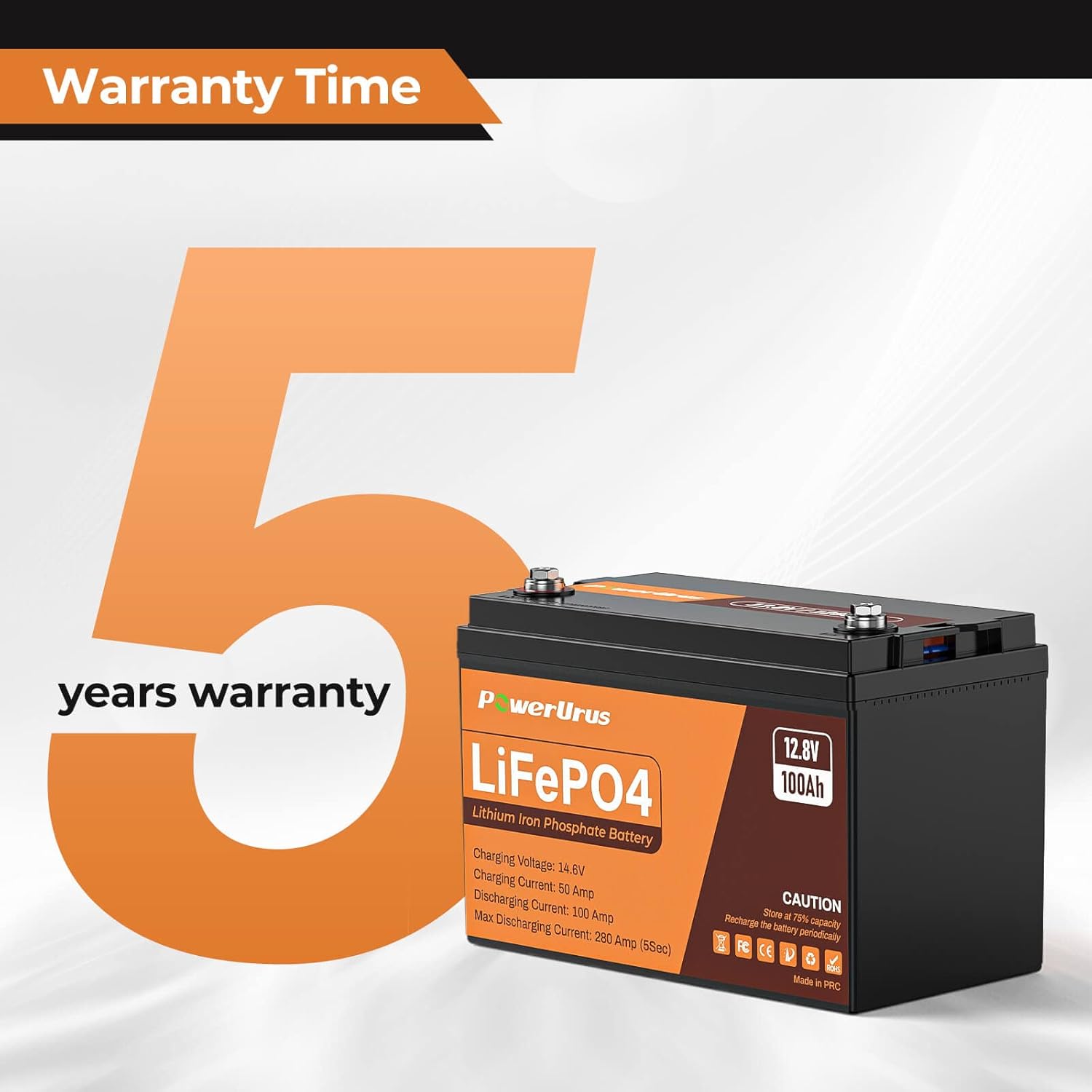

Image: The PowerUrus LiFePO4 battery prominently displaying a '5 years warranty' badge.
For technical support, warranty claims, or any questions regarding your product, please contact PowerUrus customer service. Detailed contact information can typically be found on the product packaging or the official PowerUrus weblloc.
