1. Introducció
The Bneta BF002 Pet Smart AI Bird Feeder is designed to enhance your bird-watching experience. It features advanced sensing technology for accurate bird detection and a Full HD camera for live viewing and recording. This manual provides instructions for the proper setup, operation, and maintenance of your bird feeder.
Figura 1: Frontal view of the Bneta BF002 Smart AI Bird Feeder.
2. Característiques del producte
The Bneta BF002 bird feeder combines technology with convenience to offer an interactive bird-watching experience. Key features include:
- Dual-Action Motion Sensors and Accelerometer: For precise and reliable bird detection.
- Full HD 1080P Camera: 2.0 Mega Pixel camera for live streaming video, photo capture, and video recording.
- Reconeixement d'ocells per IA: Advanced artificial intelligence for identifying bird species.
- Capacitat d'2.5 litres: Ample seed storage to reduce refill frequency.
- Solar Energy Charging: Integrated solar panel for sustainable power. USB cable included for alternative charging.
- 5200 mAh Rechargeable Lithium-Ion Battery: Ofereix un funcionament prolongat.
- Disseny impermeable: Camera and feeder are designed to withstand rain and snow.
- Connectivitat Wi-Fi: Supports 2.4GHz wireless networks for remote monitoring.
- Camp Ampli de View: 130° diagonal, 94° horizontal, 40° vertical for comprehensive coverage.
- Micròfon integrat: For audio capture.
Figura 2: Mésview of key features of the Bneta BF002.
3. Instal·lació
Follow these steps to install your Bneta BF002 bird feeder:
- Trieu una ubicació: Select a safe outdoor location where birds are likely to visit and where the feeder can receive adequate sunlight for the solar panel. Ensure the chosen location has stable 2.4GHz Wi-Fi coverage.
- Mount the Feeder: The feeder can be mounted on a wall or a pole. Use appropriate mounting hardware (not included unless specified in packaging) to secure the feeder firmly. Ensure it is stable and level.
Figure 3: Feeder mounted on a wall.
Figure 4: Feeder mounted on a pole.
- Carregueu la bateria: Before initial use, fully charge the internal 5200 mAh lithium-ion battery using the provided USB cable. The solar panel will maintain the charge during daylight hours.
- Fill with Bird Seed: Open the top lid and fill the feeder with your preferred bird seed. The feeder has a 2.5-liter capacity.
Figura 5: lateral view of the feeder, showing the solar panel and seed tray.
4. App Setup and Wi-Fi Connection
To monitor your bird feeder, you need to connect it to the dedicated bird lover app:
- Descarrega l'aplicació: Cerca the "bird lover app" in your smartphone's app store (iOS or Android) and download it.
- Crea un compte: Obriu l'aplicació i seguiu les instruccions que apareixen a la pantalla per crear un compte d'usuari nou o iniciar la sessió si ja en teniu un.
- Afegeix un dispositiu: In the app, select the option to add a new device. Follow the pairing instructions, which typically involve scanning a QR code on the feeder or entering a device ID.
- Connecta't a Wi-Fi: During the setup process, you will be prompted to connect the feeder to your home's 2.4GHz Wi-Fi network. Ensure your smartphone is also connected to the same 2.4GHz network during this step.
- Configuració completa: Once connected, the app will confirm successful pairing. You can then customize settings such as notification preferences and recording schedules.
5. Funcionament
The Bneta BF002 offers various features for an interactive bird-watching experience:
- Notificacions en temps real: When a bird is detected by the dual-action motion sensors and accelerometer, the app will send a real-time notification to your smartphone.
- Viu View: Obriu l'aplicació a view viu footage from the 1080P HD camera at any time.
- Captura fotos i vídeos: Use the app to manually capture photos or record videos of visiting birds. The feeder can also be set to automatically record upon detection.
- Reproducció: Accés gravat footage and photos through the app's gallery or history section.
- Reconeixement d'ocells per IA: The AI feature helps identify different bird species, enhancing your bird-watching knowledge.

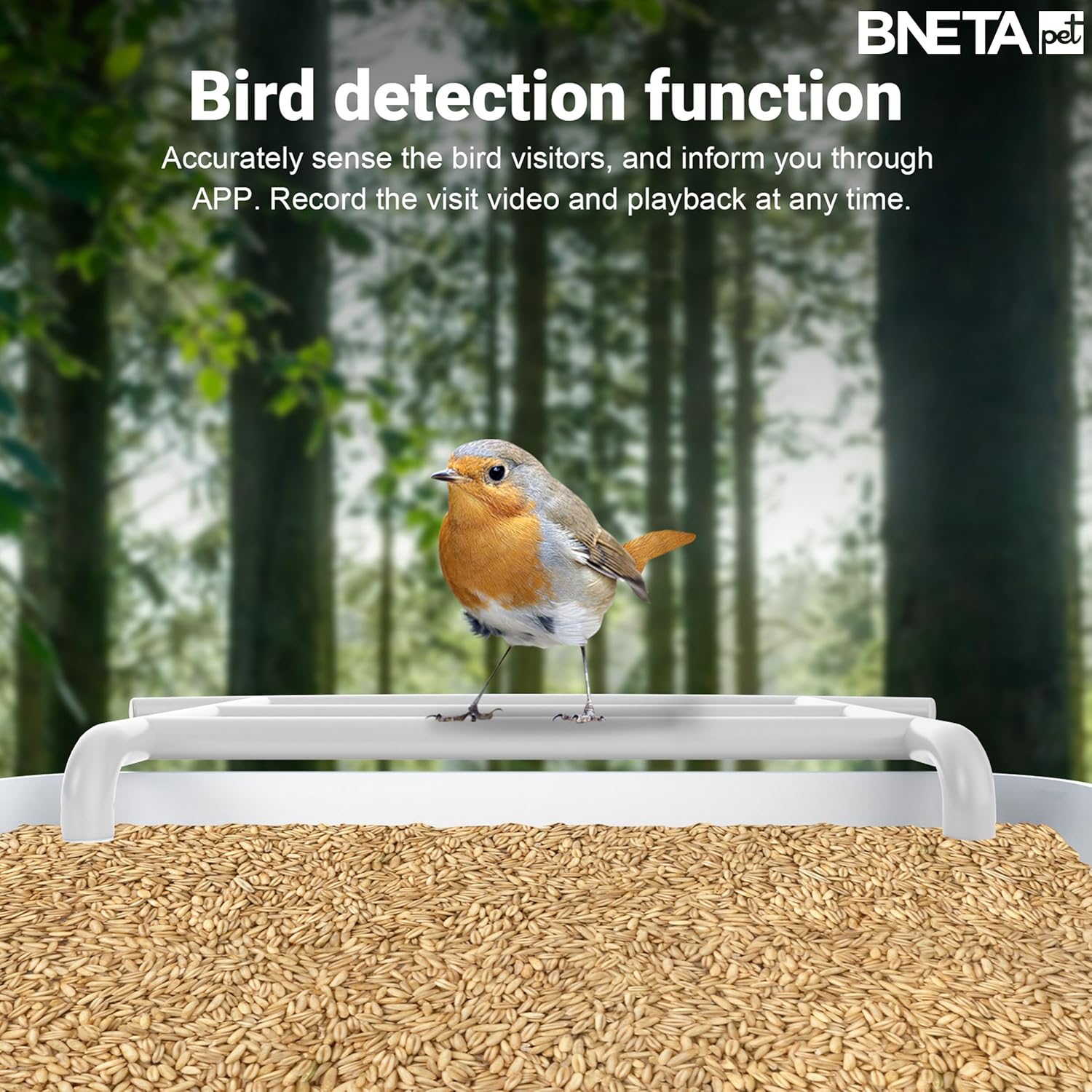

Figure 6: Bird detection function in action.
Figure 7: AI bird recognition in action.
6. Manteniment
Regular maintenance ensures optimal performance and longevity of your bird feeder:
- Refilling Seed: Check the seed level regularly and refill as needed. The 2.5-liter capacity allows for less frequent refilling.
- Neteja: Clean the feeder periodically to prevent mold and bacterial growth, which can harm birds. Use a mild soap solution and rinse thoroughly with water. Ensure the feeder is completely dry before refilling with seed.
- Lent de la càmera: Gently wipe the camera lens with a soft, clean cloth to ensure clear image quality. Avoid abrasive materials.
- Panell solar: Keep the solar panel clean and free of debris (leaves, dust) to maximize charging efficiency.
- Cura de la bateria: While the solar panel helps maintain charge, if the feeder is in a shaded area or during prolonged cloudy periods, you may need to manually charge the battery via the USB port.
7. Solució De Problemes
If you encounter issues with your Bneta BF002 bird feeder, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| L'alimentador no es connecta a la Wi-Fi | Incorrect Wi-Fi password; Feeder too far from router; Only 5GHz Wi-Fi available. | Verify password; Move feeder closer to router or use a Wi-Fi extender; Ensure your router supports 2.4GHz and connect to it. |
| No bird detection notifications | Motion detection sensitivity too low; App notifications disabled; Feeder offline. | Adjust sensitivity settings in the app; Enable notifications for the app; Check Wi-Fi connection and feeder power. |
| Poor camera image quality | Dirty camera lens; Poor lighting conditions; Weak Wi-Fi signal. | Clean the camera lens; Ensure adequate lighting; Improve Wi-Fi signal strength. |
| La bateria no es carrega | Solar panel obstructed or dirty; Insufficient sunlight; Faulty USB cable/port. | Clean solar panel; Relocate feeder to a sunnier spot; Try charging with USB cable and different power adapter. |
| L'aplicació no respon | App crash; Outdated app version; Phone operating system issues. | Restart the app; Check for app updates; Restart your smartphone. |
Si el problema persisteix, poseu-vos en contacte amb l'atenció al client.
8. Especificacions
| Característica | Detall |
|---|---|
| Número de model | BF002 |
| Detection Mechanism | Dual-Action Motion Sensors, Accelerometer |
| Resolució de la càmera | 2.0 Mega Pixel 1080P HD |
| Camp de View (Diagonal) | 130 graus |
| Camp de View (Horitzontal) | 94 graus |
| Camp de View (Vertical) | 40 graus |
| Tipus de bateria | 5200 mAh Rechargeable Lithium-Ion Battery (included) |
| Carregant | Solar Energy, USB Cable Included |
| Tipus sense fil | WiFi 2.4GHz |
| Temperatura de funcionament | -5 °F a 120 °F (-20.5 °C a 48.5 °C) |
| Voltage (Vmp) | 6V ±5% |
| Corrent de treball (Imp) | 400mA ±5% |
| Circuit obert Voltage (VOC) | 7.2V ±5% |
| Corrent de curtcircuit (ISC) | 480mA ±5% |
| Capacitat alimentària | 2.5 litres |
| Pes de l'article | 0.75 quilos |
| Dimensions del paquet | 30.2 x 23.6 x 23 cm |
| Usos específics | Interior, Exterior |
9. Informació de la garantia
The Bneta BF002 Pet Smart AI Bird Feeder comes with a Garantia limitada. For specific terms and conditions, including coverage details and duration, please refer to the warranty card included with your product or contact Bneta customer support.
10. Atenció al client
For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact Bneta customer support. Refer to the product packaging or the official Bneta weblloc per obtenir dades de contacte.
Recursos en línia: Visit the official Bneta weblloc web per a preguntes freqüents, manuals actualitzats i actualitzacions de programari/firmware.
