1. Introducció
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your VARMINPOOL KSPF-005L3R1A2 16000 BTU Above Ground Swimming Pool Heater. Please read this manual thoroughly before attempting any installation or operation.
The VARMINPOOL KSPF-005L3R1A2 is designed to provide efficient heating for above-ground pools up to 5,400 gallons. It features smart inverter technology for energy efficiency, WiFi connectivity for remote control, and a durable titanium heat exchanger.

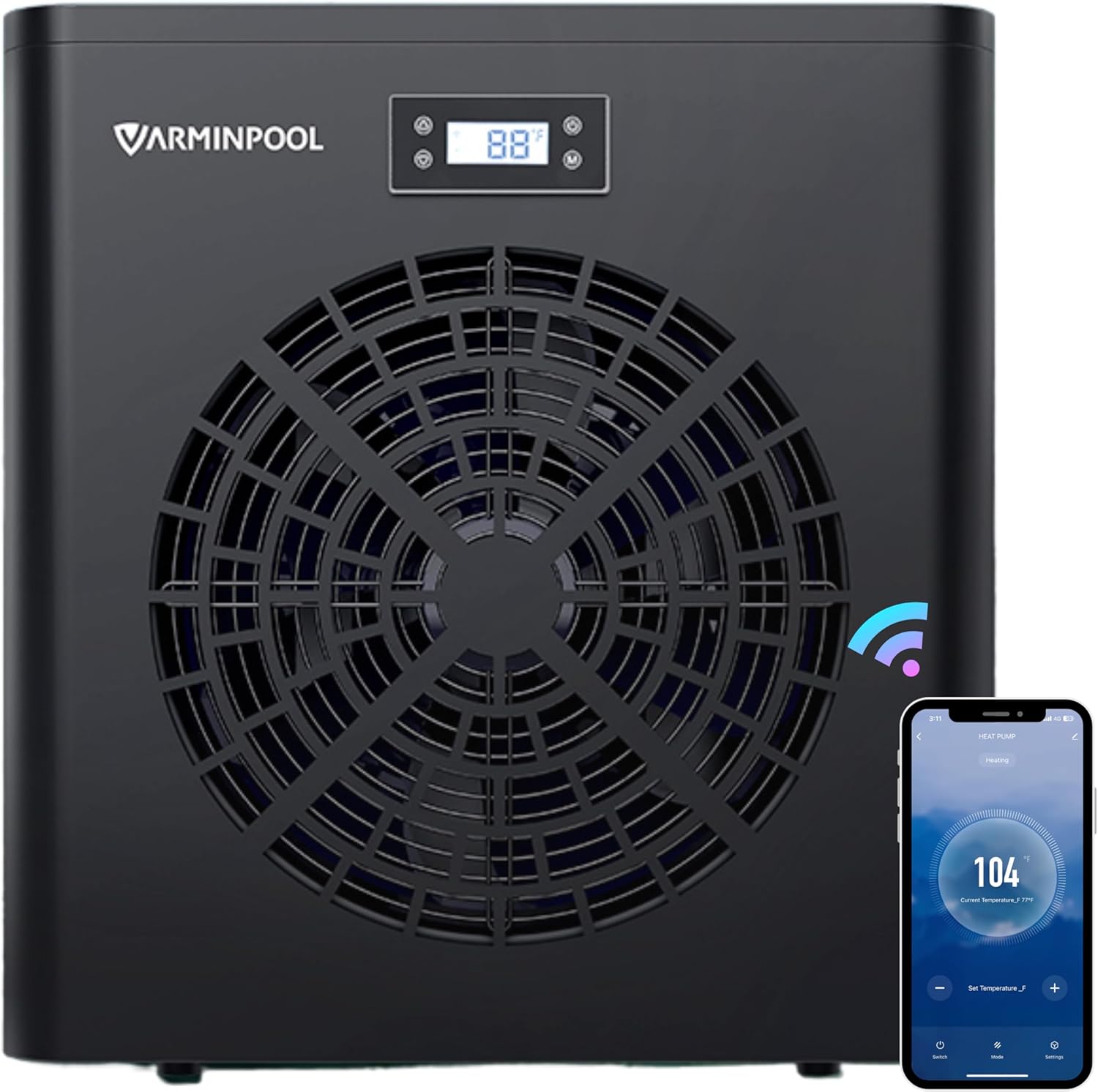

Figure 1: VARMINPOOL KSPF-005L3R1A2 Pool Heat Pump
2. Informació de seguretat
WARNING: Electrical shock hazard. Ensure all power is disconnected before installation or servicing.
- Installation must be performed by a qualified professional in accordance with local electrical and plumbing codes.
- Always disconnect power to the unit and pool pump before performing any maintenance or service.
- Assegureu-vos d'una correcta connexió a terra de la unitat.
- Do not operate the unit if the power supply is not 110-120V / 60 Hz.
- Protect the heat exchanger and pipeline from freezing and breaking during cold weather.
- Assegureu-vos que hi hagi una ventilació adequada al voltant de la unitat.
3. Especificacions del producte
| Especificació | Valor |
|---|---|
| Número de model | KSPF-005L3R1A2 |
| Sortida BTU | 16000 BTU |
| Volum de piscina recomanat | Fins a 5400 galons |
| Voltage | 110-120V / 60 Hz |
| Dimensions de la unitat (L x A x A) | 16.5'' x 14.2'' x 17.8'' |
| Pes de la unitat | 59 lliures |
| Material de l'intercanviador de calor | Titani |
| Nivell de soroll | 48 dB |
| Control | Smart Inverter, WiFi App Control |
4. Guia d'instal·lació
4.1 Preinstal·lació
Before beginning installation, ensure you have selected an appropriate location for the heat pump. The unit should be placed on a stable, level surface, with adequate clearance for airflow around the evaporator coil.
Verify your pool's volume and surface area to ensure compatibility with the 16000 BTU unit. This model is optimized for pools up to 5,400 gallons.
Figure 2: Pool Size Compatibility Chart
4.2 Connexió elèctrica
The heat pump requires a dedicated 110-120V / 60 Hz electrical supply. It is crucial to install an appropriate circuit breaker (typically 15 Amp) to protect the unit from electrical surges. Consult a licensed electrician for proper wiring.
The unit comes with pre-sheathed wires (two hot, one ground) for direct connection to the breaker box. Ensure all connections are secure and comply with local electrical codes.
4.3 Connexió de fontaneria
The heat pump should be plumbed into your existing pool filtration system after the filter and before any chlorinator or other chemical feeders. This ensures that filtered water enters the heat pump and that heated water is returned to the pool.
Figure 3: Typical Pool Plumbing Schematic with Heat Pump. Water flows from the pool pump, through the filter, then to the heat pump, and finally back to the pool. Optional bypass valves are recommended for maintenance and to prevent water circulation through the heater when not in use.
The unit includes 1.5-inch hose fittings for easy connection. A suggested flow rate of 1200 GPH (Gallons Per Hour) is recommended for optimal performance. Consider installing a main valve for easier maintenance and flow rate adjustment.
Connect the condensate drain line to the designated port at the bottom of the unit. This line will discharge condensation that forms during operation.
4.4 Guia de vídeo d'instal·lació
For a detailed visual guide on the installation process, including electrical and plumbing connections, please refer to the official installation video below:
Video: How to install pool heat pump. This video demonstrates the removal of an old heat pump, preparation of the site, and the step-by-step installation of the new VARMINPOOL heat pump, including plumbing and electrical connections.
5. Instruccions de funcionament
5.1 Tauler de control acabatview
The heat pump features an intuitive control panel with a digital display and several buttons for basic operation. The display shows the current water temperature and allows for setting the desired temperature.
Figure 4: Heat Pump Control Panel and Quiet Operation
- Botó M (mode): Cycles through operating modes (e.g., heating, cooling).
- Fletxes amunt/avall: Ajusta la temperatura objectiu.
- Botó d'encesa: Encén o apaga la unitat.
- Botó WiFi: Initiates WiFi pairing mode.
5.2 Control per Wi-Fi i aplicacions
The VARMINPOOL KSPF-005L3R1A2 can be controlled remotely via a smartphone app. This allows for effortless monitoring and control from anywhere.
- Descarrega l'aplicació: Cerca the "Smart Life" app on Google Play Store or Apple App Store.
- Maridatge: Follow the in-app instructions to pair your heat pump with your smartphone. This typically involves pressing the WiFi button on the unit's control panel to enter pairing mode.
- Comandament a distància: Un cop emparellat, podeu utilitzar l'aplicació per a:
- Turn the heat pump on/off.
- Set the desired water temperature (heating range: 46-104°F, cooling range: 46-86°F).
- Schedule operation times and days.
- Monitor the current water temperature.
- Share control with other users.
Figure 5: WiFi App Control Interface
6. Manteniment
Regular maintenance ensures the longevity and optimal performance of your heat pump.
- Clean Evaporator Coils: Periodically inspect and clean the evaporator coils to remove debris, leaves, or dirt that may obstruct airflow. Use a soft brush or vacuum.
- Comprovar el flux d'aigua: Ensure consistent water flow through the unit. Reduced flow can impact heating efficiency.
- Hivernització: In colder climates, proper winterization is essential to prevent damage from freezing. Drain all water from the heat pump and plumbing lines. Consult a pool professional for specific winterization procedures in your region.
- Inspeccioneu les connexions elèctriques: Annually, have a qualified electrician inspect all electrical connections for tightness and corrosion.
7. Solució De Problemes
This section addresses common issues you might encounter with your heat pump. For complex problems, contact customer support.
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén | No power, tripped breaker, loose wiring. | Check power supply, reset breaker, inspect wiring (by professional). |
| No heat/Insufficient heating | Low water flow, dirty evaporator coils, incorrect temperature setting, ambient temperature too low. | Ensure adequate water flow, clean coils, verify temperature settings, check operating temperature range. |
| Soroll excessiu | Loose components, fan obstruction. | Inspect for loose parts, clear any obstructions from the fan. |
| Fuga d'aigua | Loose plumbing connections, condensate drain issue. | Tighten plumbing connections, ensure condensate drain is clear and properly installed. |
8. Garantia i Suport
The VARMINPOOL KSPF-005L3R1A2 Pool Heat Pump comes with a 36-month product protection warranty.
For technical assistance, troubleshooting, or warranty claims, please contact VARMINPOOL customer support. Refer to your purchase documentation for specific contact details or visit the official VARMINPOOL weblloc.
