Nobsound Mini VOL-3 Passive Volume Controller User Manual

1. Introducció

The Nobsound Mini VOL-3 is a passive volume controller designed to provide precise audio level adjustment for your power amplifiers and active speakers. This device operates without the need for an external power supply, ensuring a pure and uncolored audio signal path. It is ideal for integrating into various audio setups, offering a simple yet effective solution for volume management.

Figure 1: Nobsound Mini VOL-3 Passive Volume Controller

2. Característiques clau

• Reproducció de so d'alta qualitat: Suitable for high-output signals from HiFi PC sound cards, DACs, and CD players. It transmits signals to back-end devices without gain, minimizing audio rendering. Equipped with a high-quality ALPS potentiometer for smooth and precise volume control.
• Lossless Audio Performance: This volume controller features only standard RCA inputs and outputs, consisting of a simple volume dial. It focuses on providing the purest sound by eliminating unnecessary functions. There is no audio coloration or distortion.
• High-Quality ALPS Potentiometer: Utilizes an ALPS A50K dual potentiometer, allowing for stepless and smooth volume adjustment. Ensures an optimal listening experience.
• Superior RCA Terminals: Employs USC CMC-816U RCA connectors made with oxygen-free copper and plated with 24K gold. This ensures signal clarity and durability, minimizing audio quality loss.
• Disseny elegant i portàtil: Features a CNC machined all-aluminum alloy housing, offering a stylish and compact design that enhances aesthetics and easily integrates into any audio system.

3. Contingut del paquet

Si us plau, comproveu el paquet per veure si hi ha els elements següents:

• 1 x Nobsound Mini VOL-3 Passive Volume Controller

Figure 2: Package contents and dimensions of the VOL-3

4. Instruccions de configuració

Follow these steps to connect your Nobsound Mini VOL-3 to your audio system:

1. Identificar les entrades i les sortides: The VOL-3 has two RCA input channels (L/R) and two RCA output channels (L/R) on the rear panel.
2. Connecta la font d'àudio: Use high-quality RCA cables to connect your audio source (e.g., PC sound card, DAC, CD player) to the "IN" RCA ports on the VOL-3. Ensure left and right channels are correctly matched (white for left, red for right).
3. Connect Output Device: Use another set of RCA cables to connect the "OUT" RCA ports on the VOL-3 to your power amplifier or active speakers. Again, ensure left and right channels are correctly matched.
4. Col·locació: Place the VOL-3 on a stable, flat surface near your audio source and output device for easy access to the volume knob.

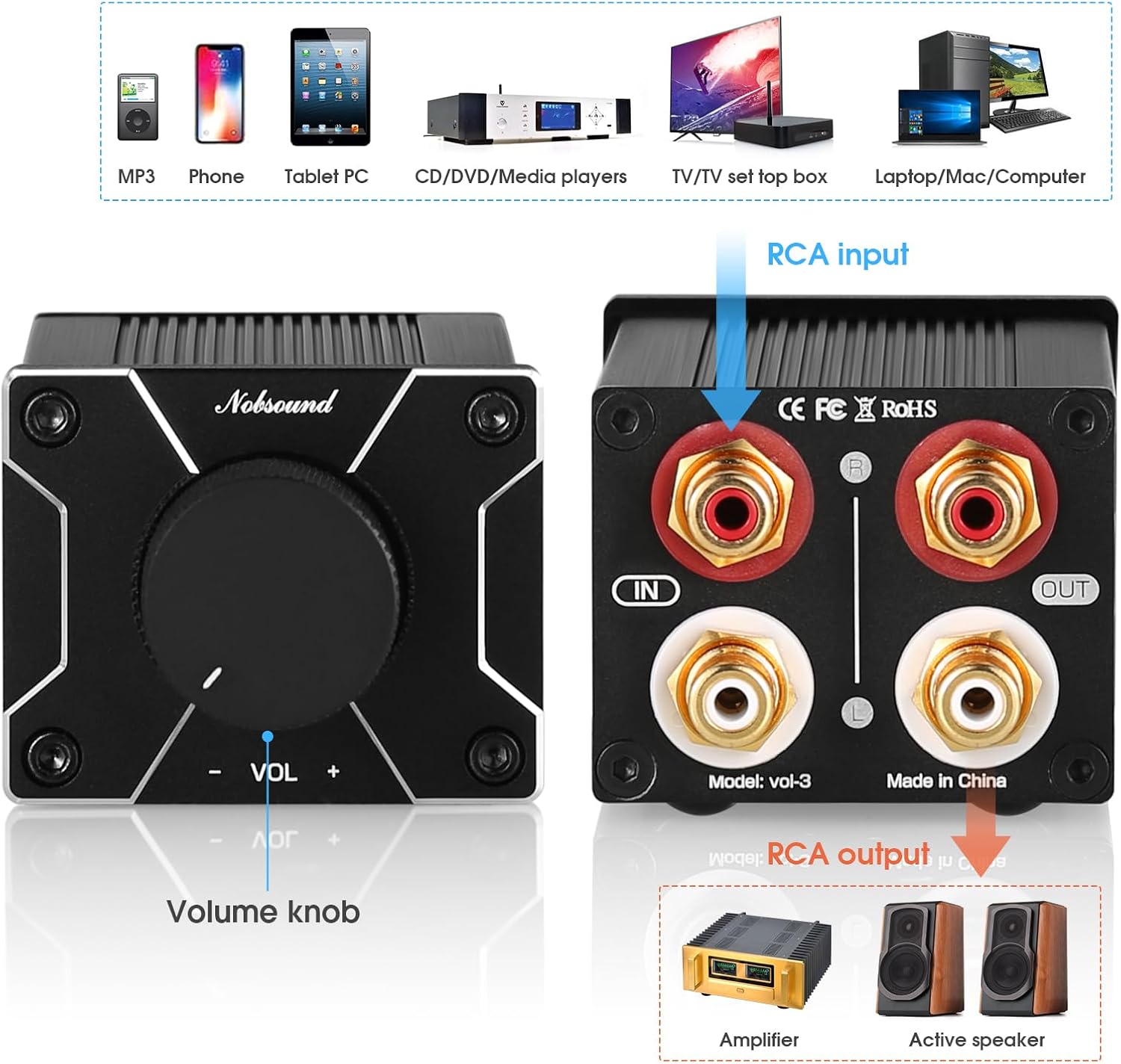

Figure 3: Connection diagram for the Nobsound Mini VOL-3

Figura 4: Example setup with a laptop and active speakers

Figura 5: Example setup with a CD player and ampmés viu

5. Instruccions de funcionament

The Nobsound Mini VOL-3 is designed for straightforward operation:

1. Control de volum: Use the large rotary knob on the front panel to adjust the audio volume. Turn clockwise to increase volume and counter-clockwise to decrease volume. The passive design ensures that the volume is controlled purely by attenuating the signal, maintaining audio fidelity.
2. No Power Required: Since the device is passive, it does not require any external power supply. Simply connect your audio source and output devices, and it is ready to use.

Figure 6: Front panel with volume knob

6. Manteniment

To ensure the longevity and optimal performance of your Nobsound Mini VOL-3, follow these maintenance guidelines:

• Neteja: Feu servir un drap suau i sec per netejar l'exterior del dispositiu. Eviteu utilitzar netejadors líquids o dissolvents, ja que poden danyar l'acabat o els components interns.
• Col·locació: Keep the device in a cool, dry place away from direct sunlight, heat sources, and excessive moisture. Ensure adequate ventilation around the unit.
• Manipulació: Manipuleu el dispositiu amb cura. Eviteu deixar-lo caure ni sotmetre'l a impactes forts.
• Connexions de cable: Periodically check all RCA cable connections to ensure they are secure and free from corrosion. Loose connections can lead to signal degradation.

7. Solució De Problemes

If you encounter any issues with your Nobsound Mini VOL-3, refer to the following troubleshooting tips:

If the problem persists after trying these solutions, please contact Nobsound customer support for further assistance.

8. Especificacions

9. Garantia i Suport

Nobsound products are designed for reliability and performance. For warranty information, technical support, or any inquiries regarding your Mini VOL-3 Passive Volume Controller, please refer to the official Nobsound weblloc web o poseu-vos en contacte amb el vostre distribuïdor local.

You can typically find support contact details on the product packaging or the manufacturer's official website. Please have your product model number (VOL-3) and purchase details ready when contacting support.

10. Producte acabatview Vídeo
