1. Introducció
The OUKITEL BP2000 Portable Power Station is a versatile and high-capacity energy solution designed for various applications, including home backup, outdoor activities, and emergency power. With a base capacity of 2048Wh and a powerful 2200W AC output, it can be expanded with up to seven B2000 extra batteries to reach an impressive 16384Wh. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your BP2000 power station.
Image 1.1: OUKITEL BP2000 Portable Power Station, a versatile power solution.
2. Instruccions de seguretat
To ensure safe operation and prolong the lifespan of your OUKITEL BP2000, please adhere to the following safety guidelines:
- No desmunteu ni modifiqueu la unitat. Unauthorized modifications can lead to hazards and void the warranty.
- Avoid exposure to moisture, water, or extreme temperatures. Operate and store the unit in a dry, well-ventilated area within the recommended temperature range.
- Mantenir allunyat de materials inflamables. Ensure adequate clearance around the power station for proper ventilation.
- Feu servir només accessoris i cables de càrrega aprovats. Using incompatible accessories may cause damage or injury.
- Manipular amb cura. Eviteu deixar caure la unitat ni sotmetre-la a impactes forts.
- Mantenir fora de l'abast dels nens i mascotes.
- Assegureu-vos una correcta connexió a terra when connecting to household appliances.
- This product has obtained necessary certifications such as FCC, RoHS, PSE, METI, and UN38.3, ensuring safe and reliable use.
3. Producte acabatview
The OUKITEL BP2000 is equipped with a comprehensive array of output ports to meet diverse power needs. It features 15 output ports, allowing you to power multiple devices simultaneously.
Image 3.1: The BP2000 features 15 output ports for various devices.
Ports de sortida:
- 5 endolls de corrent altern (100 V): For standard household appliances.
- 2 ports USB-A
- 2 x QC 3.0 Ports: For quick charging compatible devices.
- 2 x Type-C (PD 100W) Ports: For fast charging laptops and other USB-C devices.
- 2 x DC Ports
- 1 x Cigarette Lighter Port
- 1 x 24V Aviation Port
4. Configuració i càrrega
4.1 Configuració inicial
Upon receiving your OUKITEL BP2000, unpack all components and inspect for any damage. Ensure all accessories are present. Before first use, it is recommended to fully charge the power station.
4.2 mètodes de càrrega
The BP2000 offers multiple charging options:
- Càrrega AC: Connect the power station to a standard wall outlet using the provided AC charging cable. The proprietary ultra-fast charging system allows for a full charge in approximately 1 hour with 1500W AC input.
- Càrrega solar: Connect compatible solar panels (up to 1000W PV input) to the power station for eco-friendly charging.
Image 4.1: The BP2000 supports solar charging up to 1000W.
- Càrrega de cotxes: Use a car cigarette lighter adapter to charge the unit while on the go.
- Càrrega del generador: The BP2000 can also be charged using a compatible generator.
4.3 Capacitat ampliable
The BP2000's capacity can be expanded by connecting up to 7 dedicated B2000 expansion batteries. Each B2000 battery adds 2048Wh, allowing for a maximum total capacity of 16384Wh. Refer to the B2000 manual for specific connection instructions.

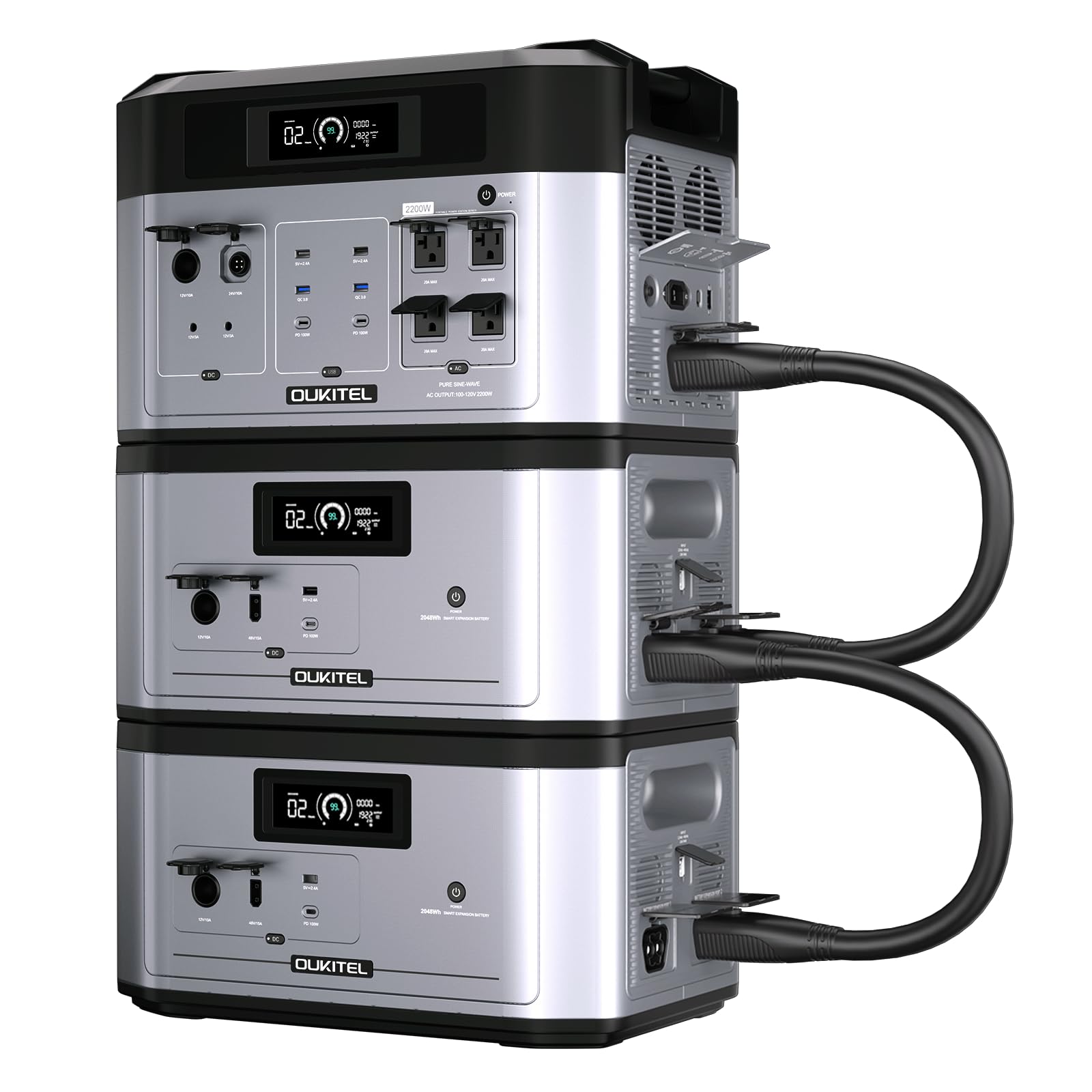

Image 4.2: The BP2000 can be expanded with B2000 batteries for increased capacity.
Video 4.1: Demonstrates the OUKITEL Solar Generator BP2000 with B2000 Extra Battery, showcasing its expandable nature.
5. Funcionament
5.1 Dispositius d'alimentació
To power a device, simply plug it into the appropriate output port (AC, USB-A, QC 3.0, Type-C, DC, or cigarette lighter). Ensure the power station is turned on and the specific output section (e.g., AC output) is activated if necessary. The BP2000 delivers a high output of 2200W (peak 4800W), capable of powering most household appliances and power tools.
Vídeo 5.1: Un overview of the OUKITEL BP2000 Power Station, highlighting its 2048Wh capacity and 2200W output for various uses.
5.2 UPS Function
The BP2000 features an Uninterruptible Power Supply (UPS) function. When connected to a household outlet and simultaneously powering devices, it will automatically switch to battery power within 10 milliseconds during a power outage. This ensures continuous operation for critical devices like refrigerators, computers, and monitoring equipment.
Image 5.1: The BP2000 offers reliable UPS backup to keep essential devices powered during outages.
Video 5.2: Illustrates the high capacity energy storage of the OUKITEL BP2000, capable of powering a home for 2-4 days.
6. Manteniment i emmagatzematge
6.1 Battery Technology
The BP2000 utilizes a stable and highly safe Lithium Iron Phosphate (LiFePO4) battery. This technology offers an extended lifespan of 3500+ charge cycles, translating to approximately 10 years of use. It provides improved stability and safety across various temperatures compared to conventional lithium-ion batteries.
Image 6.1: The BP2000 features an ultra-long lifespan LiFePO4 battery for reliable power.
6.2 Sistema de gestió de la bateria (BMS)
An integrated Battery Management System (BMS) monitors and manages the internal battery. This system provides essential protections, including overcharge protection, over-discharge protection, and temperature management, ensuring safe and efficient operation.
6.3 Cures generals i emmagatzematge
- Clean the exterior with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
- Guardeu la central elèctrica en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Per a l'emmagatzematge a llarg termini, carregueu la unitat aproximadament al 50-80% cada 3-6 mesos per mantenir la bateria en bon estat.
7. Solució De Problemes
If you encounter issues with your OUKITEL BP2000, please refer to the following general troubleshooting steps:
- La unitat no s'encén: Ensure the power button is pressed and held for a few seconds. Check if the battery is completely depleted and try charging it.
- No hi ha sortida dels ports: Verify that the specific output section (e.g., AC output) is activated. Check if the device you are trying to power exceeds the power station's output limits.
- Problemes de càrrega: Ensure all charging cables are securely connected. Check the power source (wall outlet, solar panel, car charger) for proper function.
- Protecció contra sobrecàrrega activada: If the unit shuts down due to overload, disconnect some devices and restart the power station.
For persistent issues or technical support, please contact OUKITEL customer service.
8. Especificacions
| Característica | Especificació |
|---|---|
| Marca | OUKITEL |
| Número de model | BP2000 |
| Usos recomanats | Camping, Home Backup, Emergencies, RVs |
| Tipus de motor | Inversor |
| Preses de corrent total | 15 |
| Potència del motor màxima | 2200 watts |
| Començant Wattage | 2200 watts |
| Corrent Wattage | 2200 watts |
| Dimensions del producte | 20 x 12 x 33 polzades |
| Tipus de bateria | LiFePO4 |
| Cicle de vida de la bateria | Més de 3500 cicles |
| Capacitat ampliable | Up to 16384Wh with 7 B2000 batteries |
9. Garantia i Suport
OUKITEL provides comprehensive support for your BP2000 Portable Power Station:
- Garantia: A 36-month extended warranty is provided from the date of purchase.
- Atenció al client: Lifetime customer support is available. For initial malfunctions or product inquiries, contact OUKITEL customer service. Responses are typically provided within 24 hours.
- Returns/Replacements: Customers are eligible for worry-free returns or replacements within 30 days of purchase.
- Free Repairment: Free repairment is guaranteed within two years from the date of order. Please contact customer service to obtain a return label for repair. Note that water damage due to deliberate human factors is not covered by free repairment.
