Instruccions importants de seguretat
Please read these safety instructions carefully before installing, operating, or performing maintenance on your washing machine. Keep this manual for future reference.
- Seguretat elèctrica: Ensure the appliance is connected to a properly grounded outlet. Do not use extension cords or multiple socket adapters.
- Connexió d'aigua: Connect the water inlet hose securely to a cold water tap. Check for leaks before first use.
- Seguretat infantil: Keep children and pets away from the appliance during operation. Activate the child lock function to prevent accidental program changes.
- Estabilitat de l'aparell: Ensure the washing machine is level and stable on a solid floor to prevent vibrations and noise during operation.
- Manteniment: Disconnect the appliance from the power supply before cleaning or performing any maintenance.
- Danys: Do not operate the appliance if it is damaged, especially the power cord or water hoses. Contact customer service immediately.
Producte acabatview

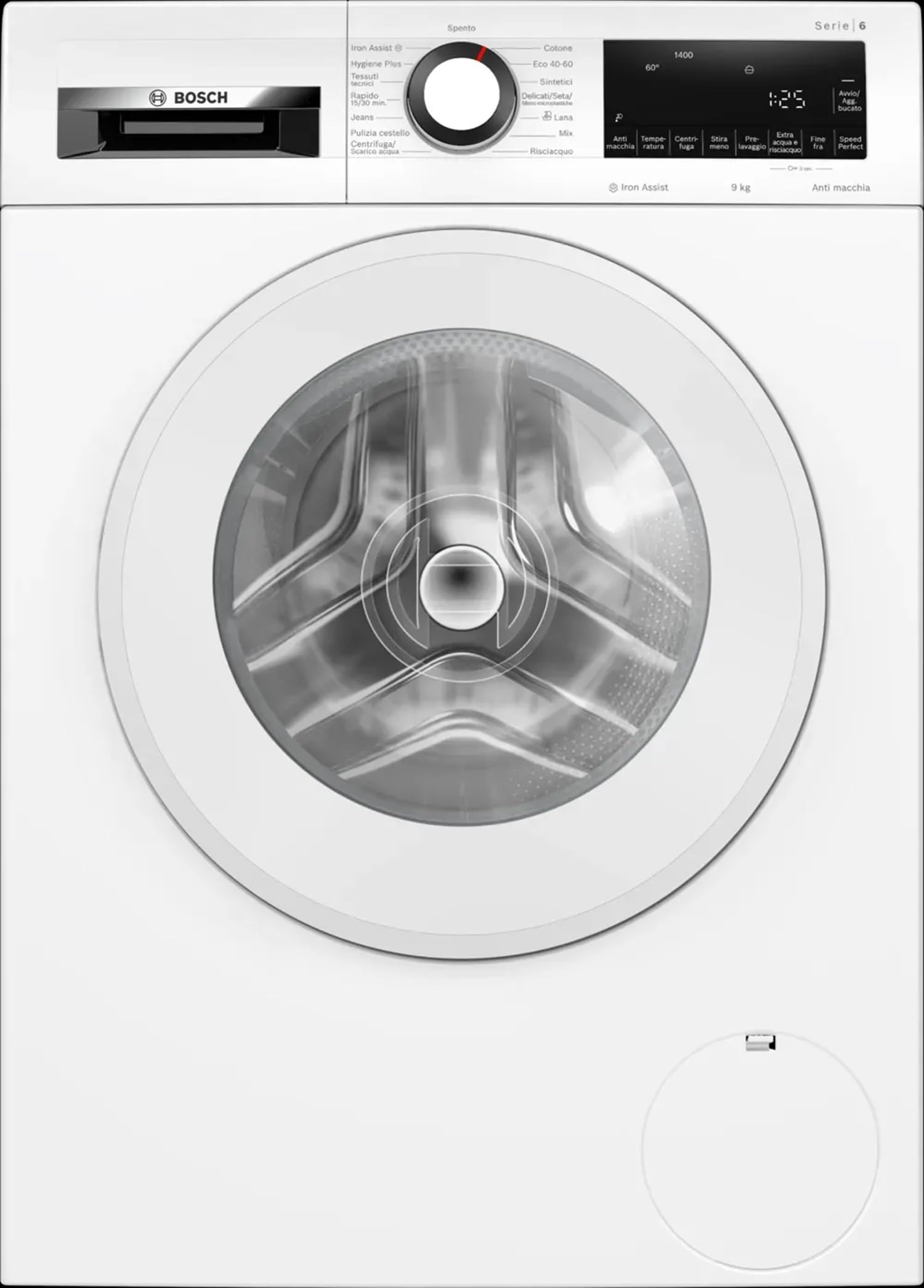

The Bosch WGG244Z6IT is a high-performance, freestanding front-load washing machine designed for efficient and gentle laundry care. With a 9 kg capacity and an A energy efficiency rating, it offers advanced features for optimal washing results.
Key features include the EcoSilence Drive for quiet operation, SpeedPerfect for reduced wash times, and an Add Laundry function for convenience. The WaveDrum design ensures gentle yet thorough cleaning for all fabric types.
Configuració i instal·lació
1. Desembalatge
- Traieu tots els materials d'embalatge, inclosa la base de poliestirè i qualsevol pel·lícula protectora.
- Traieu els cargols de transport de la part posterior de la màquina. Guardeu-los per a futurs transports.
- Cover the holes with the provided caps.
2. Posicionament
- Col·loqueu la rentadora sobre una superfície ferma i anivellada.
- Adjust the feet using a spanner until the machine is perfectly level. Use a spirit level to verify. Maximum foot adjustment is 12 mm.
- Assegureu-vos que hi hagi prou espai al voltant de la màquina per a la ventilació i el manteniment.
3. Connexió d'aigua
- Connect the supplied inlet hose to the cold water tap (3/4" thread). Tighten by hand, then with a wrench, but do not overtighten.
- Place the drain hose into a standpipe or securely over the edge of a sink, ensuring it is not kinked or submerged in water.
4. Connexió elèctrica
- Plug the power cord into a grounded electrical outlet. The power cord length is 160 cm.
- Assegureu-vos que el voltage i la freqüència coincideixen amb les especificacions de la placa de dades de l'aparell.
Instruccions de funcionament
1. Tauler de control acabatview
The washing machine features a touch control panel with an LED display for easy program selection and monitoring. The display shows remaining time, program status, and selected options.
2. Primer ús
- Before washing laundry for the first time, run an empty wash cycle at 60°C without detergent to clean the drum.
3. Càrrega de la bugaderia
- Classifica la roba per tipus de teixit, color i grau de brutícia.
- Open the door and load the laundry loosely into the drum. Do not overload the machine; the maximum capacity is 9 kg.
- Tanqueu la porta fermament fins que faci clic.
4. Afegint detergent
- Traieu el calaix del dispensador de detergent.
- Add the appropriate amount of detergent and fabric softener to the designated compartments. Refer to the detergent manufacturer's instructions.
- Empenyeu completament el calaix dispensador cap a dins.
5. Selecció d'un programa
- Turn the program selector dial to choose the desired wash program (e.g., Delicates, Cottons, Wool, Eco 40-60).
- Adjust temperature and spin speed settings if necessary using the touch controls. Max spin speed is 1400 rpm.
6. Inici d'un cicle de rentat
- Premeu el botó Inici/Pausa per iniciar el cicle de rentat.
- The digital display will show the remaining time.
7. Funcions especials
- SpeedPerfect: Reduces wash time by up to 65% without compromising wash quality.
- Add Laundry Function: Allows you to add forgotten items even after the wash cycle has started, provided the water level and temperature are safe.
- Anti-stain Function: Targets specific stain types for effective removal.
- WaterPlus: Provides an extra rinse for sensitive skin.
Manteniment i cura
1. Neteja de l'exterior
- Netegeu l'exterior de la màquina amb un damp tela.
- No utilitzeu netejadors abrasius ni dissolvents.
2. Neteja del dispensador de detergent
- Traieu completament el calaix dispensador.
- Remove all inserts and wash them under running water.
- Netegeu la carcassa del calaix amb un raspall.
- Torneu a muntar i torneu a inserir el calaix.
3. Neteja del filtre de la bomba de desguàs
- Open the service flap at the bottom front of the machine.
- Place a shallow container underneath to collect residual water.
- Carefully unscrew the filter cover counter-clockwise and remove any lint or foreign objects.
- Clean the filter and screw it back in securely. Close the service flap.
4. Descalcificació
- Depending on water hardness and frequency of use, descale the machine every few months.
- Use a suitable descaling agent specifically designed for washing machines and follow the product instructions.
Resolució de problemes
If you encounter any issues with your washing machine, please refer to the table below for common problems and solutions. If the problem persists, contact customer service.
| Problema | Causa possible | Solució |
|---|---|---|
| La màquina no arrenca | Cable d'alimentació no connectat; Porta no tancada correctament; Programa no seleccionat; Botó d'inici no premut. | Check power connection; Close door firmly; Select a program; Press Start button. |
| Sense ingesta d'aigua | Water tap closed; Inlet hose kinked; Water filter blocked. | Obriu l'aixeta d'aigua; Redreceu la mànega; Netegeu el filtre d'entrada d'aigua. |
| L'aigua no drena | Mànega de desguàs doblegada o bloquejada; Filtre de la bomba de desguàs bloquejat. | Reviseu i netegeu la mànega de desguàs; Netegeu el filtre de la bomba de desguàs. |
| Vibració / soroll excessius | Transport bolts not removed; Machine not level; Overloaded drum. | Remove transport bolts; Adjust feet to level machine; Reduce laundry load. |
| Mals resultats de rentat | Incorrect program selection; Insufficient detergent; Overloaded drum. | Select appropriate program; Use correct detergent amount; Do not overload. |
Especificacions tècniques
| Característica | Valor |
|---|---|
| Marca | Bosch |
| Número de model | WGG244Z6IT |
| Tipus d'instal·lació | Autònom |
| Capacitat | 9 kg |
| Classe d'eficiència energètica | A |
| Velocitat màxima de gir | 1400 rpm |
| Noise Emission (Airborne) | 71 dB (A) re 1pW |
| Tipus de control | Toca |
| Tipus de motor | EcoSilence Drive |
| Anti-flood Protection | Aqua Vigil |
| Bloqueig infantil | Sí |
| Dimensions del producte (AxAxP) | 845 x 598 x 588 mm |
| Profunditat amb la porta oberta (90°) | 1049 mm |
| Volum del tambor | 65 l |
| Pes net | 71.3 kg |
| Longitud del cable d'alimentació | 160 cm |
Garantia i Suport
This Bosch washing machine comes with a standard manufacturer's warranty. Please refer to the warranty card included with your appliance for specific terms and conditions, including the duration and coverage details.
Per a assistència tècnica, recanvis o per programar una cita de servei, poseu-vos en contacte amb el servei d'atenció al client de Bosch. Podeu trobar la informació de contacte a la pàgina oficial de Bosch. weblloc web o a la documentació que s'inclou amb l'aparell.
When contacting support, please have your appliance's model number (WGG244Z6IT) and serial number ready. The serial number is typically located on a label inside the door frame or on the back of the appliance.
