1. Introducció
Thank you for choosing the Hetoy 24V Ride-On Truck. This manual provides essential information for the safe assembly, operation, and maintenance of your new ride-on toy. Please read this manual thoroughly before use and retain it for future reference.
2. Informació de seguretat
WARNING: Must be assembled by adults.
To ensure safe operation, please observe the following:
- Superviseu sempre els nens durant el funcionament.
- Assegureu-vos que totes les peces estiguin ben subjectes abans de cada ús.
- No supereu la capacitat de càrrega màxima de 77 lliures.
- Ensure children wear seat belts at all times.
- Operate the vehicle on flat, clear surfaces away from traffic, pools, or steep inclines.
- Avoid operating in wet conditions to prevent electrical damage.
- Regularly inspect the vehicle for any damage or loose parts.
3. Producte acabatview i Característiques
The Hetoy 24V Ride-On Truck is designed for children aged 3-8 years, offering a realistic driving experience with advanced features for enhanced play and safety.
Característiques principals:
- Electric Dump Bed: Equipped with an electric dump bed that can discharge by itself, enhancing realistic play. Includes a plastic shovel.
- Powerful & Safe Ride: Features EVA tires and 4x35W motors for smooth operation on various terrains. Includes headlights, four-wheel spring suspension, seat belts, and armrests for safety and realism.
- Spacious & Sturdy Design: Measures 52.4"L x 29.13"W x 27.95"H, with a maximum load capacity of 77 lbs, accommodating two children.
- Modes de control dual: Offers both manual control (accelerator, steering wheel, joystick) and parental remote control for added safety and convenience. Speeds up to 5mph.
- Entertainment System: Integrated music player with Bluetooth and USB connectivity.
Imatges del producte:
Frontal view of the Hetoy 24V Ride-On Truck, showcasing its robust design and white color.
The electric dump bed of the ride-on truck, shown in action with toys, highlighting its self-discharging capability and included plastic shovel.
Acabatview of the 24V Ride-On Truck's power specifications, including 24V 7AH battery, 4x35W motors, speed range of 1.86-5mph, and 1-2 hours of playtime.
Detallada view of the truck's interior, showing the steering wheel, accelerator, joystick, wide two-seater design with seat belts and armrests, and the control console featuring Bluetooth, USB, headlights, MP3, and music functions.
The EVA all-terrain wheels with shock absorption spring suspension, suitable for various surfaces like grass, asphalt, cobbled roads, and brick roads.

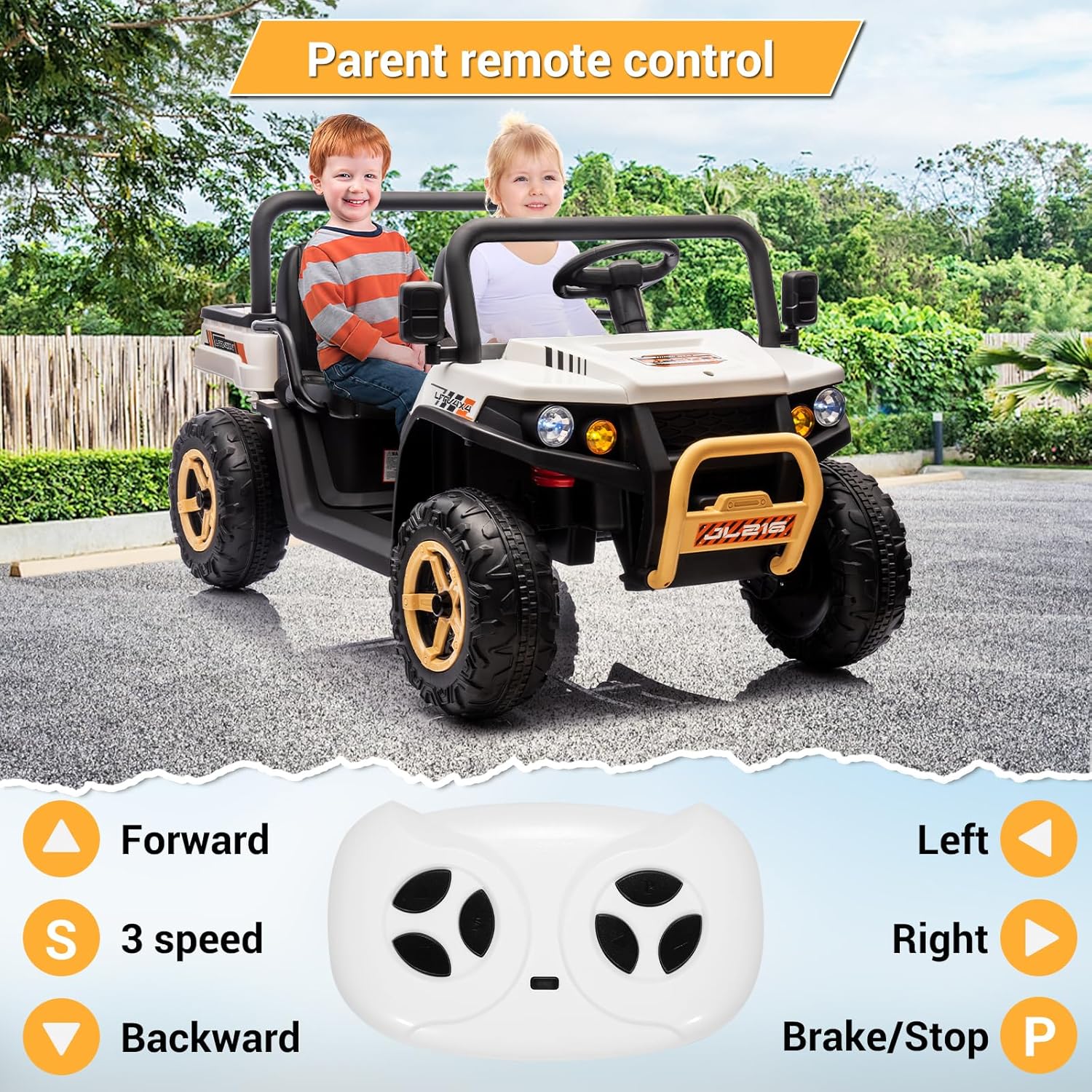

Illustration of the parental remote control, detailing functions such as forward, 3-speed selection, backward, left, right, brake/stop, and parking (P) mode.
Key dimensions of the ride-on truck (52.36"L x 29.13"W x 27.95"H), suitable age (over 37 months), and maximum weight capacity (77 lbs).
Two children enjoying the Hetoy 24V Ride-On Truck, with the included shovel visible in the dump bed, demonstrating its two-seater capacity and interactive features.
Visual summary of the truck's main features: 24V battery with charger, 4x35W motors, soft start, 4-wheel spring suspension, electric dump bed, remote control, headlights, and shovel.
The 2-seater ride-on dump truck's entertainment options, including MP3, USB, and Bluetooth connectivity for music playback.
Demonstration of the soft start and stop feature, designed for a smooth and safe ride for children.
4. Què hi ha a la caixa
En obrir el paquet, hauríeu de trobar els components següents:
- 1 x Hetoy 24V Ride-On Car
- 1 x Manual d'usuari (aquest document)
- 1 x Kit d'eines de muntatge
5. Configuració
Assembly of the Hetoy 24V Ride-On Truck is required and must be performed by an adult. Please follow the detailed instructions provided in the included assembly tool kit. Ensure all screws and connections are tightened securely before first use.
Càrrega inicial:
Before the first use, fully charge the vehicle's battery. Refer to the charging instructions in the assembly guide for proper procedure and charging time. Do not overcharge the battery.
6. Instruccions de funcionament
Arrencada del vehicle:
- Ensure the vehicle is on a flat, safe surface.
- Press the power button on the dashboard to turn on the vehicle.
Modes de conducció:
- Control manual: Children can operate the vehicle using the accelerator pedal, steering wheel, and joystick.
- Control remot parental: Adults can use the remote control to steer, accelerate, brake, and select speeds. This mode overrides manual control for safety.
Electric Dump Bed Operation:
To operate the electric dump bed, locate the controls on the dashboard. Follow the specific instructions in the assembly manual for unlocking and activating the dump function.
Entertainment System:
Use the control console to access the music player. Connect devices via Bluetooth or USB to play audio. Adjust volume and track selection using the console buttons.
7. Manteniment
Regular maintenance will prolong the life of your Hetoy Ride-On Truck:
- Neteja: Netegeu el vehicle amb anunciamp cloth. Do not use harsh chemicals or abrasive cleaners. Avoid direct water spray.
- Càrrega: Recharge the battery after each use. For long-term storage, charge the battery fully every 30 days to maintain battery health.
- Emmagatzematge: Guardeu el vehicle en un lloc sec i fresc, allunyat de la llum solar directa i de la humitat.
- Inspecció: Periodically check all screws, connections, and moving parts for tightness and wear. Replace worn parts as necessary.
8. Solució De Problemes
If you encounter issues with your Hetoy Ride-On Truck, please refer to the following common troubleshooting steps:
| Problema | Causa possible | Solució |
|---|---|---|
| El vehicle no arrenca | Battery low or not charged; Power switch off; Loose connection. | Charge the battery; Turn on the power switch; Check all electrical connections. |
| El vehicle es mou lentament | Overloaded; Low battery; Operating on rough terrain. | Reduce weight; Recharge battery; Move to a smoother surface. |
| Unexpected acceleration or erratic movement | Electrical malfunction; Remote control interference. | Immediately stop the vehicle. Turn off and restart. If problem persists, discontinue use and contact customer support. |
| Els llums no funcionen | Loose wiring; Damaged bulb. | Check connections; Contact customer support for replacement parts. |
For issues not listed or if solutions do not resolve the problem, please contact Hetoy customer support.
9. Especificacions
| Especificació | Detall |
|---|---|
| Dimensions del producte | 52.36 x 29.13 x 27.95 polzades |
| Pes de l'article | 73.9 lliures |
| Número de model de l'article | AuAJa4fVfWm_rj-6RdeUDANCSk5o |
| Edat recomanada pel fabricant | 3 - 8 anys |
| Fabricant | Hetoy |
| Bateria | 24 V 7 Ah |
| Motors | 4 x 35W |
| Interval de velocitat | 1.86 - 5 mph |
| Capacitat de càrrega màxima | 77 lliures |
10. Garantia i Suport
For any product inquiries, technical support, or warranty claims, please contact Hetoy customer support. Keep your purchase receipt as proof of purchase for any warranty-related services.
Contact information for customer support can typically be found on the product packaging or the seller's weblloc.
