SL-150 AC Slide Gate Operator User Manual

1. Introducció i presentació del producteview

The All-O-Matic SL-150 AC Slide Gate Operator is a robust and reliable system designed for commercial slide gates. This operator is capable of handling gates up to 60 feet in length, providing efficient and secure access control for various commercial applications.

This manual provides essential information regarding the installation, operation, maintenance, and troubleshooting of your SL-150 AC gate operator. Please read this manual thoroughly before attempting any installation or operation.

Imatge 1.1: Frontal view of the All-O-Matic SL-150 AC Slide Gate Operator. This image shows the main unit of the gate operator, which is black and has a textured finish. It features a rectangular shape with a slightly recessed central panel.

Image 1.2: All-O-Matic SL-150 AC Slide Gate Operator mounted on a stand. This image displays the black gate operator unit positioned on a silver-colored metal stand, illustrating how the unit would appear when installed.

2. Especificacions

The following table details the technical specifications of the SL-150 AC Slide Gate Operator:

Image 2.1: Official specifications sheet for the All-O-Matic SL-150 AC. This image provides a detailed list of technical specifications, including gate length, weight capacity, motor details, and dimensions.

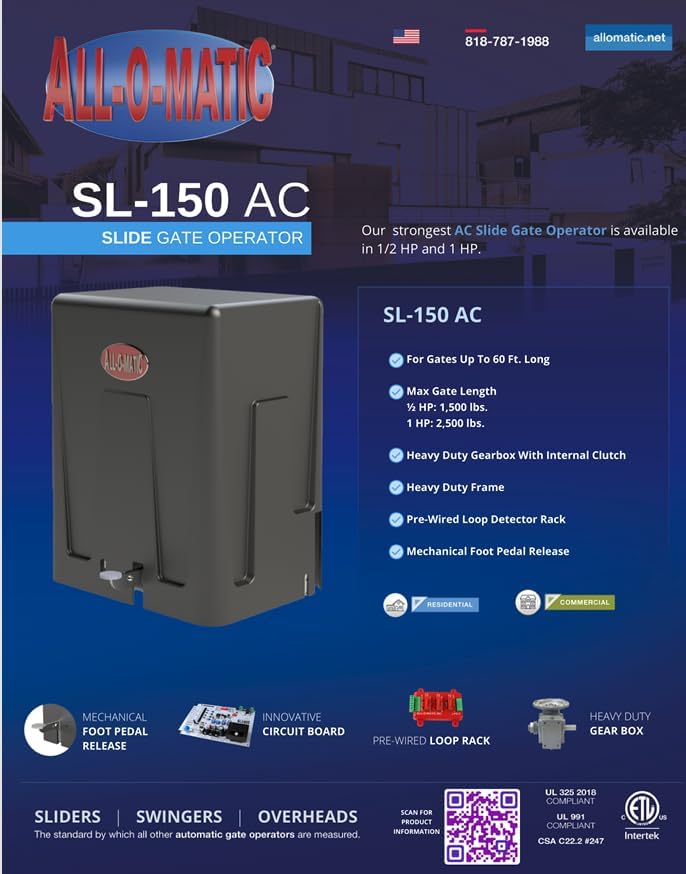

Imatge 2.2: acabatview of key features for the All-O-Matic SL-150 AC. This image highlights features such as heavy-duty gearbox, pre-wired loop detector rack, and mechanical foot pedal release.

Imatge 2.3: Primer pla view of the heavy-duty gearbox component. This image shows the robust construction of the gearbox, which is a critical part of the gate operator's mechanism.

Imatge 2.4: View of the motor component for the All-O-Matic SL-150 AC. This image displays the electric motor responsible for driving the gate operator.

3. Configuració i instal·lació

Important: Professional installation is required for the All-O-Matic SL-150 AC Slide Gate Operator. Due to the complexity of electrical connections, mechanical setup, and safety regulations, installation should only be performed by qualified and certified professionals.

3.1 Llista de comprovació prèvia a la instal·lació

• Ensure the gate area is clear of obstructions and level.
• Verify power supply (220 VAC) is available at the installation site.
• Confirm the gate length does not exceed 60 feet and its weight is within the operator's capacity (1,500 lbs for ½ HP, 2,500 lbs for 1 HP).
• Note that the gate motor stand is NO INCLOS and must be acquired separately if needed for your installation.

3.2 Components inclosos

Upon unpacking, verify that the following components are included with your SL-150 AC operator:

• 1 x Receiver unit
• 2 x Gate opener clickers (remote controls)

For detailed installation instructions, refer to the comprehensive installation manual provided by your professional installer or contact All-O-Matic technical support.

4. Instruccions de funcionament

Once the SL-150 AC Slide Gate Operator is professionally installed and configured, operation is straightforward.

4.1 Funcionament del control remot

The included gate opener clickers (remote controls) are pre-programmed to operate your gate. To open or close the gate:

1. Ensure you are within range of the gate operator's receiver.
2. Press the designated button on your remote control. The gate will begin to open or close.
3. Si premeu el botó de nou durant el funcionament, normalment s'aturarà la porta. Una tercera pulsació invertirà la seva direcció.

Always ensure the gate path is clear of people, vehicles, and obstructions before and during operation.

4.2 Alliberament manual

En cas de poder outage or system malfunction, the SL-150 AC features a mechanical foot pedal release for manual gate operation. Consult your installer for the exact procedure to engage the manual release safely.

5. Manteniment

Regular maintenance is crucial to ensure the longevity and optimal performance of your All-O-Matic SL-150 AC Slide Gate Operator. It is recommended that maintenance be performed by a qualified technician.

5.1 Programa de manteniment recomanat

• Mensual: Inspect the gate path for any obstructions. Check the gate's movement for smoothness and listen for unusual noises.
• Trimestral: Inspect the chain tension and lubricate the chain if necessary. Check all mounting hardware for tightness.
• Anualment: Have a professional technician inspect the motor, gearbox, electrical connections, and safety features (e.g., photo eyes, loop detectors).

5.2 Neteja

Keep the exterior of the operator clean and free of debris. Use a soft, damp cloth for cleaning. Avoid using harsh chemicals or abrasive cleaners.

6. Solució De Problemes

This section addresses common issues you might encounter with your SL-150 AC Slide Gate Operator. For complex problems, always contact a professional technician.

6.1 Problemes comuns i solucions

• Gate Not Responding to Remote:
  • Comproveu si cal substituir les piles del comandament a distància.
  • Ensure there are no obstructions blocking the signal to the receiver.
  • Verify the operator has power.
• Gate Stops Mid-Operation:
  • Comproveu si hi ha obstacles físics en el camí de la porta.
  • Inspect safety sensors (photo eyes) for alignment or blockage.
  • Ensure the gate moves freely when in manual release mode.
• Sorolls inusuals durant el funcionament:
  • This may indicate a need for lubrication or inspection of mechanical components. Contact a technician.
• Gate Does Not Fully Open/Close:
  • Limit switches may need adjustment. This should be done by a professional installer.

If troubleshooting steps do not resolve the issue, contact All-O-Matic customer support or a certified gate technician.

7. Garantia i Suport

7.1 Garantia del producte

ALL-O-MATIC INC. warrants its gate openers for a period of cinc (5) anys in commercial installations and for a period of seven (7) years in residential installations, counting from the date of purchase by the original owner. This warranty covers defects in materials and workmanship. This warranty is transferable to the original owner.

The Warrantor will repair or, at its option, replace any device which it finds to require service. The device must be sent to the Warrantor at the consumer's expense. The Warrantor will return the repaired or replaced unit to the consumer at the consumer's expense. Labor charges for repair service or replacement are the responsibility of the owner. These warranties are in lieu of all other warranties, expressed or implied, and ALL-O-MATIC, INC. shall not be liable for consequential damages. All implied warranties of merchantability and/or fitness for a particular purpose are hereby disclaimed and excluded. This limitation is not valid in jurisdictions which do not allow consequential damages or limitations on implied warranties.

The warranty is not valid unless the warranty registration card is sent by mail within 30 days of purchasing from ALL-O-MATIC INC. or your Installer. If not registered, only a one-year warranty on all parts will be provided.

7.2 Atenció al client

For technical assistance, warranty claims, or further information, please contact All-O-Matic:

• Telèfon: 818-787-1988
• Weblloc: allomatic.net/product/sl-150-ac/

Please have your model number (SL-150AC) and purchase date ready when contacting support.
