EMKE Electric Towel Warmer (Model ESFTR1050X5B) - Instruction Manual

1. Informació de seguretat

Si us plau, llegiu atentament totes les instruccions abans de la instal·lació i l'ús. Conserveu aquest manual per a futures consultes.

• Seguretat elèctrica: Ensure the power supply matches the product's requirements. Do not operate with a damaged cord or plug. Avoid touching the appliance with wet hands.
• Exposició a l'aigua: This appliance has an IPX5 protection rating, making it suitable for humid environments. However, do not immerse the unit in water or spray water directly onto electrical components.
• Instal·lació: Installation must be performed by a qualified electrician in accordance with local wiring regulations. Ensure the mounting surface is strong enough to support the unit's weight.
• Nens i persones vulnerables: Aquest aparell el poden utilitzar nens a partir de 8 anys i persones amb capacitats físiques, sensorials o mentals reduïdes o amb manca d'experiència i coneixements si han rebut supervisió o instruccions sobre l'ús de l'aparell d'una manera segura i entenen els perills que comporta. . Els nens no han de jugar amb l'aparell. La neteja i el manteniment dels usuaris no els han de fer els nens sense supervisió.
• Superfície calenta: The towel warmer surface will become hot during operation. Avoid prolonged direct contact with the heated bars to prevent burns.
• Ventilació: Do not cover the towel warmer with excessive items that could impede heat dissipation.
• Neteja: Desconnecteu de l'alimentació abans de netejar. Feu servir un drap suau i sec.amp tela. No utilitzeu netejadors abrasius ni dissolvents.

Figure 1: Multiple Safety Guarantees. This image illustrates the robust safety features of the EMKE Electric Towel Warmer, including enhanced electrical safety, the use of high-quality alloy steel, seamless welding for durability, and an IPX5 waterproof rating, ensuring safe operation in bathroom environments.

2. Producte acabatview

The EMKE Electric Towel Warmer is designed to provide warm towels and contribute to a comfortable bathroom atmosphere. It features a modern design, efficient heating technology, and smart controls.

Característiques principals:

• Disseny elegant i pràctic: 2+3+4 level heating design for drying towels and clothes. Flat unilateral tubes maximize contact surface for faster, uniform drying. Smooth surface for easy cleaning.
• Eficiència tèrmica: 350W power with advanced carbon fiber heating technology, achieving up to 97% heat conversion. Reaches target temperature in seconds.
• Materials d'alta qualitat: Constructed from premium alloy steel with a corrosion-resistant coating and IPX5 protection. Durable, scratch-resistant, and features anti-scald paint.
• Control intel·ligent de la temperatura: Touch screen for precise temperature adjustment from 30°C to 70°C. Multiple heating modes and a timer function (1-9 hours).
• Connectivitat WiFi: Control the towel warmer via smartphone for maximum convenience.

Figure 2: EMKE Electric Towel Warmer. This image displays the EMKE Electric Towel Warmer installed in a bathroom, highlighting its sleek black design and functionality with a towel placed on its bars.

Figure 3: Versatile Use. The towel warmer is shown in a different setting, demonstrating its multi-purpose functionality beyond just bathrooms, such as drying small garments in a living area.

3. Configuració i instal·lació

The EMKE Electric Towel Warmer is designed for simple wall-mounted installation. No modification to the electrical circuit is typically required, but professional installation is recommended.

3.1 Contingut del paquet:

• EMKE Electric Towel Warmer Unit
• Maquinari de muntatge (cargols, tacs de paret)
• Manual d'instruccions

3.2 Tools Required (Not Included):

• Trepant
• Drill bits (appropriate for wall plugs)
• Cinta mètrica
• Llapis
• Nivell

3.3 Passos d'instal·lació:

1. Tria la ubicació: Select a suitable wall location in your bathroom, ensuring it is away from direct water spray and within reach of a power outlet. Consider the dimensions of the unit (1000x500mm) and ensure adequate clearance.
2. Marca els punts de perforació: Hold the towel warmer against the wall at the desired height and use a pencil to mark the four mounting points. Use a level to ensure the marks are perfectly aligned.
3. Forats: Drill holes at the marked points using an appropriate drill bit for your wall type and the provided wall plugs.
4. Inseriu els endolls de paret: Inseriu els endolls de paret als forats perforats.
5. Muntar la unitat: Align the mounting brackets on the towel warmer with the drilled holes. Secure the unit to the wall using the provided screws. Ensure it is firmly attached and stable.
6. Connecteu-vos a l'alimentació: Connecteu el cable d'alimentació a una presa de corrent adequada.

Note: For optimal safety and performance, it is highly recommended to have the installation performed by a certified professional.

Figure 4: Product Dimensions and Wall Clearance. This diagram provides critical measurements for installation, including the height (1000mm), width (500mm), and recommended distance from the wall (110mm). The diagram indicates 320 Watt power, however, the product title and description specify 350W, which should be considered the correct power rating. This helps ensure proper placement and fit.

4. Funcionament

The EMKE Electric Towel Warmer features an intuitive touch screen control panel and can also be managed via a smartphone app.

4.1 Tauler de control acabatview:

Figura 5: Panell de control tàctil digital. Aquesta imatge mostra un detall view of the towel warmer's digital display and touch controls, which allow for precise temperature and mode adjustments.

• Botó d'encesa: Encén/apaga la unitat.
• Botons d'ajust de temperatura: Use '+' and '-' to increase or decrease the target temperature.
• Botó de mode: Cycles through different heating modes (if applicable).
• Botó del temporitzador: Sets the operating duration.

4.2 Funcionament bàsic:

1. Encès: Press the Power button to turn on the towel warmer. The display will show the current temperature or default setting.
2. Temperatura establerta: Use the Temperature Adjustment buttons to set your desired temperature between 30°C and 70°C. The unit will begin heating to reach this target.
3. Estableix el temporitzador: Press the Timer button to activate the timer function. Repeated presses will cycle through available durations (e.g., 1-9 hours). The unit will automatically shut off after the set time.
4. Apagar: Press the Power button again to turn off the towel warmer.

Figure 6: Timer Function. This image highlights the 1-9 hour timer function, allowing users to schedule heating for immediate warm towels upon arrival or for energy-efficient operation without continuous heating.

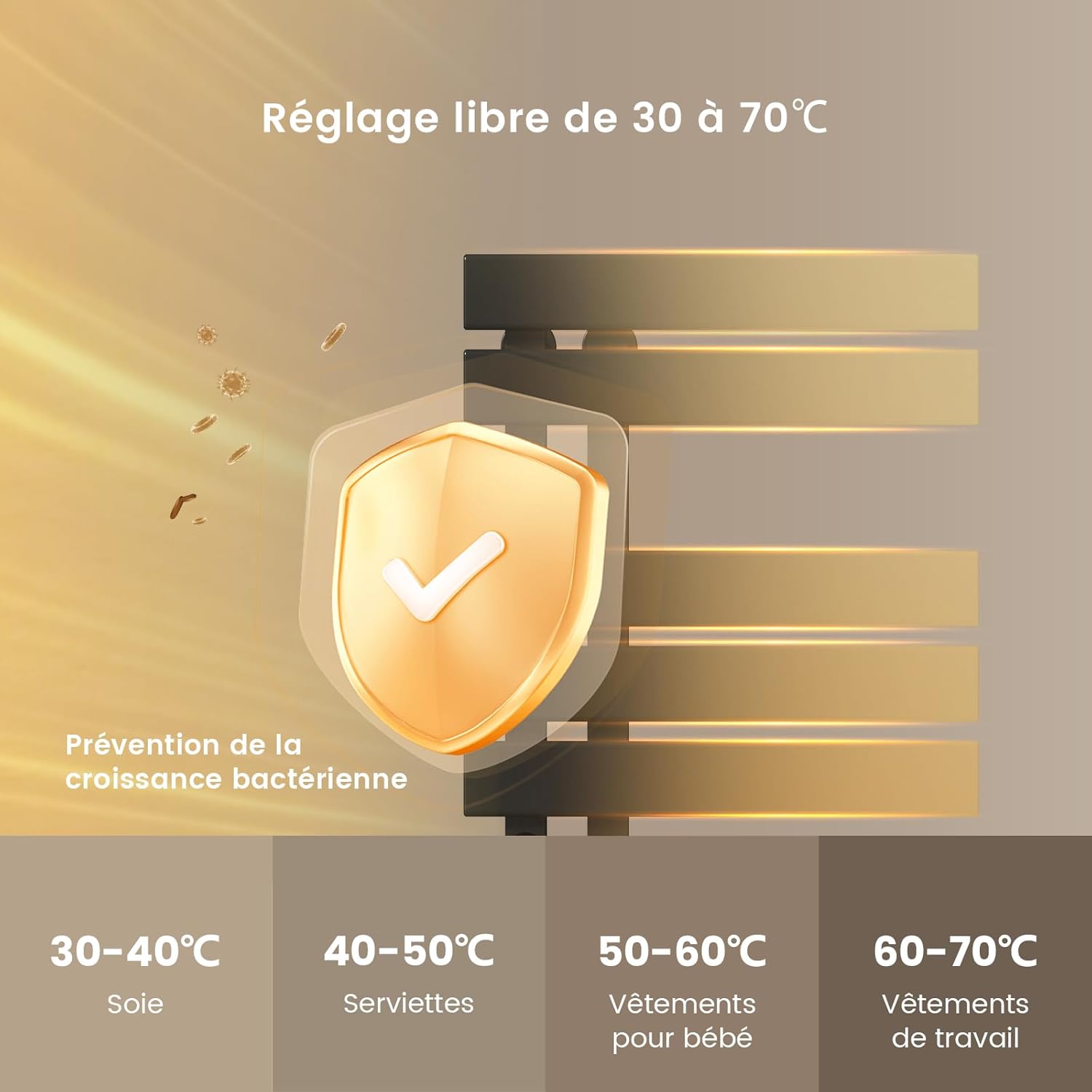

Figure 7: Temperature Settings and Applications. This diagram illustrates recommended temperature ranges for various items, from 30-40°C for silk to 60-70°C for work clothes, emphasizing the prevention of bacterial growth at higher temperatures.

4.3 Smart Control (WiFi Connectivity):

The towel warmer can be controlled remotely via a smartphone application or voice assistants (e.g., Google Home). A Wi-Fi connection is required for this functionality.

1. Descarregar l'aplicació: Download the compatible smart home application (refer to product packaging or EMKE website for specific app name).
2. Parella el dispositiu: Follow the in-app instructions to pair your EMKE Electric Towel Warmer with your smartphone via your home Wi-Fi network.
3. Comandament a distància: Once paired, you can control temperature, set timers, and monitor the status of your towel warmer from anywhere.
4. Control de veu: Integrate the device with compatible voice assistants for hands-free operation.

Figure 8: Intelligent Remote Control. This composite image demonstrates the various smart control methods available, including direct interaction with the touch panel, voice control via smart assistants like Google Home, and remote management through a dedicated smartphone application, all requiring a Wi-Fi connection.

5. Manteniment

Regular cleaning and proper care will ensure the longevity and optimal performance of your EMKE Electric Towel Warmer.

5.1 Neteja:

• Desconnecteu l'alimentació: Always unplug the towel warmer from the power outlet before cleaning.
• Netegeu la superfície: Utilitzeu un suau, damp cloth to wipe down the surface of the unit. The smooth finish is designed to reduce dust and limescale buildup.
• Eviteu productes químics durs: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish and coating.
• Assecar bé: Assegureu-vos que la unitat estigui completament seca abans de tornar-la a connectar.

5.2 Emmagatzematge:

If the towel warmer will not be used for an extended period, unplug it and store it in a dry, safe place.

6. Solució De Problemes

If you encounter any issues with your EMKE Electric Towel Warmer, please refer to the following common problems and solutions.

If the problem persists after trying these solutions, please contact EMKE customer support for assistance.

7. Especificacions

Nota: les especificacions estan subjectes a canvis sense previ avís.

8. Garantia i Suport

EMKE products are manufactured to high-quality standards. For warranty information and customer support, please refer to the warranty card included with your product or visit the official EMKE weblloc.

When contacting support, please have your model number (ESFTR1050X5B) and purchase date available.
