Phomemo M108 Bluetooth Label Maker User Manual

1. Introducció

Welcome to the user manual for your new Phomemo M108 Bluetooth Label Maker. This compact and portable thermal printer is designed to simplify your labeling needs for home, office, and small business use. With its inkless technology and versatile app, you can create professional and personalized labels with ease. Please read this manual carefully to ensure proper use and maintenance of your device.

2. Producte acabatview

2.1 Contingut del paquet

Upon opening your Phomemo M108 package, please verify that all the following items are included:

• 1X Phomemo M108 2 Inch Label Maker Machine
• 1X Type-C Cable
• 1X Guia d'inici ràpid
• 40*30MM Thermal Labels (100PCS)

2.2 Característiques clau

The Phomemo M108 Label Maker offers a range of features designed for convenience and efficiency:

• App-Enabled Bluetooth Connectivity: Seamlessly connect to the 'Print Master' app via Bluetooth for label creation.
• Compatibilitat àmplia d'etiquetes: Supports label sizes ranging from 0.78'' to 2'' (20 - 50mm) for diverse applications.
• Impressió tèrmica sense tinta: Advanced thermal technology eliminates the need for ink cartridges, ensuring clean and clear prints.
• Aplicacions versàtils: Ideal for small businesses, home organization, office tasks, and creating personalized labels.
• Disseny compacte i portàtil: Lightweight and easy to carry, allowing for on-the-go labeling.

2.3 Diagrama del producte

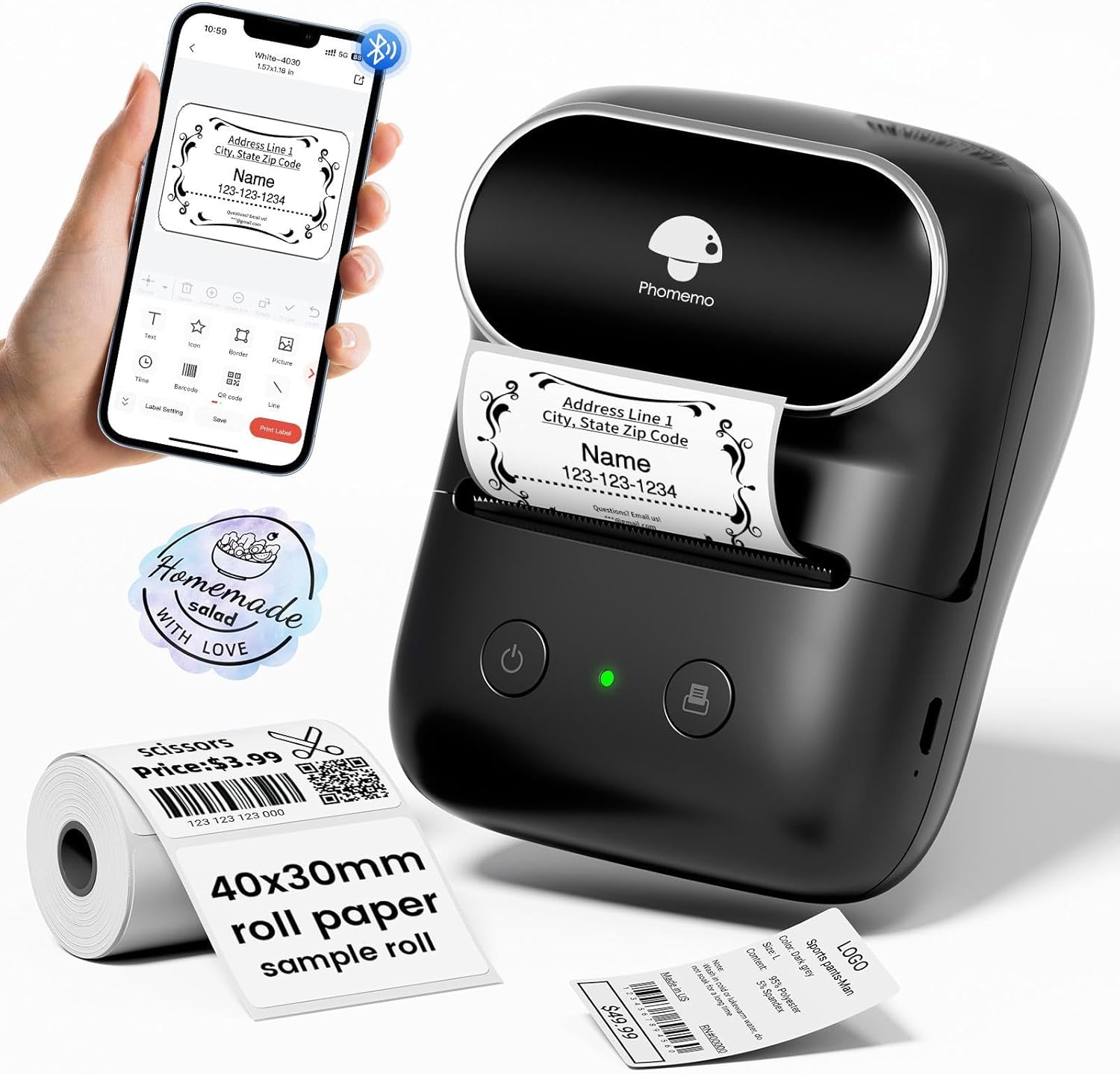

Figure 1: Phomemo M108 Label Maker and its components.

3. Guia de configuració

3.1 Càrrega del dispositiu

Before first use, ensure your Phomemo M108 is fully charged. Connect the included Type-C cable to the charging port on the device and a compatible USB power adapter (not included). The indicator light will show charging status.

Figure 2: Charging the Phomemo M108 via Type-C cable.

3.2 Càrrega d'etiquetes

Follow these steps to properly load the thermal label roll into your printer:

1. Open Top Cover: Gently slide the top cover release button to open the label compartment.
2. Attach Paper Roll to Holder: Place the label roll onto the provided holder, ensuring the labels feed from the bottom.
3. Insert Roll: Insert the label roll and holder into the compartment, making sure the labels are aligned with the print head.
4. Tancar la coberta: Close the top cover firmly until it clicks into place. Ensure a small portion of the label protrudes from the output slot.

Figure 3: Step-by-step guide for loading labels.

3.3 Instal·lació i connexió de l'aplicació

The Phomemo M108 operates via the 'Print Master' mobile application. Follow these steps to get started:

1. Instal·leu l'aplicació: Download 'Print Master' from the Google Play Store (per a Android) o el/la/els/les Apple App Store (per a iOS).
2. Inici de sessió: Open the app and sign in or create an account.
3. Activa el Bluetooth: Assegureu-vos que el Bluetooth estigui habilitat al vostre telèfon intel·ligent o tauleta.
4. Connecta la impressora: In the 'Print Master' app, search for and select your Phomemo M108 device to establish a Bluetooth connection. The app will guide you through the pairing process.

Figure 4: Connecting your Phomemo M108 to the 'Print Master' app.

4. Instruccions de funcionament

4.1 Impressió bàsica

Once connected, you can begin creating and printing labels:

1. Select Template or Create New: Choose from over 300 templates or start a new design within the 'Print Master' app.
2. Customize Your Label: Use the app's tools to add text, icons (over 1000 available), borders, images, barcodes, and QR codes.
3. Preview: Review your label design on the app screen to ensure it meets your requirements.
4. Imprimeix: Tap the 'Print Label' button in the app. The printer will automatically feed and print your label.

Figure 5: Customizing labels using the 'Print Master' app.

4.2 Using the 'Print Master' App

The 'Print Master' app is your central hub for all labeling functions. It provides a user-friendly interface with extensive customization options. You can adjust font styles, sizes, alignment, and even import your own images. The app also supports various label types, including regular, circular, clear, and patterned labels.

For a visual demonstration of the label maker in action, please refer to the following official product video:

5. Manteniment

5.1 Neteja del capçal d'impressió

To ensure consistent print quality, regularly clean the print head. Use a soft, lint-free cloth lightly dampened with rubbing alcohol. Gently wipe the print head surface. Allow it to dry completely before closing the cover or using the printer.

5.2 Storing Labels

Store thermal labels in a cool, dry place away from direct sunlight and excessive heat. This will help preserve their adhesive properties and print quality over time.

6. Solució De Problemes

If you encounter any issues with your Phomemo M108, please refer to the table below for common problems and their solutions:

7. Especificacions del producte

8. Garantia i Suport

8.1 Informació de la garantia

Your Phomemo M108 Label Maker comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including coverage period and limitations. Keep your purchase receipt as proof of purchase for warranty claims.

8.2 Atenció al client

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Phomemo customer support. You can typically find contact information on the official Phomemo website or through the 'Print Master' app's help section.

We are committed to providing you with the best possible experience with your Phomemo M108 Label Maker.
