FITUEYES Soundbar Support for Zen and Cantor Series TV Stands

1. Introducció

Thank you for choosing the FITUEYES Soundbar Support. This product is designed to seamlessly integrate your soundbar with FITUEYES Zen and Cantor series TV stands, providing a clean and organized entertainment setup. This manual provides detailed instructions for safe installation and proper use.

Imatge 1.1: acabatview of the FITUEYES Soundbar Support.

2. Informació de seguretat

Please read all instructions carefully before installation. Failure to follow these instructions may result in property damage, serious injury, or death. If you do not understand these instructions, or have doubts about the safety of the installation, please contact customer service.

• Ensure the mounting surface (TV stand) can safely support the combined weight of the soundbar support and your soundbar.
• No supereu la capacitat de càrrega màxima de 6.5 kg (14.3 lliures).
• Use only the provided hardware. If any parts are missing or defective, contact FITUEYES for replacement.
• Keep children away from the assembly area during installation. Small parts may be a choking hazard.
• Periodically check that the support is securely fastened and stable.

3. Contingut del paquet

Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, please contact FITUEYES customer support.

• Soundbar Support Bracket (Main Unit)
• Removable Soundbar Mounting Brackets (2 pcs)
• Anti-slip EV Pads
• Mounting Hardware Kit (Screws, washers, nuts)
• Manual d'instruccions

4. Configuració i instal·lació

This soundbar support is specifically designed for FITUEYES Zen and Cantor series TV stands. It offers two primary installation methods to accommodate various soundbar designs.

4.1 Requisits de compatibilitat

• Compatible with FITUEYES Zen and Cantor series TV stands.
• Soundbar hole spacing (horizontal): 100-600mm.
• Soundbar vertical distance (from mounting point to bottom): 86-155mm.

Image 4.1: Illustrates the soundbar support mounted on a TV stand, showing approximate dimensions and placement.

4.2 Mètodes d'instal·lació

Choose the method that best suits your soundbar's design.

1. Direct Mounting (via soundbar's rear holes):
   • Attach the main soundbar support bracket to your FITUEYES TV stand using the provided hardware. Ensure it is level and securely tightened.
   • Align the mounting holes on the back of your soundbar with the slots on the soundbar support bracket.
   • Secure the soundbar to the bracket using appropriate screws from the hardware kit.
   • Apply the anti-slip EV pads to the contact points between the soundbar and the support to prevent scratches and reduce vibration.
2. Using Removable Brackets:
   • Attach the main soundbar support bracket to your FITUEYES TV stand.
   • Attach the two removable soundbar mounting brackets to the main support bracket, adjusting their position to match the width of your soundbar.
   • Place your soundbar onto the removable brackets.
   • Apply the anti-slip EV pads to the top surface of the removable brackets where the soundbar will rest. This protects the soundbar and minimizes vibrations.

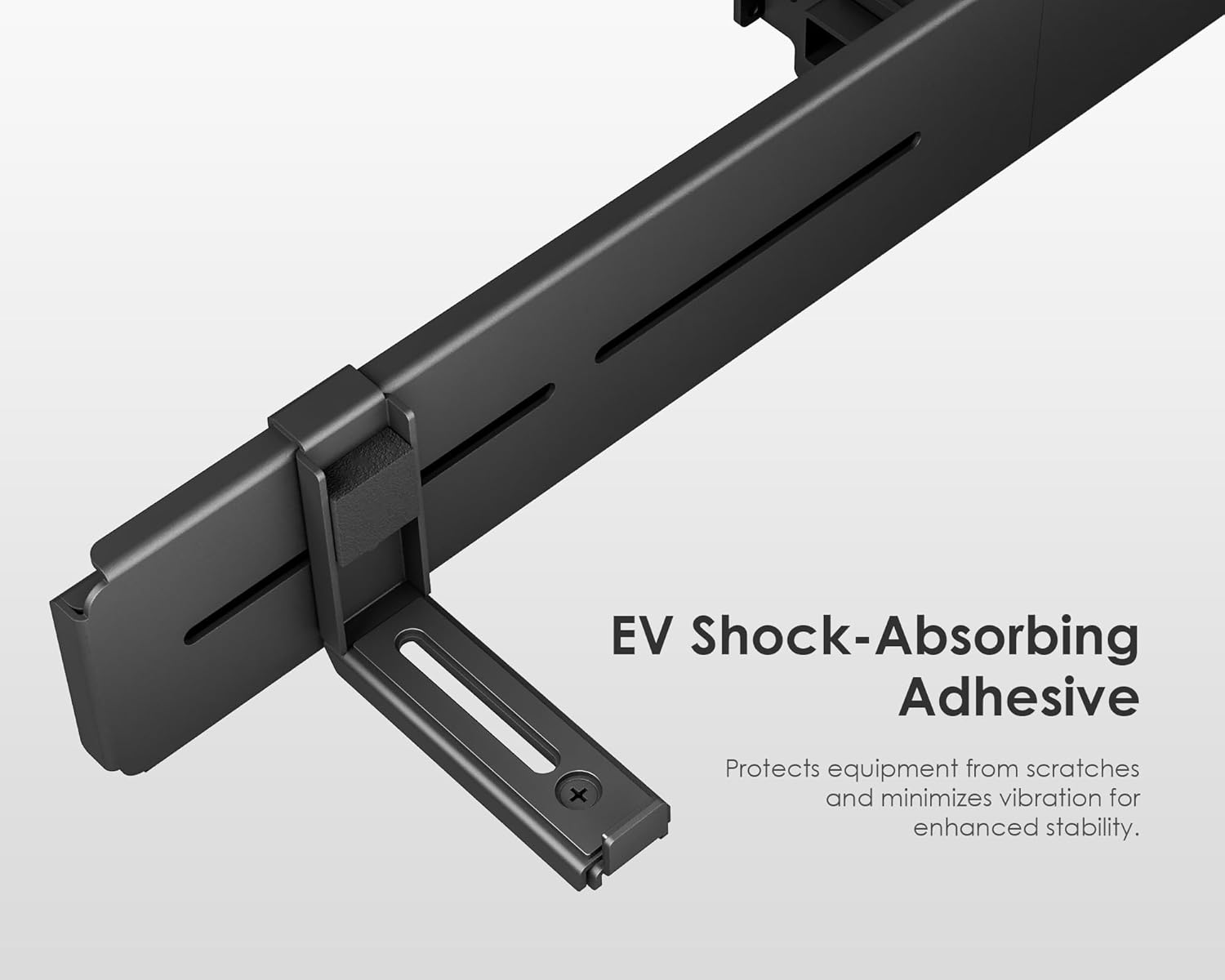

   Image 4.2: Detail of the EV shock-absorbing adhesive pads, which protect equipment from scratches and minimize vibration.

4.3 Gestió de cables

The design of the FITUEYES TV stands, in conjunction with this soundbar support, allows for effective cable management. Route your soundbar's cables through the designated channels or pillars of your TV stand to maintain a clean and tidy appearance.

Image 4.3: Illustration of integrated cable management, showing how cables can be hidden for a clean setup.

5. Funcionament

Once installed, the FITUEYES Soundbar Support provides a stable and aesthetically pleasing platform for your soundbar. No active operation is required for the support itself. Ensure your soundbar is securely seated and all cables are properly managed.

6. Manteniment

To ensure the longevity and continued performance of your soundbar support, follow these simple maintenance guidelines:

• Neteja: Wipe the support with a soft, dry cloth. Avoid abrasive cleaners or solvents that could damage the finish.
• Inspecció: Reviseu periòdicament tots els cargols i connexions per assegurar-vos que estiguin ben ajustats i segurs. Torneu a apretar-los si cal.
• Límit de pes: Do not place items heavier than 6.5 kg on the support.

7. Solució De Problemes

If you encounter any issues with your soundbar support, refer to the following common solutions:

• Inestabilitat: Ensure all mounting screws are fully tightened. Verify that the soundbar's weight does not exceed the 6.5 kg limit. Check if the support is correctly aligned with the TV stand.
• Soundbar not fitting: Re-check the compatibility requirements for soundbar hole spacing (100-600mm) and vertical distance (86-155mm). Ensure you are using the correct installation method for your soundbar.
• Scratches on soundbar: Ensure the anti-slip EV pads are correctly applied to all contact points between the soundbar and the support.

If problems persist, please contact FITUEYES customer support for assistance.

8. Especificacions

Image 8.1: Summary of key product features and specifications.

9. Garantia i Suport

FITUEYES products are manufactured with quality and durability in mind. For warranty information, product support, or to report missing/damaged parts, please refer to the warranty card included with your purchase or visit the official FITUEYES weblloc. Si us plau, tingueu a punt el model del producte i els detalls de compra quan us poseu en contacte amb el servei d'assistència.

For further assistance, please contact FITUEYES customer service through their official channels.
