Olfjurk Automatic Pet Feeder PF001S Instruction Manual

Producte acabatview

The Olfjurk Automatic Pet Feeder, model PF001S, is designed to provide scheduled meals for your pets. It features a 4-liter food capacity, customizable feeding schedules, and a dual power supply option for reliable operation. This feeder is suitable for dogs, cats, and other small pets.

Image: The Olfjurk Automatic Pet Feeder (Model PF001S) in black, shown with a cat. This image illustrates the overall design and size of the feeder.

Característiques principals:

• 4-Liter Food Capacity: Stores a substantial amount of dry pet food.
• Programa d'alimentació personalitzable: Program up to 6 meals per day with 1 to 15 portions per meal.
• Doble font d'alimentació: Operates via AC power adapter (not included) or 3 D-cell batteries (not included) for backup.
• Disseny antibloqueig: Engineered to prevent food jams, suitable for dry kibble between 3mm and 13mm.
• Conservació de la frescor: Includes a desiccant compartment in the lid to keep food fresh.
• Components desmuntables: Food bucket and dish are removable for easy cleaning.

Contingut del paquet

Abans de la configuració, assegureu-vos que hi hagi tots els components:

• Olfjurk Automatic Pet Feeder Base
• Food Bucket (Hopper)
• Food Bucket Lid with Desiccant Compartment
• Plat de menjar
• Manual d'usuari (aquest document)

Note: An AC power adapter and 3 D-cell batteries are not included and must be purchased separately.

Instruccions de configuració

1. Muntatge

1. Col·loqueu la base de l'alimentador sobre una superfície plana i estable.
2. Align the food bucket with the base and twist it securely into place.
3. Insert the food dish into the designated slot at the front of the base.
4. Open the food bucket lid and place a desiccant packet (if available) into the desiccant compartment to maintain food freshness. Close the lid securely.

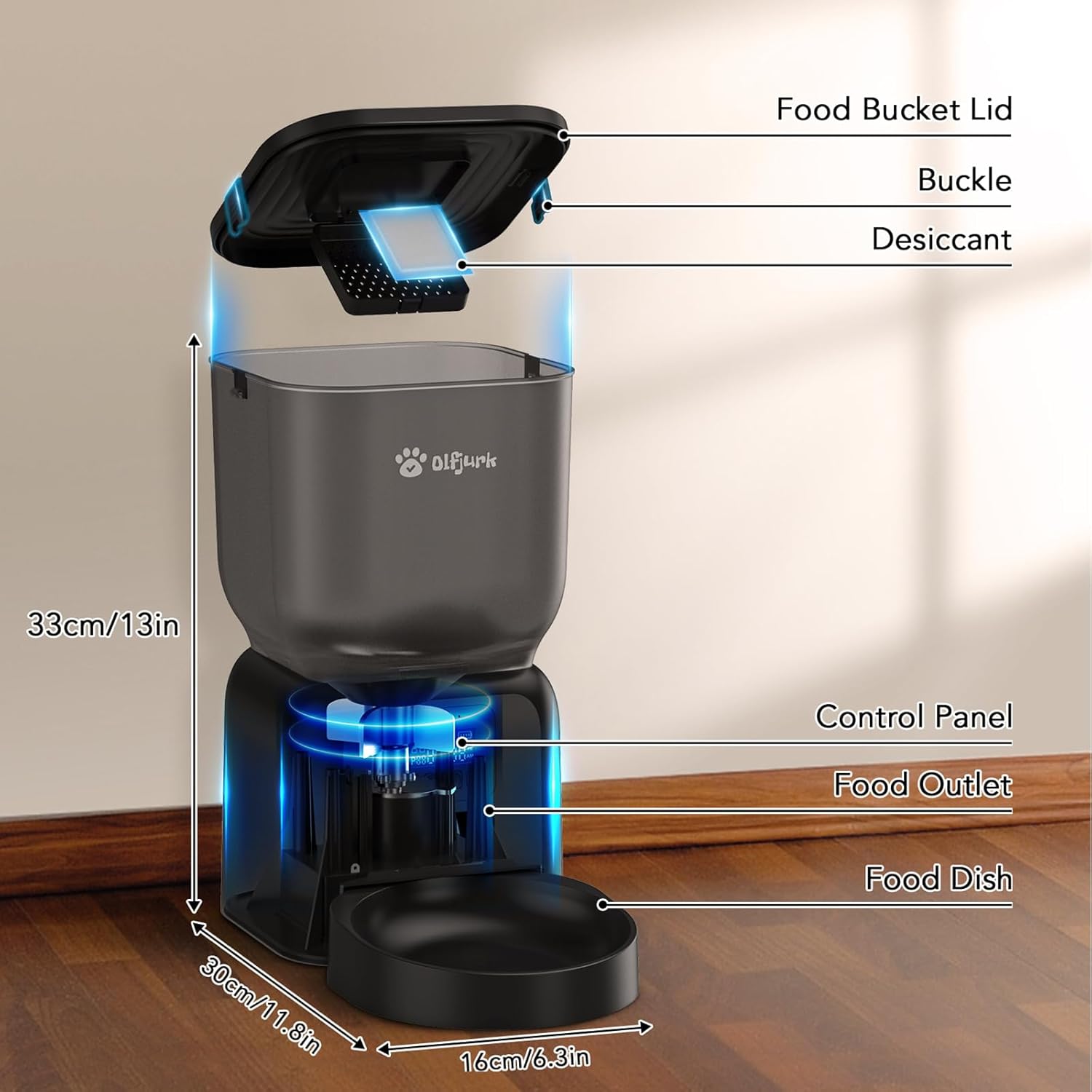

Image: A diagram illustrating the main components of the Olfjurk Automatic Pet Feeder, including the food bucket lid, buckle, desiccant compartment, control panel, food outlet, and food dish. Dimensions are also shown.

2. Font d'alimentació

L'alimentador admet opcions de doble alimentació:

• Alimentació CA: Connect a compatible 5V/1A AC power adapter (not included) to the feeder's power port and plug it into a wall outlet.
• Còpia de seguretat de la bateria: For backup power or portable use, insert 3 D-cell batteries (not included) into the battery compartment located at the bottom of the feeder. Ensure correct polarity.

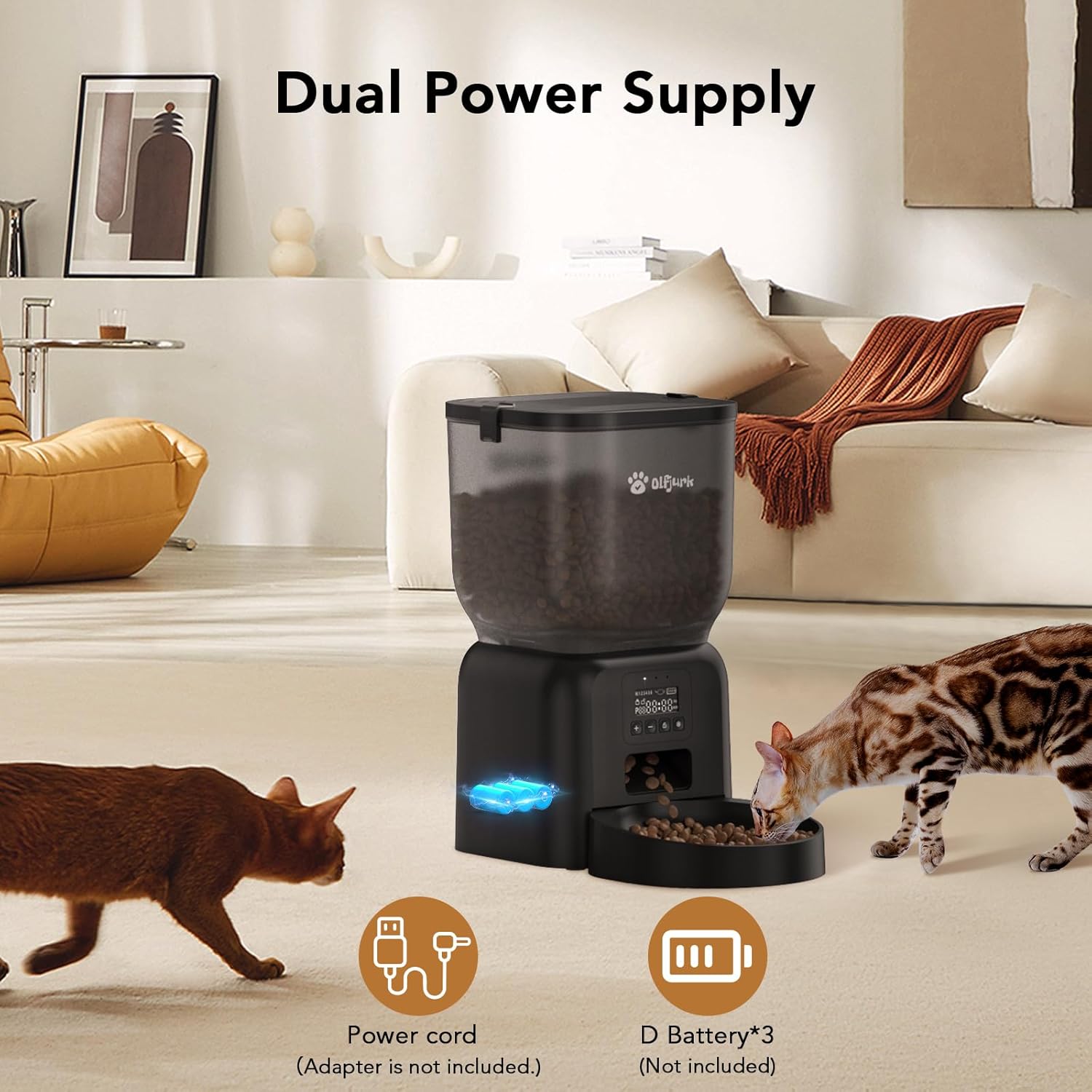

Image: The Olfjurk Automatic Pet Feeder highlighting its dual power supply options: a power cord connection (adapter not included) and a compartment for 3 D-cell batteries (not included).

3. Omplir la tremuja d'aliments

1. Open the food bucket lid.
2. Pour dry pet food into the hopper. The feeder has a 4-liter capacity.
3. Ensure the kibble size is between 3mm and 13mm to prevent jamming.
4. Tanqueu bé la tapa per mantenir la frescor dels aliments.

Instruccions de funcionament

1. Configuració del rellotge

Refer to the control panel and its buttons (usually labeled SET, UP, DOWN, FEED). The exact steps may vary slightly, but generally involve:

1. Manteniu premut el botó SET button until the clock display flashes.
2. Utilitza el UP i ABAIX botons per ajustar l'hora.
3. Premeu SET de nou per passar a minuts i després ajusteu amb UP i ABAIX.
4. Premeu SET to confirm and exit clock setting mode.

2. Programming Feeding Schedules

The feeder allows up to 6 meals per day, with 1 to 15 portions per meal.

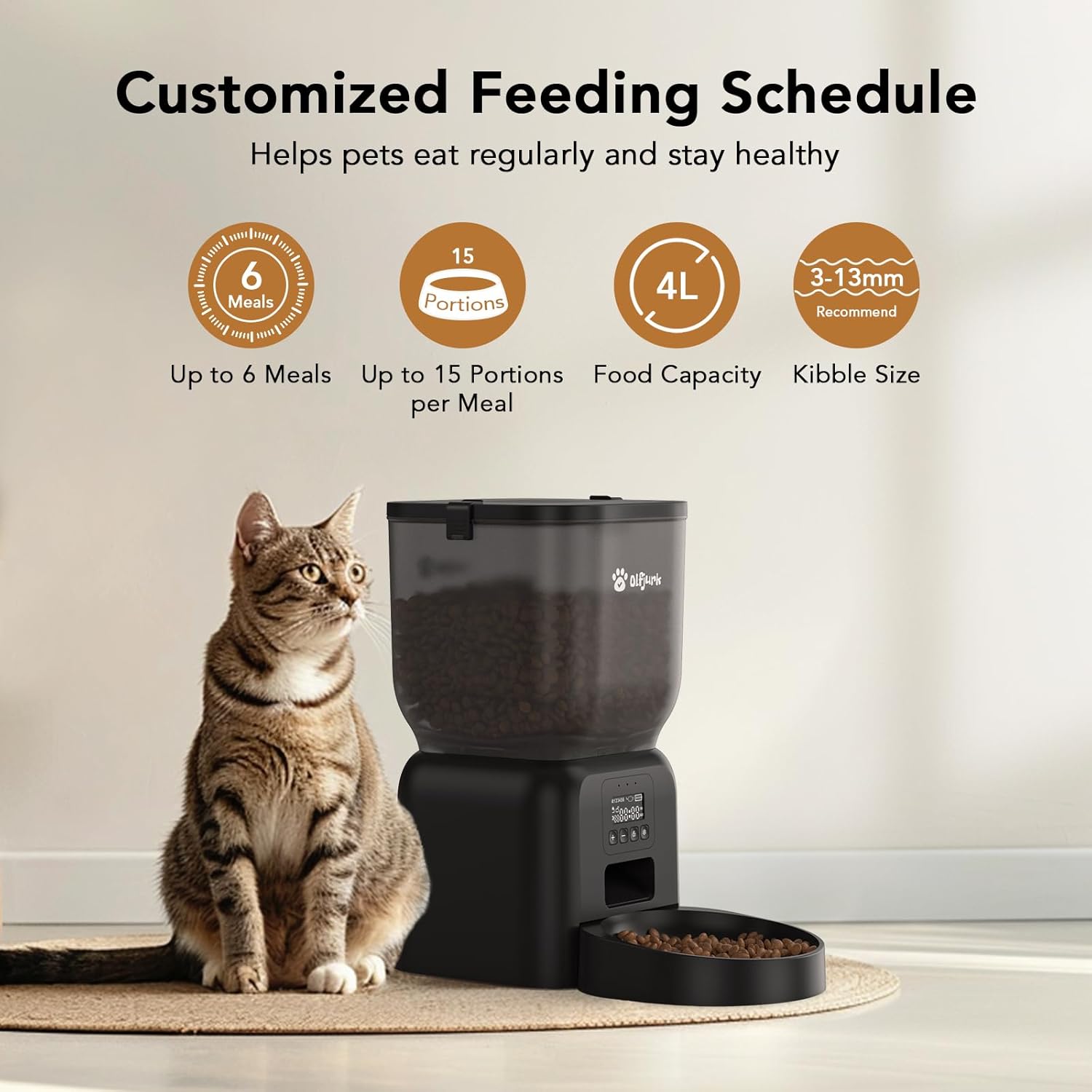

Image: An illustration detailing the customizable feeding schedule features of the Olfjurk Automatic Pet Feeder, including up to 6 meals, up to 15 portions per meal, 4L food capacity, and recommended kibble size of 3-13mm.

1. Premeu el botó SET button repeatedly to cycle through meal settings (P1, P2, P3, P4, P5, P6).
2. When a meal setting (e.g., P1) flashes, use UP i ABAIX to set the desired feeding time for that meal.
3. Premeu SET to move to the portion setting for that meal. Use UP i ABAIX to select the number of portions (1-15).
4. Repeat for all desired meals. To disable a meal, set its portion size to 0.
5. Premeu SET per guardar i sortir del mode de programació.

3. Alimentació manual

To dispense food manually, press the ALIMENTACIÓ button. Each press will dispense one portion. Hold the button for continuous dispensing (if supported by the model) or press multiple times for multiple portions.

4. Anti-Blocking Mechanism

The feeder incorporates an anti-blocking design to ensure smooth food delivery. This mechanism is optimized for dry kibble within the recommended size range of 3mm to 13mm.

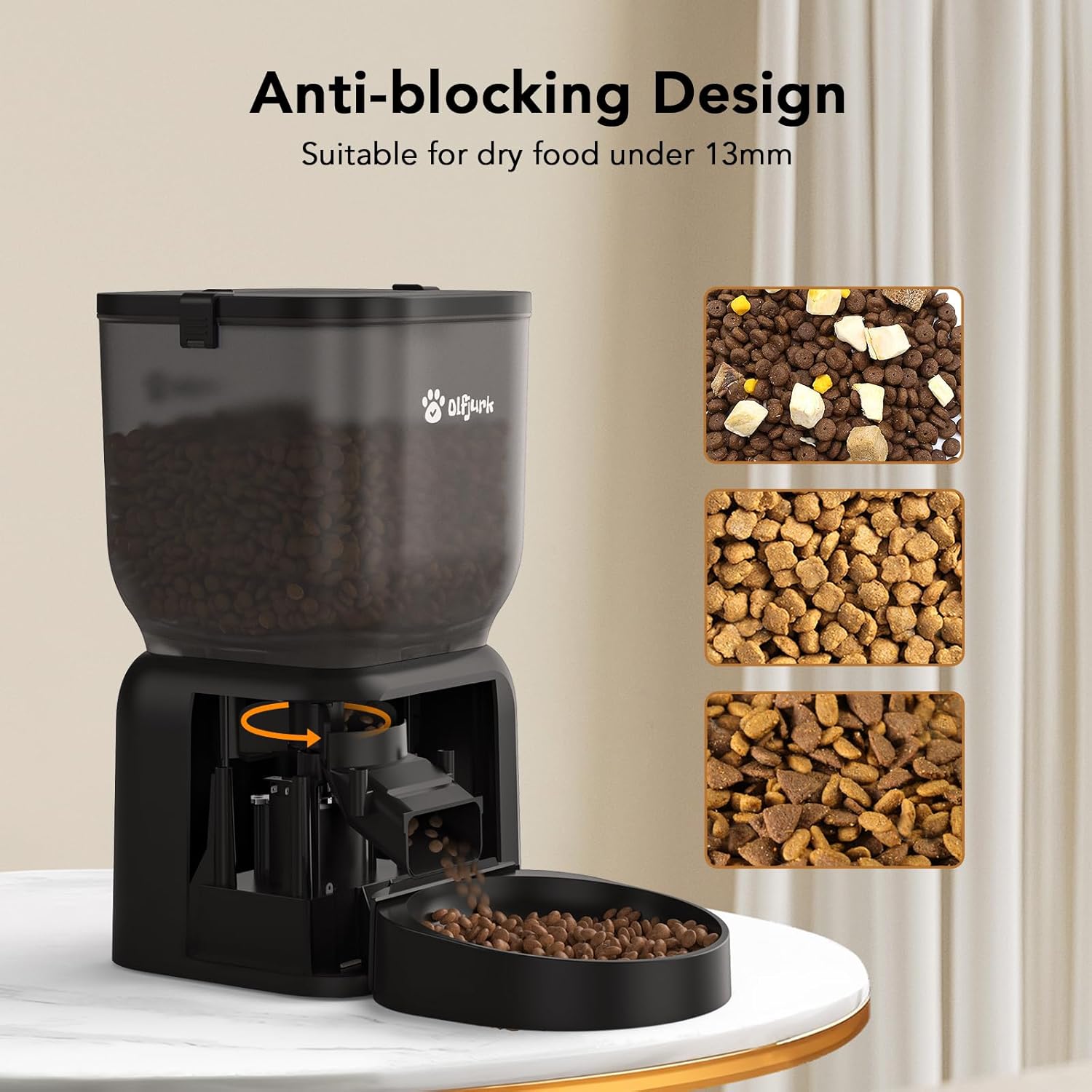

Imatge: Un primer pla view of the Olfjurk Automatic Pet Feeder's anti-blocking design, illustrating how dry food under 13mm is dispensed. Various kibble types are shown as examples.

Manteniment i Neteja

Una neteja regular garanteix la higiene i allarga la vida útil del vostre alimentador.

Image: The detachable components of the Olfjurk Automatic Pet Feeder, including the food bucket and food dish, being cleaned in a sink. A note indicates that the base should not be washed.

1. Desmuntatge: Unplug the feeder from power and remove any batteries. Detach the food bucket and food dish from the base.
2. Components de neteja: The food bucket and food dish can be washed with mild soap and water. Rinse thoroughly and dry completely before reassembly.
3. Neteja de la base: DO NOT WASH THE BASE. Netegeu l'exterior de la base amb anunciamp cloth. Ensure no water enters the electronic components.
4. Substitució del dessecant: Replace the desiccant packet in the lid every 1-2 months, or as needed, to maintain food freshness.
5. Remuntatge: Once all parts are dry, reassemble the feeder by attaching the food bucket and food dish.

Resolució de problemes

• Feeder Not Powering On:
  • Ensure the AC adapter is securely plugged into both the feeder and a working power outlet.
  • If using batteries, check that they are inserted with correct polarity and are not depleted. Replace if necessary.
• No es dispensa menjar:
  • Check if the food hopper is empty.
  • Verify that the kibble size is within the recommended 3mm-13mm range. Larger kibble may cause jams.
  • Inspect the food outlet for any blockages. Gently clear any obstructions.
  • Ensure the feeder is programmed correctly with scheduled meal times and portion sizes.
• Incorrect Time or Feeding Schedule:
  • Re-enter the clock settings and feeding schedules carefully, following the "Operating Instructions" section.
  • If the clock setting is difficult, try resetting the device (if a reset button is available, otherwise remove power for a few minutes).
• Feeder Making Unusual Noises:
  • This could indicate a food jam. Follow the steps for "Food Not Dispensing".
  • Ensure the feeder is on a stable, level surface.

Especificacions

Garantia i Suport

For warranty information, please refer to the documentation provided at the time of purchase or contact the retailer where the Olfjurk Automatic Pet Feeder was purchased.

For technical support or further assistance, please contact the manufacturer, Olfjurk, or your product retailer.
