Luqeeg 50MP 4K Compact Digital Video Camera

1. Acabatview

The Luqeeg 50MP 4K Compact Digital Video Camera is designed for ease of use, offering high-resolution photo and video capabilities in a portable form factor. It features 50MP image capture, 4K Ultra HD video recording, 16x digital zoom, anti-shake technology, and autofocus. This manual provides essential information for setting up, operating, and maintaining your camera.

Image: The Luqeeg 50MP 4K Compact Digital Video Camera, showcasing its compact design and the quality of images it can capture, represented by two instant photos of pets.

2. Contingut del paquet

Si us plau, verifiqueu que tots els elements que s'enumeren a continuació estiguin inclosos al vostre paquet:

• 1 x Luqeeg 50MP 4K Digital Camera
• 1 x cordó
• 1 x Manual d'instruccions (aquest document)
• 1 x cable de càrrega USB (tipus C)
• 1 x bossa d'emmagatzematge

Image: The Luqeeg 50MP 4K Compact Digital Video Camera displayed alongside its included accessories: a lanyard, a USB charging cable, and a protective storage bag.

3. Configuració

3.1 Càrrega de la bateria

The camera has a built-in 1000mAh Li-ion battery. Before first use, ensure the camera is fully charged.

1. Connect the provided USB Type-C charging cable to the camera's Type-C port.
2. Connect the other end of the cable to a USB power adapter (not included), power bank, or computer USB port.
3. The charging indicator light will illuminate. Once charging is complete, the indicator light will change or turn off.

3.2 Inserció d'una targeta de memòria

The camera supports a small memory card (MicroSD) up to 128GB (not included). A memory card is required to save photos and videos.

1. Locate the memory card slot on the side or bottom of the camera.
2. Insert the memory card with the gold contacts facing the correct direction (refer to the diagram near the slot if available) until it clicks into place.
3. Per treure-la, premeu suaument la targeta fins que faci clic i, a continuació, deixeu-la anar i s'expulsarà.

4. Instruccions de funcionament

4.1 Encès/Apagat

• Per encendre: Premeu i manteniu premut el botó d'engegada (normalment situat a la part superior o lateral) durant uns segons fins que la pantalla s'il·lumini.
• Per apagar: Premeu i manteniu premut el botó d'engegada de nou fins que la pantalla s'apagui.

4.2 Fer fotos

1. Enceneu la càmera.
2. Enquadra la teva foto amb la pantalla LCD de 2.8 polzades.
3. Press the Shutter button (typically on the top) halfway down to focus, then press fully to capture the image.

4.3 Gravació de vídeos

1. Enceneu la càmera.
2. Switch to video mode (if applicable, usually via a mode button or menu option).
3. Press the Record button (often marked with a red dot) to start recording.
4. Torneu a prémer el botó Grava per aturar la gravació.

4.4 Using Digital Zoom

The camera features 16x digital zoom.

• While in photo or video mode, use the zoom buttons (often marked 'W' for Wide and 'T' for Telephoto) to zoom in or out.

4.5 Using the LED Flash

The built-in LED flash assists in low-light conditions.

• Access the flash settings via the camera's menu to select modes such as Auto Flash, Fill Flash, Red-eye Reduction, or Flash Off.

4.6 Reviewfotos i vídeos

Image: A user holding the Luqeeg 50MP 4K Compact Digital Video Camera, demonstrating the review function by displaying a captured image of a smiling woman on the camera's LCD screen.

• Press the Playback button (often marked with a triangle icon) to enter review mode.
• Use the navigation buttons to scroll through your captured media.
• Press the Playback button again to exit review mode.

4.7 Connecting to a Phone/Computer

Per transferir files, you can connect the camera to a computer or use an OTG adapter for a phone.

• A l'ordinador: Connect the camera to your computer using the provided USB Type-C cable. The camera should appear as a removable disk.
• To Phone (via OTG): Insert the memory card into a card reader, then connect the card reader to your phone via an OTG adapter (not included). You can then access and export photos/videos.

5. Característiques

Image: An infographic illustrating the key features of the Luqeeg 50MP 4K Compact Digital Video Camera, such as 50MP image resolution, 4K HD recording, 16x digital zoom, autofocus, anti-shake, and a 2.83-inch HD screen.

• 50MP Photo and 4K UHD Video: Capture highly detailed still images at 50 megapixels and record smooth, vivid videos in 4K Ultra HD resolution. The f/3.2 large aperture enhances image quality.
• Zoom digital 16x: Bring distant subjects closer with the 16x digital zoom function.
• Funció anti-shake: Built-in anti-shake technology helps to ensure clear and stable photos and videos, even when zooming or in motion.
• Enfocament automàtic: The autofocus system allows for sharp capture of details, from close-up subjects to broader scenes.


Image: Demonstrations of the camera's autofocus feature, highlighting its ability to achieve sharp focus on various subjects, including food, flowers, and text.

• 2.83 Inch Large Screen: A clear display for framing shots, reviewing media, and navigating menus.
• Llanterna LED integrada: Provides illumination for shooting in low-light environments and at night.
• Rechargeable and Compact: Features a built-in rechargeable battery and a compact design for portability.

Image: A visual comparison demonstrating the effect of 16x digital zoom, showing a magnified view of a subject compared to a standard, wider shot.

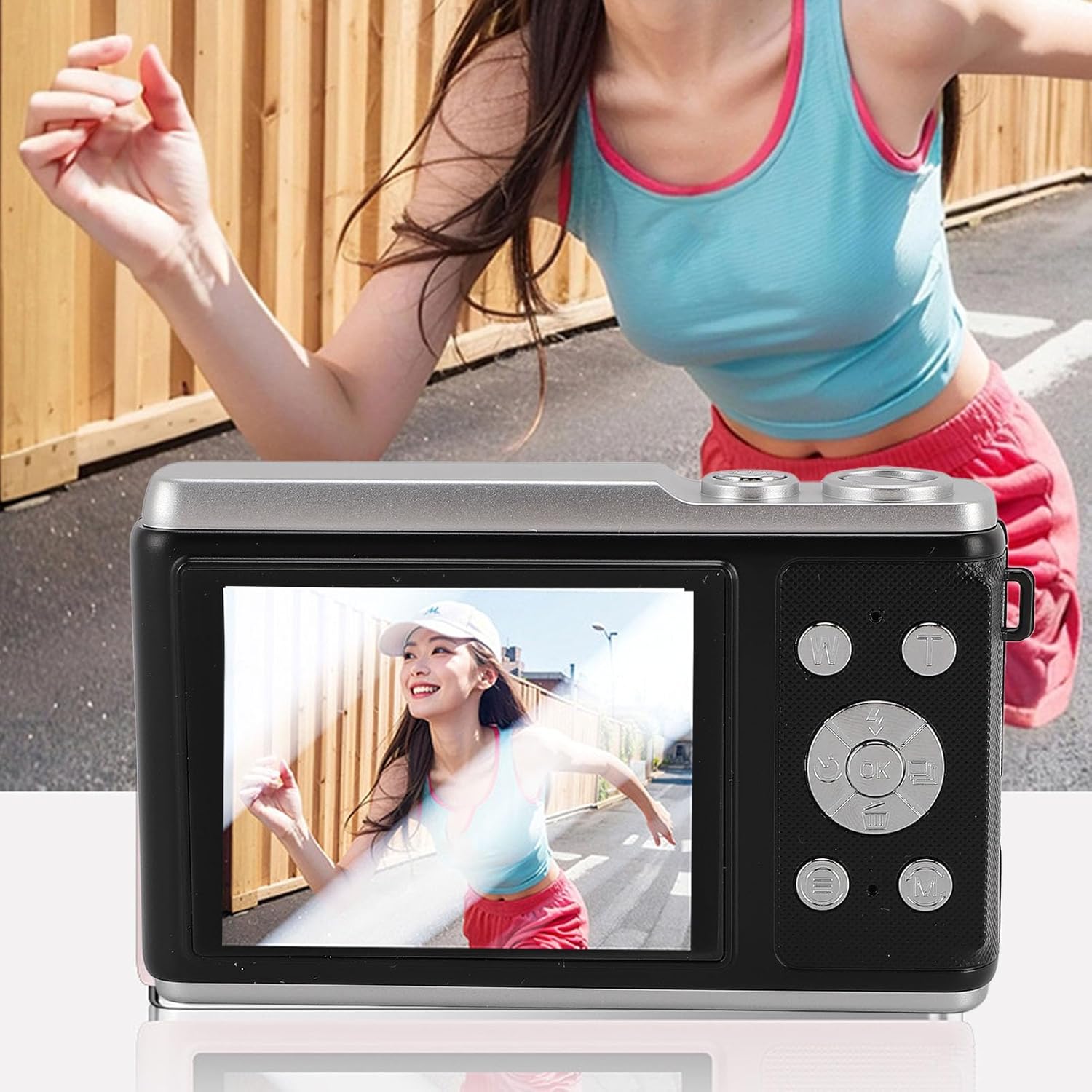

Image: The Luqeeg 50MP 4K Compact Digital Video Camera's screen displaying a dynamic image of a person in motion, illustrating its capability for capturing action shots.

6. Manteniment

• Neteja de la càmera: Use a soft, dry cloth to clean the camera body. For the lens and screen, use a specialized lens cleaning cloth and solution if necessary. Avoid abrasive materials.
• Cura de la bateria: To prolong battery life, avoid fully discharging the battery frequently. Store the camera with a partially charged battery if not used for extended periods.
• Emmagatzematge: Store the camera in a cool, dry place, away from direct sunlight, extreme temperatures, and high humidity. Use the provided storage bag for protection.

7. Solució De Problemes

• La càmera no s'encén: Assegureu-vos que la bateria estigui carregada. Connecteu la càmera a una font d'alimentació i torneu-ho a provar.
• Error de la targeta de memòria: Ensure the memory card is inserted correctly. Try reformatting the card (this will erase all data) or use a different compatible memory card.
• Imatges borroses: Check if the lens is clean. Ensure there is sufficient light. Allow the autofocus to lock onto the subject before fully pressing the shutter button.
• Durada de la bateria curta: Reduce screen brightness, turn off unnecessary features, or ensure the battery is fully charged before use. Battery performance can degrade over time.
• Camera Freezes: Remove and reinsert the battery (if accessible) or press and hold the power button for an extended period (e.g., 10-15 seconds) to force a shutdown.

8. Especificacions

9. Garantia i Suport

This product is covered by a limited warranty. For detailed warranty information, please refer to the warranty card included with your purchase or contact Luqeeg customer support. If you encounter any issues or have questions regarding your camera, please reach out to our support team for assistance.

Informació de contacte: Please refer to the official Luqeeg weblloc web o la documentació de la compra per obtenir les dades de contacte d'atenció al client més actualitzades.
