1. Introducció
This manual provides comprehensive instructions for the setup, operation, and maintenance of your Smartby BN59-01330H / RMCSPR1AP1 Remote Control. This remote is designed as a replacement for various Samsung Smart TV models, offering voice control and essential functions.
2. Producte acabatview
The Smartby BN59-01330H / RMCSPR1AP1 is a universal remote control compatible with a wide range of Samsung Smart TVs, including LED, QLED, UHD, SUHD, HDR, LCD, Frame, Curved, Solar, HDTV, 4K, 8K, and 3D models. It features built-in voice recognition technology for enhanced control.
This remote replaces numerous Samsung remote models, including BN59-01312, BN59-01329A, BN59-01329C, BN59-01329F, BN59-01330A, BN59-01330C, BN59-01330H, BN59-01330N, BN59-01330Q, BN59-01330N, BN59-01330M, BN59-01330H, BN59-01312Q, BN59-01259E, BN59-01312B/H/G, BN59-01312F, BN59-01312M, BN59-01312A, BN59-01199F, BN59-01259B, BN59-01260A, BN59-01301A, BN59-01315A, AA59-00666A, AA59-00741A, AA59-00786A, AA59-00602, AA59-00581A, AA59-00582A, AA59-00594A, BN59-01178W, and AA59-00638A.
Davant view of the Smartby BN59-01330H remote control, displaying all buttons and their layout.
The Smartby BN59-01330H remote control positioned in front of a Samsung Smart TV, illustrating its intended use.
3. Configuració
- Instal·lació de la bateria: Insert two AAA batteries into the remote control, ensuring correct polarity.
- Procés d'aparellament: To pair the remote with your Samsung Smart TV, press and hold the Tornar/Sortir botó i el Reproduir/Pausa button simultaneously for approximately 5 seconds. A 'Pairing complete' message will appear on your TV screen once successful.

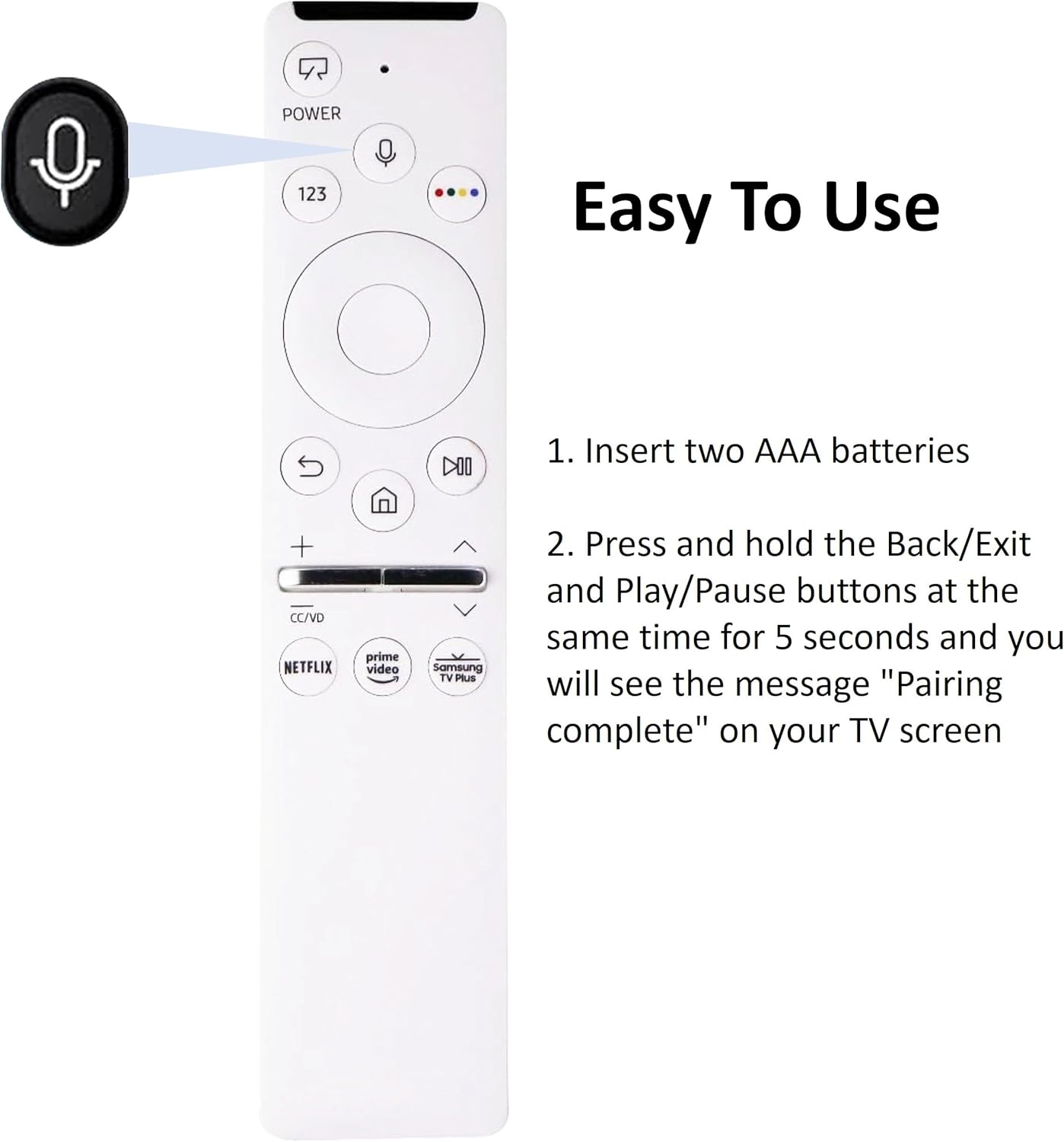

Diagram illustrating the pairing process for the Smartby BN59-01330H remote control, highlighting the Back/Exit and Play/Pause buttons.
4. Instruccions de funcionament
The remote control features a standard layout for easy navigation and control of your Samsung Smart TV. Refer to the image below for button identification.
Davant view of the Smartby BN59-01330H remote control, displaying all buttons and their layout.
- Botó d'encesa: Encén o apaga el televisor.
- 123 Botó: Accesses the virtual numeric keypad.
- Botó del micròfon: Activa el control de veu per a ordres i cerques.
- Coixinet direccional (circular): Navega pels menús i selecciona elements.
- Botó Enrere/Sortida: Torna a la pantalla anterior o surt d'un menú.
- Botó d'inici: Accesses the TV's Smart Hub or home screen.
- Botó Reproduir/Pausa: Controla la reproducció de suports.
- Pujar/baixar el volum: Ajusta el volum del televisor.
- Channel Up/Down (CC/VD): Changes TV channels or accesses Closed Captions/Video Description.
- Netflix, Prime Video, Samsung TV Plus Buttons: Accés directe a aquests serveis de streaming.
The Smartby BN59-01330H remote control with the microphone button highlighted, indicating its voice control functionality.
5. Solució De Problemes
- El comandament a distància no respon: Assegureu-vos que les piles estiguin correctament instal·lades i que tinguin prou càrrega. Canvieu les piles si cal.
- Problemes d'aparellament: If the 'Pairing complete' message does not appear, ensure the remote is within close proximity to the TV and repeat the pairing process (hold Back/Exit and Play/Pause buttons for 5 seconds). Some users have reported needing multiple attempts for successful Bluetooth connection.
- El control per veu no funciona: Verify that the remote is properly paired and that your TV supports voice control. Ensure there are no obstructions between the remote and the TV.
- Specific App Buttons Not Activating: If direct streaming buttons (Netflix, Prime Video, Samsung TV Plus) do not launch the apps, check your TV's internet connection and app installation. In some cases, this may indicate a compatibility issue or require a TV software update.
- Funcionalitat intermitent: If the remote stops working intermittently, try re-pairing it with the TV. If issues persist, consider replacing the batteries or contacting support.
6. Especificacions
| Dimensions del producte | 7.5 x 1.2 x 1 polzades |
| Pes de l'article | 1.44 unces |
| Bateries | 2 piles AAA (necessàries) |
| Tecnologia de connectivitat | Bluetooth |
| Dispositius compatibles | Televisió |
| Característica especial | Cerca per veu |
| Nombre màxim de dispositius compatibles | 1 |
| Número de model | BN59-01330H |
7. Garantia i Suport
For product support or warranty inquiries, please contact Smartby customer service. Refer to your purchase documentation for specific warranty terms and conditions.
