MechMaxx B200 Wood Chipper Shredder Mulcher Instruction Manual

1. Informació de seguretat

Read and understand all safety warnings and instructions before operating the MechMaxx B200 Wood Chipper. Failure to follow these instructions may result in serious injury or death.

• Equips de protecció individual (EPI): Always wear appropriate PPE, including safety glasses, hearing protection, gloves, and sturdy footwear. Avoid loose clothing that could get caught in moving parts.
• Àrea de treball: Feu funcionar la trituradora sobre una superfície plana i estable. Manteniu la zona de treball allunyada de vianants, nens i mascotes. Manteniu una distància segura de la canonada de descàrrega.
• Alimentació de material: Never feed foreign objects (e.g., metal, rocks) into the chipper. Only feed wood or organic material within the specified diameter (up to 8 inches). Do not overfeed the machine.
• Parada d'emergència: The unit is equipped with an emergency stop button on the upper side of the feeding drum and an emergency stop press bar on the lower side. In case of emergency or malfunction, immediately activate the emergency stop to protect equipment and operator safety.
• Manteniment: Disconnect the spark plug wire or battery before performing any maintenance or clearing jams. Ensure all moving parts have come to a complete stop.
• Transport: Utilize the towbar for safe transportation. Ensure tail lights are functional when towing on public roads.

2. Producte acabatview

The MechMaxx B200 is a powerful and efficient gas-powered wood chipper designed for processing wood and organic debris up to 8 inches in diameter. It features a robust engine, convenient mobility, and enhanced safety features.

Figura 2.1: Principal view of the MechMaxx B200 Wood Chipper.

Característiques principals:

• Motor: 1000cc 35hp 4-stroke air-cooled OHV gas-powered engine with electric start (45Ah 12V lead-acid battery included).
• Capacitat de trituració: Easily handles wood or branches up to 8 inches in diameter.
• Mobilitat: Equipped with a trailer bar, 2x front wheels (19'') and 2x rear wheels (13'') for stable and fast transportation.
• Canal de descàrrega: 360° rotary discharge chute with adjustable deflector for precise debris discharge.
• Sistema de tall: Features 2x double-edge blades and 1x anvil, made of A8 alloy steel for durability and efficiency.
• Cinturons: Kevlar material belts for high strength and wear resistance.
• Seguretat: Emergency stop button and press bar, and integrated tail lights.

Figure 2.2: Key features of the MechMaxx B200.

3. Configuració

3.1 Desembalatge i muntatge

Carefully unpack all components. Ensure all parts listed in the packing list are present. Follow the detailed assembly instructions provided in the separate assembly guide (usually found in the small storage box next to the feeding chute).

3.2 Comprovacions prèvies a l'operació

1. Nivell d'oli del motor: Comproveu el nivell d'oli del motor amb la vareta de nivell. Afegiu oli recomanat si cal.
2. Nivell de combustible: Ompliu el dipòsit de combustible amb gasolina fresca sense plom. No l'ompliu massa.
3. Connexió de la bateria: Ensure the 45Ah 12V lead-acid battery is securely connected for electric start.
4. Condició de la fulla: Inspect the chipper blades for sharpness and damage. Replace or sharpen as needed.
5. Tensió del cinturó: Verify the tension of the Kevlar belts. Adjust if too loose or too tight.
6. Elements de fixació: Check all nuts, bolts, and fasteners for tightness.

3.3 Towbar and Tail Lights

The chipper is equipped with a towbar for easy transport. Attach the towbar to a suitable towing vehicle using a 2-inch trailer ball. Connect the tail lights to your vehicle's electrical system for safe road travel.

Figure 3.1: MechMaxx B200 with towbar for transport.

Figura 3.2: posterior view showing integrated tail lights.

4. Instruccions de funcionament

4.1 Arrencada del motor

1. Assegureu-vos que la trituradora estigui sobre una superfície estable i anivellada.
2. Set the choke to the 'START' position (if applicable).
3. Turn the ignition key to the 'START' position. Release once the engine starts.
4. Once the engine is running, gradually move the choke to the 'RUN' position.
5. Deixeu que el motor s'escalfi durant uns minuts abans de començar a funcionar.

4.2 Material d'alimentació

1. Stand to the side of the feeding chute, never directly in front of it.
2. Feed branches and wood into the hopper one at a time, ensuring they are within the 8-inch maximum diameter.
3. Allow the chipper to pull the material in. Do not force material into the chute.
4. For smaller, leafy material, feed in bundles to prevent clogging.
5. If the chipper bogs down, reduce the feeding rate.

4.3 Adjusting Discharge Chute

The 360° rotary discharge chute allows you to direct chipped material. Loosen the locking mechanism, rotate the chute to the desired direction, and re-tighten. The deflector at the end of the chute can be adjusted to control the height and distance of the discharge.

4.4 Tancament

1. Allow the chipper to run for a few minutes without feeding material to clear the chamber.
2. Gireu la clau d'encesa a la posició 'OFF'.
3. Wait for all moving parts to come to a complete stop before approaching the machine.

5. Manteniment

Regular maintenance ensures optimal performance and extends the lifespan of your MechMaxx B200 Wood Chipper. Always disconnect the spark plug wire or battery before performing any maintenance.

5.1 Inspecció i substitució de les fulles

The chipper uses 2x double-edge blades and 1x anvil made of A8 alloy steel. Inspect blades regularly for dullness, nicks, or damage. Sharp blades are crucial for efficient chipping.

• Inspecció: After every 8-10 hours of operation, visually inspect the blades.
• Esmolat/Substitució: If blades are dull or damaged, they can be sharpened or replaced. Refer to the detailed instructions in the full service manual for blade removal and installation.

Figura 5.1: View of the chipping mechanism, showing blades and anvil.

5.2 Belt Inspection and Adjustment

The Kevlar material belts are designed for high strength and wear resistance. Check belt tension periodically.

• Inspecció: Check for cracks, fraying, or excessive wear.
• Ajust: If belts appear loose, consult the service manual for instructions on adjusting tension. Proper tension prevents slippage and premature wear.

5.3 Manteniment del motor

• Canvi d'oli: Change engine oil after the first 5 hours of operation, then every 25-50 hours or seasonally.
• Filtre d'aire: Netegeu o substituïu el filtre d'aire regularment, especialment quan utilitzeu el vehicle en condicions de pols.
• Bujía: Inspect and clean the spark plug annually or every 100 hours. Replace if worn.

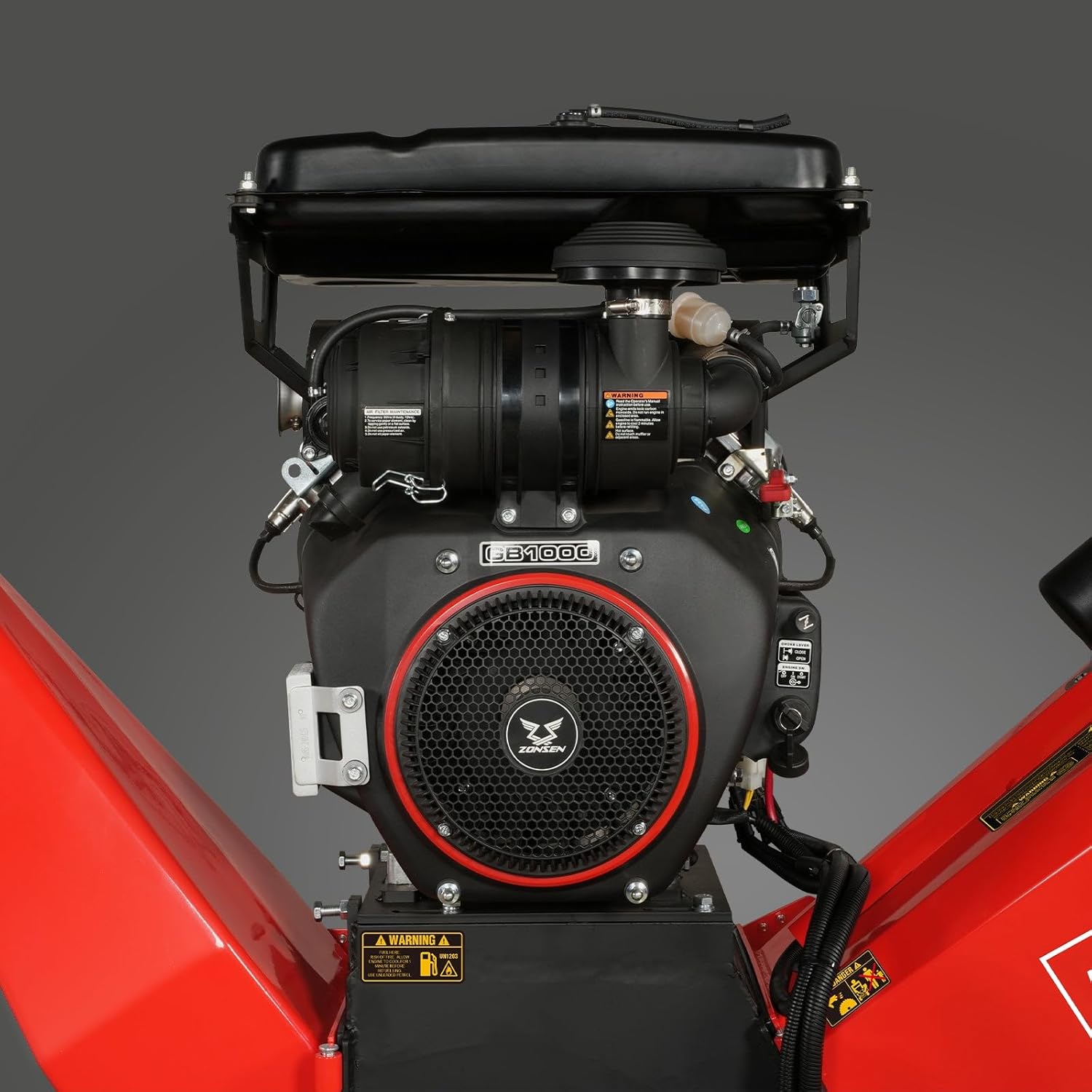

Figura 5.2: Detallada view of the 1000cc 35hp engine.

5.4 Neteja i emmagatzematge generals

After each use, clean the chipper to remove debris, especially from the hopper and discharge chute. Store the chipper in a dry, protected area when not in use.

6. Solució De Problemes

For issues not listed here, or if troubleshooting steps do not resolve the problem, please contact MechMaxx customer support.

7. Especificacions

Figure 7.1: Hopper design for efficient feeding.

Figure 7.2: Detail of the wheel and tow hitch mechanism.

8. Garantia i assistència

For warranty information, please refer to the warranty card included with your product or visit the official MechMaxx weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.

For technical support, parts, or service inquiries, please contact MechMaxx customer service through their official channels. Contact information can typically be found in the product packaging or on the manufacturer's weblloc.

MechMaxx offers comprehensive pre-sales and after-sales services to ensure consumer satisfaction.

You can visit the MechMaxx store for more information: MechMaxx Store on Amazon
