1. Producte acabatview
The Nitecore HC70 UHE is a high-performance, USB-C rechargeable headlamp designed for demanding outdoor and professional applications. It features a powerful 1600-lumen output, dual light sources (white and red), and is bundled with the Carbon 6K Battery Runtime Extender Kit for significantly extended operation.
Aquest capamp is built with durable aero-grade aluminum alloy, offering IP68 waterproof rating and 2-meter impact resistance, making it suitable for various challenging environments including night maintenance, search and rescue, outdoor work, and trekking.
2. Contingut del paquet
Verifiqueu que tots els elements siguin presents al paquet:
- Capçal Nitecore HC70 UHEamp
- Nitecore Carbon Battery 6K
- 2 x Diademes
- 2 cables de càrrega USB-C a USB-C
- Suport
- Clips
- Estoig d'emmagatzematge
3. Configuració
3.1 Attaching the Headlamp and Battery Pack
- Attach the HC70 UHE headlamp unit to the front headband using the integrated bracket.
- Secure the Carbon Battery 6K to the rear headband using its dedicated mount.
- Connecteu el capçalamp to the Carbon Battery 6K using one of the provided USB-C to USB-C charging cables. Ensure a secure connection.
3.2 Càrrega inicial
Abans del primer ús, carregueu completament el capçalamp and the Carbon Battery 6K.
- Connect the USB-C charging cable to the headlamp's USB-C port and to a 5V/2A USB power adapter.
- The intelligent charging circuit allows for use while charging and automatically stops charging once the battery is full. Full charge typically takes 3 hours and 20 minutes.
4. Instruccions de funcionament
4.1 Controls
- Botó d'encesa: Used for turning the headlamp On/Off and adjusting brightness levels.
- Botó MODE: Used for switching between light sources (white/red) and accessing special modes.
4.2 Encès/Apagat
- To turn On: Press and hold the Power Button for 1 second.
- To turn Off: Press and hold the Power Button for 1 second while the light is on.
4.3 Brightness Levels and Modes
The HC70 UHE features both primary white light and auxiliary red light modes.
- Primary White Light: With the light on, short press the Power Button to cycle through brightness levels: ULTRALOW (8 Lumens) → LOW (150 Lumens) → MID (500 Lumens) → HIGH (1000 Lumens) → TURBO (1600 Lumens).
- Llum vermella auxiliar: With the light on, short press the MODE Button to switch to red light. Short press again to cycle through red light modes: LOW (5 Lumens) → HIGH (15 Lumens) → SLOW FLASHING (15 Lumens).
- Special Modes (SOS/BEACON): With the white light on, long press the MODE Button to activate SOS mode. Long press again to activate BEACON mode. Short press the Power Button to exit special modes.
4.4 Red Safety Rear Light
The Carbon Battery 6K features a red safety rear light for added visibility.
- To turn On: Long press the Power Button on the Carbon Battery 6K for 1 second.
- To turn Off: Long press the Power Button on the Carbon Battery 6K for 1 second.
4.5 Indicació d'alimentació
El capamp provides an intuitive power indication system to show remaining battery life.
- 4 Constant-on Blue Bars: 75% - 100% battery
- 3 Constant-on Blue Bars: 50% - 75% battery
- 2 Constant-on Blue Bars: 25% - 50% battery
- 1 Constant-on Blue Bar: 0% - 25% battery
4.6 Runtime Extension with Carbon Battery 6K
When connected to the Carbon Battery 6K, the headlamp's runtime is significantly extended. The Carbon Battery 6K prioritizes its power supply to the headlamp, preserving the headlampla bateria interna.
5. Manteniment
5.1 Neteja
- Netegeu el capamp and battery pack with a clean, damp tela. No utilitzeu netejadors abrasius ni dissolvents.
- Ensure the USB-C port protective cover is properly sealed to prevent dust and water ingress.
5.2 Emmagatzematge
- Guardeu el capamp en un lloc fresc i sec, lluny de la llum solar directa i de temperatures extremes.
- Per a l'emmagatzematge a llarg termini, carregueu la bateria aproximadament al 50% cada tres mesos per mantenir-la en bon estat.
6. Solució De Problemes
- La llum no s'encén: Ensure the battery is charged. Check that the headlamp and Carbon Battery 6K are securely connected.
- Low brightness or short runtime: Recharge the battery. Ensure the USB-C cable is fully inserted during charging. Battery performance may decrease in extremely cold conditions.
- Red Safety Rear Light not working: Ensure the Carbon Battery 6K is charged and the power button on the battery pack is pressed for 1 second.
- If issues persist, refer to the warranty information or contact Nitecore customer support.

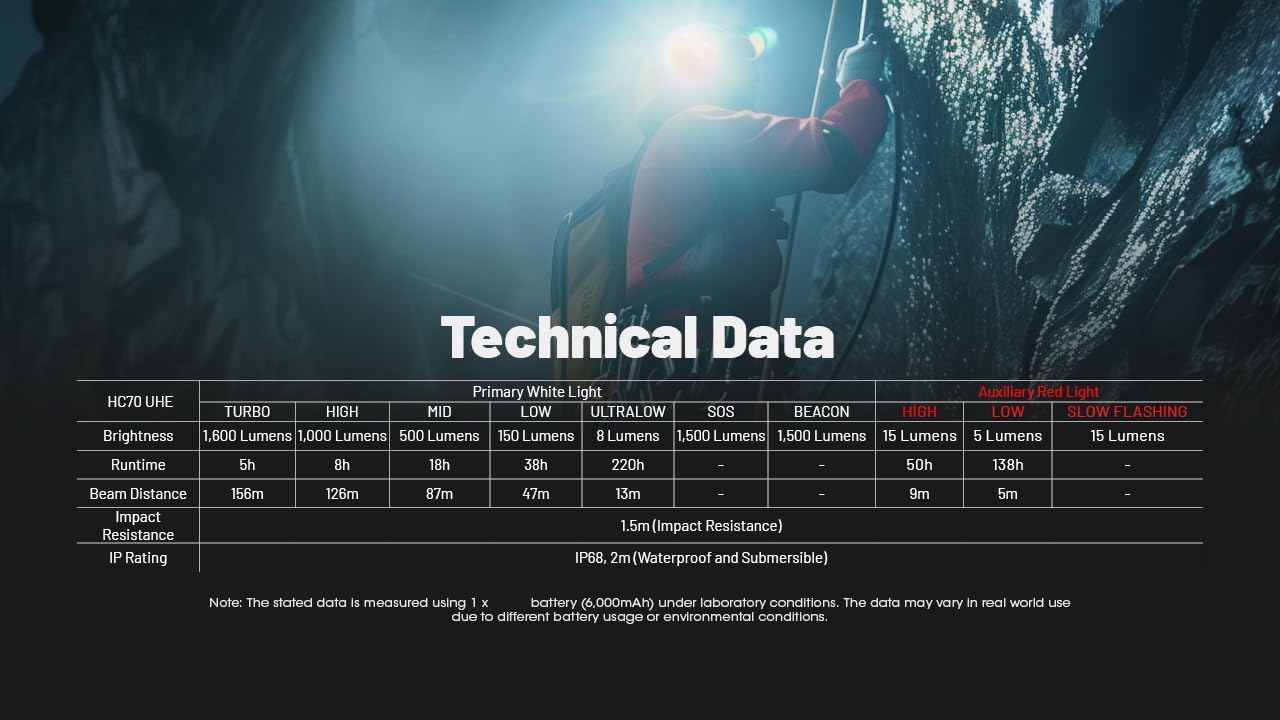

7. Especificacions
Detailed technical specifications for the Nitecore HC70 UHE Headlamp:
| Característica | Especificació |
|---|---|
| Model | HC70 UHE |
| Brillantor màxima | 1600 lúmens |
| Distància màxima del feix | 156 metres (170 iardes) |
| Font d'alimentació | Funciona amb bateria (ió de liti) |
| Port de càrrega | USB-C (5 V) |
| Material | Aero-grade Aluminum Alloy |
| Resistència a l'aigua | IP68 (Waterproof and Submersible) |
| Resistència a l'impacte | 2 metres |
| Característiques especials | Rechargeable, Dual Light Sources (White/Red), Runtime Extender Kit |
8. Garantia i Suport
8.1 Informació de la garantia
This Nitecore product comes with a limited warranty. Please refer to the warranty card included in your package for specific terms and conditions. Keep your purchase receipt as proof of purchase for warranty claims.
8.2 Atenció al client
For technical assistance, troubleshooting, or warranty service, please contact Nitecore customer support through their official website or authorized distributors. You can find more information and contact details by visiting the Botiga Nitecore a Amazon o el seu global weblloc.
