Introducció
Thank you for choosing the VIKIO HOME RC12-30 Inch Under Cabinet Range Hood. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new appliance. Designed with advanced features like 980 CFM powerful suction, intuitive gesture sensing, and easy-to-clean components, this range hood ensures a fresh and clean kitchen environment. Please read this manual thoroughly before use and retain it for future reference.
Figure 1: VIKIO HOME RC12-30 Inch Under Cabinet Range Hood
Informació de seguretat
Always adhere to local electrical codes and regulations during installation. Ensure the power supply is disconnected before performing any maintenance or cleaning. This appliance is intended for household use only. Do not operate the range hood without filters in place. Keep children and pets away from the appliance during operation and maintenance. Avoid open flames under the range hood. Regular cleaning of grease filters is crucial to prevent fire hazards.
Característiques del producte
- Succió potent: Equipped with a 980 CFM motor, capable of refreshing air in a 180 sq. ft. kitchen every 90 seconds, ideal for heavy-duty cooking.
- Advanced Control Panel: Features 3-speed levels with gesture sensing and touch control for convenient and precise operation. The gesture sensor offers 25% more accurate detection.
- Funcionament ultra silenciós: Operates at noise levels as low as 35 dBA at low speeds and under 65 dBA on high, ensuring a peaceful cooking environment.
- Filtració superior: Includes two dishwasher-safe, easy-to-remove stainless steel baffle filters with handles for effective grease capture and easy maintenance.
- Il·luminació eficient: Features 4500K LED lights (GU10 bulbs) that provide clear, natural illumination for your cooking area and are easy to replace.
- Construcció duradora: Made from thickened stainless steel for enhanced durability and premium quality.
Figure 2: 980 CFM Powerful Suction for 180 sq. ft. Kitchens
Figure 3: Quiet Operation with Low Noise Levels
Configuració i instal·lació
The VIKIO HOME RC12-30 is designed for under-cabinet mounting and supports ducted/vented installation. It features a top venting option with a 6-inch adapter for round ductwork, and also accommodates rectangular venting. Ensure your cabinet is 30 inches wide or larger for proper fit. Detailed measurements are provided in the diagram below. Professional installation is recommended for optimal performance and safety.
Requisits de muntatge:
- Suitable for cabinets 30 inches wide or larger.
- Recommended installation height: Max 32 inches, Min 24 inches from the cooking surface.
- Alimentació: 110V, 110 Amperage.
Figure 4: Product Dimensions and Recommended Cabinet Fit
Figure 5: Top Venting Option with 6-inch Adapter
Instruccions de funcionament
Your range hood features a modern control panel with both touch and gesture sensing capabilities for ease of use. This allows for hands-free operation, which is particularly useful when your hands are occupied or dirty during cooking.
Funcions del tauler de control:
- Apagat/Activat: Engegueu o apagueu la unitat.
- Llum: Turn the LED lights on or off.
- Low/Med/High: Select from three fan speed levels to adjust suction power according to your cooking needs.
- Off/On Delay: Activates a delay-off function, allowing the fan to continue running for a set period after cooking to clear residual odors.
Control de gestos:
Simply wave your hand in front of the gesture sensor to activate or adjust fan speeds. This feature prevents accidental triggers and malfunctions, offering a seamless user experience.
Figure 6: Gesture Sensing and Touch Control Panel
Vídeo 1: Acabatview of Range Hood Features and Operation
This video demonstrates the key features of the VIKIO HOME range hood, including its powerful suction, quiet operation, and the convenience of its gesture control panel. It also shows the easy removal of the baffle filters for cleaning.
Manteniment
Regular maintenance ensures the longevity and optimal performance of your range hood. The stainless steel baffle filters are designed for easy cleaning.
Neteja dels filtres deflectors:
- Ensure the range hood is turned off and cool before handling filters.
- Locate the handles on the baffle filters.
- Pull down on the handles to release the filters from their slots.
- The filters are dishwasher-safe. Place them in your dishwasher for thorough cleaning, or wash them by hand with warm, soapy water.
- Allow filters to dry completely before re-inserting them.
- Align the filters with the slots and push them firmly into place until they click.

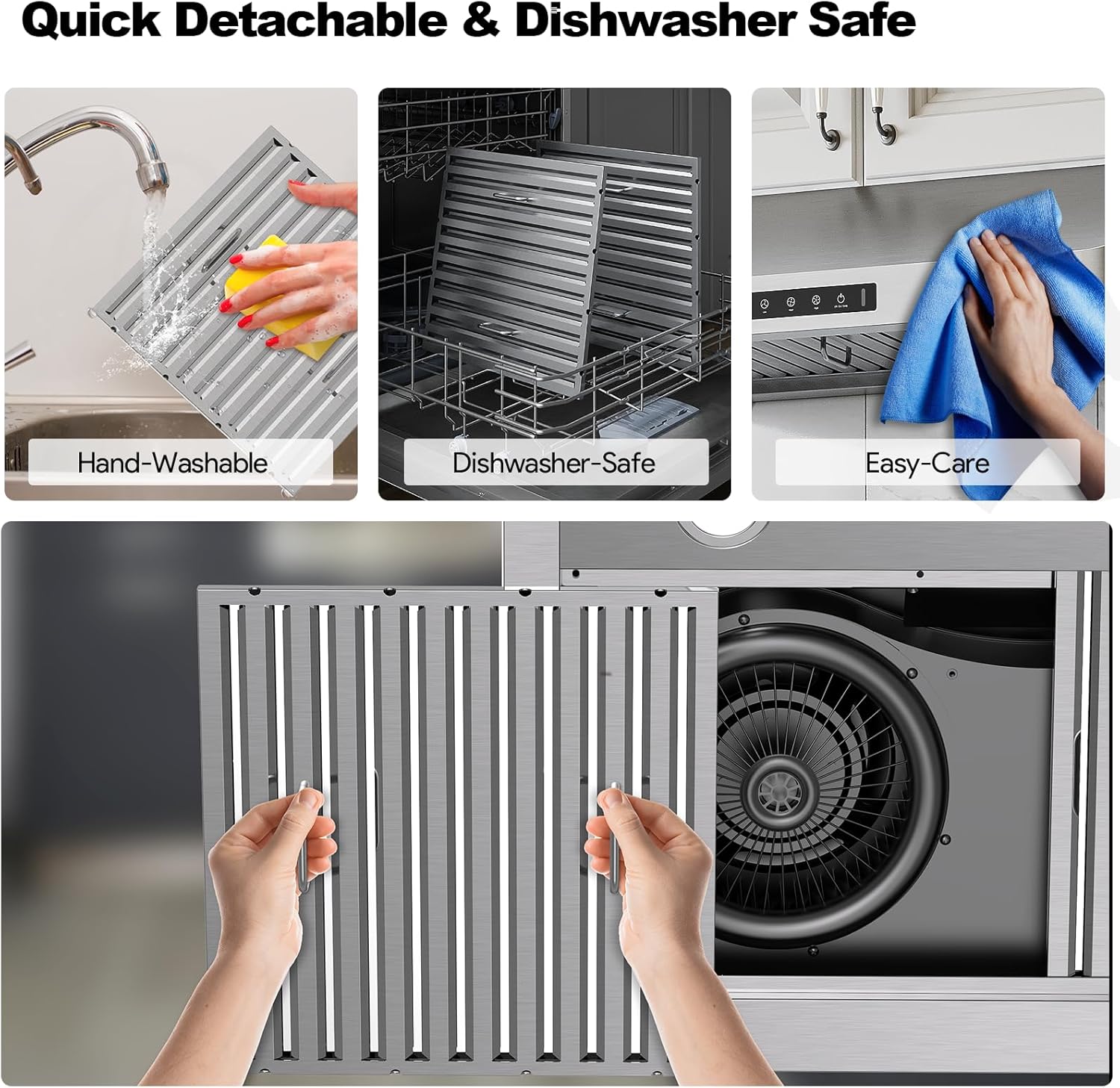

Figure 7: Quick Detachable and Dishwasher-Safe Baffle Filters
Figure 8: Efficient Airflow and Grease Trapping Filter Design
Substitució de la llum LED:
The range hood uses GU10 LED bulbs, which are widely available and easy to replace. Ensure the power is off before attempting to replace bulbs.
Figure 9: 4500K LED Light and Easy Replacement
Resolució de problemes
If you encounter issues with your range hood, refer to the common problems and solutions below. For persistent issues, contact customer support.
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no s'encén | No power supply; circuit breaker tripped; control panel issue. | Check power connection; reset circuit breaker; contact support if control panel is unresponsive. |
| Baixa potència d'aspiració | Clogged filters; improper ducting; motor issue. | Clean or replace filters; check ductwork for obstructions or proper installation; contact support. |
| Soroll excessiu | Loose parts; motor imbalance; improper installation. | Check for loose screws or components; ensure proper installation; contact support. |
| Els llums no funcionen | Bulb burnt out; loose connection; electrical issue. | Replace GU10 LED bulb; check connections; contact support. |
Especificacions
| Especificació | Valor |
|---|---|
| Número de model | VK-RC12-30 |
| Capacitat de cabal d'aire | 980 peus cúbics per minut (CFM) |
| Nivell de soroll | 35-65 dBA |
| Tipus de muntatge | Sota el muntatge del gabinet |
| Tipus de control | Gesture Sensing & Touch Control |
| Nombre de velocitats | 3 |
| Tipus de filtre | Baffle (Stainless Steel, Dishwasher-Safe) |
| Tipus de font de llum | LED (GU10, 4500K) |
| Material | Acer inoxidable |
| Dimensions del producte | 32.68 x 10.43 x 22.83 inches (Packaging) / 19.68"D x 29.5"W x 7"H (Product) |
| Pes de l'article | 45.5 lliures |
| Tipus de ventilació | Ducted/Vented |
| Voltage | 110.0 Volts |
| Ampedat | 110 Amps |
Garantia i Suport
For any questions, technical assistance, or warranty claims, please contact VIKIO HOME customer service. Refer to your purchase documentation for specific warranty terms and contact information. Our dedicated support team is ready to assist you with any inquiries regarding your range hood.
