1. Instruccions de seguretat importants
Please read all instructions carefully before using this walking pad. Keep this manual for future reference.
- Consulteu el vostre metge abans de començar qualsevol programa d'exercici.
- Always wear appropriate athletic footwear while using the walking pad.
- Mantingueu els nens i les mascotes allunyats de la plataforma per caminar durant el funcionament.
- Place the walking pad on a flat, stable surface with adequate clearance around it.
- No feu servir la plataforma per caminar si té el cable o l'endoll danyats o si no funciona correctament.
- Unplug the walking pad from the power outlet when not in use or before cleaning.
- No supereu la capacitat màxima de pes de 340 lliures.
- Assegureu-vos que el cable d'alimentació no estigui pinçat ni danyat durant la instal·lació o l'ús.
2. Producte acabatview
The GYMAX Walking Pad is a versatile 3-in-1 fitness device designed for walking, jogging, and working. Its compact and slim design makes it ideal for small spaces, offering a convenient way to integrate physical activity into your daily routine.
Característiques principals:
- Versatilitat 3 en 1: Supports speeds from 0.6 mph for light desk-side walking to 3.8 mph for energetic jogging.
- Shockproof Running Belt: Features a 7-layer diamond-textured surface with shock absorbers for enhanced comfort and knee protection.
- Smart Fitness Tracking: LED display shows real-time data (time, speed, distance, calories) and connects to the Gymax APP via Bluetooth.
- Motor silenciós sense escombretes: Powered by a 2.5 HP motor for quiet operation (less than 45 dB) suitable for home or office use.
- Compacte i portàtil: Slim 4.6-inch thickness and built-in wheels allow for easy storage and relocation. No assembly required.

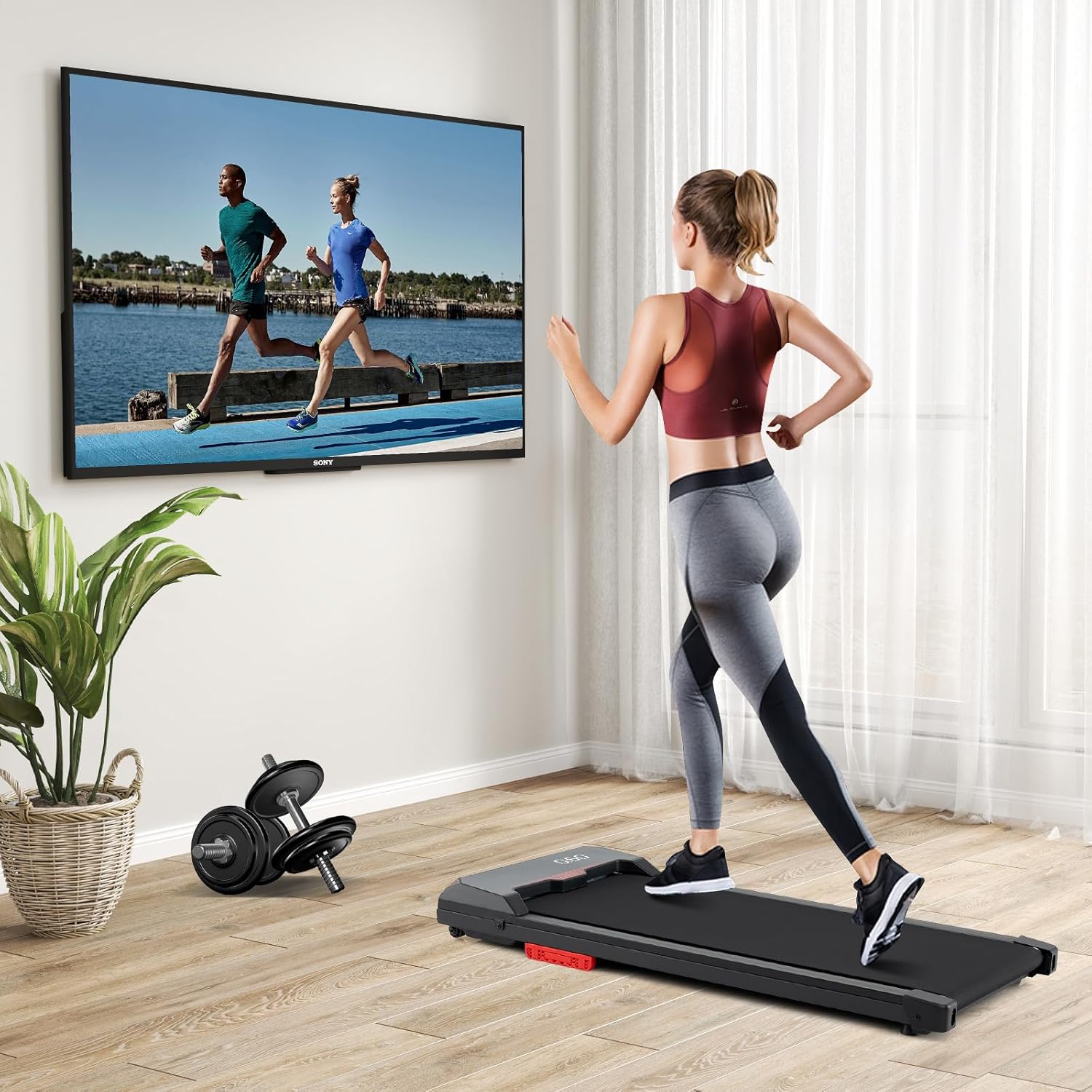

Figure 2.1: GYMAX Walking Pad in a home setting, demonstrating its use for active workdays or leisure.
Figure 2.2: The 3-in-1 versatility of the walking pad, illustrating different speed ranges for working, walking, and jogging.
Figure 2.3: Illustration of the efficient and quiet 2.5 HP brushless motor, highlighting its power and low noise operation.
Figura 2.4: Detallada view of the shock-absorbing and non-slip design of the 7-layer running belt, emphasizing user comfort and safety.
3. Configuració
The GYMAX Walking Pad comes fully assembled, requiring no complex setup. Simply unbox, place, and plug in to begin your workout.
Col·locació inicial:
- Choose a flat, stable surface for the walking pad. Ensure there is sufficient space around the unit for safe operation.
- Connecteu el cable d'alimentació a una presa elèctrica amb connexió a terra.
Storage and Portability:
Gràcies al seu slim profile and built-in wheels, the walking pad is easy to store and move.
Figure 3.1: The walking pad's space-saving design and built-in wheels for effortless movement and storage under furniture.
Figure 3.2: Detailed product dimensions, including length, width, and height, for planning placement and storage.
4. Instruccions de funcionament
Encès/apagat:
- To turn on, ensure the walking pad is plugged in and press the power button on the unit or remote.
- Per apagar-lo, torneu a prémer el botó d'engegada.
Operació de control remot:
The included remote control allows for convenient adjustment of speed and starting/stopping the walking pad.
- Maridatge: Press the "Start/Stop" button on the remote to pair with the walking pad. Success is indicated by "beep beep" sounds.
- Inici/Parada: Press the play/pause button to start or stop the belt.
- Ajust de velocitat: Feu servir els botons "+" i "-" per augmentar o disminuir la velocitat. El rang de velocitat és de 0.6 a 3.8 MPH.
Gymax APP Control:
For enhanced tracking and control, connect your walking pad to the Gymax APP via Bluetooth.
- Descarrega l’APP: Cerca "Gymax" in your device's app store (iOS or Android).
- Connecteu-vos mitjançant Bluetooth: Open the Gymax APP and connect to the device (named "EsangLlinker").
- Característiques: The app provides multiple training courses, a dynamic community, and a sports mall for an optimized fitness experience.
Pantalla LED:
The clear LED display provides real-time feedback on your workout metrics.
- Metrics: Displays Time, Speed, Distance, and Calories burned.
- Cycling Display: The display cycles through these metrics automatically during your workout.
Figure 4.1: The LED display providing real-time fitness data feedback during operation.
Figura 4.2: Mésview of the intelligent Gymax APP control, showing its features and connectivity options.
Figure 4.3: A user demonstrating walking on the pad, highlighting its compatibility with standing desks and remote control.
5. Manteniment
Regular maintenance ensures the longevity and optimal performance of your walking pad.
Neteja:
- Netegeu la plataforma per caminar amb anuncisamp drap després de cada ús per eliminar la suor i la pols.
- Eviteu utilitzar netejadors abrasius o dissolvents que puguin danyar la superfície.
Lubricació:
Proper lubrication of the running belt is crucial for smooth operation and to prevent wear.
- The walking pad includes treadmill lubricant. Refer to the specific lubrication instructions provided in the separate leaflet for frequency and application method.
- Generally, lubrication is recommended after a certain number of hours of use or if the belt feels dry.
Ajust del cinturó:
If the running belt becomes uneven or slips, it may need adjustment.
- Refer to the detailed instructions in the included user manual for adjusting the belt tension and alignment.
- Typically, this involves using an Allen wrench to turn the rear roller bolts.
6. Solució De Problemes
If you encounter issues with your walking pad, please refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Walking pad does not turn on | No connectat; Interruptor apagat; Interruptor automàtic saltat | Ensure power cord is securely plugged in; Turn on power switch; Reset circuit breaker |
| Belt stops or slips during use | Belt too loose; Insufficient lubrication; Overload | Adjust belt tension (refer to manual); Apply lubricant; Reduce weight/speed |
| Soroll inusual de la unitat | Loose parts; Lack of lubrication; Belt rubbing | Check and tighten all visible bolts; Lubricate the belt; Adjust belt alignment |
| El comandament a distància no respon | Battery low/dead; Not paired; Obstruction | Replace battery; Re-pair remote (press Start/Stop); Ensure no obstruction between remote and unit |
| Gymax APP not connecting | Bluetooth off; Incorrect device selected; App issue | Ensure Bluetooth is enabled on your device; Select "EsangLlinker"; Restart app/device |
Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.
7. Especificacions
| Especificació | Valor |
|---|---|
| Marca | GYMAX |
| Nom del model | Coixinet de passeig |
| Color | Negre |
| Dimensions del producte | 42.7 "P x 4.6" W x 18.9" H |
| Pes de l'article | 38.6 lliures |
| Material | Acrylonitrile Butadiene Styrene (ABS), Metal, PC, Polyvinyl Chloride (PVC) |
| Velocitat mínima | 0.6 milles per hora |
| Velocitat màxima | 3.8 milles per hora |
| Potència màxima | 2.5 cavalls de potència |
| Recomanació de pes màxim | 340 lliures |
| Muntatge obligatori | No |
| Tipus de visualització | LED |
| Font d'alimentació | Elèctric amb cable |
| Tecnologia de connectivitat | Bluetooth |
| Nom del programa de control | Gymax |
| Components inclosos | Lubricant, Power Cord, Remote Control, User Manual |
8. Garantia i Suport
Informació de la garantia:
This GYMAX Walking Pad comes with a 90-day warranty from the date of purchase. Please retain your proof of purchase for warranty claims.
Atenció al client:
For any questions, technical assistance, or warranty inquiries, please contact GYMAX customer support. Refer to the contact information provided on the product packaging or the official GYMAX weblloc.
