Manual d'instruccions de la nevera de begudes integrada de doble zona Frigidaire Gallery FGMIS5006AMZCOM

Introducció

This instruction manual provides essential information for the safe and efficient operation, installation, and maintenance of your Frigidaire Gallery FGMIS5006AMZCOM Dual Zone Built-In Beverage Fridge. Please read this manual thoroughly before using the appliance and retain it for future reference.

Your new beverage fridge is designed to store a variety of beverages, including wine bottles and cans, in two independently controlled temperature zones. Its built-in design and stainless steel finish offer both functionality and aesthetic appeal.

Informació important de seguretat

ADVERTIMENT: Per reduir el risc d'incendi, descàrrega elèctrica o lesions quan utilitzeu l'aparell, seguiu aquestes precaucions bàsiques:

• Llegiu totes les instruccions abans d'utilitzar l'aparell.
• No emmagatzemeu ni utilitzeu gasolina o altres vapors i líquids inflamables a prop d'aquest o qualsevol altre aparell.
• Assegureu-vos que l'aparell estigui ben connectat a terra.
• Desendolleu l'aparell abans de netejar-lo o fer-ne cap manteniment.
• Do not allow children to climb, stand, or hang on the shelves of the appliance.
• Mantenir les obertures de ventilació, a la carcassa de l'aparell o a l'estructura integrada, lliures d'obstruccions.
• No utilitzeu dispositius mecànics o altres mitjans per accelerar el procés de descongelació, diferents dels recomanats pel fabricant.
• No danyeu el circuit de refrigerant.
• No utilitzeu aparells elèctrics dins dels compartiments d'emmagatzematge d'aliments de l'aparell, tret que siguin del tipus recomanat pel fabricant.

Advertència de la proposta 65: Aquest producte us pot exposar a substàncies químiques que l'estat de Califòrnia sap que causen càncer i defectes de naixement o altres danys reproductius. Per a més informació aneu a www.P65Warnings.ca.gov.

Configuració i instal·lació

Desembalatge

Carefully remove all packaging materials, including foam and tape. Inspect the appliance for any damage. Keep packaging materials away from children. Remove any protective film from the stainless steel surfaces.

Ubicació i col·locació

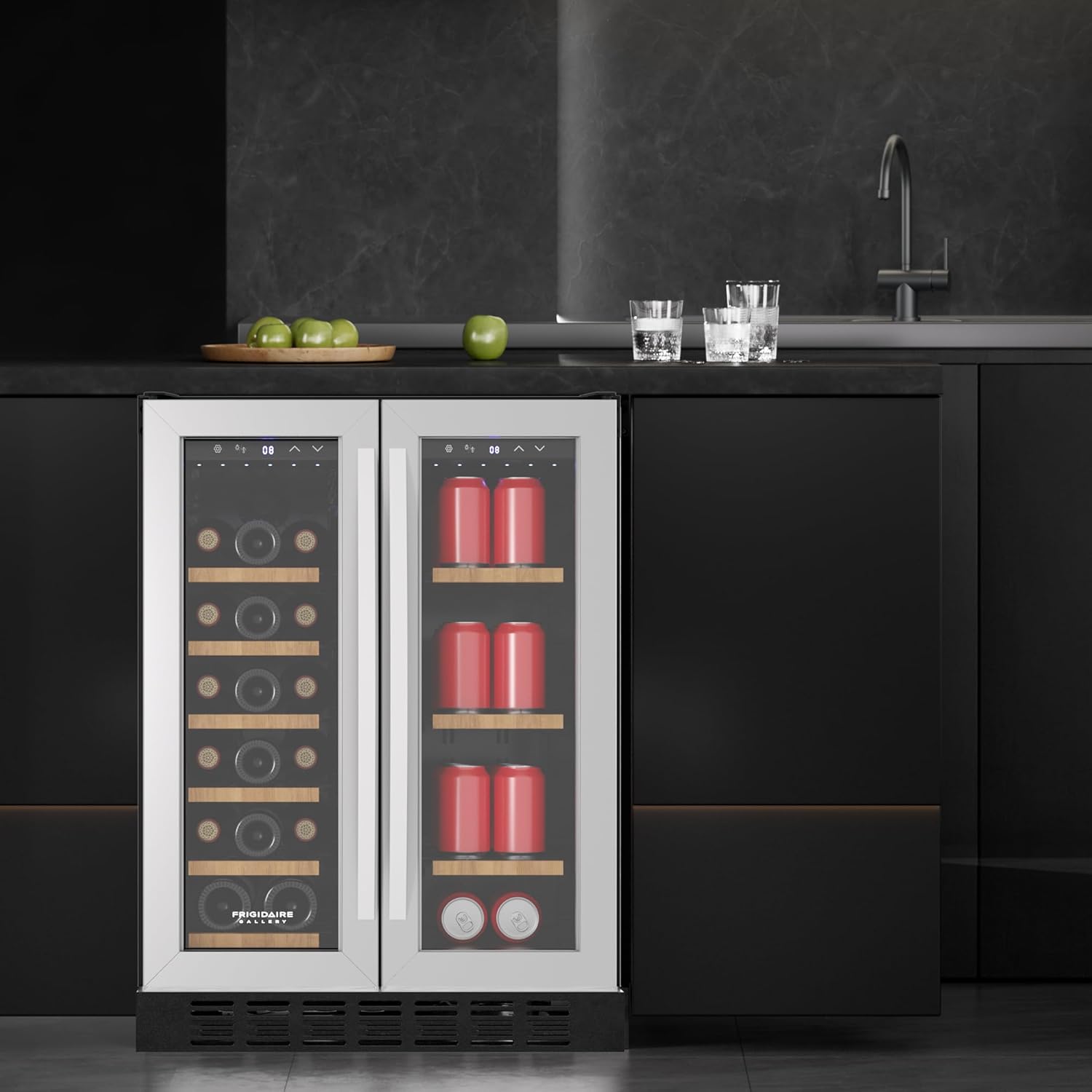

This beverage fridge is designed for built-in installation. Ensure the chosen location meets the following requirements:

• Dimensions: The appliance dimensions are approximately 22.4"D x 23.4"W x 32.2"H. Allow adequate clearance for ventilation around the unit, especially at the front grille.
• Superfície de nivell: Place the unit on a flat, level surface capable of supporting its weight (approximately 101.4 pounds when empty, more when full).
• Temperatura: Avoid placing the unit in direct sunlight or near heat sources (e.g., oven, radiator). The ambient temperature should be between 60°F (16°C) and 90°F (32°C).
• Ventilació: Ensure the front grille is not obstructed to allow proper airflow for the cooling system.

Connexió elèctrica

Connect the appliance to a dedicated, grounded 110-120 Volt, 60 Hz, 15 Amp AC-only electrical outlet. Do not use an extension cord or adapter plug. Ensure the power cord is not pinched or damaged.

Instal·lació del mànec

The handle is included in the packaging. Align the handle with the pre-drilled holes on the door and secure it using the provided screws. Do not overtighten.

Anivellació de l'aparell

Adjust the leveling legs at the bottom of the unit to ensure it is stable and level. A level appliance operates more efficiently and prevents door alignment issues.

Instruccions de funcionament

Inici inicial

After installation, allow the appliance to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant to settle. Once plugged in, allow the unit to cool for several hours before loading beverages.

Dual Zone Temperature Control

This beverage fridge features two independent temperature zones, allowing you to store different types of beverages at their optimal temperatures. The left zone is typically for wine bottles, and the right zone for cans.

• Ajust de temperatura: Use the digital control panels located at the top of each door to set the desired temperature for each zone. Refer to the display for current temperature readings.
• Temperatures recomanades:
  • Wine (Left Zone): 45-65°F (7-18°C)
  • Cans/Beverages (Right Zone): 35-50°F (2-10°C)

Loading Capacity and Shelves

The left zone can accommodate up to 18 standard wine bottles on its wooden shelves. The right zone can store up to 41 standard beverage cans. Arrange beverages to allow for proper air circulation.

The wooden shelves are designed for easy removal and adjustment to accommodate various bottle and can sizes. To remove a shelf, gently lift the front edge and pull it out.

Frost-Free Venting Process

The appliance features a frost-free air cooling system. This system automatically manages frost buildup, optimizing efficiency and minimizing the need for manual defrosting. Ensure the internal air vents are not blocked by beverages.

French Door Opening

The French door design allows each zone to be accessed independently. This improves accessibility and helps maintain stable temperatures in the unused zone.

Manteniment i cura

Neteja

• Exterior: Clean the exterior surfaces, including the stainless steel doors and handles, with a mild detergent and a soft cloth. Avoid abrasive cleaners.
• Interior: Unplug the unit before cleaning. Wash the interior surfaces, shelves, and gaskets with a solution of mild detergent and warm water. Rinse thoroughly and dry completely before plugging the unit back in.
• Bobines del condensador: Periodically clean the condenser coils located at the back or bottom of the unit to ensure efficient operation. Use a soft brush or vacuum cleaner.

Descongelació automàtica

This appliance is equipped with an automatic defrost system. Frost that forms on the evaporator will melt during the off-cycle of the compressor and drain into a drip tray. This water then evaporates. No manual defrosting is typically required.

Interrupció elèctrica

En cas d'una potènciatage. mantingueu les portes tancades per mantenir la temperatura interna el màxim temps possible. Eviteu obrir les portes innecessàriament.

Vacances i emmagatzematge

For long periods of absence, unplug the unit, empty it, clean it thoroughly, and leave the doors slightly ajar to prevent odors and mold growth.

Guia de resolució de problemes

Abans de contactar amb el servei d'atenció al client, consulteu els següents problemes comuns i les seves possibles solucions:

Especificacions

Garantia i assistència al client

Informació de la garantia

This Frigidaire Gallery appliance is covered by a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official Frigidaire weblloc web per conèixer els termes i condicions detallats. Conserveu el comprovant de compra per a reclamacions de garantia.

Atenció al client

For technical assistance, service, or to order replacement parts, please contact Frigidaire customer support. Contact information can typically be found on the manufacturer's website or in the product registration materials.

When contacting support, please have your model number (FGMIS5006AMZCOM) and serial number ready.
