Blackstone 22 Inch Portable Griddle Instruction Manual

Introducció

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Blackstone 22-inch Portable Griddle. Please read it thoroughly before assembly or use.

Informació de seguretat

Always follow basic safety precautions when using this appliance to reduce the risk of fire, explosion, or injury.

• Llegiu totes les instruccions abans de fer servir la planxa.
• Use outdoors only. Do not operate indoors or in an enclosed area.
• Mantingueu els nens i les mascotes allunyats de la planxa durant el funcionament.
• Assegureu-vos una ventilació adequada.
• No emmagatzemeu ni utilitzeu gasolina o altres vapors i líquids inflamables a prop d'aquest o qualsevol altre aparell.
• Comproveu sempre si hi ha fuites de gas abans de cada ús.

Producte acabatview

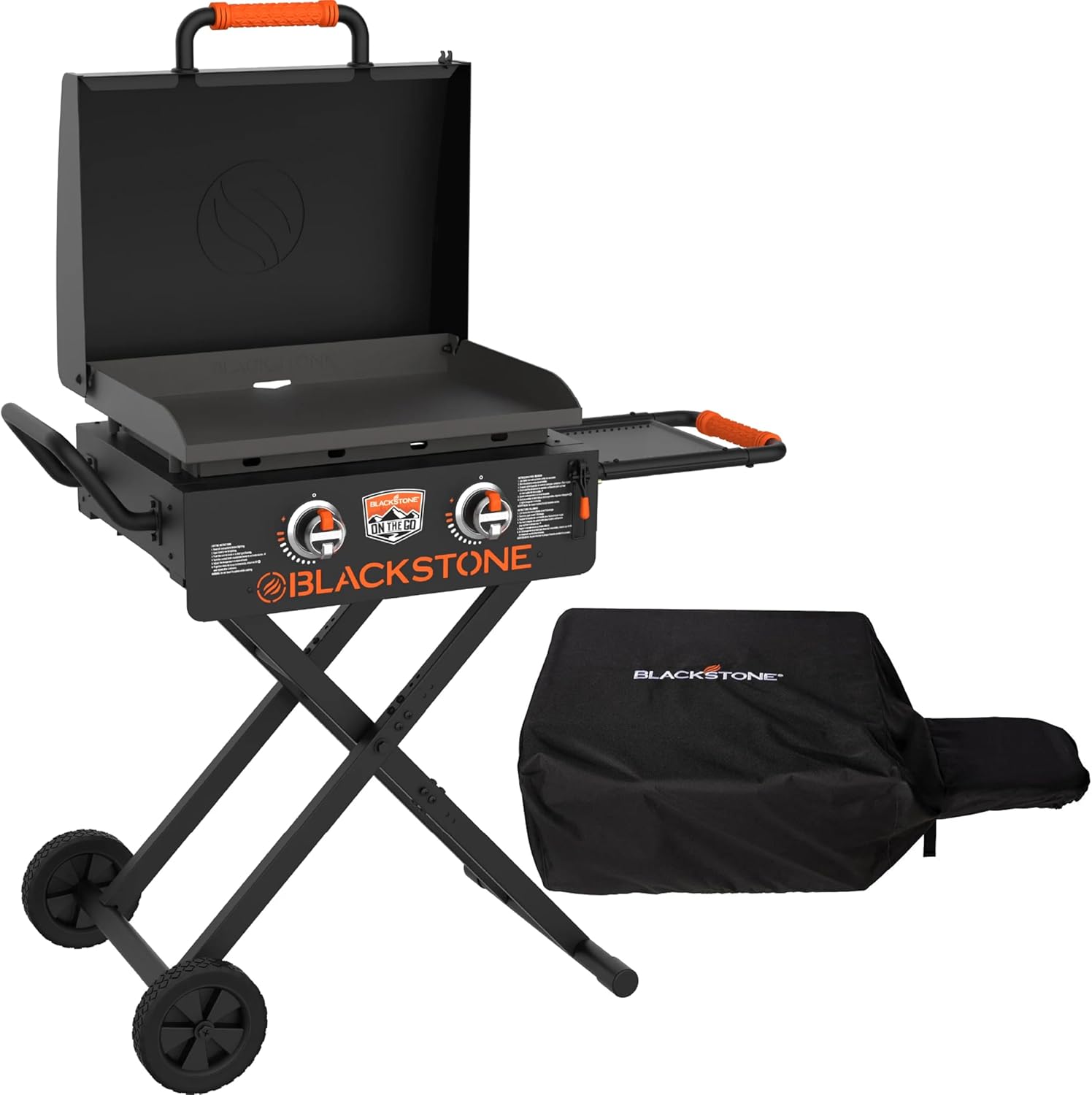

The Blackstone 22-inch Portable Griddle (Model 2350-5608) is designed for versatile outdoor cooking. It features a collapsible structure with a secure locking hood, smooth-rolling wheels, and foldable legs for easy transportation. This model includes a durable griddle cover for protection during travel and storage. The griddle is equipped with Omnivore Griddle Plate Technology for consistent heat distribution and two independently controlled cooking zones.

The griddle's dimensions are approximately 17 inches deep, 22 inches wide, and 30 inches high when assembled. The compact design allows for easy setup and breakdown.

This griddle features two independently controlled cooking zones, allowing you to cook different foods at varying temperatures simultaneously. The Omnivore Griddle Plate Technology ensures even heat distribution across both zones, preventing hot spots and cold spots.

Configuració

Desembalatge i inspecció inicial

1. Traieu amb cura tots els components de l'embalatge.
2. Check for any shipping damage or missing parts. Refer to the packing list.
3. Ensure all protective materials are removed from the griddle surface and components.

Assemblea

The Blackstone 22-inch Portable Griddle is designed for minimal assembly. The legs are Flexfold, meaning they are integrated and fold out for use.

1. Col·loqueu la planxa sobre una superfície plana i estable.
2. Unfold the Flexfold legs until they lock securely into place.
3. Attach the side shelf if it is not pre-attached.
4. Connect the propane tank (not included) to the regulator hose. Ensure all connections are tight.

Condimentant la planxa

Before first use, the griddle surface must be seasoned to create a non-stick cooking surface and protect against rust.

1. Clean the griddle surface with hot, soapy water and dry thoroughly.
2. Apply a thin, even layer of high-heat cooking oil (e.g., flaxseed, vegetable, or Blackstone seasoning blend) to the entire cooking surface.
3. Turn the griddle to medium-high heat. The oil will smoke and eventually burn off.
4. Once the smoke stops, turn off the griddle and let it cool.
5. Repeat this process 3-5 times, or until the griddle surface is dark brown/black and has a smooth, non-stick finish.

Instruccions de funcionament

Encesa

1. Assegureu-vos que la bombona de propà estigui connectada i que el subministrament de gas estigui obert.
2. Turn one of the control knobs to the HIGH position.
3. Press the igniter button (if equipped) or use a long lighter to ignite the burner.
4. Once ignited, adjust the flame to the desired cooking temperature.
5. Repeat for the second burner if needed.

Cuinar

The griddle's two independent cooking zones allow for simultaneous preparation of different foods. Preheat the griddle to your desired temperature. Apply a small amount of cooking oil before placing food on the surface. The Omnivore Griddle Plate Technology ensures even heat distribution for consistent cooking results.

Sistema de gestió de greixos

The Blackstone griddle features a Rear Grease Management System. Excess grease and food debris can be pushed into the opening at the rear of the griddle, which directs it into a removable grease cup hooked onto the back. This system helps keep the cooking surface clean and simplifies cleanup.

Manteniment

Després de cada ús

1. Allow the griddle to cool down.
2. Scrape off any food residue with a griddle scraper.
3. Wipe the surface clean with a paper towel. For stubborn residue, pour a small amount of water on the hot griddle and scrape.
4. Apply a thin layer of cooking oil to the griddle surface to maintain seasoning and prevent rust.
5. Empty and clean the grease cup.

Emmagatzematge

When not in use, especially during transport or extended storage, cover the griddle with the included 22-inch On The Go Flexfold Griddle Cover. This cover is designed to protect the griddle from dust, debris, and weather conditions. The griddle's foldable legs and wheels allow for compact storage and easy movement.

The griddle's portable design, with its wheels and handle, allows it to be easily pulled like a suitcase when folded. This makes it convenient for transport to various outdoor locations.

Resolució de problemes

Especificacions

• Marca: PEDRA NEGRA
• Número de model: 2350-5608
• Dimensions del producte (muntat): 17 "P x 22" W x 30" H
• Superfície de cocció: Approximately 361 square inches (22¼" x 16¼")
• Tipus de combustible: Gas (propà)
• Material: Carbon Steel (griddle), Alloy Steel (frame)
• Color: Negre
• Característica especial: Portable, Flexfold Legs, Omnivore Griddle Plate Technology, Rear Grease Management System, Two Independently Controlled Cooking Zones
• Components inclosos: Coberta de la planxa
• Pes de l'article: 84 lliures
• UPC: 850067184263

Garantia

This Blackstone griddle comes with a Garantia limitada de 1 anys from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full warranty details, refer to the official Blackstone weblloc o contacteu amb el servei d'atenció al client.

Suport

For further assistance, technical support, or to purchase replacement parts, please visit the official Blackstone website or contact their customer service department. Always provide your model number (2350-5608) when seeking support.

Blackstone Official Weblloc: www.blackstoneproducts.com
