Introducció
Thank you for choosing the Xiaomi 33W Power Bank with Integrated Cable. This portable power bank is designed to provide efficient and fast charging for your mobile devices on the go. Featuring a 10,000 mAh capacity, 33W MAX high power output, two-way fast charging, and a convenient built-in USB cable, it offers a reliable power solution in a compact, easy-to-grip design. Please read this manual carefully before use to ensure proper operation and maintenance.
Informació de seguretat
- Do not disassemble, impact, or puncture the device.
- Keep the power bank away from heat sources, direct sunlight, and flammable materials.
- No exposeu el dispositiu a aigua o altres líquids.
- Use only certified chargers and cables for charging the power bank and your devices.
- Mantenir fora de l'abast dels nens.
- Desfeu-vos del banc d'energia extern d'acord amb la normativa local. No el llenceu amb les escombraries domèstiques.
- Eviteu temperatures extremes (per sota de 0 °C o superiors a 45 °C).
Producte acabatview
Familiarize yourself with the components of your Xiaomi 33W Power Bank.
Figura 1: Davant view of the Xiaomi 33W Power Bank, showing its compact design and integrated cable.
- Cable USB-C integrat: Conveniently built-in for direct charging of compatible devices.
- Port de sortida USB-A: For charging devices using a standard USB-A cable.
- Port d'entrada/sortida USB-C: For charging the power bank itself or charging devices with a USB-C to USB-C cable.
- Botó d'encesa: Per comprovar el nivell de la bateria o iniciar la càrrega.
- Indicadors LED: Four LED lights indicating the remaining battery capacity.
Configuració
Carregant el Power Bank
Before first use, fully charge your power bank. It is recommended to use a 33W or higher power adapter for optimal charging speed.
- Connect a USB-C charging cable (not included, or use the integrated cable if it can be used for input) to the USB-C input/output port of the power bank.
- Connect the other end of the cable to a compatible USB power adapter.
- Els indicadors LED s'il·luminaran per mostrar el progrés de la càrrega. Els quatre LED estaran fixos quan estigui completament carregat.
Figura 2: Illustration of the power bank's internal 5000mAh x2 battery cells, highlighting its large capacity for reliable charging.
Instruccions de funcionament
Carregant els teus dispositius
The power bank supports fast charging and can charge multiple devices simultaneously.
- Ús del cable integrat: Pull out the built-in USB-C cable and connect it directly to your USB-C compatible device.
- Ús del port USB-A: Connecta el cable de càrrega del dispositiu al port de sortida USB-A del banc d'alimentació.
- Ús del port USB-C: Connect your device's USB-C to USB-C charging cable to the USB-C input/output port on the power bank.
- El carregador extern començarà a carregar el dispositiu automàticament. Si no, prem el botó d'engegada una vegada.
Figura 3: The power bank simultaneously charging a smartphone, smartwatch, and earbuds, demonstrating its multi-device charging capability.
Comprovació del nivell de la bateria
Premeu el botó d'engegada una vegada per comprovar el nivell restant de la bateria. Els indicadors LED s'il·luminaran:
- 1 LED: 0-25%
- 2 LED: 25-50%
- 3 LED: 50-75%
- 4 LED: 75-100%
Figura 4: Visual representation of the 33W MAX fast charging capability, showing charging times for various Xiaomi devices.

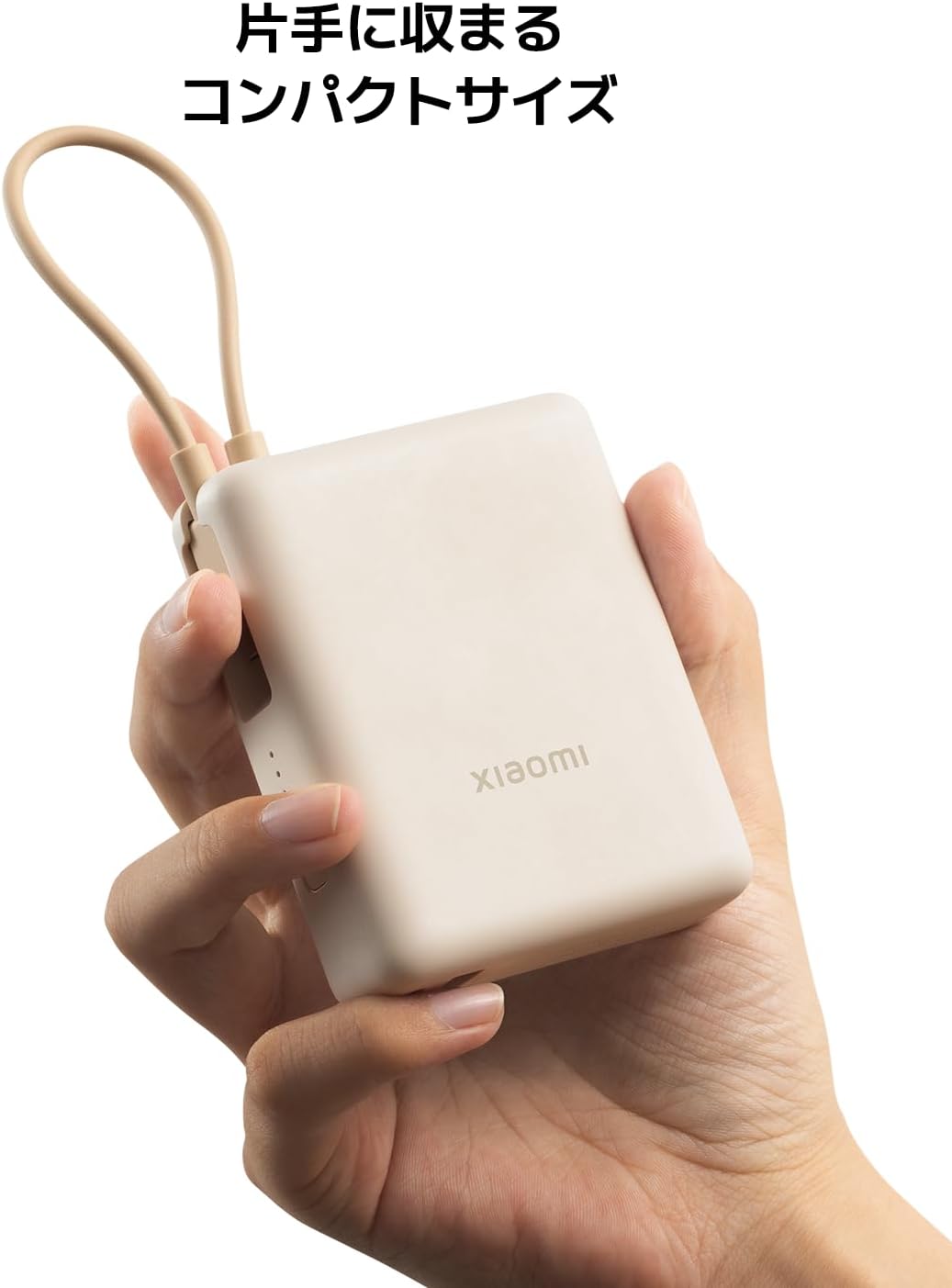

Figura 5: The power bank held in a hand, illustrating its compact and easy-to-grip design.
Manteniment
- Netegeu el banc d'energia amb un drap suau i sec. No utilitzeu netejadors abrasius ni dissolvents.
- Guardeu el banc d'energia en un lloc fresc i sec quan no l'utilitzeu.
- Eviteu deixar caure o sotmetre el banc d'energia a forts impactes.
- If the power bank will not be used for an extended period, charge it to about 50% every three months to prolong battery life.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El banc d'energia no es carrega | Cable not connected properly; faulty cable/adapter; power bank fully discharged. | Ensure connections are secure. Try a different cable and adapter. Allow a few minutes for the power bank to respond if deeply discharged. |
| El dispositiu no es carrega des del banc d'energia | Power bank is discharged; cable not connected properly; device not compatible; power button not pressed. | Charge the power bank. Ensure connections are secure. Press the power button. Verify device compatibility. Try a different cable. |
| Càrrega lenta | Using a low-power adapter/cable; device does not support fast charging; multiple devices charging simultaneously. | Use a 33W or higher power adapter and a fast-charging cable. Ensure your device supports fast charging. Charging multiple devices may reduce individual charging speeds. |
Especificacions
- Número de model: BHR9333GL
- Dimensions del producte: 8.09 x 6.59 x 2.6 cm
- Pes de l'article: 230 g
- Capacitat de la bateria: 10,000 mAh (5000mAh x2)
- Potència de sortida màxima: 33W
- Característiques especials: Fast Charging, Integrated Cable
- Tipus de connector: USB-C (integrated), USB-A, USB-C (port)
- Color: Tan
- Data de primera disponibilitat: 3 de febrer de 2025
Garantia i Suport
This Xiaomi product is covered by a limited warranty. For detailed warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Xiaomi website. If you encounter any issues or require technical assistance, please contact Xiaomi customer support through their official channels.
