COSWHEEL R19 Electric Dirt Bike User Manual

1. Introducció

Welcome to the COSWHEEL R19 Electric Dirt Bike experience. This manual provides essential information for the safe operation, maintenance, and optimal performance of your electric bike. Please read it thoroughly before your first ride and keep it for future reference.

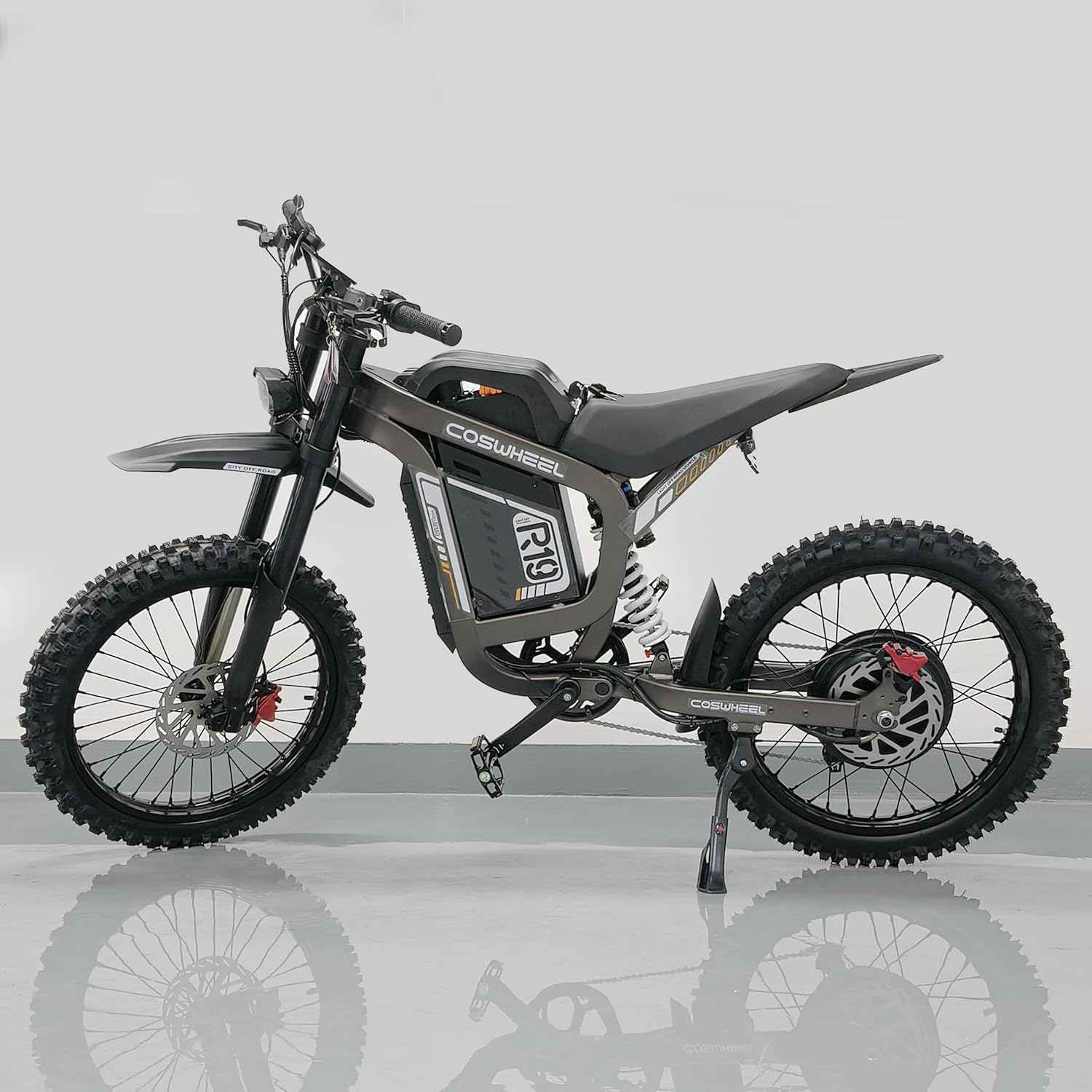

Image: The COSWHEEL R19 Electric Dirt Bike, showcasing its robust design and off-road tires, ready for adventure.

2. Informació de seguretat

Your safety is paramount. Always wear appropriate safety gear, including a helmet, gloves, and protective clothing, when operating the COSWHEEL R19. Be aware of your surroundings and local regulations.

Advertències importants:

• The factory configuration of the R19 is primarily designed for road and light off-road use.
• Ho és not intended for jumping or aerial maneuvers unless the rear suspension has been adjusted with specific rebound and compression damping settings for such purposes, or unless the bike has been modified with front forks and a rear suspension system specifically intended for these activities.
• Always perform a pre-ride inspection to ensure all components are secure and functioning correctly.
• Familiarize yourself with the controls and braking system before riding at high speeds.

3. Configuració i muntatge

The COSWHEEL R19 Electric Dirt Bike comes largely pre-assembled. Minimal setup is required to get you riding quickly.

Components inclosos:

• R19 Ebike x1
• Parafang x2
• Carregador x1
• Manual x1
• Tool Bag x1

Passos inicials:

1. Unboxing: Traieu amb cura la bicicleta i tots els components de l'embalatge.
2. Ajust del manillar: Adjust the handlebars to a comfortable riding position and secure them firmly.
3. Instal·lació de pedals: Attach the pedals to the crank arms. Ensure they are tightened correctly (left pedal is reverse threaded).
4. Instal·lació de la bateria: Insert the 72V/40Ah battery securely into its compartment. Ensure it is locked in place.
5. Encès: Use the provided key to activate the bike's power system. The display will illuminate.

4. Instruccions de funcionament

Controls i visualització:

• Headlight & Horn: Located on the left handlebar, these controls activate the bright LED headlight and horn for visibility and safety.
• Pedal Assist (PAS) Modes: The digital display shows battery level, speed, and current PAS mode. Adjust PAS levels to control motor assistance while pedaling.
• Assistència de l'accelerador: Engage the throttle for pure electric power without pedaling.
• Shimano 7-Speed Gear: Utilize the 7-speed gear shifter on the right handlebar for mechanical pedaling efficiency across various terrains.
• Fork Suspension Adjustment: The front fork suspension can be adjusted for optimal comfort and handling on different surfaces.

Key Features for Performance:

• Unmatched Power & Speed: Powered by a 6000W peak motor, the R19 delivers a top speed of over 50MPH, offering thrilling acceleration and effortless hill-climbing.
• Superior Comfort & Control: Featuring a full suspension system, including a professionally tuned rear shock and forged front fork, this bike provides a smooth and stable ride by absorbing shocks and bumps on uneven terrains.
• 19" Aggressive Off-Road Tires: Equipped with reinforced construction and deep treads for unstoppable traction, allowing you to crush rocks, mud, and dirt with confidence.

Imatge: Una imatge detallada view of the 19-inch aggressive off-road tire, highlighting its deep treads designed for superior traction on challenging terrains.

Image: An internal diagram illustrating the powerful 6000W high-speed motor, emphasizing its instant acceleration and relentless top speed capabilities.

Image: A close-up of the multi-shock suspension system, featuring a performance saddle, professionally tuned rear shock, and forged front fork for long-ride comfort and precise handling.

5. Bateria i càrrega

The R19 is equipped with a high-capacity battery for extended rides.

• Tipus de bateria: Massive 72V/40Ah Lithium-ion battery (2880 Watt Hours).
• Interval màxim: Up to 125 miles per charge, outranging most models on the market.
• Temps de càrrega: Recharges in just 6 hours.
• Modes de càrrega: Supports direct charging or unlocking the battery pack for external charging.

Imatge: Una imatge detallada view of the 72V 40AH high-density battery, emphasizing its large capacity for extended range and unwavering power.

6. Manteniment

Regular maintenance ensures the longevity and safety of your COSWHEEL R19.

• Neteja regular: Keep your bike clean, especially after off-road rides, to prevent dirt and debris buildup.
• Inspecció de frens: Regularly check the front and rear dual hydraulic brake system for wear and proper function.
• Pressió dels pneumàtics: Mantingueu la pressió correcta dels pneumàtics per a un rendiment i una seguretat òptims.
• Comprovació de la suspensió: Inspect the full suspension system for any damage or leaks.
• Cura de la bateria: Store the battery in a cool, dry place and charge it regularly, even when not in use, to prolong its lifespan.

7. Solució De Problemes

If you encounter issues with your COSWHEEL R19, refer to the following common troubleshooting tips:

• Bike Not Powering On: Ensure the battery is fully charged and correctly installed. Check that the key is turned to the 'on' position.
• El motor no s'engega: Verify that the pedal assist (PAS) mode is active or the throttle is engaged. Check for any loose cable connections.
• Frens que no responen: Inspect brake pads for wear and ensure brake levers are properly adjusted. If hydraulic, check fluid levels.
• Abast reduït: This may indicate a low battery charge, extreme riding conditions, or a need for battery recalibration.
• Sorolls inusuals: Stop riding immediately and inspect the bike for loose components, chain issues, or suspension problems.

For persistent issues, please contact COSWHEEL customer support.

8. Especificacions

Detailed technical specifications for the COSWHEEL R19 Electric Dirt Bike:

Imatge: Un primer pla view of the aircraft-grade 6061-T6 aluminum alloy frame, highlighting its robust construction and superior strength.

9. Garantia i assistència

Informació de la garantia:

The COSWHEEL R19 comes with a limited warranty. Main components are covered with a 6-12 month warranty. Please refer to the included manual for specific terms and conditions.

Atenció al client:

For any questions, technical assistance, or warranty claims, please contact COSWHEEL RETAILER customer support. You can also visit the COSWHEEL Store on Amazon per obtenir més informació i recursos de suport.
