Introducció
Thank you for choosing the Homary Smart Toilet with Built-In Bidet. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new smart toilet. Please read this manual thoroughly before installation and use, and retain it for future reference.
This smart toilet is designed to offer a hands-free, hygienic, and comfortable bathroom experience with features such as automatic lid opening, foot-sensor flushing, a built-in bidet with adjustable settings, a heated seat, and ambient lighting.
Informació de seguretat
Si us plau, observeu les següents precaucions de seguretat per evitar lesions o danys al producte:
- Assegureu-vos que el vàter sigui instal·lat per un professional qualificat d'acord amb les normes locals de fontaneria i electricitat.
- Do not expose the product to excessive moisture or direct water spray, except for intended cleaning.
- No intenteu desmuntar ni reparar la unitat vosaltres mateixos. Poseu-vos en contacte amb el servei d'atenció al client per obtenir ajuda.
- Mantingueu el comandament a distància allunyat de l'aigua i de les temperatures extremes.
- Assegureu-vos que la presa de corrent estigui correctament connectada a terra.
S'han acabat les característiques del producteview
The Homary Smart Toilet integrates advanced features for enhanced hygiene and comfort:
Vídeo de demostració del producte
This video demonstrates the key features and functions of the Homary Smart Bidet Toilet, including automatic lid opening, bidet wash modes, heated seat, and flushing.
Instal·lació
Proper installation is crucial for the optimal performance and longevity of your smart toilet. It is highly recommended to have this product installed by a certified plumber.
Llista de verificació prèvia a la instal·lació:
- Comproveu que tots els components estiguin presents i sense danys.
- Ensure water supply and electrical outlet (120V AC, 60Hz, dedicated circuit recommended) are available at the installation site.
- Confirm rough-in dimensions match the product specifications.
Dimensions aproximades:
For detailed step-by-step installation instructions, please refer to the separate installation guide provided with your product packaging.
Instruccions de funcionament
Familiarize yourself with the various functions of your smart toilet using the remote control and integrated sensors.
Automatic Lid & Seat Functions:
- Auto Open/Close: The lid will automatically open when a user approaches and close after they leave.
- Foot-Activated Seat Opening: Gently tap the foot sensor located at the base of the toilet to open the seat for standing use.

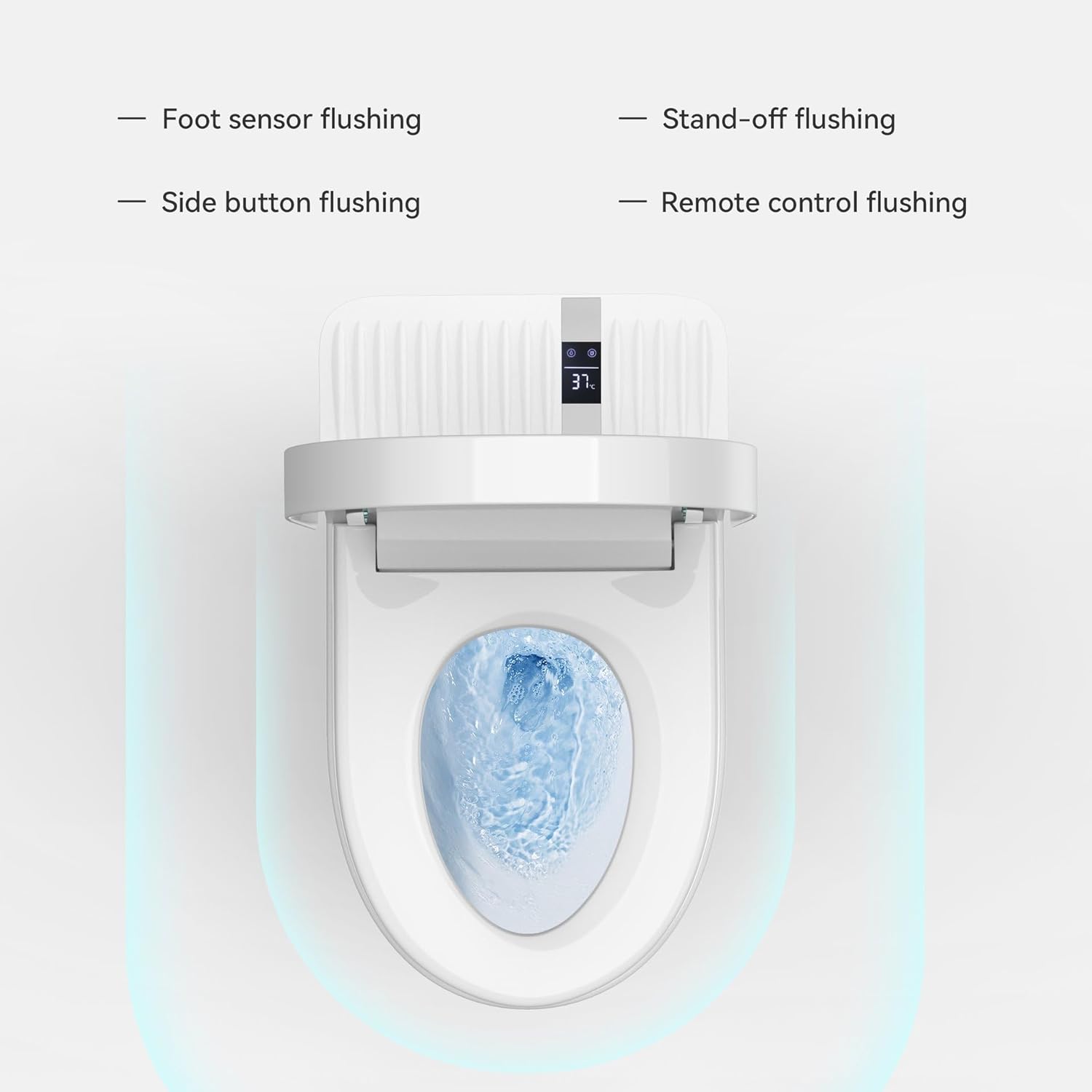

Opcions de buidatge:
- Foot Sensor Flushing: Tap the foot sensor to initiate a flush.
- Remote Control Flushing: Use the dedicated flush button on the remote.
- Side Button Flushing: A manual flush button is located on the side of the toilet for convenience.
- Stand-off Flushing: The toilet can be configured to flush automatically after the user stands up and moves away.
- Apagada d'energiatage Flush: En cas d'una potènciatage, a manual flush mechanism is available to ensure functionality.
Funcions del bidet:
Use the remote control to select and adjust bidet settings:
- Temperatura de l'aigua: Adjust to your preferred warmth (e.g., 34°C, 37°C, 40°C).
- Pressió de l'aigua: Increase or decrease water intensity.
- Posició del broquet: Adjust the nozzle forward or backward for optimal cleaning.
- Modes de rentat: Select from Female Cleanse, Posterior Cleanse, Children Cleanse, or Massage mode.
- Autoneteja de broquets: The nozzle performs an automatic self-clean before and after each use.
Característiques de comoditat:

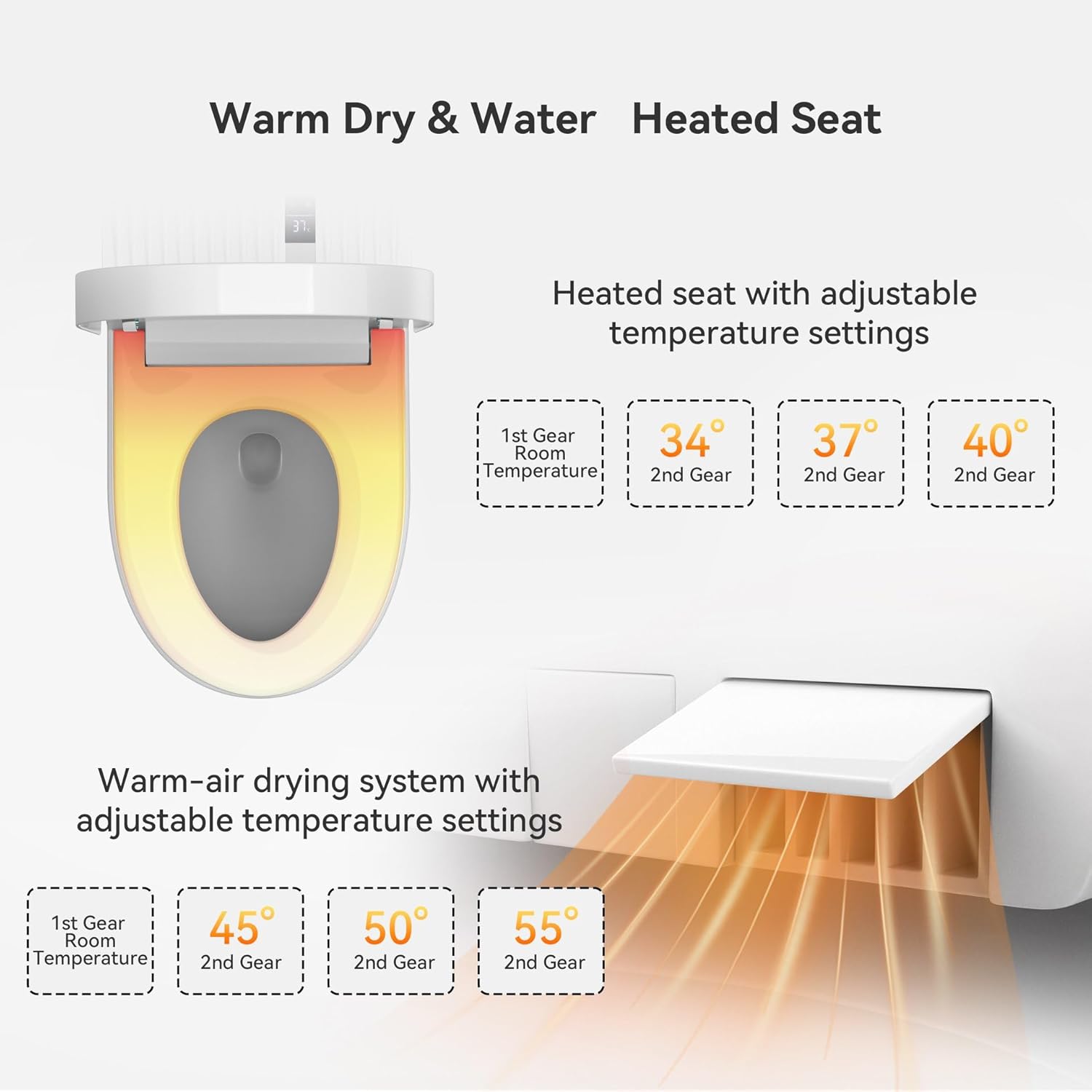

- Seient calefactat: Adjust the seat temperature for year-round comfort.
- Warm-Air Drying: After bidet use, activate the warm-air dryer to reduce the need for toilet paper. Adjust air temperature as desired.
- Ambient Lighting / Night Light: The built-in LED lighting provides a soft glow, enhancing safety and visibility during nighttime use.
Manteniment
Regular cleaning and maintenance will ensure the longevity and hygienic performance of your smart toilet.
Neteja exterior:
- Netegeu les superfícies exteriors amb un damp drap i un netejador suau i no abrasiu.
- Eviteu utilitzar productes químics agressius, esponges abrasives o dissolvents, ja que poden danyar l'acabat.
- Assegureu-vos que no entri aigua als components elèctrics.
Neteja de broquets:
- El broquet del bidet realitza un cicle d'autoneteja automàtic.
- For deeper cleaning, gently pull out the nozzle and wipe it with a soft cloth and mild soap. Do not use excessive force.
Neteja de bols:
- Use a toilet brush and a standard toilet bowl cleaner.
- Flush thoroughly after cleaning.
Resolució de problemes
If you encounter any issues, please refer to the following common troubleshooting steps before contacting customer service.
| Problema | Causa possible | Solució |
|---|---|---|
| Sense alimentació / La unitat no respon | Cable d'alimentació desconnectat, interruptor automàtic saltat, corrent apagattage. | Comproveu la connexió d'alimentació, reinicieu l'interruptor automàtic i verifiqueu el subministrament d'energia. |
| Bidet not spraying water | Water supply valve closed, water filter clogged, user not seated properly. | Open water supply valve, clean/replace water filter, ensure proper seating. |
| Lid/seat not opening automatically | Sensor obstructed, sensor dirty, auto-open feature disabled. | Clear obstructions, clean sensor, check remote settings to enable feature. |
| Flushing issues | Water pressure low, sensor malfunction, manual flush needed. | Check water pressure, clean sensors, use manual flush if necessary. |
If the problem persists after attempting these solutions, please contact Homary customer support.
Especificacions
| Característica | Detall |
|---|---|
| Marca | homenatge |
| Número de model | J02MT000004US |
| Color | Blanc |
| Dimensions del producte (P x A x A) | 26.97" x 16.14" x 18.9" (685 mm x 410 mm x 480 mm) |
| Material (Toilet) | Ceràmica |
| Material (seient) | Polipropilè (PP) |
| Tipus d'instal·lació | Autònom |
| Taxa de flux | 1.32 GPF (galons per descàrrega) |
| Sistema de rentat | Siphon Flush |
| Bidet Water Temperature Settings | Adjustable (e.g., 34°C, 37°C, 40°C) |
| Heated Seat Temperature Settings | Adjustable (e.g., 34°C, 37°C, 40°C) |
| Warm Air Dryer Temperature Settings | Adjustable (e.g., 45°C, 50°C, 55°C) |
| Components inclosos | Smart Bidet Toilet, Remote Control |
Garantia i Suport
Homary provides customer support for any questions or issues you may have regarding your smart toilet.
Informació de contacte:
- Correu electrònic: servei@homary.com
- Temps de servei: Reply within 24 hours (excluding public holidays).
- Please provide your order number when contacting us via email for faster service.
For warranty details, please refer to the warranty card included with your product or visit the official Homary weblloc.
