1. Introducció
This manual provides essential information for the safe installation, operation, and maintenance of your EMKE LED Backlit Bathroom Mirror. Please read this manual thoroughly before installation and retain it for future reference.
2. Instruccions de seguretat
- Seguretat elèctrica: Installation must be performed by a qualified electrician in accordance with local wiring regulations. Ensure the main power supply is disconnected before any installation or maintenance.
- Fragile Product: Mirrors are fragile. Handle with care to prevent breakage and injury.
- Exposició a l'aigua: This mirror is designed for bathroom use (IP44 rated), but avoid direct water spray onto electrical components.
- Endoll per afaitar: The shaver socket is for 2-pin devices only. Do not overload. The integrated fuse provides protection.
- Neteja: Utilitzeu només suaus, damp cloths for cleaning. Avoid abrasive cleaners or harsh chemicals.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:
- EMKE LED Backlit Bathroom Mirror (500x700mm)
- Materials de muntatge (cargols, tacs de paret)
- Manual d'instruccions
Image: The mirror packaging showing the mirror securely packed with an accessories package. This illustrates the careful packaging and included components.
4. Especificacions del producte
| Característica | Detall |
|---|---|
| Dimensions del producte (W x H x D) | 700 x 500 x 35 mm (27.56"W x 19.69"L) |
| Material | 5MM environmentally friendly bronze-free mirror, Crystal Glass, Aluminum frame |
| Font de llum | LED (6000K color temperature) |
| Funcions | LED lighting, Dimmable touch switch, Anti-fog function, Shaver socket |
| Tipus de muntatge | Wall Mount (Horizontal & Vertical options) |
| Classificació IP | IP44 |
| Connexió d'alimentació | Connexió a la xarxa |
| Característiques especials | Integrated Fuse, Energy-efficient LED, Polished edges |
5. Configuració i instal·lació
Important: Installation should be carried out by a qualified electrician. Ensure power is disconnected at the mains before starting.
- Desembalar: Carefully remove the mirror from its packaging. Inspect for any damage.
- Tria la ubicació: Select a suitable wall location, ensuring there is adequate space and access to electrical wiring. The mirror can be mounted horizontally or vertically.
- Marca els punts de perforació: Hold the mirror against the wall in the desired position. Mark the drilling points for the mounting brackets.
- Forats: Perforeu els forats als punts marcats i inseriu-hi els tacs de paret adequats.
- Suports de muntatge: Fixeu els suports de muntatge a la paret amb cargols.
- Connexió elèctrica: Connect the mirror's electrical wiring to the mains supply. Ensure all connections are secure and insulated according to local regulations.
- Mirall penjat: Carefully lift the mirror and hang it onto the mounted brackets. Ensure it is securely seated.
- Prova: Restore power at the mains and test all functions of the mirror.

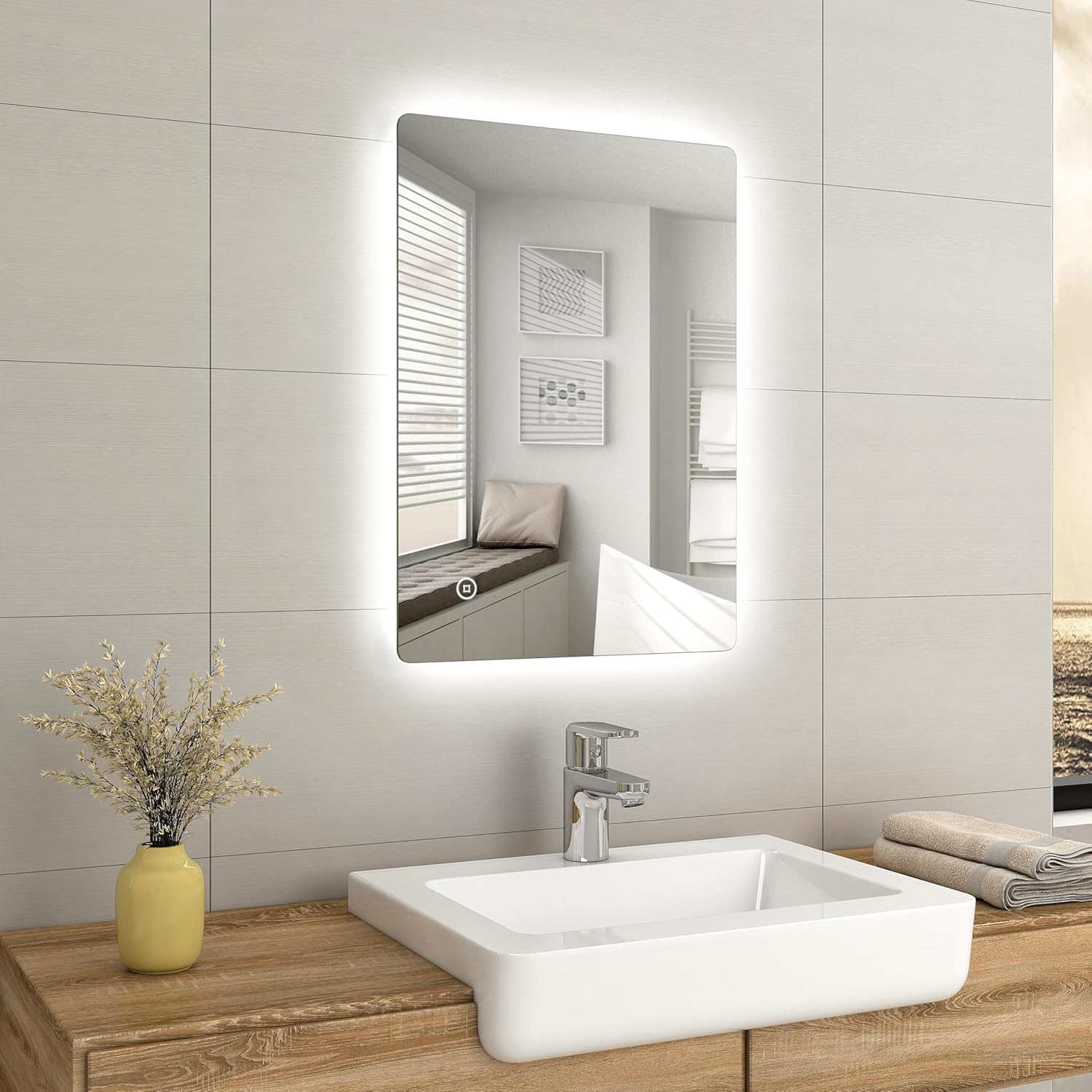

Image: An EMKE LED Backlit Bathroom Mirror (rectangular, 500x700mm) installed vertically above a modern bathroom sink, showcasing its integrated LED lighting.
6. Instruccions de funcionament
6.1 LED Lighting and Demister Function
The mirror features an integrated touch switch for controlling the LED lighting and demister pad.
- Activar/Desactivar: Lightly touch the illuminated circle icon on the mirror surface to turn the LED lights on or off.
- Dimecres: Press and hold the touch switch to adjust the brightness of the LED lights. Release when the desired brightness is achieved.
- Demister: The anti-fog demister pad activates automatically when the LED light is switched on, ensuring a clear reflection after hot showers.
Imatge: Un primer pla view of the touch switch on the mirror surface, showing the illuminated power icon. This demonstrates how to activate the mirror's functions.
Image: An illustration showing the demister pad function, with arrows indicating the clearing of steam from the mirror surface. This highlights the anti-fog capability.
Endoll per afaitar 6.2
The mirror includes an independent shaver socket for charging 2-pin devices.
- Ús: Open the protective cover on the side of the mirror to access the shaver socket. Insert your 2-pin shaver or electric toothbrush charger.
- Protecció de fusibles: The shaver socket is equipped with a fuse to protect against overcurrent.
Imatge: Un costat view of the EMKE mirror revealing the integrated shaver socket, with examples of a shaver and electric toothbrush plugged in. This demonstrates the convenience of the charging feature.
Imatge: Una imatge detallada view of the safety fuse located near the shaver socket, highlighting its protective function. This shows the safety feature of the mirror.
7. Manteniment
- Neteja de la superfície del mirall: Use a soft, lint-free cloth and a mild glass cleaner or water. Spray the cleaner onto the cloth, not directly onto the mirror. Wipe gently to avoid streaks.
- Neteja del marc: Netegeu el marc d'alumini amb un drap suau iamp tela. Eviteu materials abrasius.
- Components elèctrics: Ensure the mirror is disconnected from the power supply before cleaning any electrical parts. Do not use excessive moisture near electrical components.
- Substitució de fusibles: If the shaver socket stops working, the fuse may need replacement. Disconnect power, open the fuse compartment, and replace with a fuse of the same rating. Consult a qualified electrician if unsure.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Els llums LED no s'encenen. | No power supply, loose wiring, faulty touch switch. | Check mains power. Verify electrical connections (consult electrician). Contact support if switch is unresponsive. |
| Demister pad not working. | LED lights not activated, demister element fault. | Ensure LED lights are on. If still not working, contact support. |
| Shaver socket not providing power. | Blown fuse, no power to mirror. | Check and replace the fuse (see Maintenance). Verify mirror has power. |
| Mirror surface is streaky after cleaning. | Incorrect cleaning method or product. | Use a soft, lint-free cloth and a mild glass cleaner applied to the cloth, not directly to the mirror. |
9. Garantia i Suport
EMKE products are designed for quality and durability. For warranty information or technical support, please refer to your purchase documentation or contact EMKE customer service through the retailer where the product was purchased.
When contacting support, please provide your product model (500x700mm) and ASIN (B0DNXRBGFT) for faster assistance.
You can also visit the official EMKE store for more information: EMKE Store on Amazon
