Introducció
This user manual provides comprehensive instructions for the HJC RPHA 1N Joker DC Natural Motorcycle Helmet. It covers essential information regarding the helmet's features, proper usage, maintenance, and safety guidelines. Please read this manual thoroughly before using your helmet to ensure maximum safety and optimal performance.
The HJC RPHA 1N helmet is designed to meet or exceed U.S. Department of Transportation (DOT) FMVSS No. 218 standards, ensuring rigorous testing for energy absorption, penetration resistance, and secure chin strap performance.
Producte acabatview

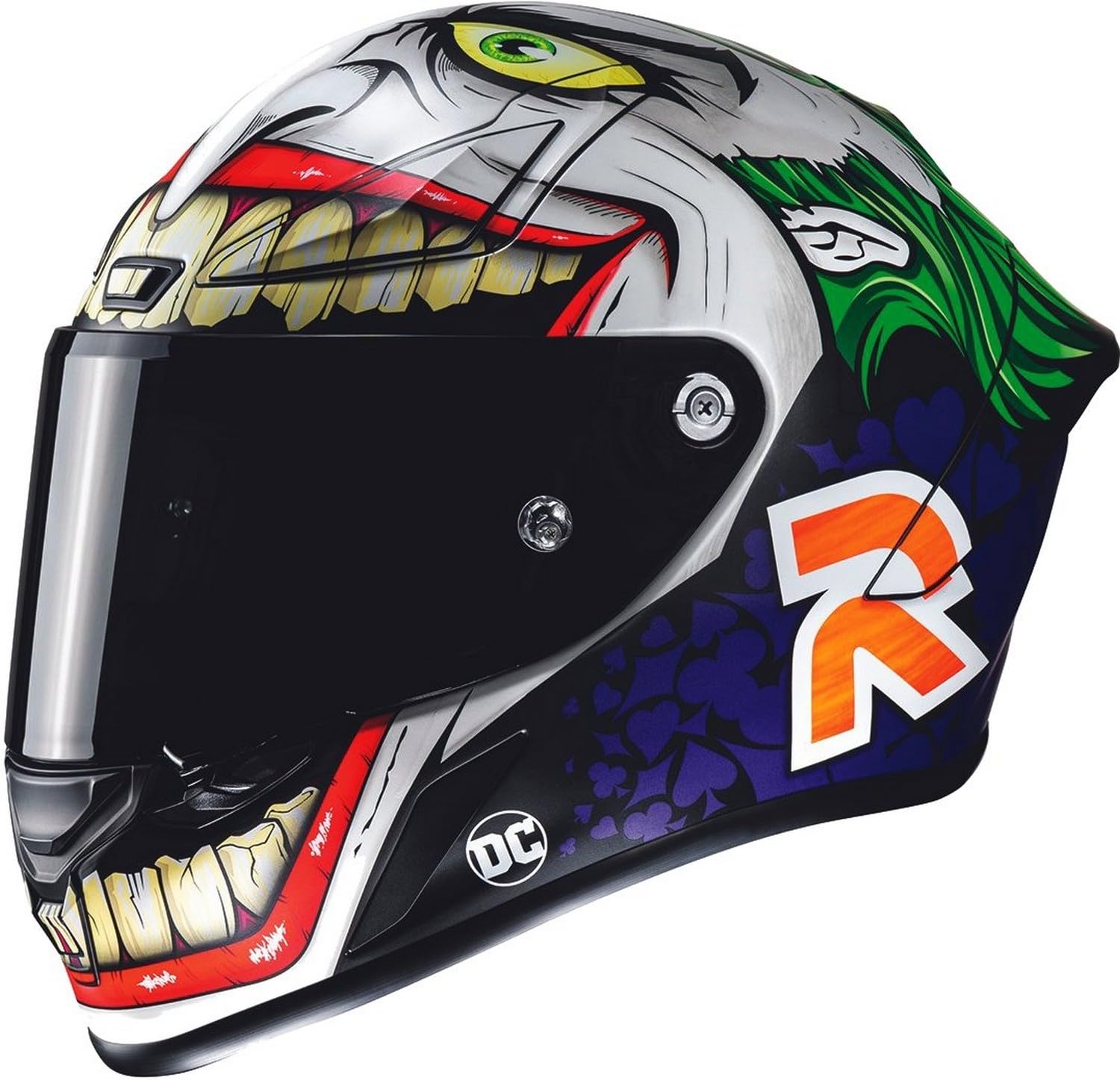

Figura 1: Frontal view of the HJC RPHA 1N Joker DC Natural Motorcycle Helmet, featuring the Joker DC design.
Figura 2: lateral view of the HJC RPHA 1N Joker DC Natural Motorcycle Helmet, showcasing the detailed graphic design.
Característiques principals:
- DOT FMVSS 218 Certified for safety.
- Advanced ventilation system for optimal airflow.
- Comfortable and removable interior liners.
- Eyeglass-friendly design.
- Secure double-ring closure type.
Configuració
1. Visor Installation and Removal:
To remove the visor, open it to the fully upright position. Locate the release mechanism on each side of the helmet near the visor pivot point. Typically, this involves pulling a small tab or pressing a button to disengage the visor from its attachment points. Carefully pull the visor away from the helmet.
To install, align the visor's attachment points with the helmet's pivot mechanism. Ensure the visor is in the fully upright position. Press firmly until you hear a click, indicating it is securely locked in place. Test the visor by moving it up and down to confirm proper installation.
2. Chin Strap Adjustment:
The helmet features a double-ring closure system for a secure fit. To fasten, thread the strap through both D-rings, then back through only the first D-ring. Pull the strap tight until the helmet fits snugly without causing discomfort. The strap should be tight enough that you cannot pull the helmet off your head when fastened.
Instruccions de funcionament
1. Visor Operation:
The visor can be opened and closed by lifting or lowering it. It features a visor lock function to prevent accidental opening at high speeds. To engage the lock, ensure the visor is fully closed and press the small pin located at the bottom center of the visor into its corresponding slot on the helmet. To release, gently pull the pin outwards before lifting the visor.
2. Ventilation System:
The helmet is equipped with adjustable vents to control airflow. Locate the front vent on the chin bar and the top vents on the crown of the helmet. These vents can be opened or closed by sliding the respective levers to allow for optimal ventilation and comfort during your ride.
3. Quick-Release Buckle:
While the primary closure is a double-ring system, some models may feature a quick-release buckle for convenience. To release, pull the red tab on the buckle. Ensure the buckle is securely fastened before riding.
Manteniment
1. Neteja de l'exterior:
Clean the helmet exterior with mild soap and water. Avoid harsh chemicals or abrasive cleaners, as these can damage the helmet's finish or shell material. Use a soft cloth to wipe the surface gently.
2. Liner Care:
The interior liners are designed to be removable and washable. Gently detach the liners from the helmet. Hand wash them with mild soap and cold water, then air dry completely before reinserting them into the helmet. Ensure they are fully dry to prevent mildew or odor.
3. Visor Care:
Clean the visor with a soft cloth and warm water. For stubborn dirt or insects, soak a soft cloth in warm water and place it over the affected area for a few minutes before gently wiping clean. Do not use abrasive materials or chemical cleaners on the visor, as this can scratch or damage the anti-fog/anti-scratch coatings.
Resolució de problemes
1. Visor Fogging:
If your visor fogs up, ensure the helmet's ventilation system is open to promote airflow. Slightly opening the visor to the first detent can also help clear fog. Consider using anti-fog treatments or a Pinlock-ready visor insert (if applicable and available) for enhanced fog resistance.
2. Improper Fit:
A helmet should fit snugly without excessive pressure points. If the helmet feels too loose, it may not provide adequate protection. If it's too tight, it can cause discomfort and headaches. Ensure the chin strap is properly adjusted. If the fit is still incorrect, consult a professional for sizing advice or consider a different helmet size.
3. Excessive Noise:
Excessive wind noise can be caused by an improperly sealed visor or open vents. Ensure the visor is fully closed and locked, and adjust vents as needed. Earplugs are recommended for extended rides to protect hearing.
Especificacions
| Característica | Detall |
|---|---|
| Marca | HJC |
| Nom del model | RPHA 1N Joker DC |
| Tipus de certificat | DOT, FMVSS 218 |
| Esport | Motociclisme |
| Material | Policarbonat (PC) |
| Tipus de tancament | Doble Anell |
| Pes de l'article | 3.46 lliures |
| Dimensions del producte | 15 x 15 x 15 polzades |
| Número de peça del fabricant | 0809-2048-04 |
| ASIN | B0DP3RQPBS |
Què hi ha a la caixa
- RPHA 1N Joker DC Motorcycle Helmet
Additional accessories such as extra visors or helmet bags may be sold separately or included depending on the specific package.
Garantia i Suport
This HJC helmet is designed and manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official HJC weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
For technical support, replacement parts, or further assistance, please contact HJC customer service through their official channels. Always ensure any repairs or modifications are performed by authorized personnel to maintain the helmet's safety integrity and warranty validity.
