HJC C10 Elie Electric Shield Snow Helmet User Manual

1. Informació important de seguretat

This helmet is designed to provide protection in the event of an impact. For your safety, always wear a properly fitted and secured helmet when riding. Failure to follow these instructions may result in serious injury or death.

• DOT FMVSS 218 Compliance: This HJC C10 snow helmet meets or exceeds U.S. Department of Transportation (DOT) FMVSS No. 218 standards. It has been rigorously tested for energy absorption, penetration resistance, and chin strap retention.
• Ajust adequat: Ensure the helmet fits snugly and comfortably. It should not move freely on your head.
• Corretja de barbeta: Always fasten the chin strap securely. The strap should be tight enough so that the helmet cannot be pulled off your head.
• Visibilitat: Maintain clear visibility. Ensure the shield is clean and free from obstructions.
• Inspecció de danys: Inspect your helmet for any signs of damage before each use. If the helmet has sustained an impact, even if no visible damage is present, it should be replaced.
• Productes químics: Avoid contact with petroleum products, cleaning fluids, paints, or adhesives, as these can damage the helmet's materials and compromise its protective capabilities.

2. Producte acabatview

The HJC C10 Elie Electric Shield Snow Helmet is engineered for snowmobiling, offering advanced protection and comfort features.

2.1 Característiques clau

• Aprovat pel DOT: Meets FMVSS 218 standards for safety.
• Electric Shield: HJ-34P shield with 99% UV protection and anti-scratch coating, designed for electric heating to prevent fogging.
• Advanced Polycarbonate Shell: Lightweight, comfortable, and secure fit with an enlarged 10mm sight of view.
• Moisture-Wicking Interior: Premium, hygienic fabric that is removable and washable.
• Advanced Channeling Ventilation System (ACS): Full front-to-back airflow with 5 intake and 7 exhaust vents.
• Bluetooth Communication Ready: Includes speaker pockets for easy integration of communication systems.

2.2 Què hi ha a la caixa

• HJC C10 ELIE Full Face Motorcycle Helmet with Electric Lens
• Electric Shield Power Cord (if applicable, typically included with electric shields)
• Bossa de casc
• Manual d'usuari (aquest document)

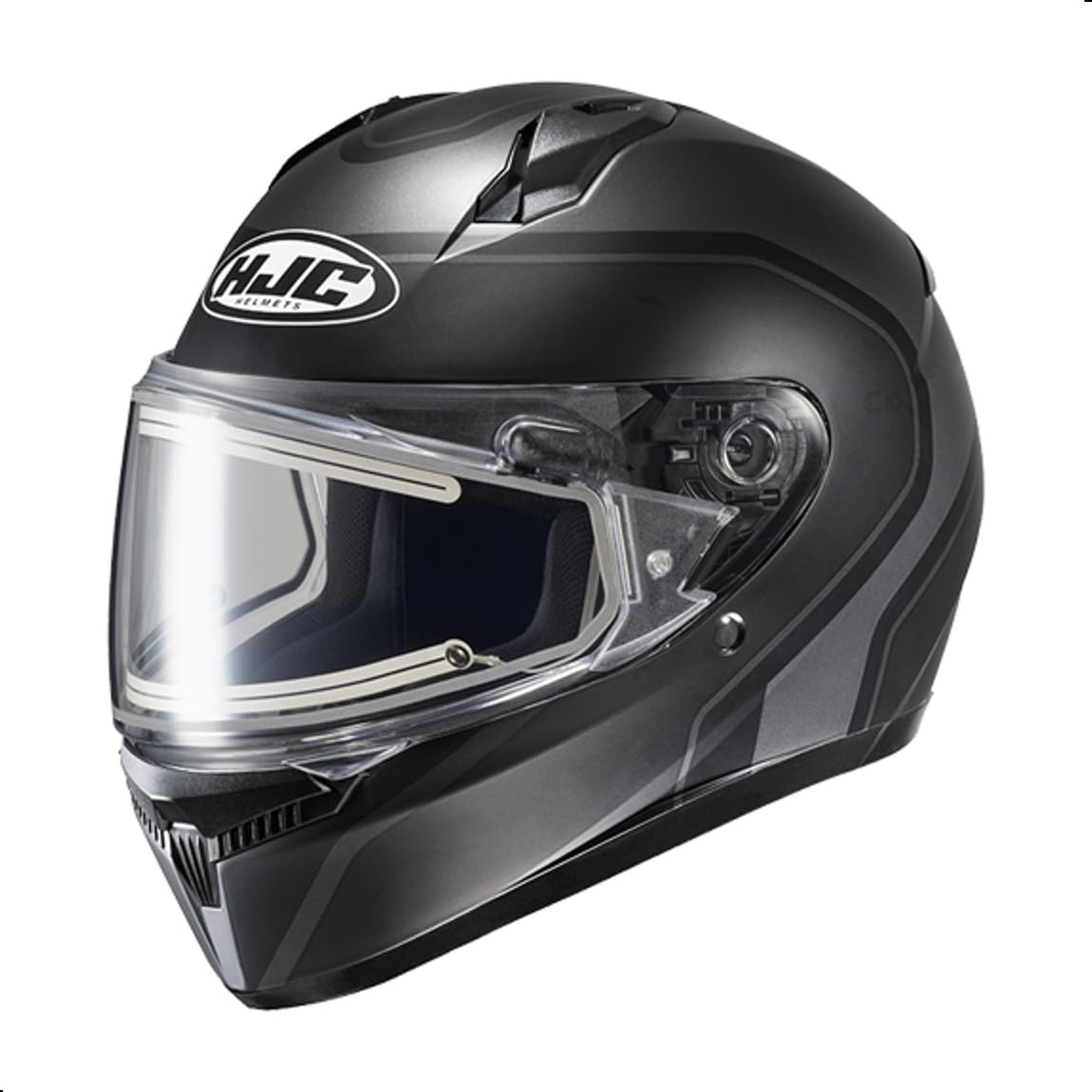

Figura 1: Frontal view of the HJC C10 Elie Electric Shield Snow Helmet. This image shows the overall design and the electric shield in the closed position.

3. Configuració i instal·lació

3.1 Helmet Fitting

1. Mesurar la circumferència del cap: Use a soft tape measure to measure the largest part of your head, approximately one inch above your eyebrows.
2. Try On Helmet: Place the helmet on your head. It should feel snug around your cheeks and crown without causing pressure points.
3. Comprova el moviment: With the chin strap unfastened, try to move the helmet from side to side and up and down. There should be minimal movement.
4. Fixeu la corretja de la barbeta: Secure the chin strap. It should be tight enough that you cannot pull the helmet off your head by rolling it forward or backward.

3.2 Electric Shield Connection

The electric shield prevents fogging by heating the shield surface. Connect it to your snowmobile's power source.

1. Locate the electric shield power cord.
2. Connect one end of the cord to the designated port on the electric shield.
3. Connect the other end of the cord to the 12V power outlet on your snowmobile. Ensure a secure connection.
4. Verify the shield is heating by observing any indicator light or feeling a slight warmth on the shield surface after a few minutes of operation.

3.3 Pinlock Ready HJ-34P Shield Installation (Optional)

If you are installing a Pinlock anti-fog insert (sold separately), follow the instructions provided with the Pinlock insert. The HJ-34P shield is designed to accommodate it.

3.4 Bluetooth Communication System Installation (Optional)

The C10 helmet includes speaker pockets for integrating a Bluetooth communication system. Refer to your communication system's manual for specific installation instructions. Typically, speakers fit into the designated pockets, and the microphone can be routed along the helmet's interior lining.

4. Instruccions de funcionament

4.1 Opening and Closing the Shield

• To open the shield, grasp the tab at the bottom center and lift upwards.
• To close the shield, pull it downwards until it securely latches.
• The shield has multiple detent positions for partial opening.

4.2 Activating the Electric Shield

Once connected to a power source (as described in Section 3.2), the electric shield will begin to heat, preventing fogging. Ensure the power source on your snowmobile is active.

4.3 Ventilation System (ACS)

The Advanced Channeling Ventilation System (ACS) provides airflow through the helmet.

• Intake Vents: Located at the front (chin and forehead). Open these vents to allow fresh air into the helmet.
• Vendes d'escapament: Located at the rear. These vents allow warm, moist air to exit the helmet. They are typically always open or have minimal adjustment.
• Adjust the intake vents as needed to control airflow and maintain comfort.

5. Manteniment i cura

5.1 Neteja de la carcassa del casc

• Utilitzeu un drap suau dampacabat amb aigua i sabó suau.
• Wipe the exterior gently. Avoid abrasive cleaners or solvents.
• Rinse with clean water and dry with a soft, clean cloth.

5.2 Cleaning the Electric Shield

• Disconnect the electric shield power cord before cleaning.
• Utilitzeu un suau, damp cloth and mild soap. Gently wipe the shield.
• Esbandiu bé amb aigua neta.
• Dry with a soft, lint-free cloth. Do not use abrasive materials, as this can damage the anti-scratch coating.
• For stubborn dirt, soak a soft cloth in warm water and place it over the affected area for a few minutes to loosen debris before wiping.

5.3 Cleaning the Interior Pads

The crown and cheek pads are removable and washable.

1. Carefully remove the crown and cheek pads from the helmet.
2. Hand wash in cold water with a mild detergent. Do not use bleach or harsh chemicals.
3. Rinse thoroughly and air dry completely before re-installing. Do not machine wash or tumble dry.
4. Re-install the pads, ensuring they are correctly seated and secured.

5.4 Emmagatzematge

Store your helmet in a cool, dry place away from direct sunlight and extreme temperatures. Use the provided helmet bag to protect it from scratches and dust.

6. Solució De Problemes

6.1 Electric Shield Not Heating

• Comproveu les connexions: Ensure the power cord is securely connected to both the shield and the snowmobile's power outlet.
• Verifica la font d'alimentació: Confirm that the snowmobile's 12V power outlet is functioning. Test with another device if possible.
• Inspeccioneu el cable: Comproveu si el cable d'alimentació presenta danys o doblecs visibles.

6.2 Helmet Fogging (Non-Electric Shield Issues)

• Ajustar les reixetes de ventilació: Open the intake and exhaust vents to increase airflow.
• Check Breath Deflector: Ensure the breath deflector (if installed) is properly positioned to direct breath away from the shield.
• Pinlock Insert: If fogging persists, consider installing a Pinlock anti-fog insert (sold separately).

6.3 Helmet Feels Too Tight or Loose

• Re-evaluate Fit: Re-check the helmet fitting instructions in Section 3.1.
• Corretja de barbeta: Ensure the chin strap is properly adjusted and secured.
• Desgast de les coixinetes: Over time, interior pads may compress. If the helmet becomes too loose, consider replacing the pads or the helmet.

7. Especificacions

8. Garantia i Suport

HJC helmets typically come with a manufacturer's warranty covering defects in materials and workmanship. For specific warranty details, including duration and coverage, please refer to the warranty card included with your helmet or visit the official HJC weblloc.

For technical support, parts, or warranty claims, please contact HJC customer service directly. Contact information can usually be found on the HJC weblloc web o a l'embalatge del producte.

Note: This manual provides general instructions. Always refer to the latest information from the manufacturer for the most accurate and up-to-date details.

9. Vídeos oficials de productes

No official product videos from the seller were found in the provided data for this specific model. Please check the manufacturer's official website or authorized retailers for any available video resources.
